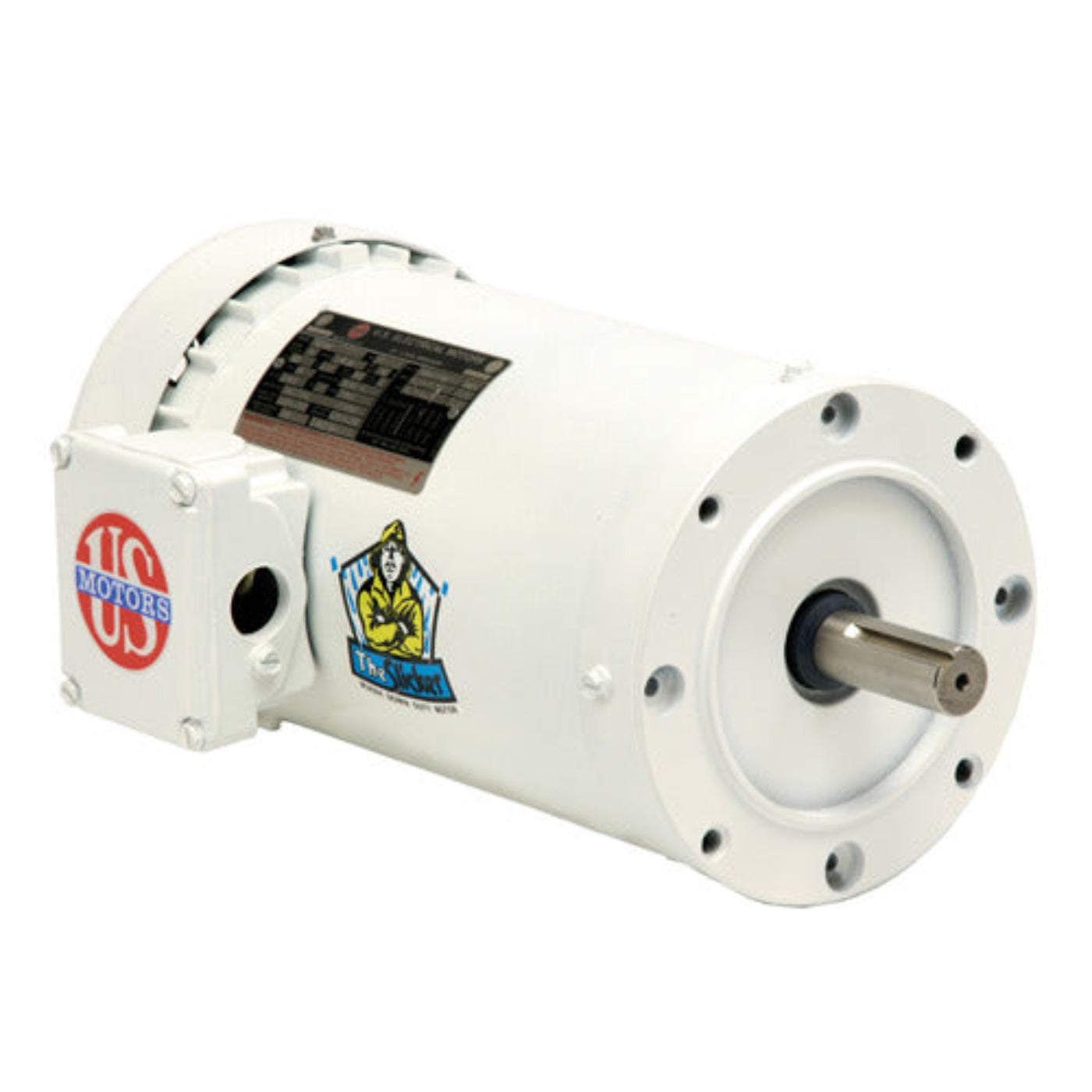

US-Nidec WD34S2ACR White Epoxy Washdown Motor 3/4 HP TENV C-Face / Footless - WD34S2ACR
The US-Nidec WD34S2ACR White Epoxy Washdown Motor is designed for reliable performance in harsh environments. This motor has a power rating of three-fourths horsepower and operates on three-phase current. It features a totally enclosed non-ventilated (TENV) design, allowing it to withstand exposure to moisture and chemicals commonly found in washdown applications.
Product Highlights
Durable motor suitable for wet and harsh environments. Ideal for agricultural, food processing, and industrial applications where exposure to water is likely.
Features
- Electrical Type: Three Phase
- Frame Size: 56
- Voltage: 208-230/460
Specifications
| Horsepower |
3/4 HP |
| Bearings Type |
Ball / Ball |
| Amperage |
2.6-2.4/1.2 A |
| Mounting Type |
C-Face / Footless |
| Rotation |
REV (Reversible) |
| Material |
Rolled Steel |
| Insulation Class |
F |
| Efficiency |
82.50% |
| Motor Type |
Washdown Duty |
| Enclosure Type |
TENV (Totally Enclosed Non-Ventilated) |
What our Experts Think
-
Engineered for Harsh Environments: The WD34S2ACR is built with a white epoxy-coated finish for superior protection against moisture, chemicals, and corrosion—perfect for food processing, pharmaceutical, and sanitary environments.
-
Totally Enclosed Non-Ventilated (TENV): The TENV enclosure offers enhanced durability by sealing out contaminants, making it ideal for washdown conditions where cleanliness and hygiene are critical.
-
Compact & Versatile Mounting: With a C-Face and footless design, this motor easily integrates into tight spaces and direct-drive applications.
-
Reliable 3/4 HP Output: Offers steady, energy-efficient power, suited for conveyor systems, mixers, and other equipment demanding consistent torque and speed.
-
US-Nidec Quality Assurance: Backed by a leading name in electric motor innovation, the WD34S2ACR provides rugged, long-term performance in demanding industrial settings.
Q&A
Q: What is the US-Nidec WD34S2ACR motor used for?
A: The WD34S2ACR is a washdown-duty motor designed for wet, high-hygiene environments like food processing, beverage production, and pharmaceutical facilities.
Q: What are the key specifications of the WD34S2ACR motor?
A: This motor delivers 3/4 HP, features a Totally Enclosed Non-Ventilated (TENV) enclosure, and has a C-Face, footless mount for direct coupling to equipment.
Q: What does “washdown duty” mean for the WD34S2ACR?
A: “Washdown duty” means the motor is protected against water, chemicals, and cleaning procedures—ideal for sanitary environments. The white epoxy coating enhances corrosion resistance and cleanability.
Q: What does TENV mean for this motor?
A: TENV (Totally Enclosed Non-Ventilated) means the motor is sealed to prevent entry of moisture or contaminants. It relies on surface cooling and is perfect for clean-in-place (CIP) operations.
Q: Where is the WD34S2ACR best suited?
A: It’s best for food and beverage plants, pharma manufacturing, or any wet, corrosive, or clean-room environment where reliable, hygienic operation is crucial.
Maintenance Tips
-
Clean Regularly with Mild Detergent:
Wipe down with a non-abrasive cloth and mild detergent. Avoid high-pressure jets near seals. The white epoxy coating resists corrosion but should still be cleaned gently to preserve finish.
-
Avoid Direct Water Intrusion:
As a Totally Enclosed Non-Ventilated (TENV) motor, it’s sealed but not waterproof. Avoid spraying directly at the shaft or junction box to prevent moisture ingress.
-
Inspect Seals and Gaskets:
Check shaft seals and gaskets regularly for wear or cracks to maintain watertight integrity—especially important in washdown environments.
-
Check Electrical Connections:
Ensure all wiring is tight, dry, and free of corrosion. Moist environments increase the risk of connection failure—use sealed connectors rated for washdown duty.
-
Monitor for Noise or Vibration:
Unusual noise or vibration can signal misalignment or bearing issues. Address these promptly to avoid internal damage.
-
Verify Grounding:
Ensure proper grounding for safety and to prevent damage from electrical surges—especially important in wet or corrosive areas.
-
Use in Proper Conditions:
Operate within rated temperature and humidity ranges. TENV motors are not ideal for hot, enclosed environments without airflow.
-
Routine Inspection:
Regularly check for cracks in the epoxy coating and signs of rust or pitting, which can compromise hygiene and protection.
