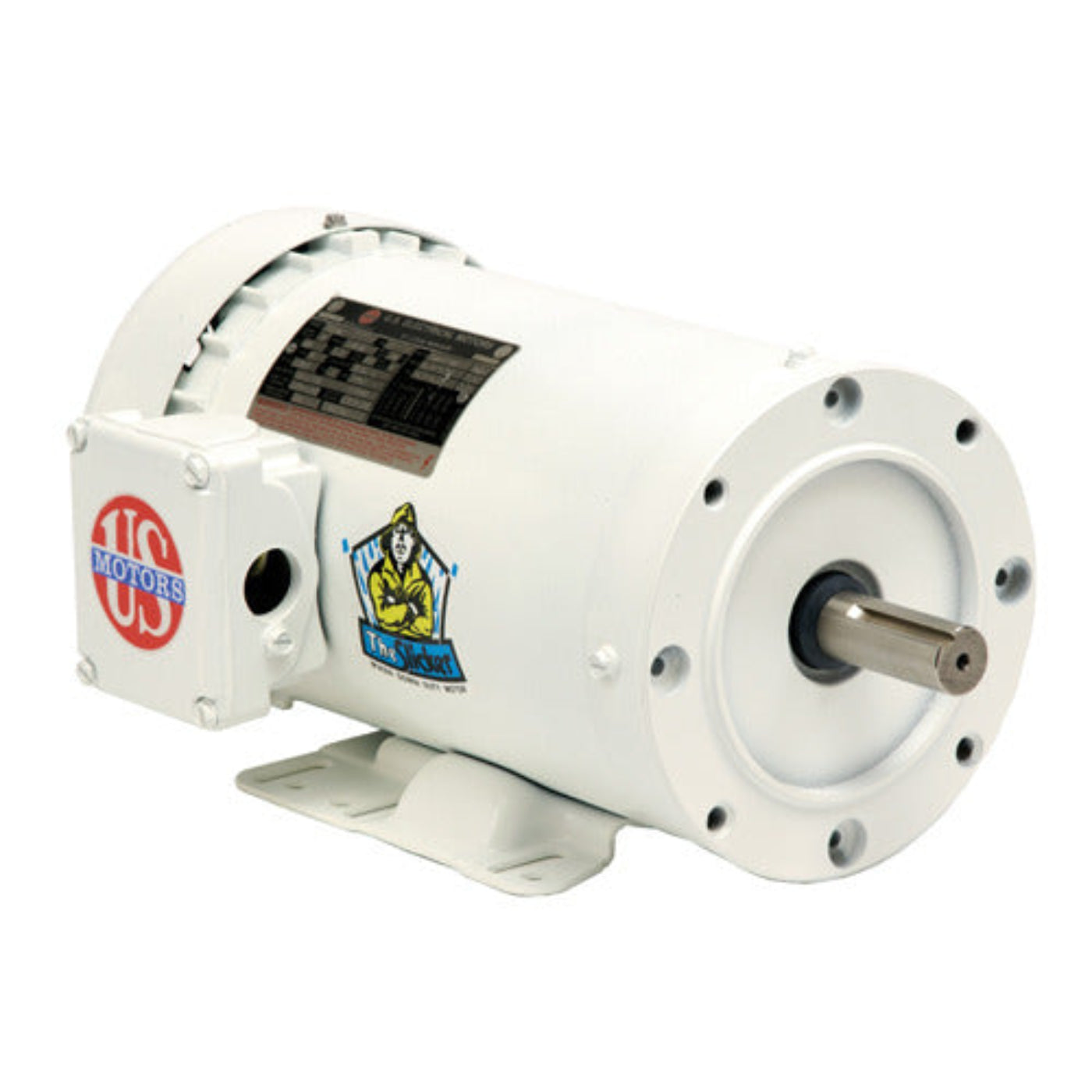

US-Nidec WD5P1DC White Epoxy Washdown Motor 5HP 3600RPM - WD5P1DC

US-Nidec WD5P1DC White Epoxy Washdown Motor 5HP 3600RPM - WD5P1DC

The US-Nidec WD5P1DC White Epoxy Washdown Motor is designed for robust performance in various demanding industrial environments. This motor is highly durable and suitable for applications requiring efficient washdown capabilities.

Product Highlights

The US-Nidec WD5P1DC motor features a white epoxy coating that provides excellent corrosion resistance, making it ideal for wet and harsh environments.

Features

• US-Nidec brand
• 5 horsepower
• 3600 RPM speed

Specifications

What our Experts Think

• Strong 5HP Output:
  Delivers consistent power at 3600 RPM, ideal for tough industrial washdown environments.

• Multi-Voltage Compatibility:
  Operates on 208-230/460V, 3-phase, 60 Hz—perfect for various commercial and manufacturing setups.

• Corrosion-Resistant Finish:
  Coated in a white epoxy washdown finish for superior protection in wet or chemically harsh conditions.

• Durable Frame Design:
  Built with a rolled steel NEMA 184TC frame, offering reliable structural integrity under demanding use.

• TEFC Enclosure:
  Totally Enclosed Fan Cooled (TEFC) housing keeps out water and debris, ensuring longer motor life.

• High Operational Efficiency:
  Operates at 89.5% efficiency—energy-saving and cost-effective over long-term use.

• Precision Bearings:
  Equipped with high-quality ball bearings (6205-2RS-J/C3 and 6206-2RS-J/C3) for smooth, stable operation.

• Flexible Mounting:
  C-Face with footed mounting simplifies installation and integration into existing systems.

• Reversible Rotation & Thermal Protection:
  Features reversible motor direction and Class F insulation with a 1.15 service factor—built to withstand heat and heavy loads.

Q&A

Q: What is the US-Nidec WD5P1DC Washdown Motor?
A: It’s a 5 HP, 3600 RPM, white epoxy-coated washdown-duty motor built for high-performance in wet, corrosive, and sanitary environments.

Q: What are the key features of this motor?
A: The motor features a rolled steel 184TC frame, TEFC enclosure, white epoxy finish, and is built for 208-230/460V, 3-phase operation with a 1.15 service factor and 89.5% efficiency.

Q: What makes it suitable for washdown environments?
A: Its white epoxy coating and TEFC design protect against moisture, chemicals, and contaminants—ideal for food, beverage, and pharmaceutical applications.

Q: What type of mounting does it support?
A: It supports C-Face with foot mounting for easy integration into various systems.

Q: Who should use the WD5P1DC motor?
A: Perfect for industrial professionals needing a durable, hygienic motor for washdown-rated applications with reliable 5 HP power.

Maintenance Tips

1. Routine Cleaning

• After each use, clean the motor to remove dust, debris, and any material residues.

• Use a soft brush or cloth to clean the surfaces.

• Wipe all parts dry to prevent moisture buildup.

2. Structural Inspections

• Periodically inspect the motor for signs of wear or damage.

• Check for rust, bent components, or any structural issues.

• Address any issues promptly to maintain safety and functionality.

3. Lubrication

• Lubricate moving parts, such as the bearings, to ensure smooth operation.

• Use a suitable lubricant that does not attract excessive dust or debris.

4. Electrical Connections

• Ensure that all electrical connections are secure and free from corrosion.

• Check the wiring for any signs of wear or damage and replace them if necessary.

5. Storage

• Store the motor in a dry, clean environment to prevent rust and corrosion.

• If storing for extended periods, consider applying a protective coating to metal parts.
