US-Nidec WD5P2DC White Epoxy Washdown Motor 5HP TEFC Three Phase 184TC - WD5P2DC

US-Nidec WD5P2DC White Epoxy Washdown Motor 5HP TEFC Three Phase 184TC - WD5P2DC

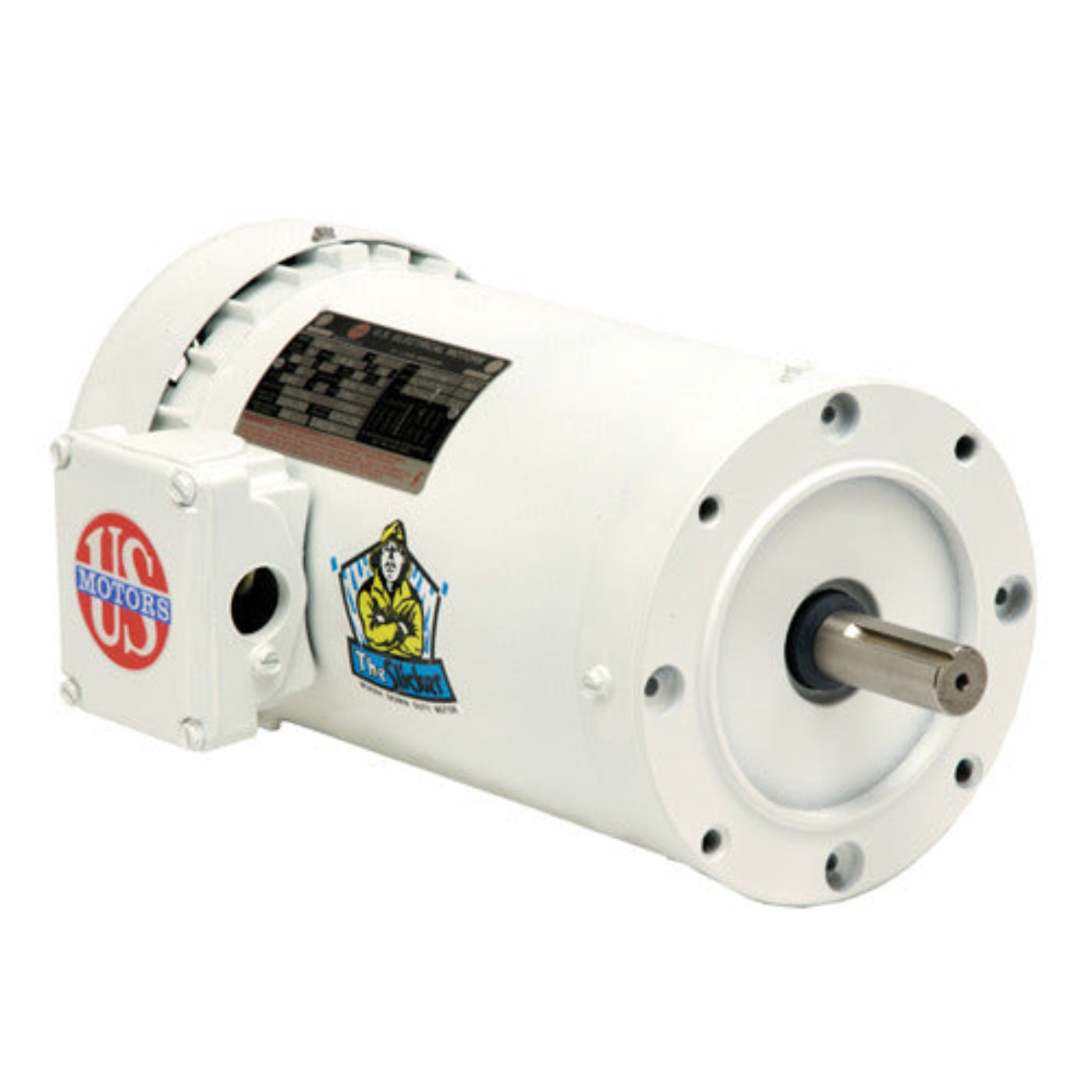

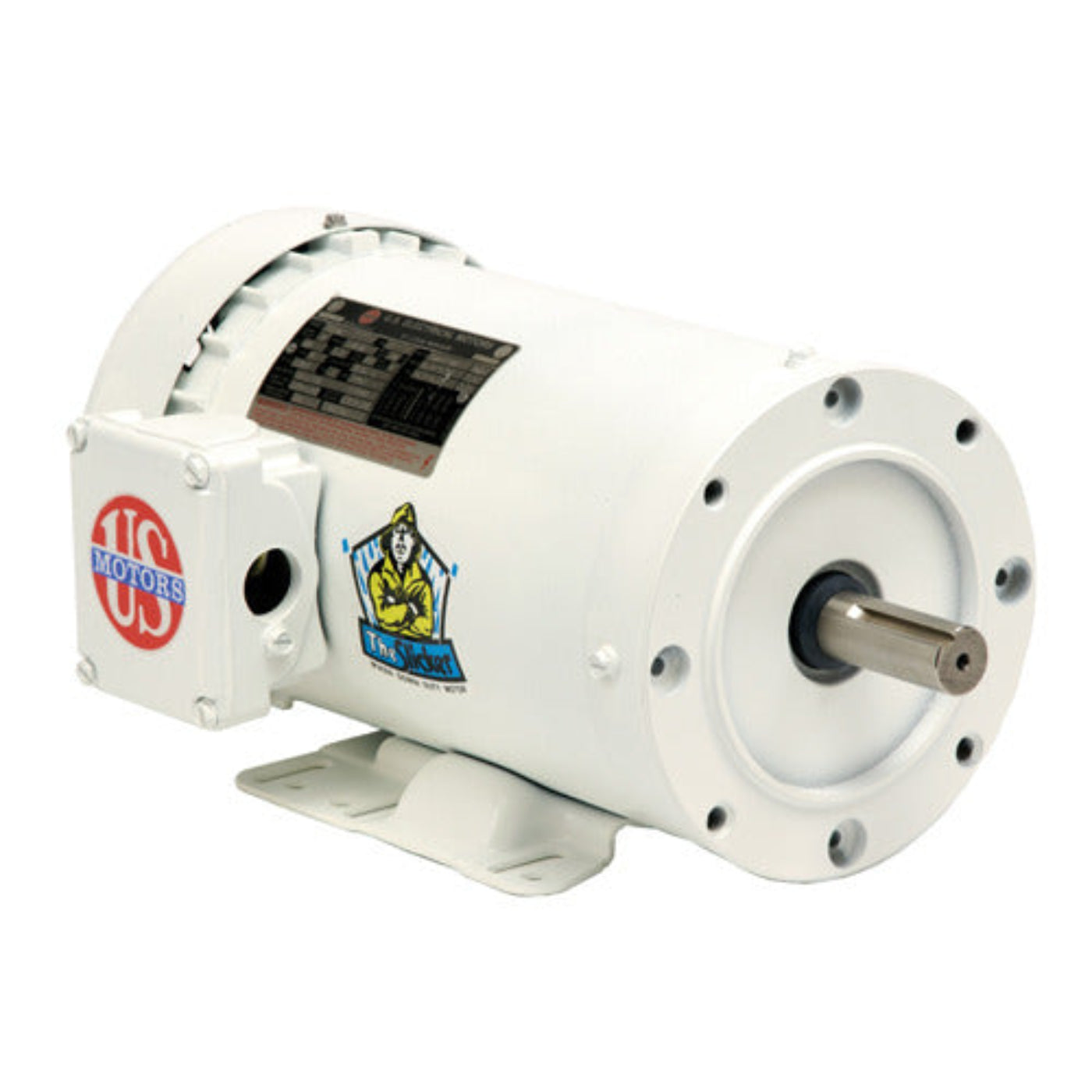

The US-Nidec WD5P2DC White Epoxy Washdown Motor offers a dependable solution for industrial applications. Designed to handle rigorous washdown environments, this 5 horsepower motor features a TEFC enclosure and a Three Phase configuration.

Product Highlights

This motor is built with rolled steel material and ball bearings, ensuring longevity and efficiency in challenging conditions. The white epoxy coating provides protection against corrosion.

Features

• 5 Horsepower motor
• TEFC enclosure
• 184TC frame size

Specifications

What our Experts Think

• 5 HP Output:
  Delivers consistent and reliable performance at 1800 RPM, perfect for demanding industrial tasks.

• Wide Voltage Compatibility:
  Operates on 208-230/460V, 3-phase, 60 Hz, suitable for a wide range of power systems and environments.

• Totally Enclosed Fan Cooled (TEFC) Enclosure:
  Protects the motor from dust, dirt, and moisture, ensuring longevity and high performance in tough conditions.

• C-Face Footed Mounting:
  Easy to integrate into existing systems with its footed C-face, offering flexible and secure installation.

• High Efficiency:
  Runs at an efficiency of 89.5%, minimizing energy consumption and reducing operating costs.

• Durable Construction:
  Built with a rolled steel frame, providing robust performance in industrial settings.

• Class F Insulation:
  Offers thermal protection to extend the motor’s lifespan and reduce the risk of overheating.

• Reversible Rotation:
  Provides flexibility during installation with reversible rotation, ensuring compatibility with various setups.

Q&A

Q: Why should I choose the WD5P2DC motor for my application?
A: The WD5P2DC motor offers superior protection in wet and corrosive environments. Its high efficiency ensures energy savings, while the durable TEFC construction reduces downtime, extending the motor's lifespan. With its corrosion-resistant epoxy coating, it’s built to handle the most demanding washdown conditions while maintaining reliable performance.

Q: Is the WD5P2DC motor energy-efficient?
A: Yes, the motor has an efficiency rating of 89.5%, which helps reduce energy consumption and operational costs. It’s designed to perform efficiently while delivering consistent power to industrial systems.

Q: How easy is it to install the WD5P2DC motor?
A: The WD5P2DC features a C-Face with foot mounting, which allows for easy and flexible installation. It is compatible with standard industrial systems, making it simple to integrate into existing equipment with minimal downtime.

Q: What kind of maintenance is required for the WD5P2DC motor?
A: The motor is designed for minimal maintenance thanks to its sealed construction and durable materials. Regular cleaning to ensure the epoxy coating remains intact and checking for wear on bearings and seals is recommended to keep the motor running efficiently.

Maintenance Tips

1. Regular Cleaning

• Clean the motor's exterior with a soft cloth to remove dust and debris.

• Avoid using water or chemicals, as moisture can lead to corrosion and electrical issues.

2. Electrical Inspections

• Ensure all electrical connections are secure and free from corrosion.

• Inspect the wiring for any signs of wear or damage and replace if necessary.

3. Lubrication

• Lubricate the motor’s bearings according to the manufacturer's guidelines to ensure smooth operation.

• Use a suitable lubricant that doesn't attract excessive dust.

4. Structural Inspections

• Periodically inspect the motor for wear or damage.

• Look for rust, bent components, or structural issues and address them promptly.
