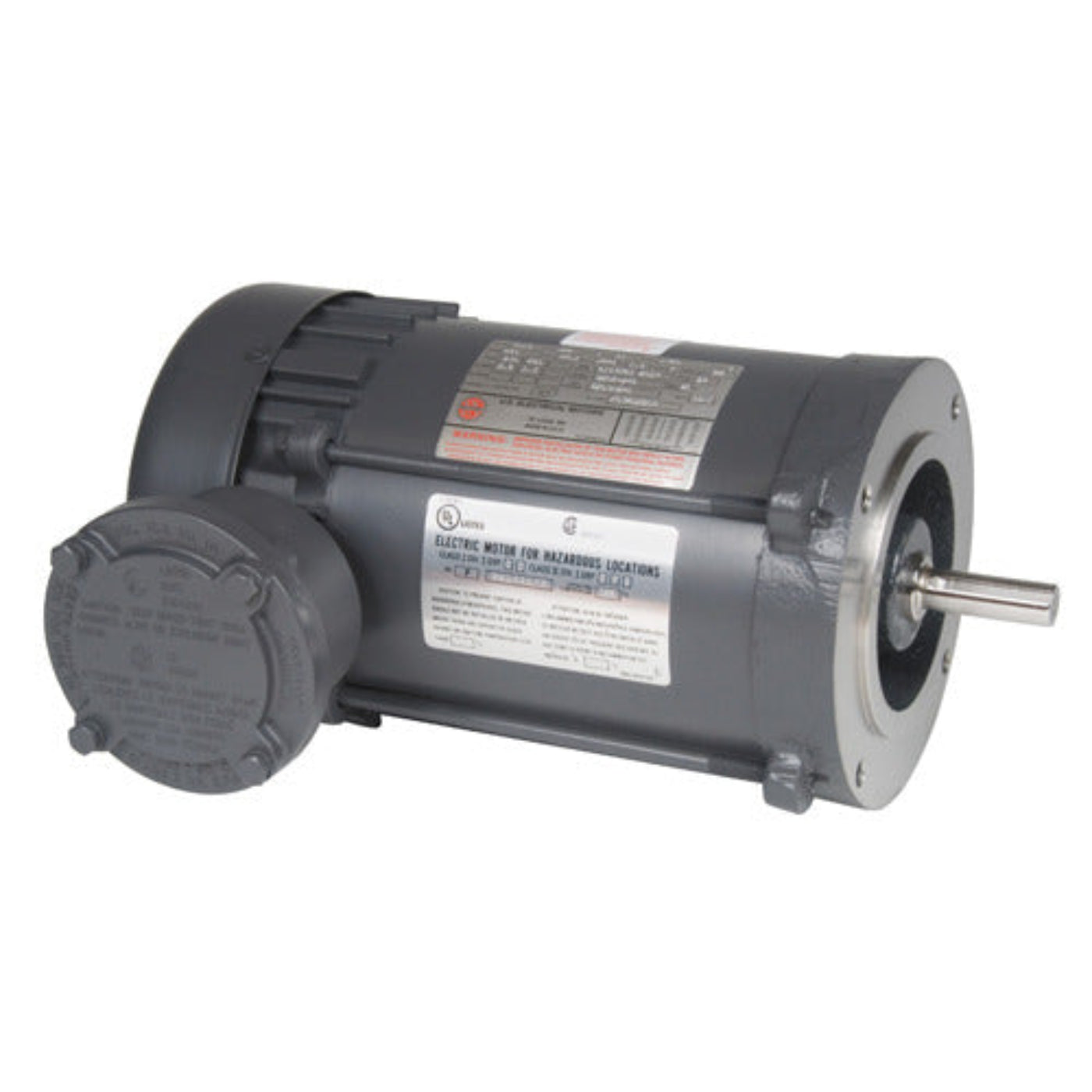

U.S. Motors XS14CA3P Motor, 1/4HP, 1140RPM, 115/230V, 60HZ - XS14CA3P
The U.S. Motors XS14CA3P is a hazardous location motor designed for tough environments. This single-phase motor operates at one-fourth horsepower and has a nameplate RPM of one thousand one hundred forty. With voltage options of one hundred fifteen and two hundred thirty volts AC, it is suitable for various applications.
Product Highlights
This motor features auto thermal protection and is built for continuous duty. The totally enclosed fan-cooled (TEFC) design ensures reliable performance in hazardous locations.
Features
- Category: Motors -- Definite Purpose AC Motors
- Type: Explosion Proof Motor
- Weight: thirty-four pounds
Specifications
| Horsepower |
1/4 HP |
| RPM |
1140 RPM |
| Full Load Amps |
6.8 A / 3.4 A |
| Insulation Class |
B |
| Hazardous Location Class |
1 C,D / 2 E,F,G |
| Max Ambient Temperature |
40°C |
| Shaft Diameter |
5/8 inches |
| Duty Cycle |
Continuous |
| Voltage |
115V to 230V AC |
| Frame |
56C |
What our Experts Think
-
Reliable Power: Delivers 1/4 HP at 1140 RPM, ideal for HVAC, blower, and fan applications requiring steady and efficient performance.
-
Versatile Voltage: Operates on 115/230V single-phase systems, making it compatible with common industrial power setups.
-
Durable Build: Features a 56 frame with a Totally Enclosed Fan Cooled (TEFC) design, offering protection from dust and moisture.
-
Continuous Duty: Built for continuous operation, providing reliable performance over long periods.
-
Energy Efficient: Designed to reduce energy consumption, contributing to cost savings over time.
-
Flexible Mounting: Features rigid base mounting, making installation easy and convenient.
-
Trusted Quality: Manufactured by U.S. Motors (Nidec), known for high-performance and durable motors.
-
Clearance Opportunity: Available at a reduced price, offering great value without compromising quality.
Q&A
Q: What are the advantages of the Totally Enclosed Fan-Cooled (TEFC) design?
A: The TEFC design offers enhanced durability and protection for the motor, making it suitable for environments where dust, dirt, moisture, or debris are present. It also helps the motor operate more quietly and efficiently by keeping internal components well-protected and maintaining a cooler operating temperature.
Q: What applications is the XS14CA3P motor suitable for?
A: The XS14CA3P motor is suitable for a wide range of applications, including:
-
Air compressors
-
Pumps (water, oil, and other liquids)
-
Blowers and fans
-
Conveyors
-
Industrial machinery This motor is particularly ideal for equipment operating in hazardous locations, including Class I, Groups C and D, and Class II, Groups E, F, and G environments, as it is designed to meet safety standards for such areas.
Q: How does the XS14CA3P motor perform in harsh conditions?
A: The motor's TEFC construction and high service factor make it well-suited for operation in environments where exposure to dust, moisture, and temperature fluctuations could affect performance. The automatic thermal protection prevents overheating, and the reversible rotation feature allows for flexibility in installation.
Q: Is this motor energy-efficient?
A: Yes, the XS14CA3P motor is designed for energy-efficient operation, especially in continuous-duty applications. Its TEFC design helps in reducing energy losses by maintaining consistent operation and preventing overheating.
Q: Is the XS14CA3P motor easy to install?
A: Yes, the motor is designed for easy installation with a rigid base mount and a standard 56C frame, which makes it compatible with many existing setups. The reversible rotation feature offers added flexibility depending on the application.
Q: What is the warranty period for the XS14CA3P motor?
A: The motor typically comes with a 1-year manufacturer’s warranty, ensuring reliability and peace of mind. It covers defects in material and workmanship under normal operating conditions.
Q: Where can I purchase the XS14CA3P motor?
A: The XS14CA3P motor can be purchased through industrial equipment suppliers, distributors, or directly from authorized dealers of U.S. Motors. It's recommended to compare prices and availability to get the best deal for your needs.
Maintenance Tips
-
Regular Inspection: Check for signs of wear, corrosion, or overheating.
-
Cleaning: Keep the motor and surrounding area free from dirt and debris.
-
Lubrication: Ensure bearings are properly lubricated to reduce wear.
-
Electrical Checks: Monitor voltage and current to ensure they are within specified limits.
-
Storage: If the motor is not in use, store it in a dry, clean environment to prevent deterioration.
