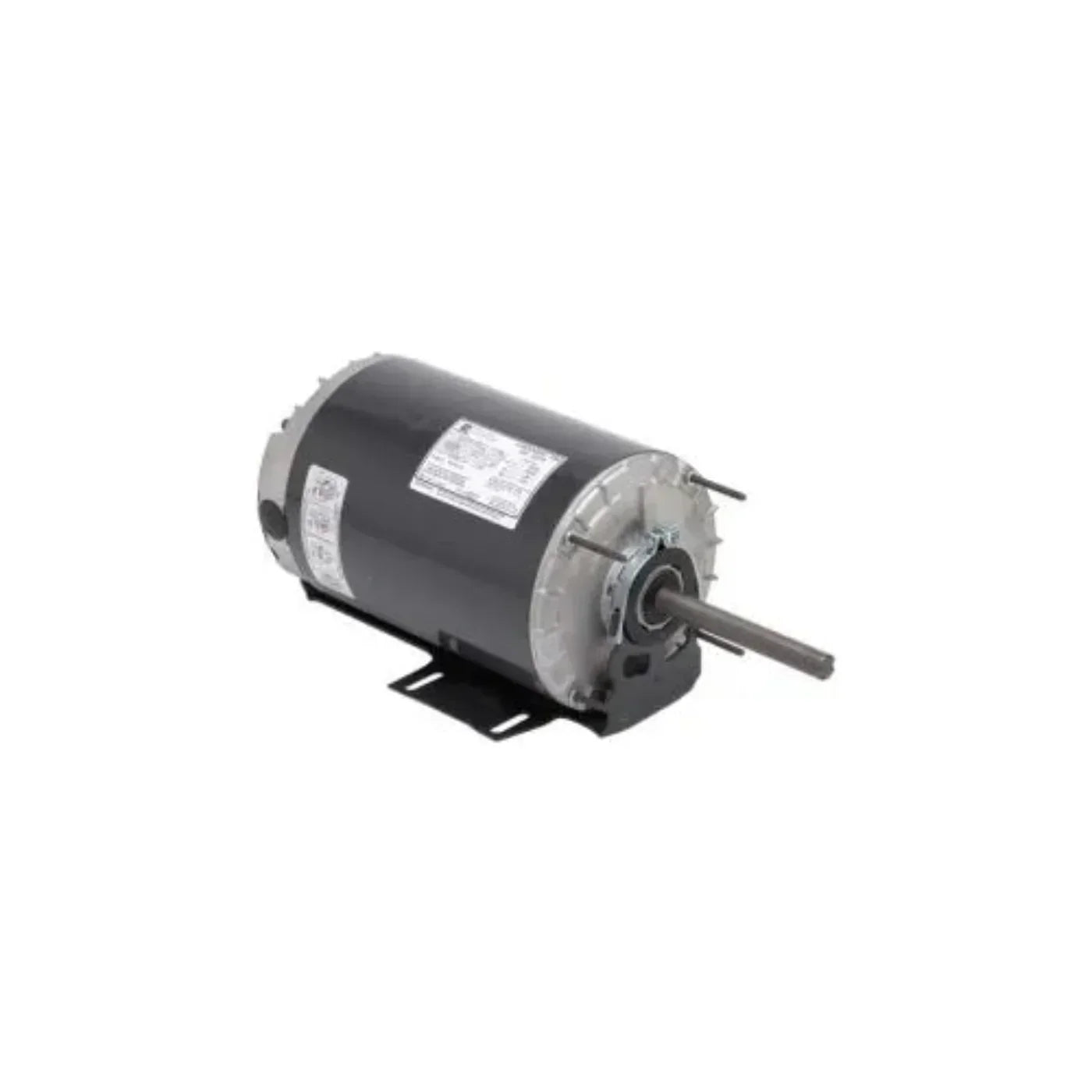

U.S. Motors 2686 HVAC Single Phase TEAO Resilient Motor 1 hp 1200 rpm 2686 - 2686
The U.S. Motors 2686 is a single phase HVAC motor designed for various heating and cooling applications. This motor is rated at one horsepower and operates at a speed of one thousand two hundred revolutions per minute. It features a TEAO enclosure, which provides durability and protection in various environments.
Product Highlights
This motor finds applications in HVAC systems, particularly as a condenser fan motor. The resilient mounting allows for effective vibration dampening, which enhances performance and lifespan.
Features
- Single phase HVAC motor
- Power: 1 hp, 1200 rpm
- Durable TEAO enclosure
Specifications
| Motor Type |
HVAC, Condenser Fan Motor |
| Horsepower |
1/3 HP |
| Duty |
Continuous Duty |
| Voltage Rating |
208-230/460V |
| Full Load Amps |
5.1/2.6 A |
| Insulation Class |
B |
| Frame Size |
56, 56Z |
| Motor Application |
HVAC, Condenser Fan |
| Weight |
38.0 LB |
| C Dimension |
15.8 in |
| Brand |
U.S. Motors |
| MPN |
2686 |
What our Experts Think
-
Reliable Performance: Delivers 1 HP at 1200 RPM, ideal for HVAC condenser fan and air circulation applications.
-
Versatile Voltage: Operates on 208-230V, 60 Hz systems, compatible with a range of installations.
-
Durable Design: Features a 56Z frame and a TEAO (Totally Enclosed Air Over) enclosure for increased longevity and protection in challenging environments.
-
Efficient Operation: Equipped with Permanent Split Capacitor (PSC) for energy-efficient performance and consistent operation.
-
Maintenance-Friendly: Includes double-sealed ball bearings and a resilient base mount, making installation and maintenance easier.
Q&A
Q: What are the benefits of the TEAO enclosure?
A: The TEAO enclosure offers protection from external contaminants like dust and moisture while allowing air circulation for cooling, making it ideal for use in HVAC systems where such conditions are common.
Q: Is the 2686 motor reversible?
A: Yes, the motor supports reversible rotation, offering flexibility for different installation orientations and applications.
Q: What is the duty rating of the 2686 motor?
A: The motor is rated for continuous duty, meaning it can run continuously without overheating under normal operating conditions.
Q: Does the 2686 motor have thermal protection?
A: Yes, the motor comes with automatic reset thermal protection to prevent damage from overheating.
Maintenance Tips
-
Regular Inspections: Check for unusual vibrations, noises, or overheating.
-
Clean Air Vents: Ensure the Totally Enclosed Air Over (TEAO) enclosure remains free from debris to maintain proper airflow.
-
Lubrication: Apply manufacturer-recommended lubricants to ball bearings as per guidelines to reduce friction and wear.
-
Monitor Operating Conditions: Regularly monitor motor temperature, voltage, and current to ensure optimal performance.
-
Check Alignment: Ensure proper alignment with driven equipment to avoid stress and premature wear.
-
Inspect Electrical Components: Tighten electrical connections and inspect cables for signs of damage.
-
Replace Filters: If applicable, replace air or oil filters to prevent contaminants from affecting performance.
