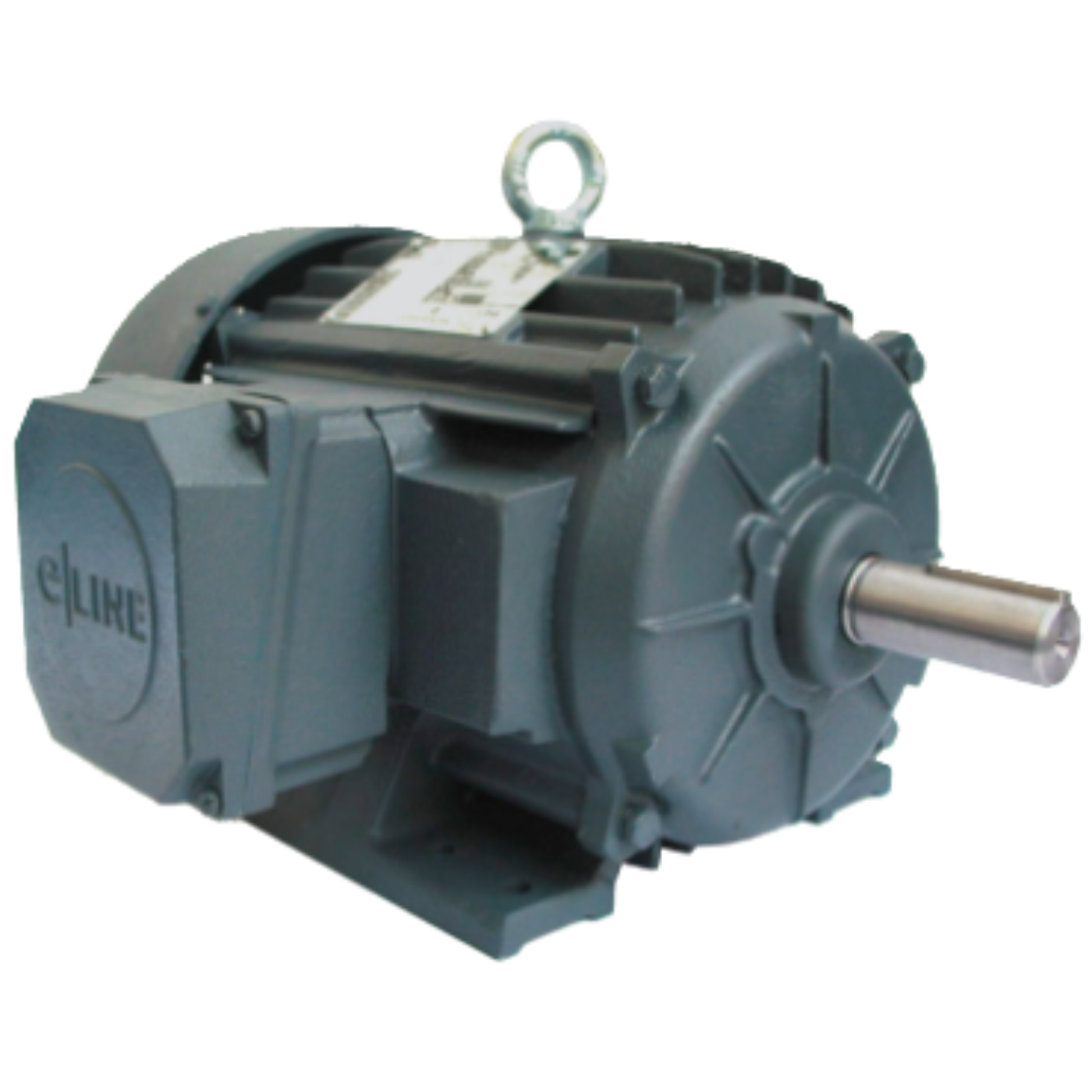

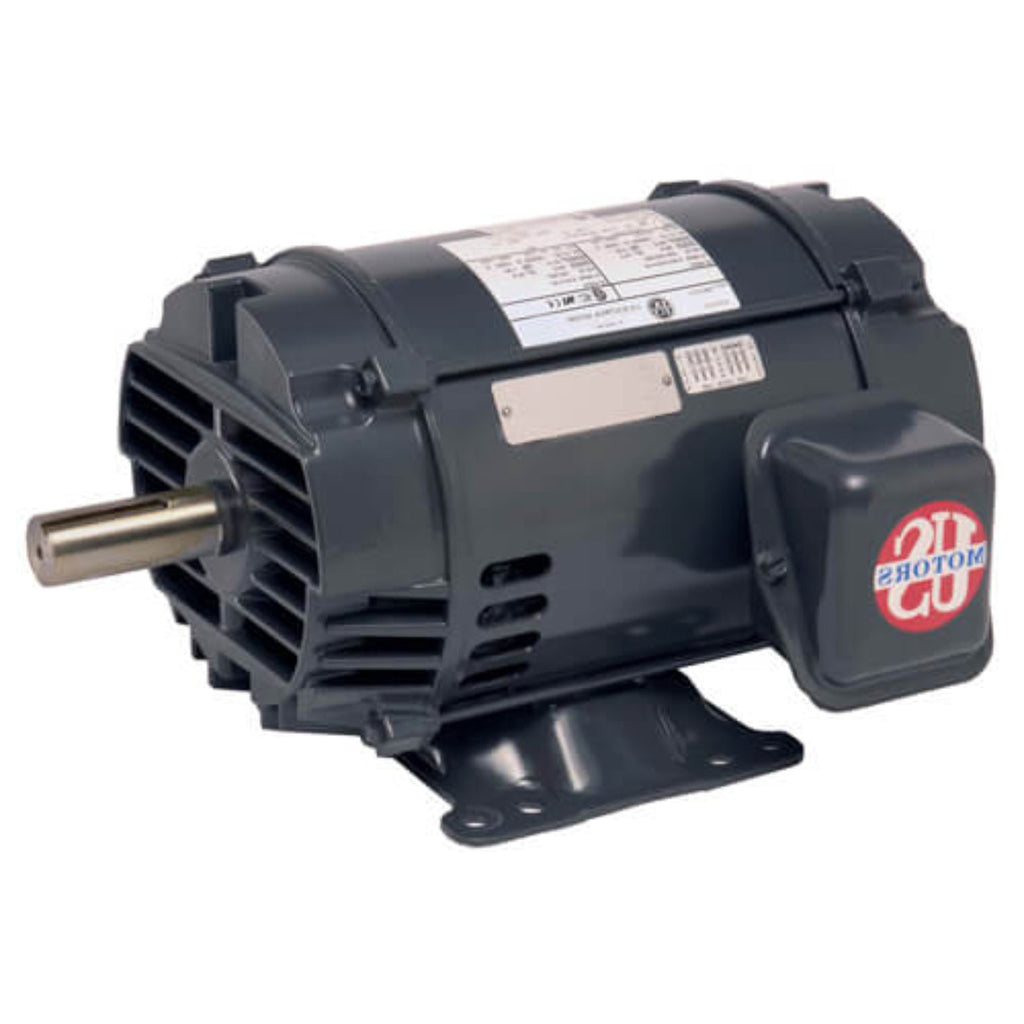

U.S. Motors D3P2AHZ General Purpose Three Phase ODP Rigid Motor - D3P2AHZ
The U.S. Motors D3P2AHZ offers a reliable performance as a general-purpose electric motor with a power output of three horsepower and a speed of 1800 RPM. This motor features a rigid mount for stability and operates efficiently under various industrial applications. The motor is designed for three-phase operation and supports a voltage rating of 208-230/460 volts.
Product Highlights
The motor's construction provides durability and corrosion resistance, making it suitable for demanding environments. Its open drip-proof enclosure allows for effective cooling while protecting internal components from environmental factors.
Specifications
| Brand |
U.S. Motors |
| Model Number (MPN) |
D3P2AHZ |
| Horsepower (HP) |
3 HP |
| Design |
B |
| Voltage Rating |
208-230/460 V |
| Frequency |
60 Hz |
| Poles |
4 |
| Speed |
1800 RPM |
| Full Load RPM |
1800 RPM |
| Frame Size |
56HZ |
| Service Factor |
1.15 |
| Full Load Amps |
9.7-9.4/4.6 A |
| Weight |
35.0 lb |
What our Experts Think
-
Robust Power Output: Delivers a solid 3 HP performance, making it suitable for a variety of industrial and commercial machinery applications.
-
Three-Phase Efficiency: Operates on a three-phase electrical system, providing smoother power delivery, reduced energy loss, and long-term efficiency.
-
ODP (Open Drip Proof) Design: Optimized for environments with proper ventilation—allows for effective cooling while keeping out larger debris and preventing overheating.
-
Rigid Base Mount: Equipped with a rigid mounting base for strong and secure installation, enhancing stability and reducing vibration during operation.
-
Trusted Durability: Manufactured by U.S. Motors, known for quality and reliability in heavy-duty applications—this motor is built to last in demanding conditions.
-
Versatile Applications: Perfect for powering pumps, fans, blowers, compressors, and conveyors in industrial environments where ventilation is adequate.
Q&A
Q: What is the U.S. Motors D3P2AHZ used for?
A: The D3P2AHZ is a general-purpose three-phase motor designed for industrial equipment such as fans, blowers, pumps, and conveyors.
Q: What type of motor is the U.S. Motors D3P2AHZ?
A: It’s a three-phase, Open Drip Proof (ODP) motor with a rigid base, intended for horizontal mounting in applications with minimal exposure to moisture or debris.
Q: What are the key features of the D3P2AHZ motor?
A: Features include high efficiency, continuous-duty operation, rugged construction, and a rigid base for stable installation in demanding industrial environments.
Q: What is the ODP design and why is it important?
A: ODP (Open Drip Proof) design allows air to circulate through the motor for cooling while preventing dripping water from entering—ideal for clean, dry environments.
Q: Where is the D3P2AHZ best used?
A: It’s ideal for indoor, dry settings such as manufacturing plants, HVAC systems, and mechanical workshops where ventilation and reliability are critical.
Maintenance Tips
-
Keep Motor Clean and Ventilated:
As an ODP (Open Drip Proof) motor, ensure it's operated in clean, dry environments. Regularly remove dust and debris from ventilation openings to maintain cooling efficiency.
-
Inspect Bearings and Lubricate:
Periodically check motor bearings for noise or overheating. Lubricate according to manufacturer guidelines using the proper grease type to avoid bearing failure.
-
Secure Mounting and Alignment:
Ensure the rigid base is firmly bolted and the motor is properly aligned with its load to minimize vibration and prevent shaft damage.
-
Check Electrical Connections:
Inspect terminals for tightness and corrosion. Loose or oxidized connections can cause overheating or voltage drops.
-
Monitor Operating Temperature:
Ensure ambient temperatures and airflow around the motor stay within specified limits. Avoid exposure to moisture or chemicals that could enter through the open frame.
-
Balance Couplings and Loads:
If connected to mechanical equipment, verify couplings or pulleys are balanced and aligned to avoid excess wear on motor components.
-
Inspect for Unusual Sounds or Vibration:
Abnormal noise or vibration may indicate internal damage or misalignment. Shut down and inspect immediately if irregularities occur.
-
Test Voltage and Amperage:
Regularly check that voltage and current draw are within rated specifications. Persistent overloading can shorten motor lifespan.
-
Use Drip Covers in Hazardous Areas:
In areas with light moisture or overhead drip risks, install a drip cover to prevent liquid intrusion into the motor casing.
-
Keep Maintenance Records:
Log maintenance activities and operational data to track performance over time and anticipate wear or needed servicing.
