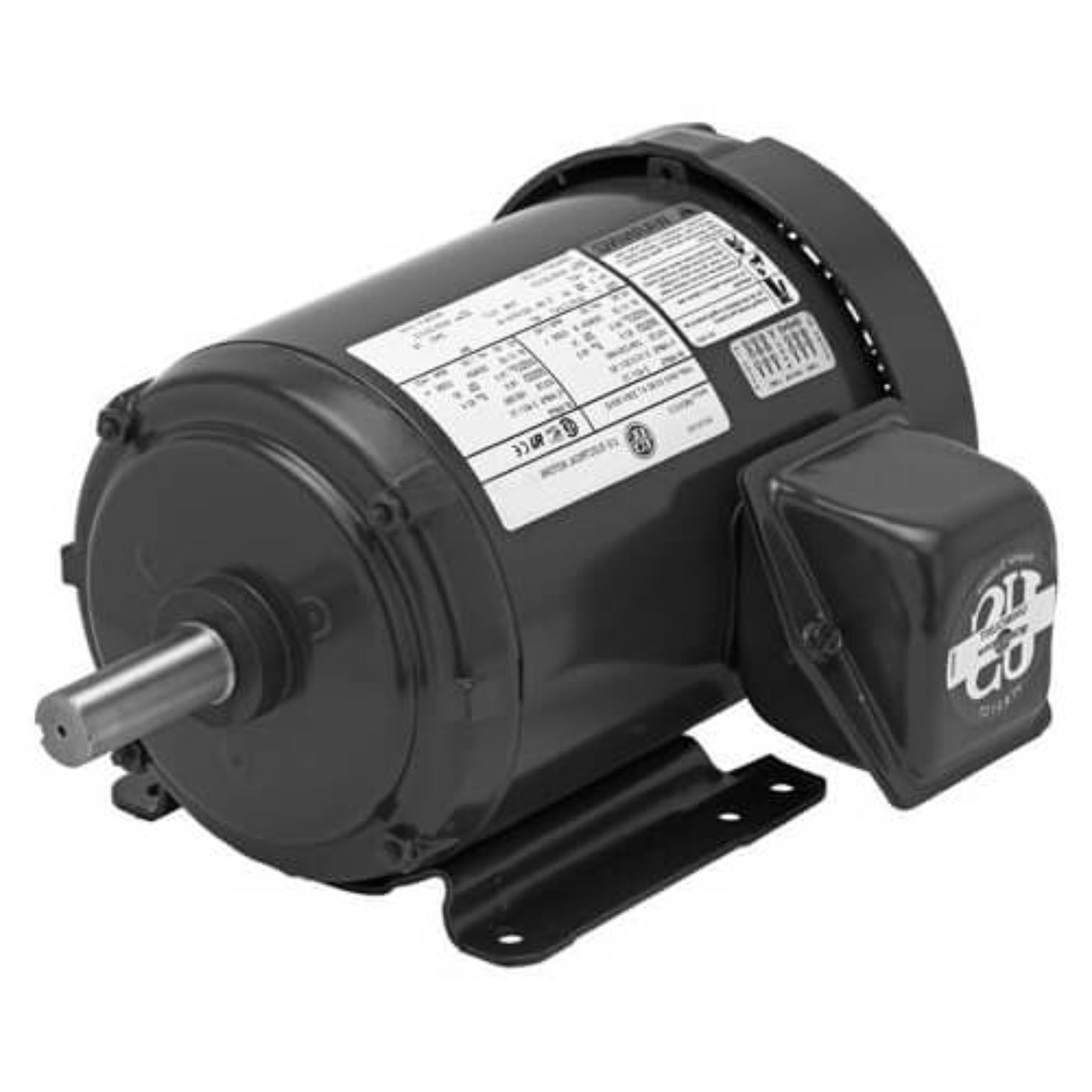

U.S. Motors T1P2AH General Purpose Three Phase TEFC Rigid Motor 1 HP 1800 RPM - T1P2AH
The U.S. Motors T1P2AH is a general-purpose three-phase motor designed for various industrial applications. This motor operates at one horsepower and 1800 RPM, making it suitable for tasks requiring steady power. It features a totally enclosed fan-cooled (TEFC) design, which protects the internal components from dust and moisture, ensuring durability in demanding environments.
Product Highlights
This motor is ideal for fans, compressors, pumps, and other direct-connected gear. Its robust construction includes a rolled steel frame and aluminum flanges, providing strength and corrosion resistance.
Features
- Voltage rating ranges from 208 to 230/460 volts.
- Continuous duty for reliable performance.
- Rigid mount for secure installation.
Specifications
| Brand |
U.S. Motors |
| Model Number (MPN) |
T1P2AH |
| Horsepower (HP) |
1 HP |
| Full Load RPM |
1800 RPM |
| Voltage Rating |
208-230/460 Volts |
| Frequency |
60 Hz |
| Frame Size |
56H |
| Phase |
Three Phase |
| Full Load Amps |
3.3-3.2/1.5 A |
| Insulation Class |
B |
| Efficiency |
85.5% |
| Service Factor |
1.15 |
| Weight |
35.5 lb |
| C Dimension |
12.8 inches |
| Mounting |
Rigid |
| Enclosure Designation |
TEFC (Totally Enclosed Fan Cooled) |
What our Experts Think
-
Reliable Power Output
-
Delivers 1 horsepower at 1800 RPM, ideal for a variety of industrial applications
-
Operates on 208–230/460V, 3-phase power for stable and consistent performance
-
Durable Construction
-
Built with a 56H frame and rigid base mounting, ensuring a secure and long-lasting installation
-
Totally Enclosed Fan Cooled (TEFC) design protects the motor from dust and moisture, ideal for harsh environments
-
Energy Efficient
-
Designed for continuous duty with a service factor of 1.15
-
Features Class F insulation for reliable operation, even under varying temperature conditions
-
Versatile Application
-
Suitable for use in industrial equipment such as fans, blowers, and compressors
-
Provides a reliable and efficient upgrade option for replacing older models
Q&A
Q: What applications is the U.S. Motors T1P2AH motor suitable for?
A: This motor is designed for general-purpose industrial applications, such as driving fans, blowers, compressors, and pumps in various commercial and manufacturing settings.
Q: What are the key specifications of the T1P2AH motor?
A: The T1P2AH motor delivers 1 horsepower at 1800 RPM, operates on 208-230/460V three-phase power, and has a 56H frame size. It features a Totally Enclosed Fan Cooled (TEFC) enclosure to protect against dust and moisture.
Q: What is the service factor of the motor?
A: The motor has a service factor of 1.15, meaning it can handle occasional overloads up to 15% beyond its rated capacity.
Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the T1P2AH motor is suitable for VFD applications, offering a 10:1 variable torque and 4:1 constant torque range for versatile speed control.
Maintenance Tips
-
Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.
-
Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical faults.
-
Monitor Operating Voltage: Confirm that the motor operates within its rated voltage range (230/460V) to avoid damage.
-
Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear
-
Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency and prevent overheating.
-
Test Thermal Overload Protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.
-
Monitor Ambient Temperature: Operate the motor within the recommended ambient temperature range to prevent overheating and ensure efficient operation.
