Pioneer 10,000 BTU 115V Under-Bench RV Inverter Packaged Heat Pump Air Conditioner - PYR009AZUDCIPD

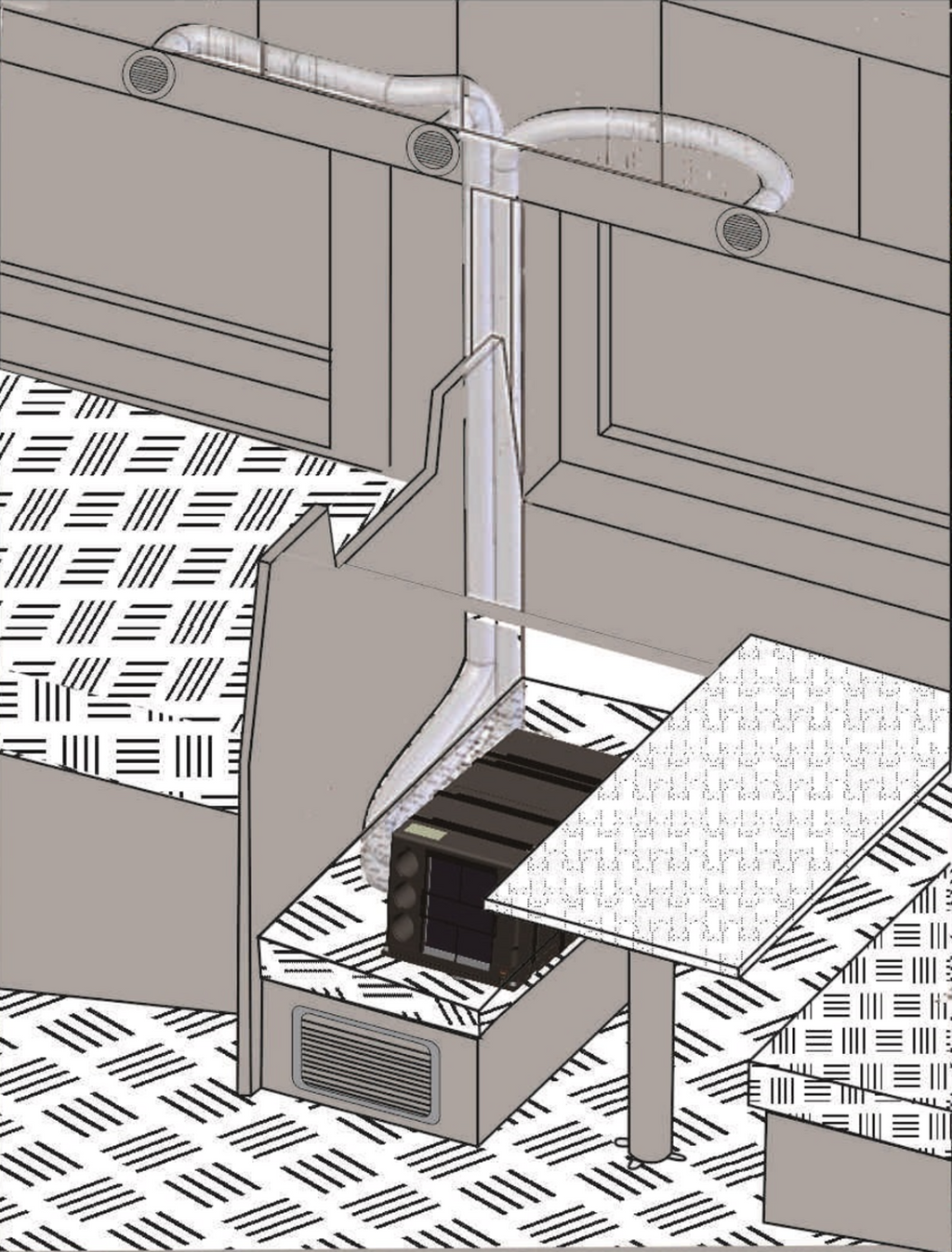

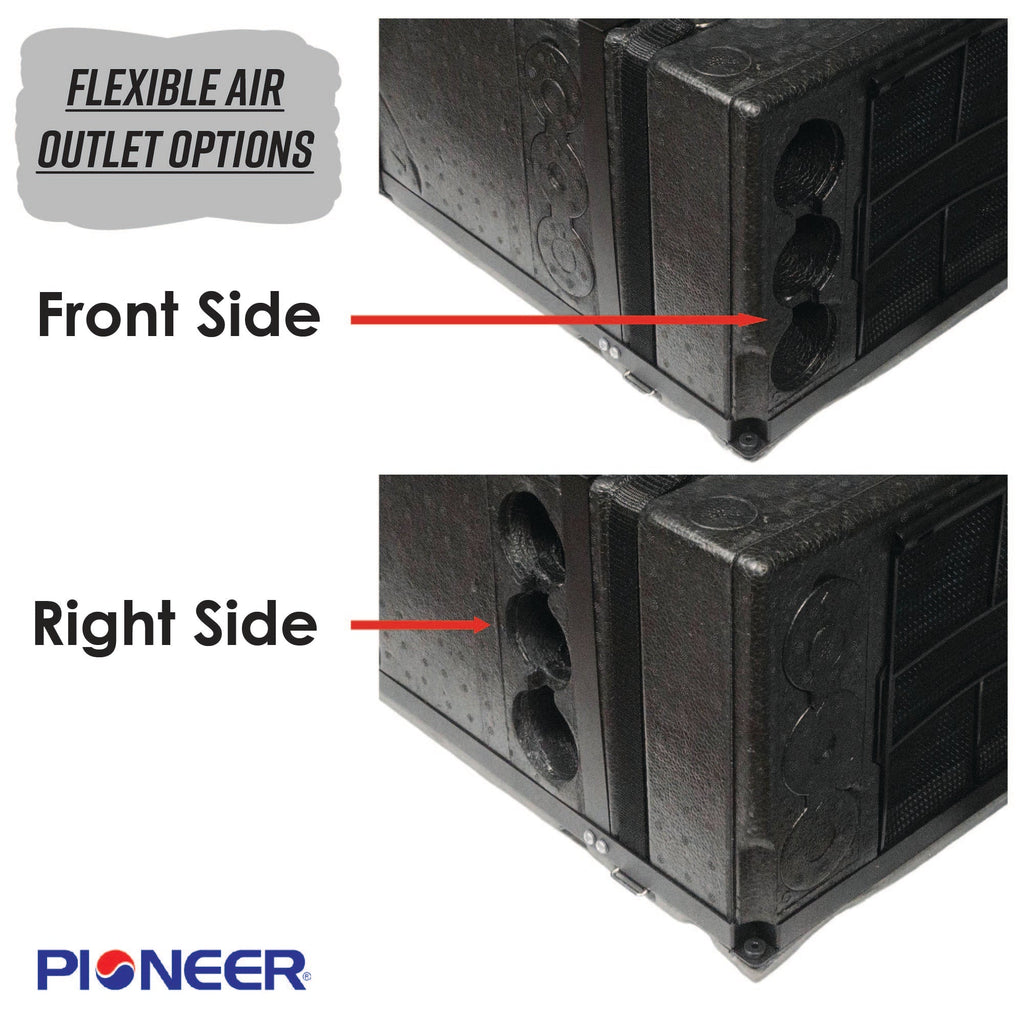

Explore the great open road with Pioneer's newest RV heat pump air conditioner package unit. Intended for under-the-bench installations, this low-profile and highly durable package system will keep your motor vehicle at a cozy temperature all year round, and do so quietly. Easily attach three ducts to serve separate areas of the dwelling, with options to connect to the front or side of the system. Control the system using the wall-fixed thermostat, or from the comfort of your bed using the convenient handheld remote controller. With ultra-quiet performance, sleek design, and very low input power requirements, this rugged plug-in system will be one of your favorite companions on those long-haul journeys, day-in and day-out.
Features
- Cooling capacity: 10,000 BTU/H with 10.1 EER efficiency
- Heating capacity: 9,500 BTU/H with 3.5 C.O.P.
- Voltage: 110~120V, 60Hz, 1Ph
- Operational Temperature Range: 19 - 104°F
- Pre-charged with R32 refrigerant and ready to install
- UL Listed
- Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels
Included

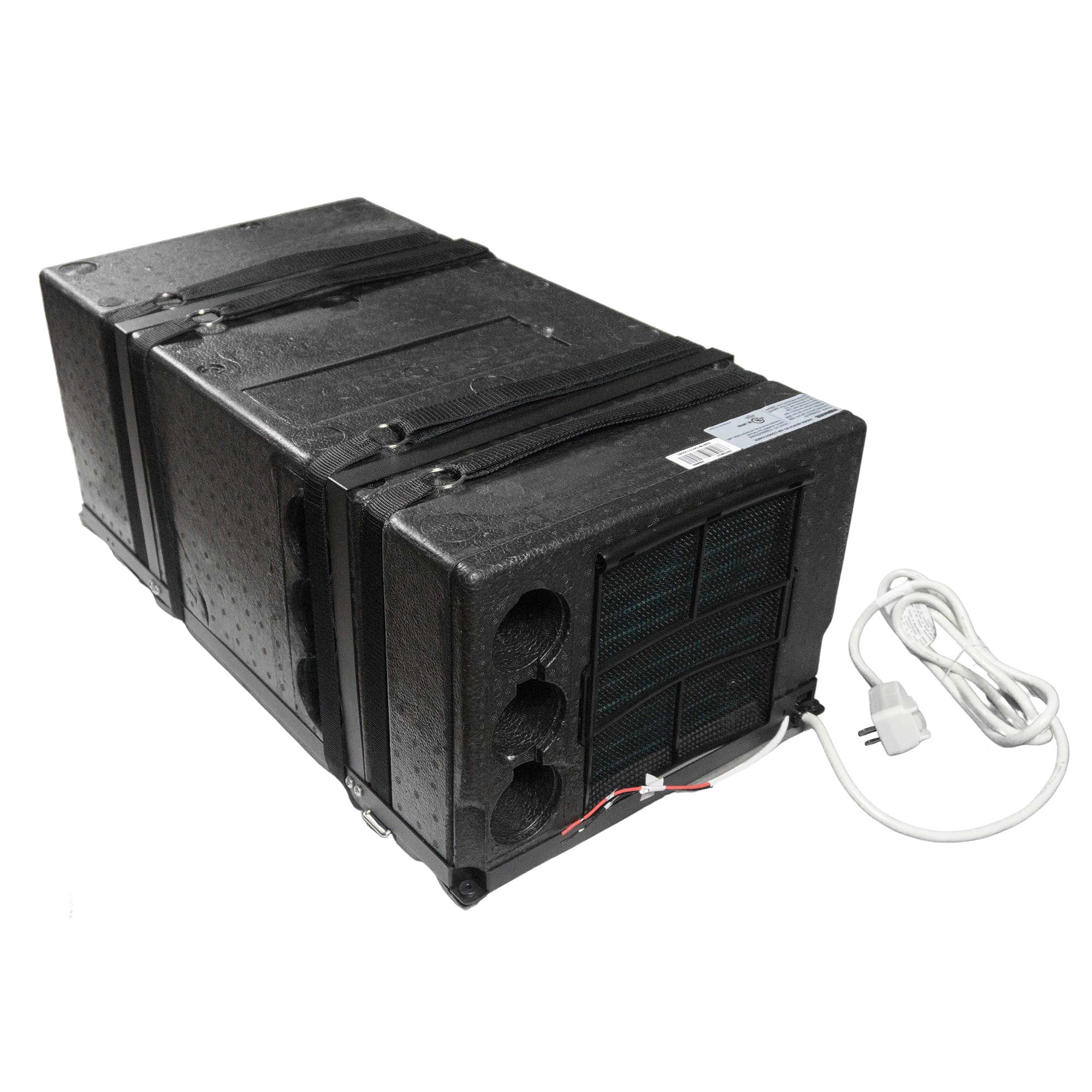

- Pioneer RV Under-Bench Heat Pump AC System

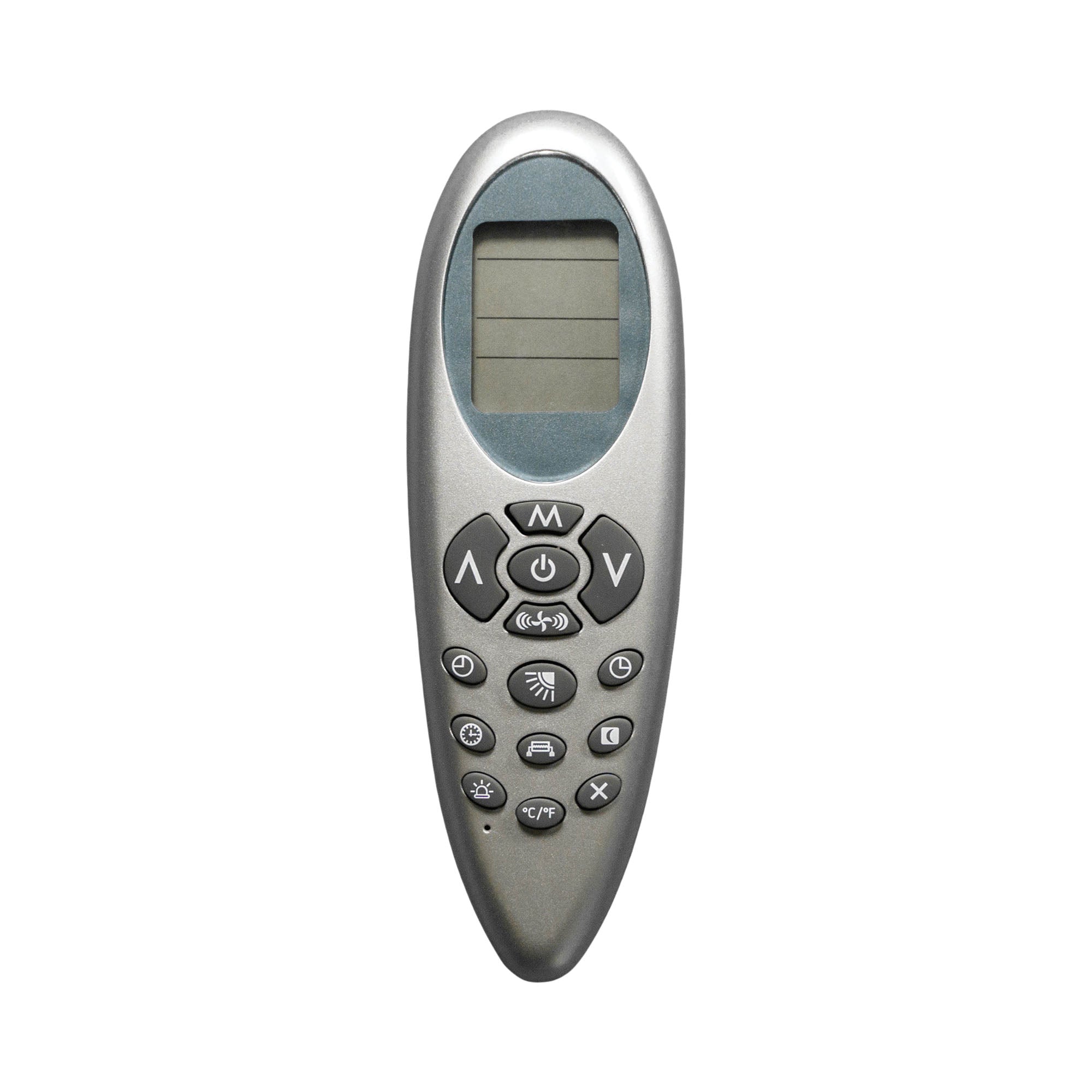

- Handheld Remote Controller w/ batteries and cradle

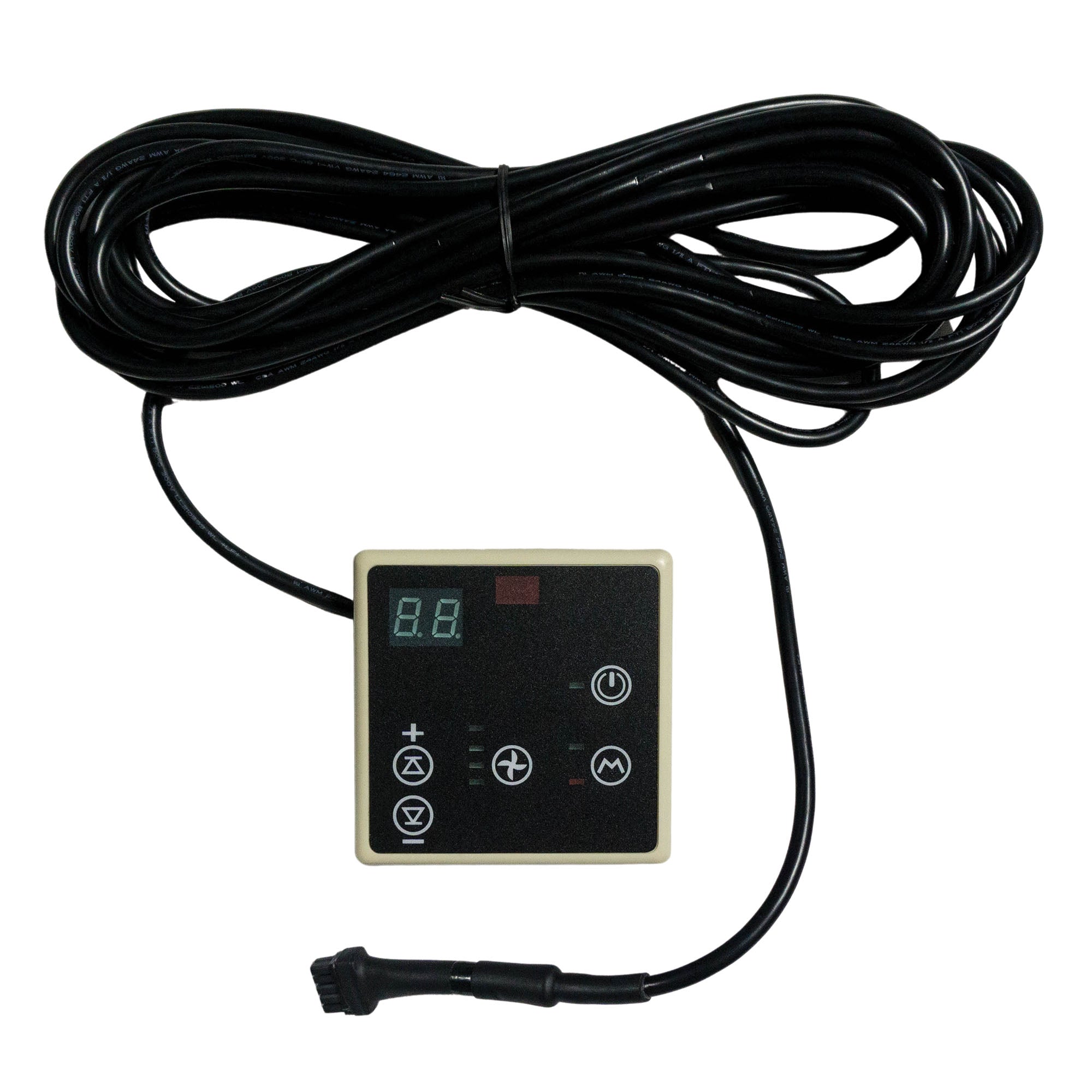

- Wired Thermostat w/ cradle

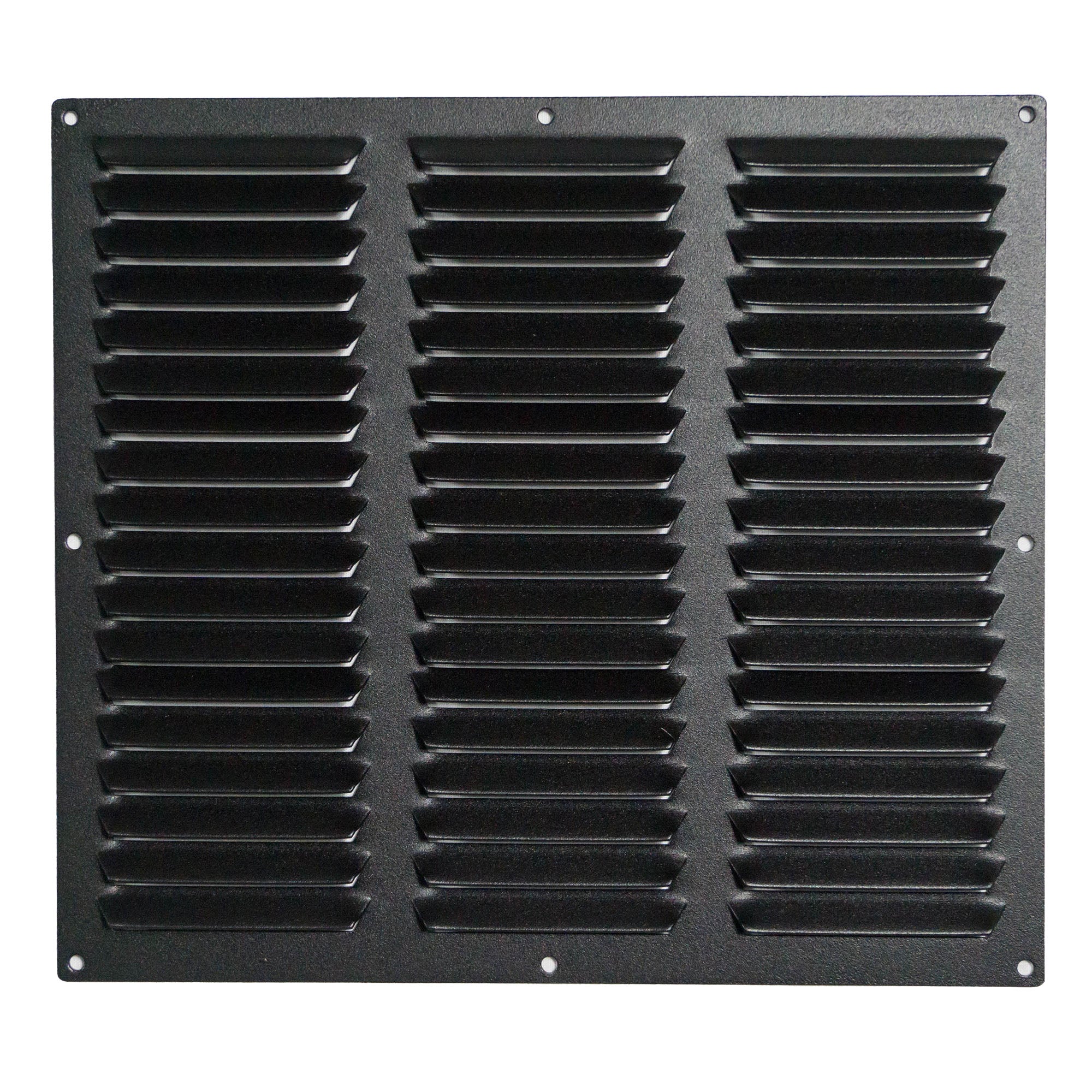

- Highly Durable Metallic Return Air Grille
- Drainage Tubing
- Installation Hardware
- Installation and User's Manual
What our Experts Think
-
Perfect RV & tiny‑home climate solution: The Pioneer 10,000 BTU 115V Under‑Bench RV Inverter Packaged Heat Pump Air Conditioner is engineered for under‑bench installation, keeping spaces cool or warm while staying out of sight — ideal for RVs, skoolies, camper vans, and tiny homes.
-
Balanced cooling & heating performance: Offers 10,000 BTU cooling with a 10.1 EER and 9,500 BTU heat pump output, delivering effective year‑round temperature control on modest electrical draw.
-
Plug‑and‑travel simplicity: Runs on standard 110–120 V electrical service, is pre‑charged with R32 refrigerant, and installs quickly without complex hookups — a huge plus for mobile dwelling owners and DIY installers.
-
Quiet & efficient operation: Ultra‑quiet design (<40 dB at normal operation) keeps cabins peaceful while providing steady airflow; multiple duct connection options help direct conditioned air where you need it.
-
Complete control & comfort: Includes both a wired wall thermostat and a handheld remote, giving flexible control from bed or driver’s seat without extra purchases.
-
Built for the road: Durable, UL‑listed construction and a wide operational range (19–104 °F) support reliable performance in varied environments and seasons
Q&A
Q1: What type of system is this Pioneer model?
A: It is an under-bench RV ductless inverter heat pump air conditioner, designed for compact mobile living spaces.
Q2: What cooling and heating capacity does it provide?
A: Delivers 10,000 BTU cooling and reliable heat pump heating, ideal for small RVs and camper interiors.
Q3: How energy-efficient is this unit?
A: Features high-efficiency inverter technology, reducing electricity usage while maintaining consistent comfort.
Q4: What type of power supply does it require?
A: Operates on 115 V single-phase power, compatible with standard RV electrical systems.
Q5: How does inverter technology benefit performance?
A: Variable-speed compressor control provides quiet operation, precise temperature control, and energy savings.
Q6: What is the installation style?
A: Designed for under-bench or compact enclosed spaces, minimizing intrusion while maximizing airflow.
Q7: Can it provide heating in cooler climates?
A: Yes, the integrated heat pump supports efficient low-ambient heating for year-round comfort.
Q8: What size space is this unit suitable for?
A: Ideal for small RVs, campers, or tiny homes up to approximately 400 sq ft.
Q9: Is this unit portable or fixed?
A: It is a fixed under-bench installation, optimized for permanent mounting in RV interiors.
Q10: Is this unit suitable for residential use?
A: Primarily designed for RVs, campers, or mobile homes, not standard residential spaces.
Maintenance Tips
-
Clean or replace air filters every 2–4 weeks to maintain airflow and efficient cooling/heating.
-
Keep the exterior vents and condenser area free from dust, dirt, and debris to ensure optimal heat exchange.
-

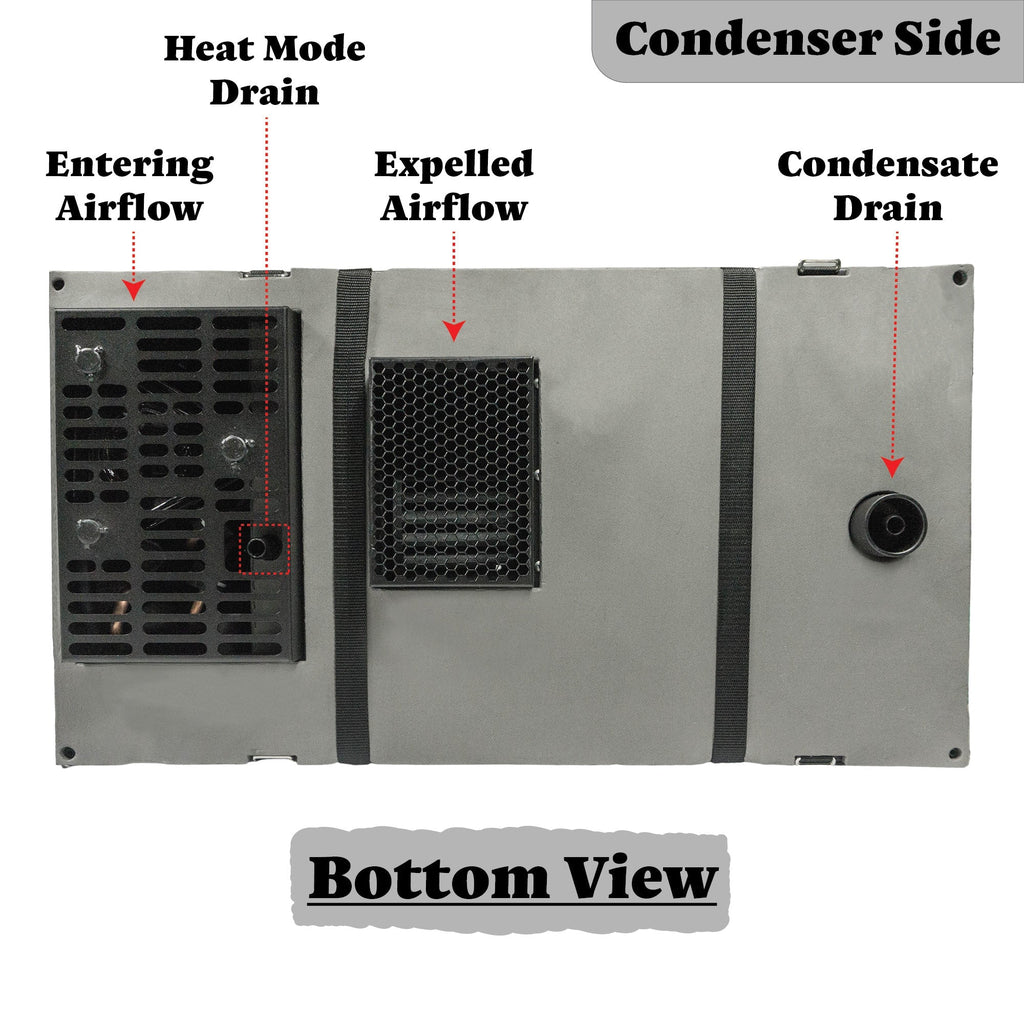

Inspect condensate drain lines regularly to prevent leaks and water damage inside the RV.
-
Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.
-
Ensure proper airflow clearance around the unit inside the RV for consistent temperature control.
-
Use the self-clean function, if available, periodically to reduce moisture buildup and prevent odors.
-
Schedule professional servicing annually for refrigerant checks, inverter diagnostics, and overall system optimization.
