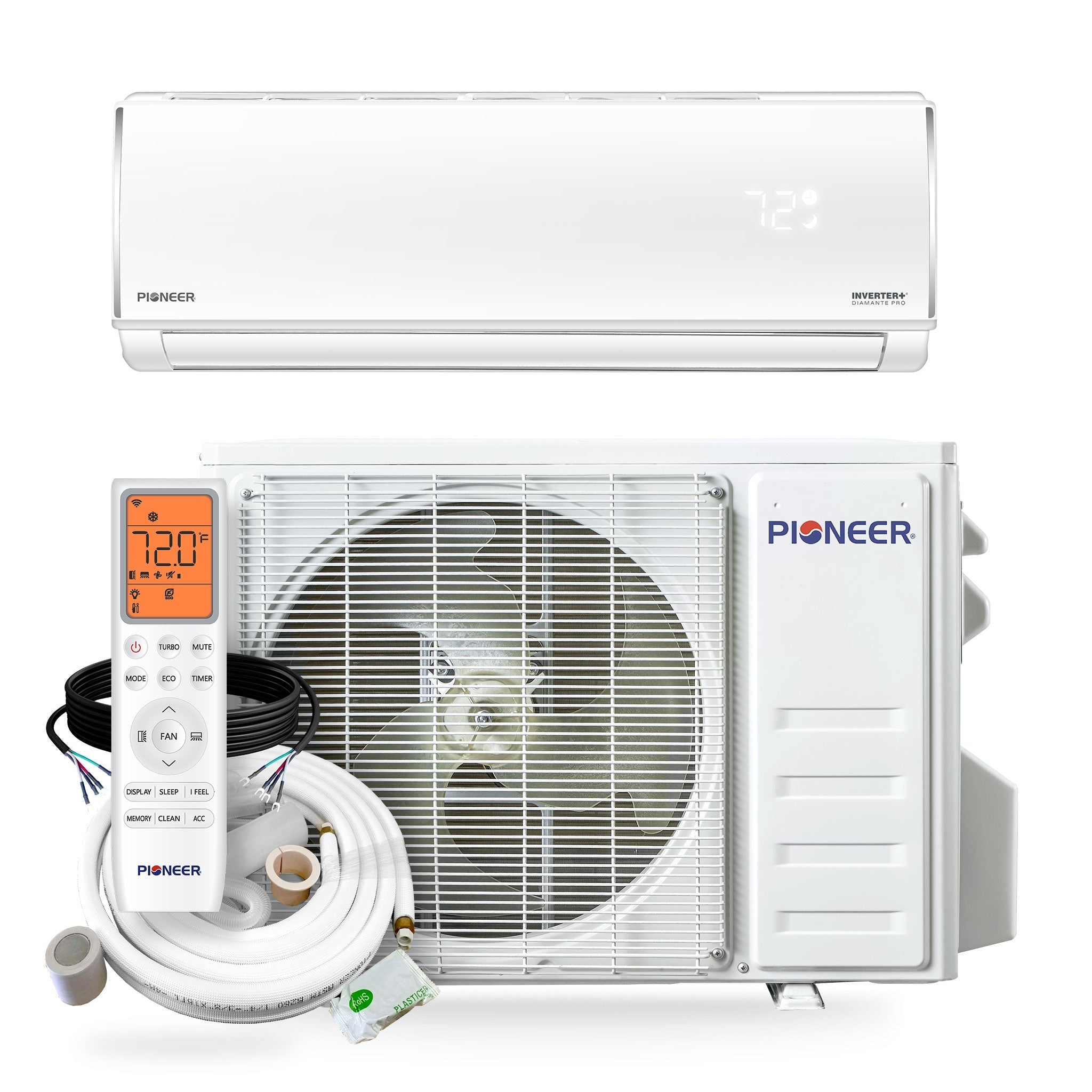

Pioneer Diamante Pro 12,000 BTU 20 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT012ALSI20RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 20 SEER2 / 10.5 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph

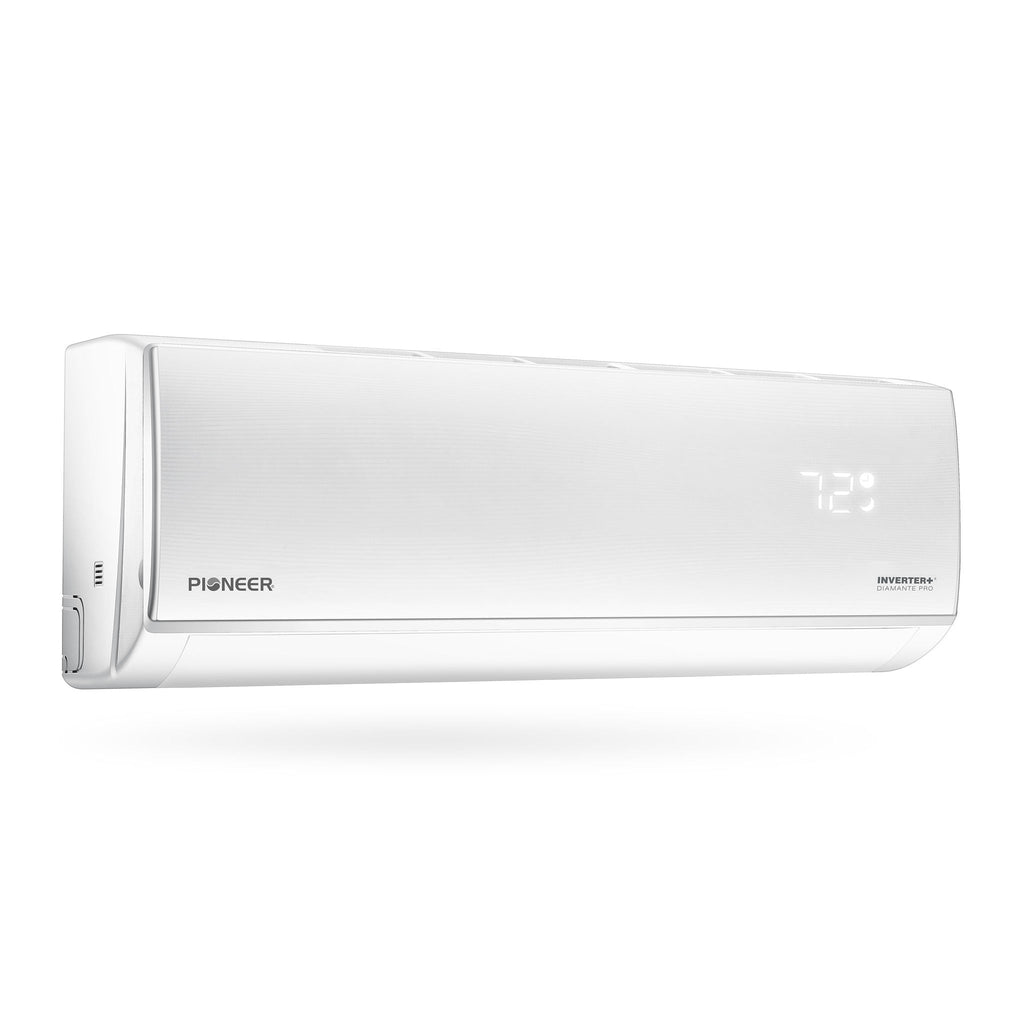

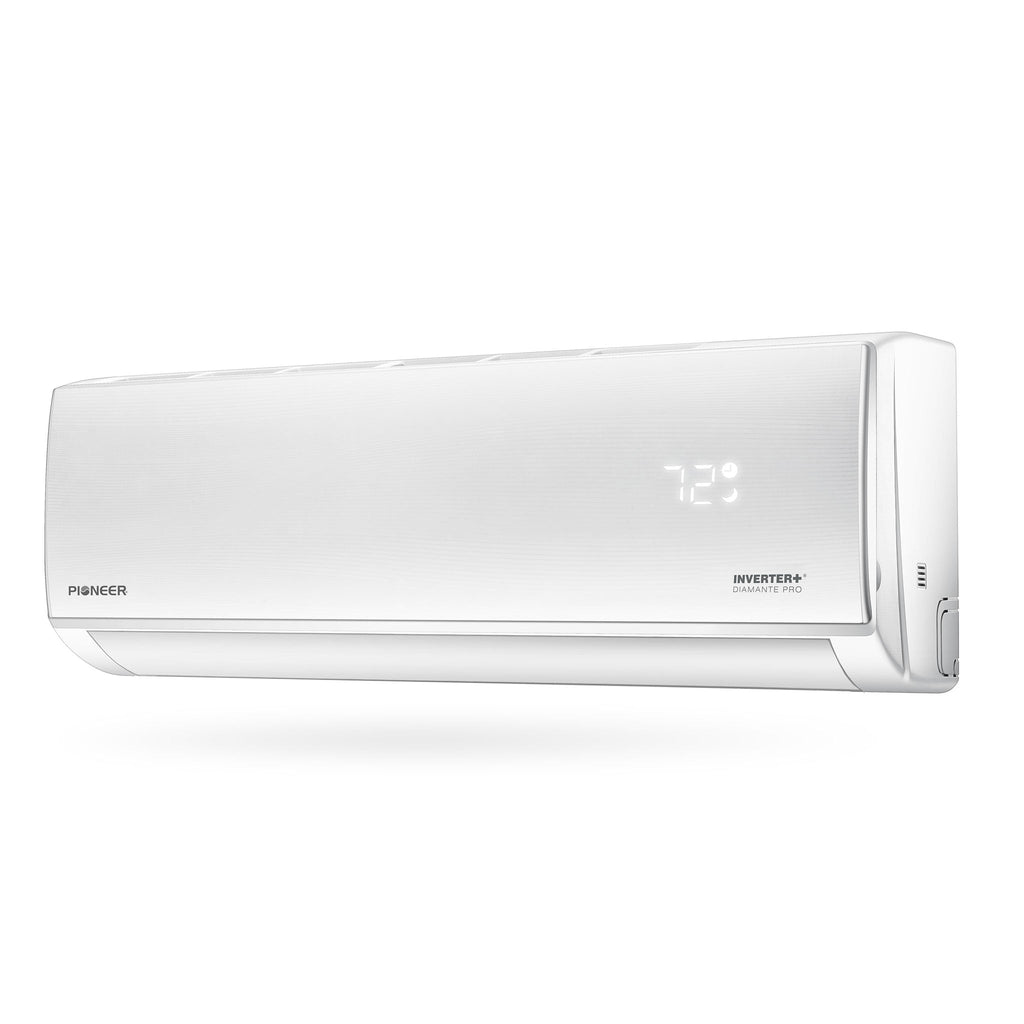

- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

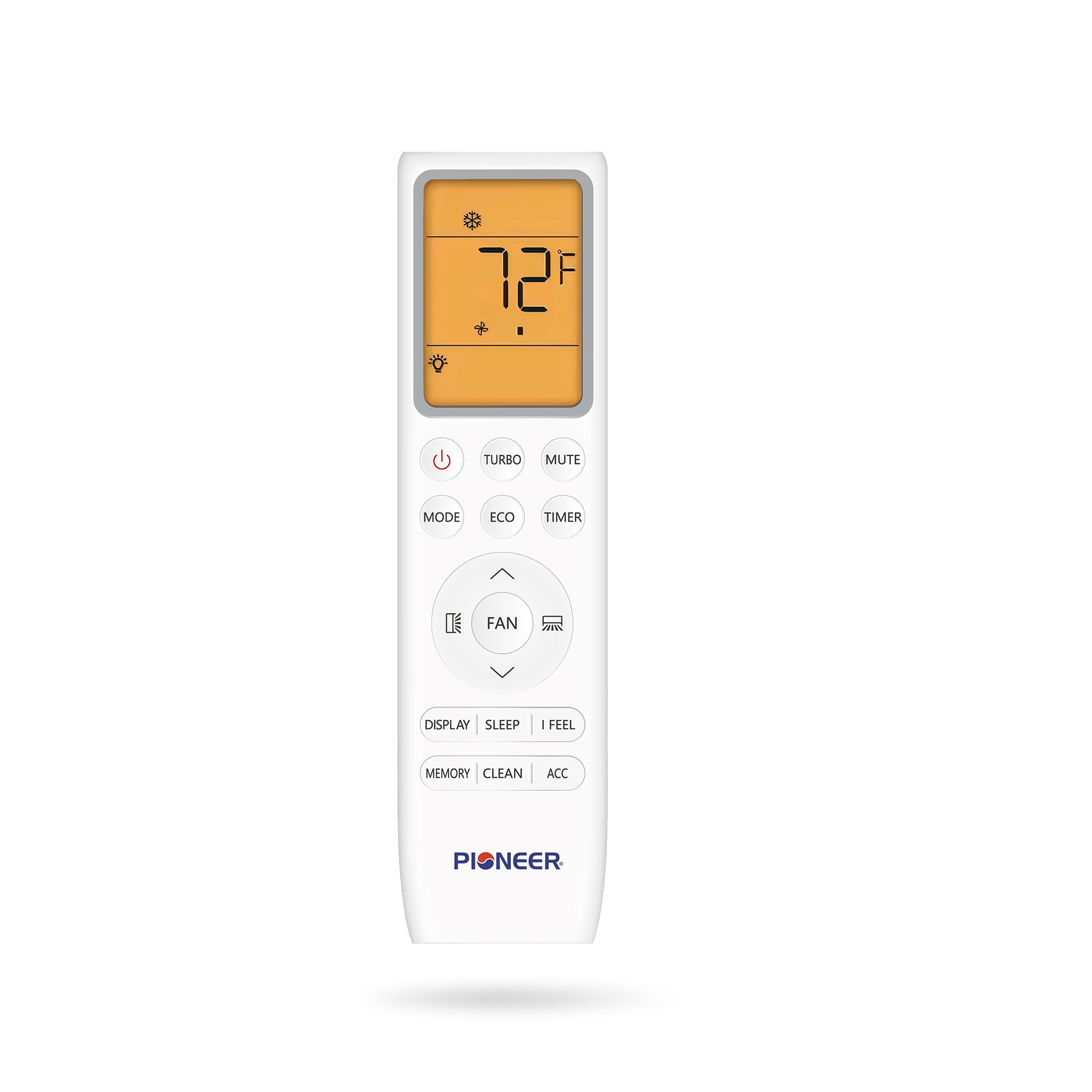

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
High-efficiency single-zone comfort: With 12,000 BTU capacity and up to 20 SEER2 inverter performance, this system delivers strong cooling and heating efficiency for bedrooms, offices, and small living spaces.
-
Ideal for compact room coverage: Expert-recommended for approx. 350–500 sq ft, making it a practical ductless solution for apartments, home additions, or retrofit projects.
-
Convenient 115 V installation advantage: Standard 110-120 V power compatibility simplifies setup in residential environments where higher-voltage circuits are not available.
-
Year-round heat pump performance: Balanced cooling and heating output with inverter modulation ensures stable temperature control and improved seasonal energy savings.
-
Quiet indoor comfort design: Indoor sound levels can operate as low as around 28 dB, helping maintain a peaceful indoor environment for sleep or work areas.
-
Cold-weather capable operation: Designed to heat in temperatures as low as -4 °F and cool in extreme summer conditions, supporting reliable performance across demanding climates.
-
Complete installation kit included: Factory-pre-charged outdoor unit and 16-ft line-set kit reduce installation complexity and speed up commissioning.
Q&A
Q1: What type of system is the Pioneer Diamante Pro WYT012ALSI20RL?
A: It is a ductless mini-split air conditioner and heat pump system designed for efficient single-zone cooling and heating.
Q2: How much cooling and heating capacity does it provide?
A: The unit delivers 12,000 BTU cooling capacity with reliable heat-pump heating performance for year-round indoor comfort.
Q3: What is the energy efficiency rating?
A: This model features high-efficiency 20 SEER2 performance, helping reduce electricity consumption and monthly utility costs.
Q4: What room size is this mini-split ideal for?
A: It is typically suitable for approximately 350 – 550 sq ft, depending on insulation, ceiling height, and climate conditions.
Q5: Does the system include installation components?

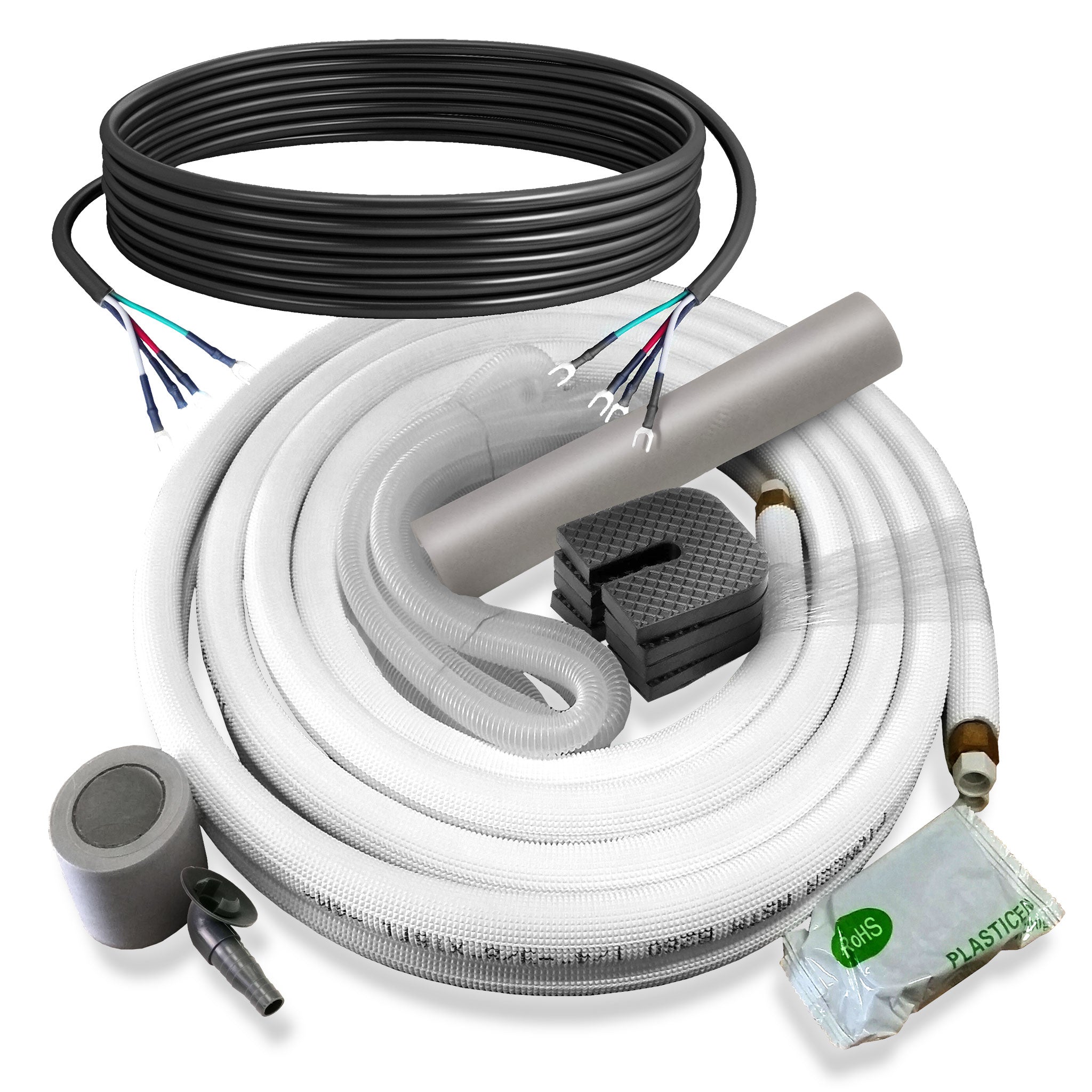

A: Yes, it comes with a complete 16-ft installation kit, including pre-insulated copper line set, wiring, and accessories for simplified setup.
Q6: What electrical requirements does this unit have?
A: The system operates on 115 V single-phase power, making it ideal for standard residential outlets and retrofit applications.
Q7: How does inverter technology benefit performance?
A: Advanced inverter control modulates compressor speed for quieter operation, precise temperature control, and improved energy savings.
Q8: Can this mini-split provide heating in colder temperatures?
A: Yes, the integrated heat pump is designed for efficient low-ambient heating, supporting comfort during cooler seasons.
Maintenance Tips
-
Clean washable indoor air filters every 2–4 weeks to maintain airflow and energy efficiency.
-

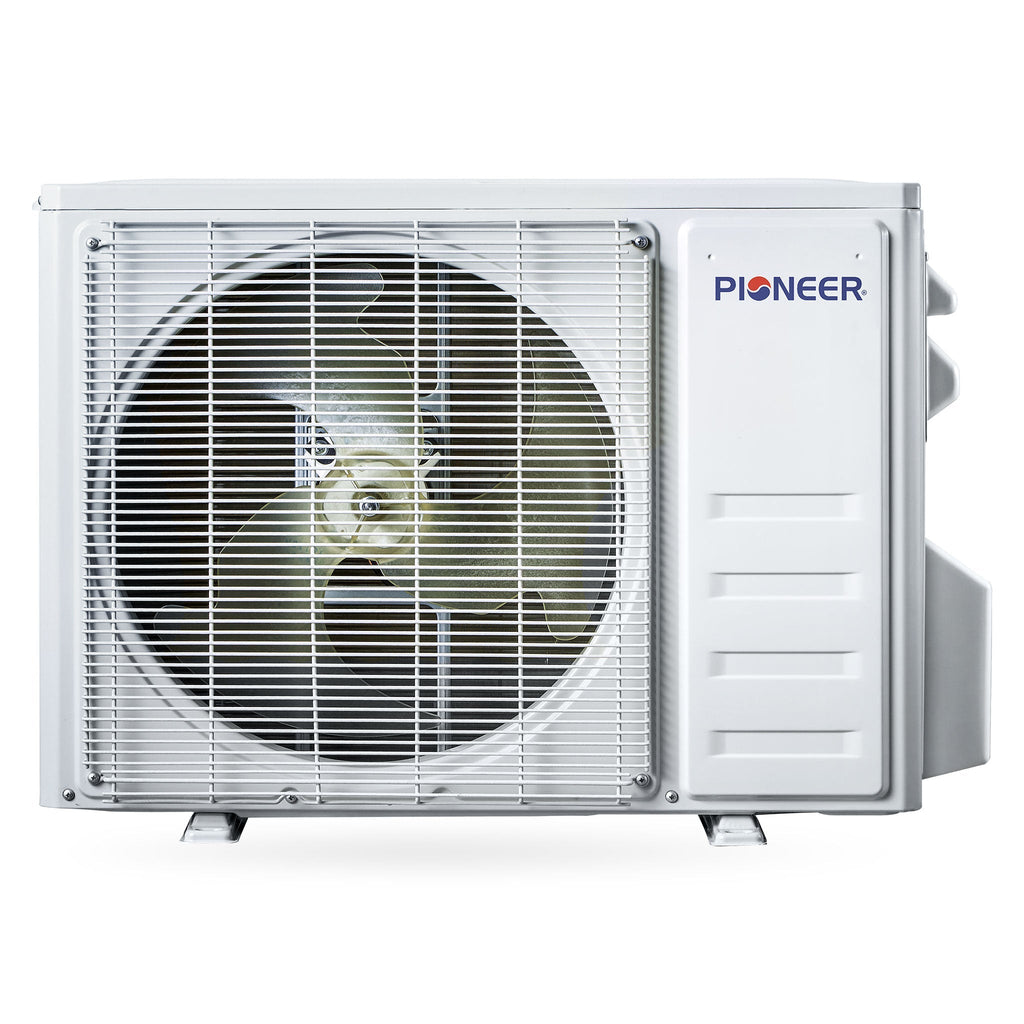

Keep the outdoor condenser unit free from dust, leaves, and obstructions to support proper heat exchange and inverter performance.
-
Use the built-in self-clean cycle regularly to reduce moisture buildup and prevent odor or mold formation.
-
Inspect dual-drainage ports and condensate lines periodically to avoid water leakage or cooling interruptions.
-
Check refrigerant piping insulation and electrical connections annually to sustain stable cooling capacity (3,400 – 13,000 BTU range).
-
Schedule professional servicing once a year for inverter diagnostics, refrigerant pressure testing, and overall system optimization.
-
Maintain clear airflow around the indoor wall unit and avoid blocking motorized louvers for balanced room coverage.
