Pioneer Diamante Pro 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT024GLSI20RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 21 SEER2 / 10.5 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

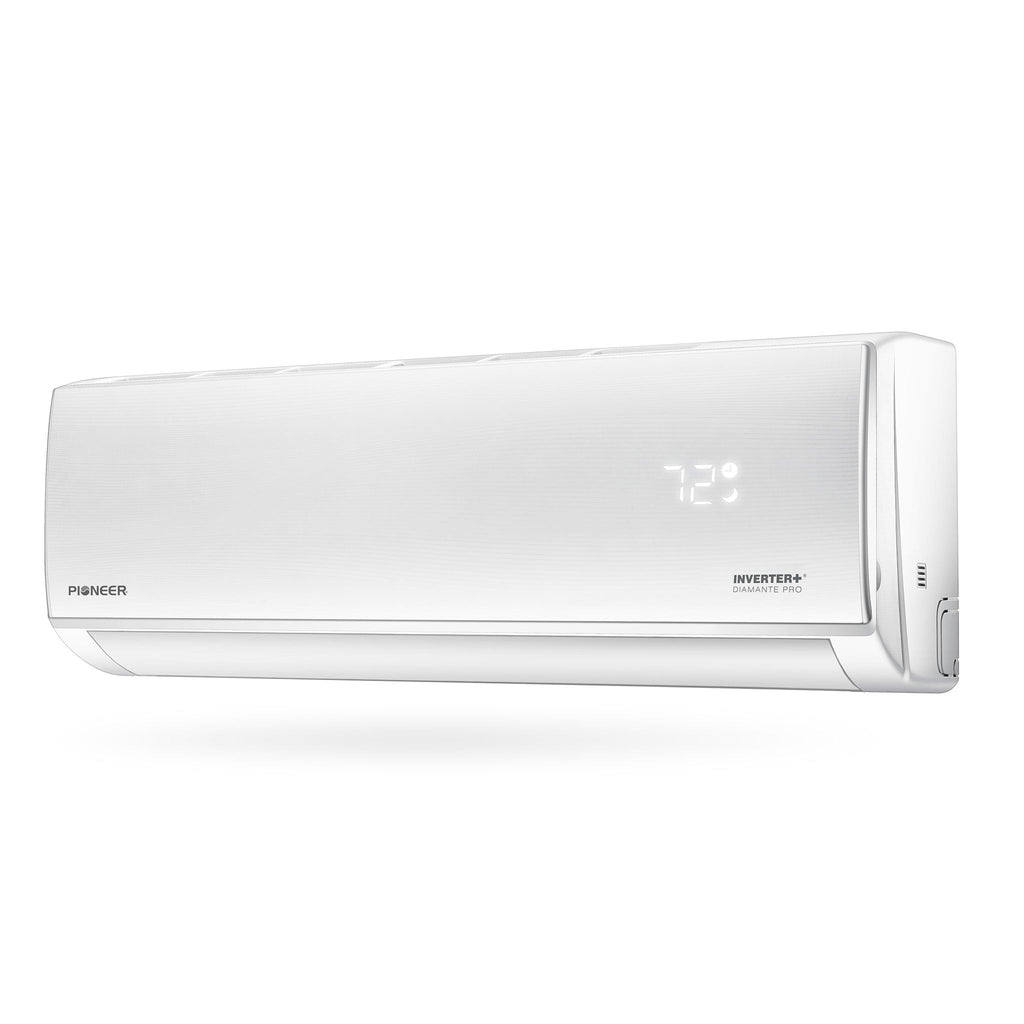

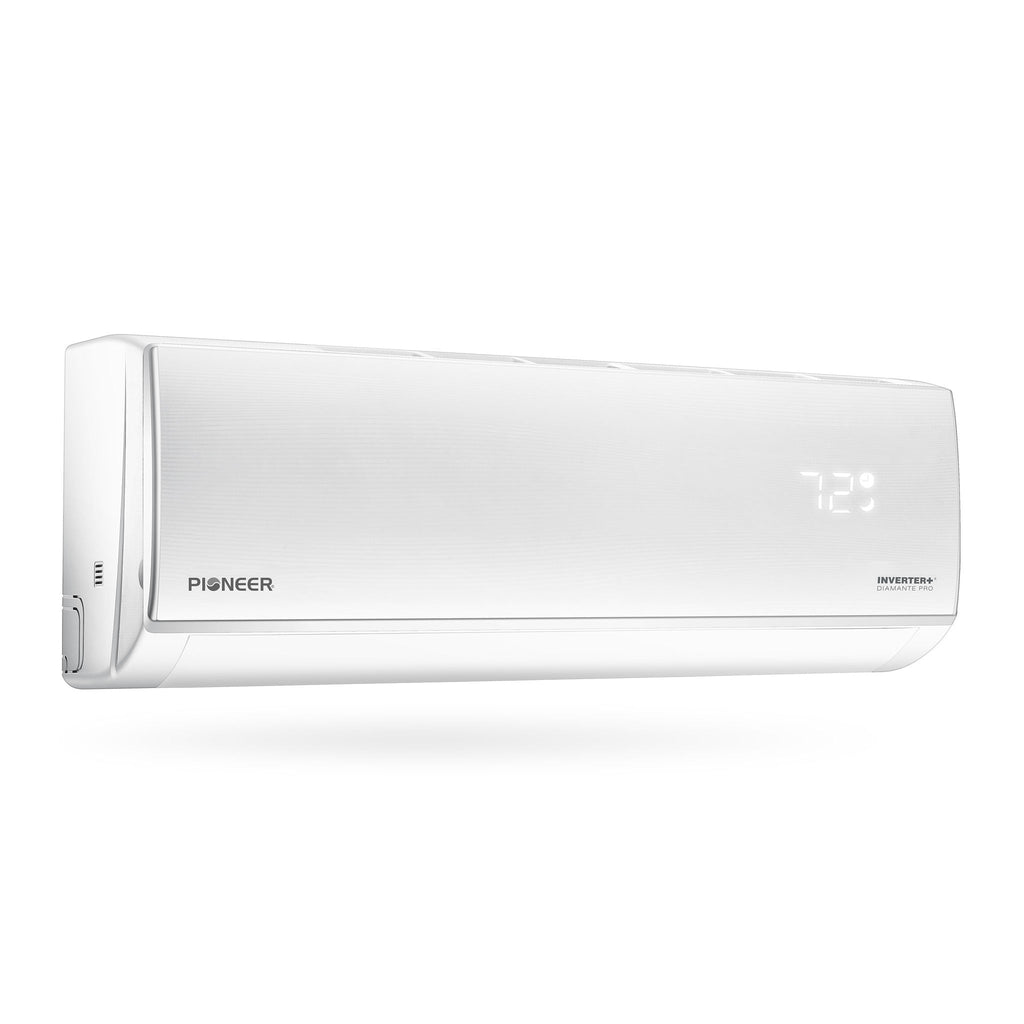

- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

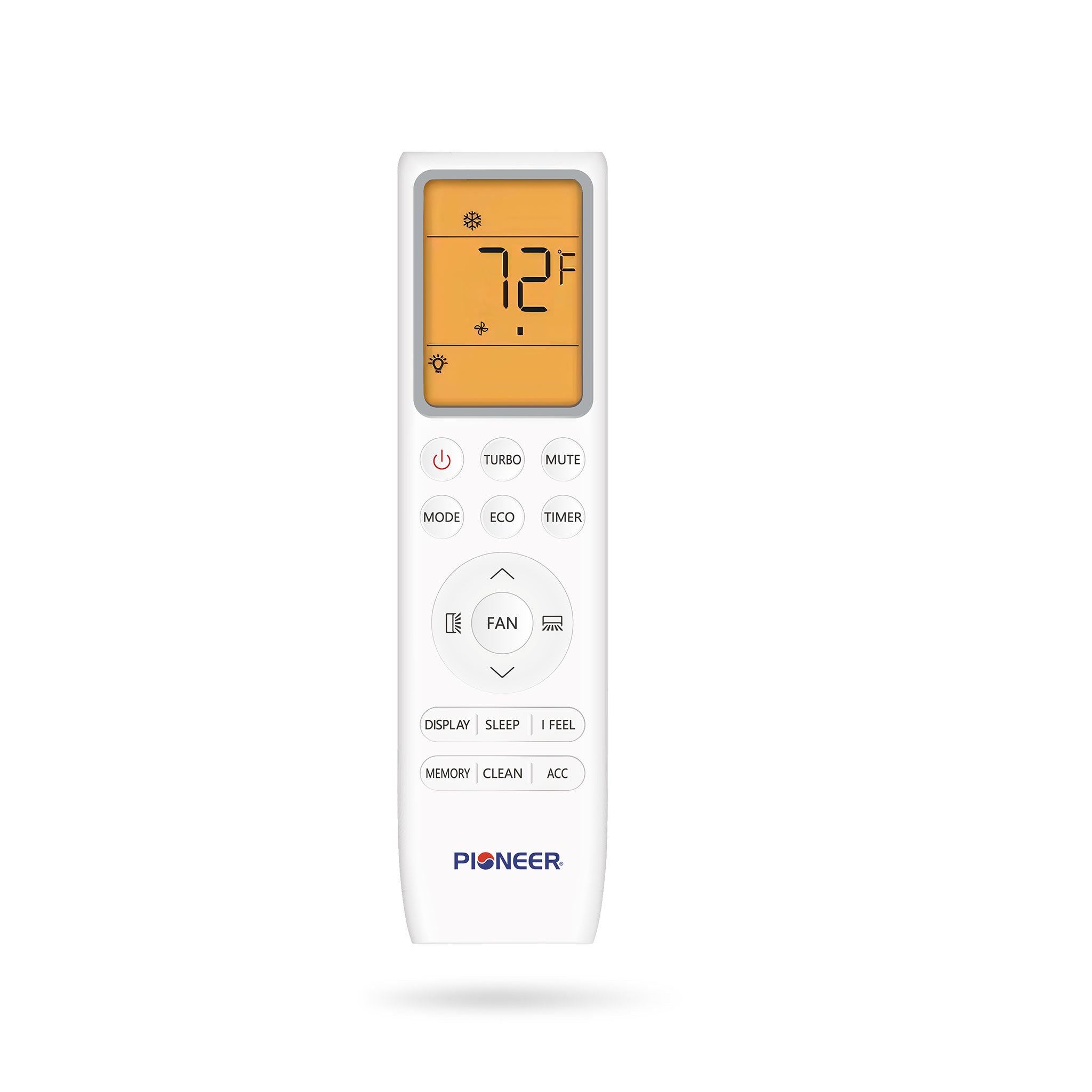

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Powerful 24,000 BTU (2 Ton) performance
Designed for medium to large spaces (≈750–1,000 sq. ft.), this unit delivers strong, consistent cooling and heating—ideal for living rooms, halls, or open-plan areas.
-
High efficiency with 21 SEER2 rating
Offers excellent energy efficiency for its size, helping reduce electricity bills while maintaining optimal indoor comfort year-round.
-
Advanced DC Inverter technology
Variable-speed compressor adjusts output dynamically, ensuring stable temperatures, quieter operation, and lower energy consumption compared to conventional systems.
-
True all-season heat pump system
Provides cooling, heating, dehumidification, and ventilation, with reliable operation in extreme conditions (as low as -4°F heating / up to 122°F cooling).
-

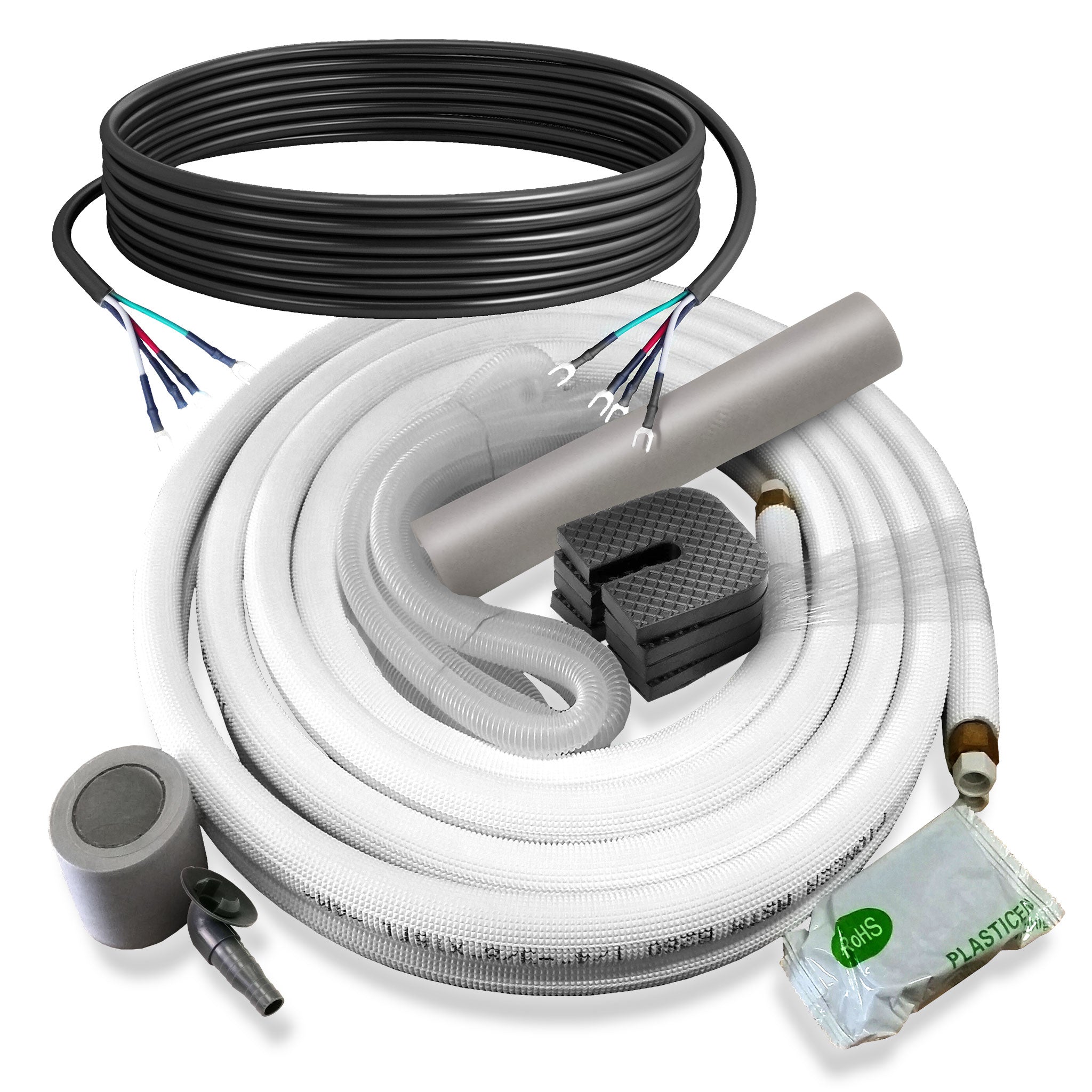

Complete installation kit included (16 ft.)
Comes ready with pre-charged condenser + full installation kit, simplifying setup and reducing additional costs.
-
Quiet yet powerful airflow
Engineered for low noise (as low as ~36 dB) while delivering strong airflow and dual-direction air distribution for even room coverage.
-
Smart comfort features users actually use
Includes ECO mode, sleep mode, turbo boost, timer, self-cleaning, and “I FEEL” sensor, giving better control and personalized comfort.
-
Low-maintenance & eco-friendly design
Features washable filters + R454B refrigerant, offering easier upkeep and improved environmental performance.
Q&A
Q: What room size is this 24,000 BTU mini split suitable for?
A: Ideal for large rooms (approx. 750–1,000 sq. ft), perfect for living rooms, halls, and open spaces.
Q: Does this system provide both cooling and heating?
A: Yes, it’s a full heat pump system offering cooling, heating, dehumidification, and ventilation modes.
Q: How energy-efficient is this unit?
A: High efficiency with up to 21 SEER2 rating, helping reduce electricity consumption and energy bills.
Q: What voltage and power requirements does it have?
A: Operates on 208–230V single-phase power, standard for high-capacity mini split systems.
Q: What is included in the package?

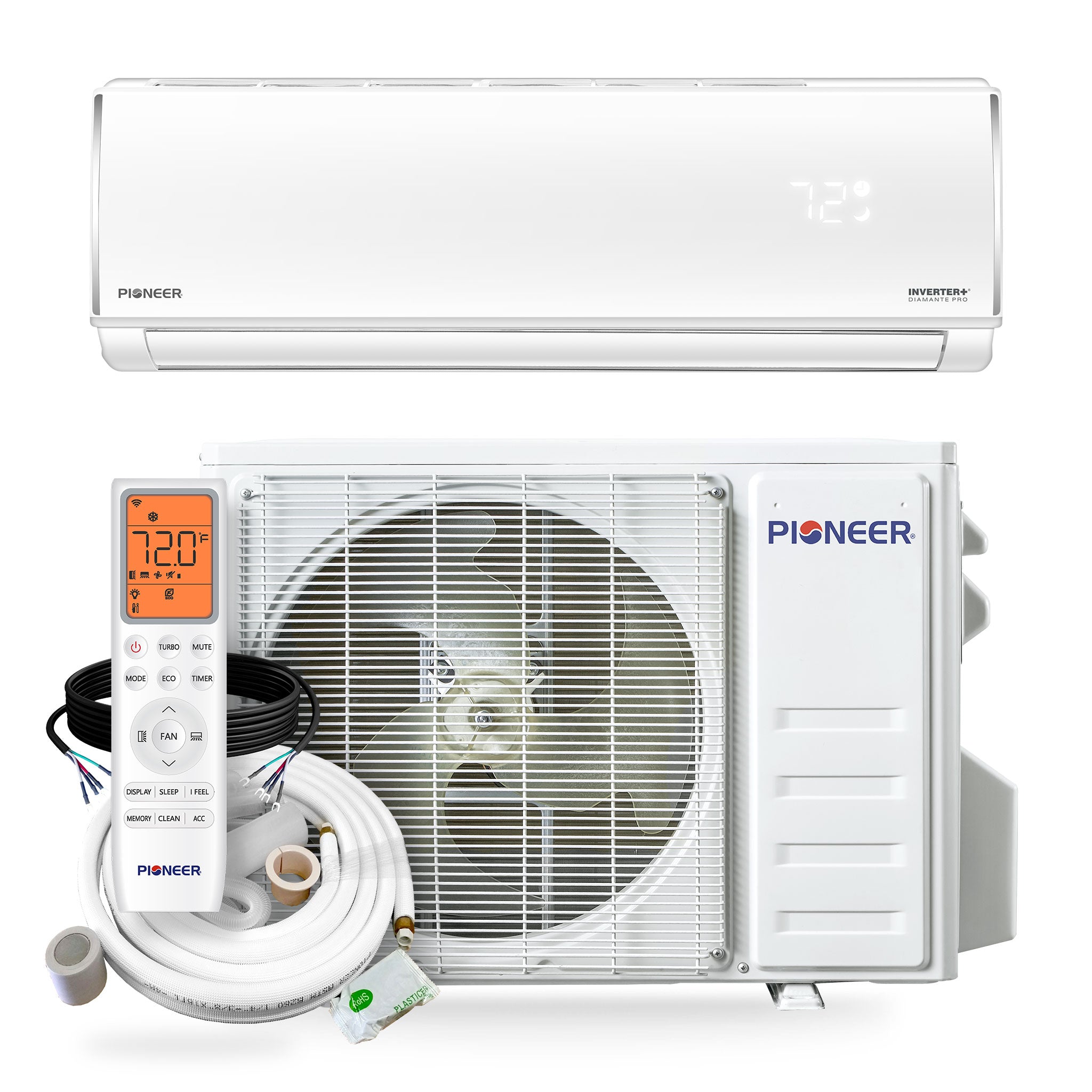

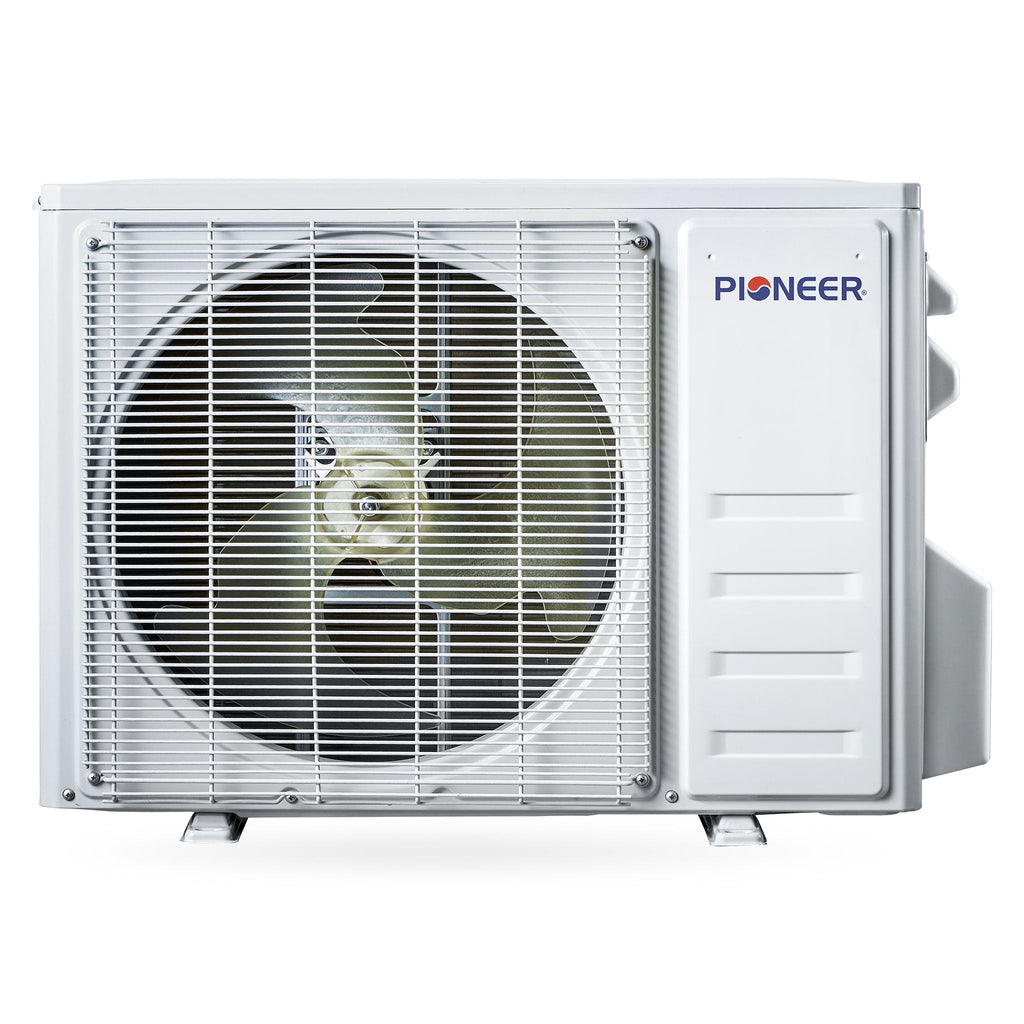

A: Complete system with indoor unit, outdoor condenser, and 16 ft. installation kit (pre-charged refrigerant included).
Q: How quiet is the indoor unit?
A: Operates as low as ~36 dB, delivering quiet performance suitable for residential use.
Q: Does it work in extreme temperatures?
A: Yes, designed for low ambient operation—from as low as -4°F heating to 122°F cooling.
Q: What comfort and smart features are included?
A: Features include ECO mode, sleep mode, turbo, self-cleaning, timer, memory settings, and IFEEL temperature sensing.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains strong airflow (up to ~847 CFM) and energy efficiency (21 SEER2)
-
Run self-clean function regularly – Built-in mode helps prevent mold, odors, and bacteria buildup inside the unit
-
Keep indoor & outdoor units debris-free – Ensure unrestricted airflow for optimal cooling/heating in 750–1000 sq ft spaces
-
Inspect and clear drain line – Dual drainage ports require routine checks to prevent leaks and water damage
-
Maintain proper outdoor clearance (2–3 ft) – Supports efficient heat exchange and inverter performance
-
Check refrigerant lines annually – Pre-charged R454B system should remain leak-free for peak performance
-
Use ECO & Sleep modes frequently – Reduces wear on inverter compressor and lowers energy consumption
-
Schedule yearly professional servicing – Ensures long-term reliability and optimal heating/cooling output
