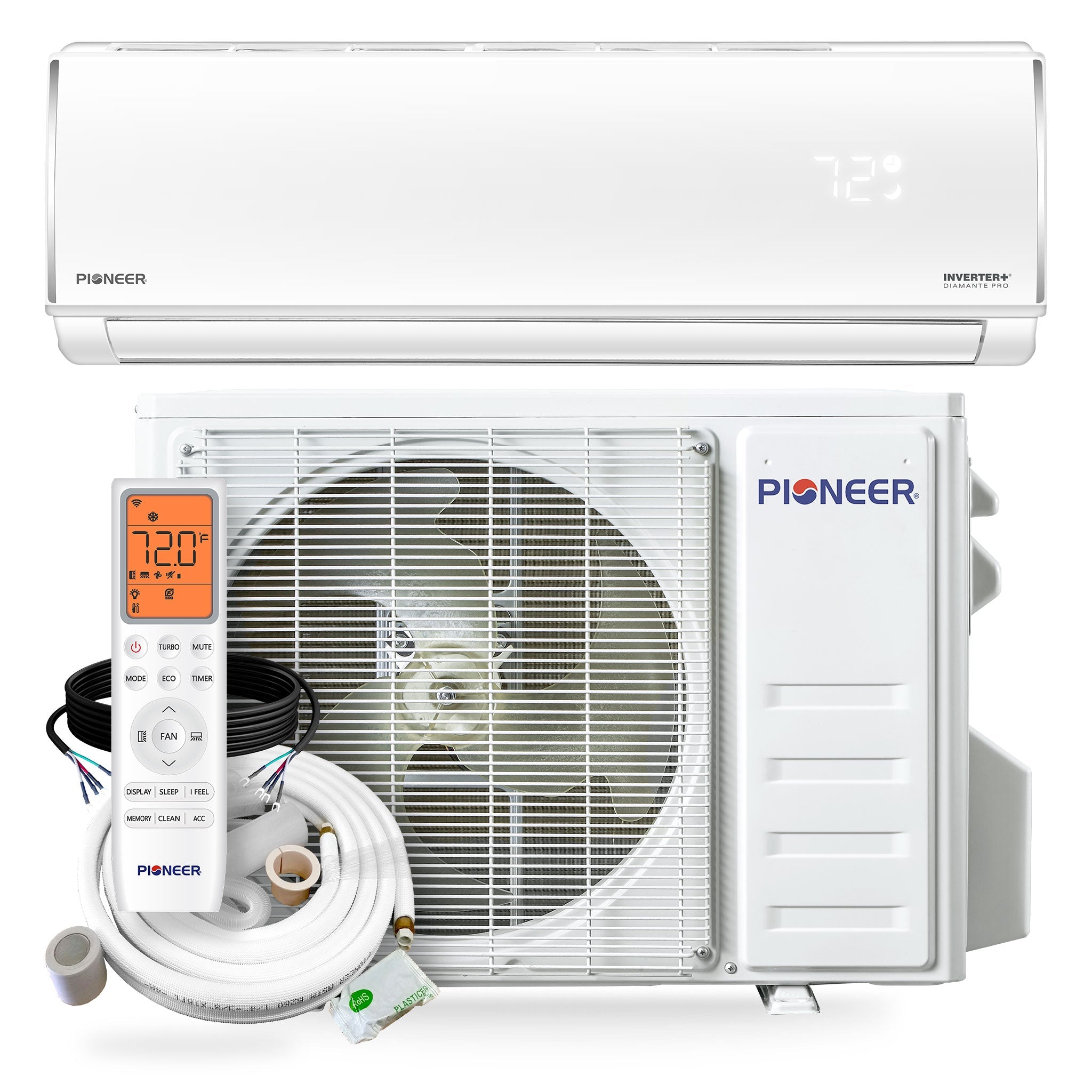

Pioneer Diamante Pro36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLSI20RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 19 SEER2 / 9 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 9 HSPF2 / 3.15 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

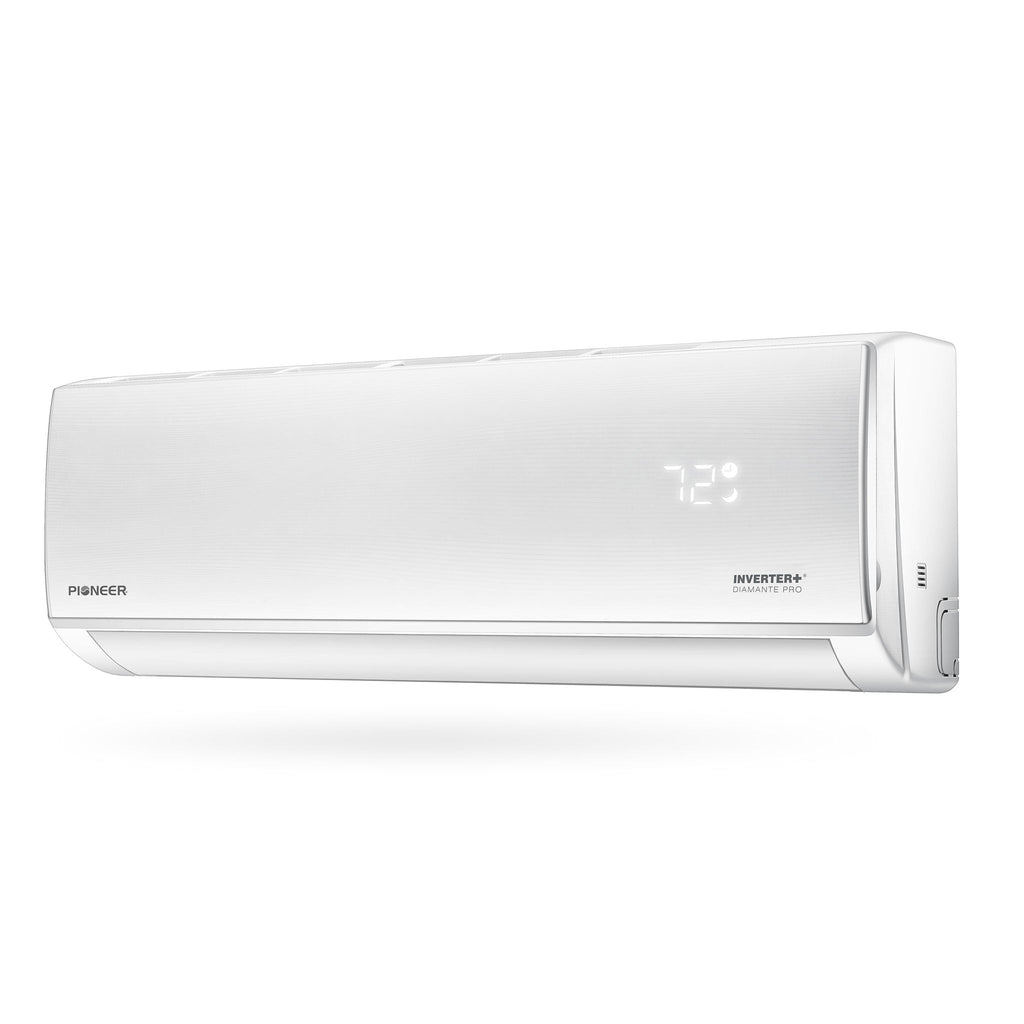

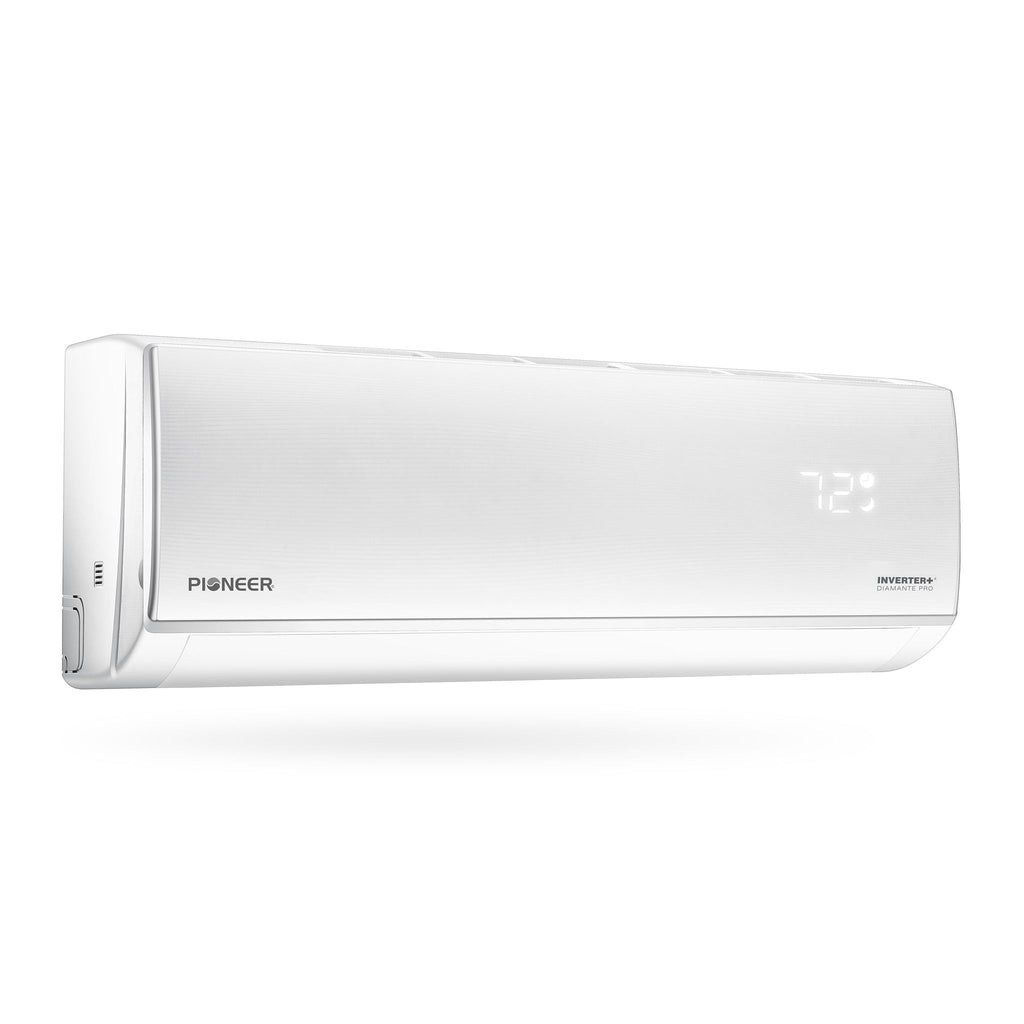

- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

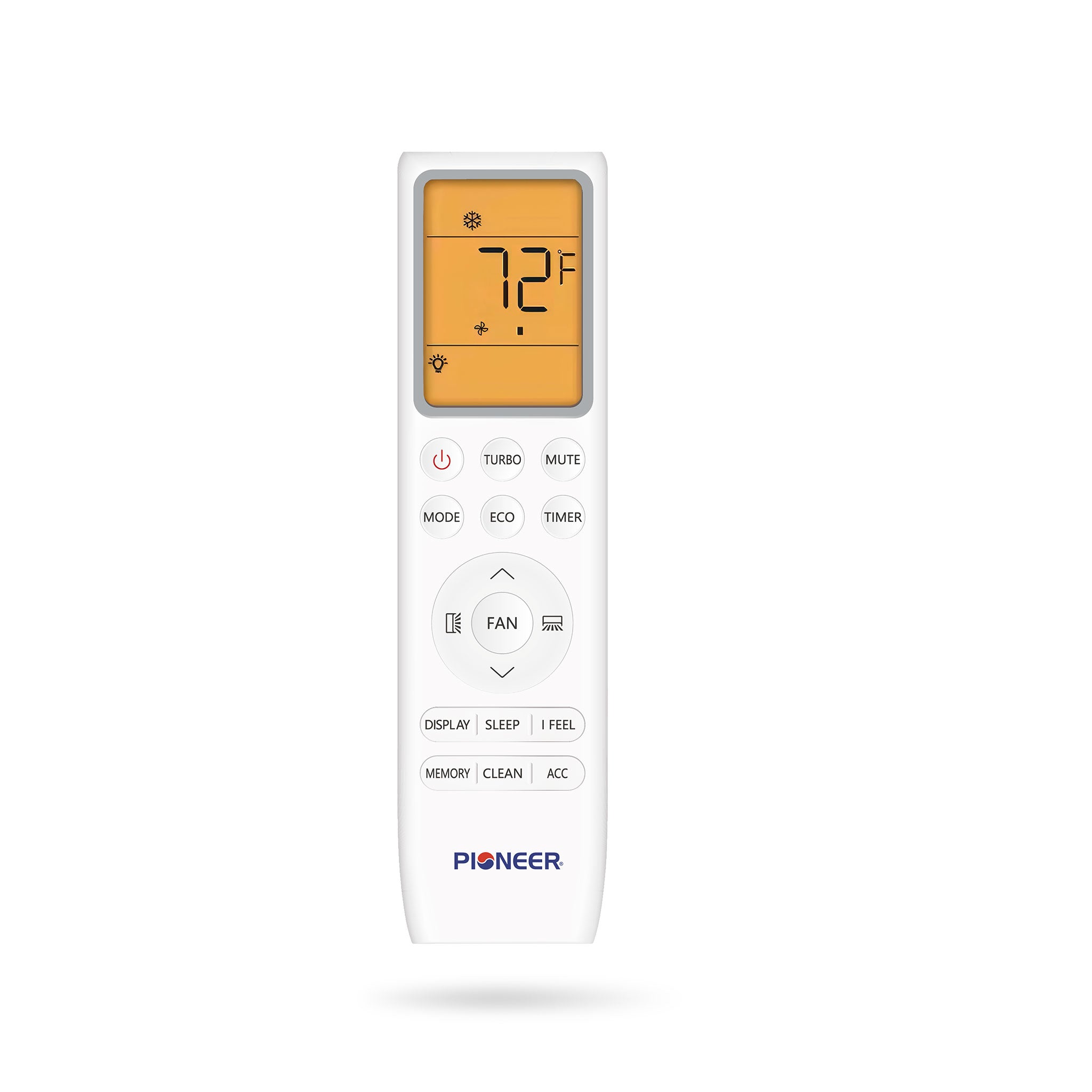

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Powerful whole-area climate control: With 36,000 BTU (3-ton) cooling & heating capacity, this high-wall mini-split is ideal for large open rooms, commercial zones, and multi-purpose living areas.
-
Strong inverter efficiency balance: Delivering up to 19 SEER2 performance, the system offers a smart mix of high output and long-term energy savings compared to traditional fixed-speed HVAC solutions.
-
Designed for large coverage spaces: Expert sizing recommendations suggest effective conditioning for approximately 1,100 – 1,400 sq ft, making it suitable for retail spaces, halls, and larger residential layouts.
-
Reliable year-round heat pump operation: Advanced inverter modulation and balanced heating efficiency (approx. 9 HSPF2 / COP 3.15) help maintain stable comfort in both hot summers and cooler seasons.
-
Extreme-weather performance capability: Engineered to heat in temperatures as low as −4 °F and cool up to 122 °F, ensuring dependable operation in demanding climates.
-
Professional-grade airflow & comfort features: Motorized dual-axis air distribution, ECO / Sleep modes, Turbo boost, and self-clean cycle enhance comfort customization and indoor air management.
Q&A
Q1: What type of HVAC system is this Pioneer model?
A: It is a single-zone high-wall ductless mini-split air conditioner with integrated heat pump, designed for powerful whole-area climate control.
Q2: What cooling and heating capacity does the unit provide?
A: The system delivers 36,000 BTU cooling and heating capacity (approx. 3-ton performance) for large residential or light-commercial spaces.
Q3: How energy-efficient is this mini-split system?
A: It offers high-efficiency 19 SEER2 cooling performance and inverter-driven operation, helping lower energy consumption and operating costs.
Q4: What room size is this air conditioner suitable for?
A: The unit is typically recommended for about 1,000 – 1,400 sq ft coverage, depending on insulation, layout, and climate conditions.
Q5: What electrical requirements does this model need?
A: The system operates on 208-230 V single-phase power and generally requires a dedicated breaker for safe installation.
Q6: Does the package include installation accessories?

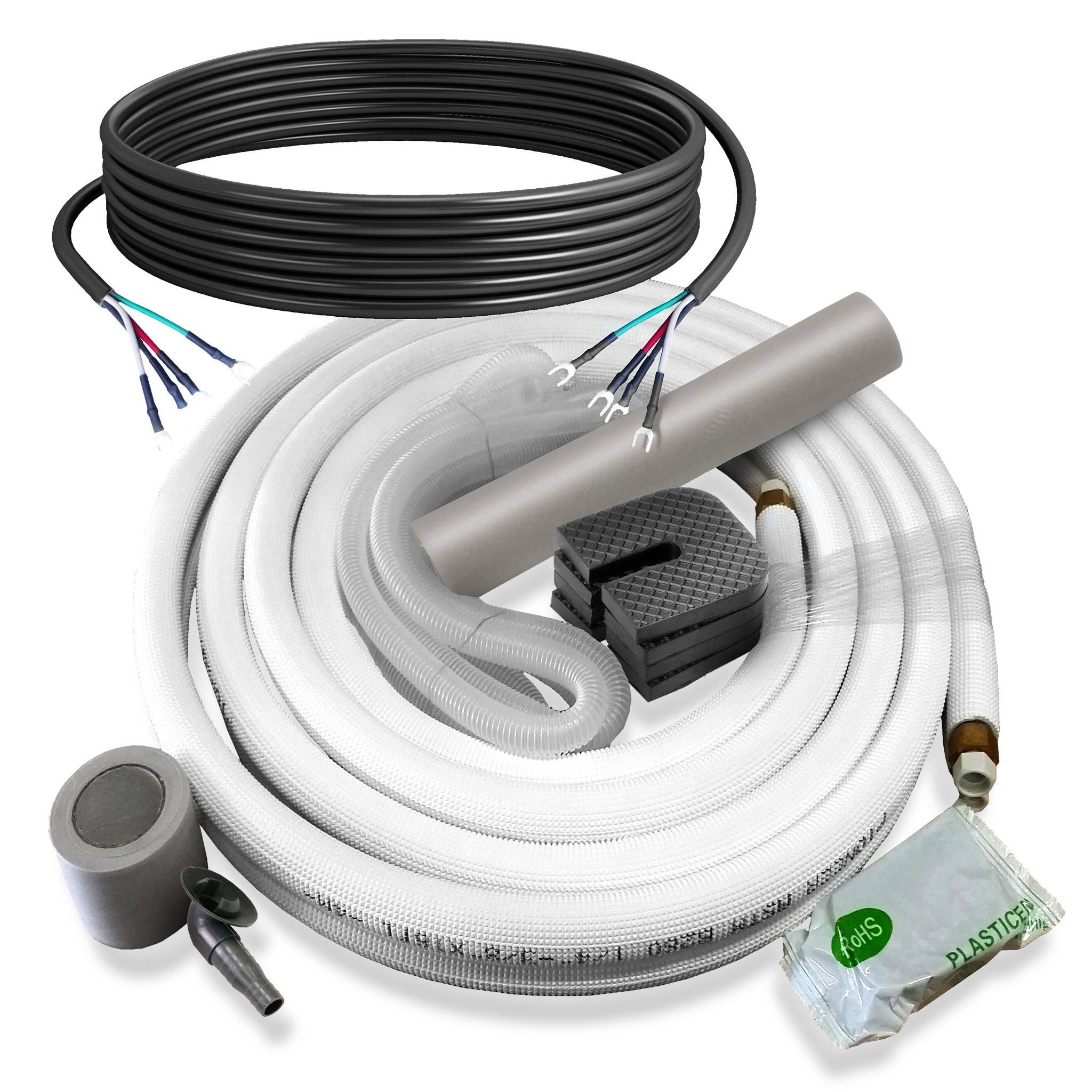

A: Yes, it comes with a complete 16-ft installation kit, including line set and essential mounting accessories for simplified setup.
Q7: What refrigerant is used in this system?
A: The mini-split uses modern R454B refrigerant, supporting improved efficiency and lower environmental impact.
Q8: How does inverter technology enhance performance?
A: Variable-speed inverter control adjusts compressor output for quieter operation, precise temperature control, and consistent comfort.
Maintenance Tips
-
Clean and dry reusable indoor air filters every 2–4 weeks to maintain strong airflow, healthy indoor air quality, and peak cooling efficiency.
-

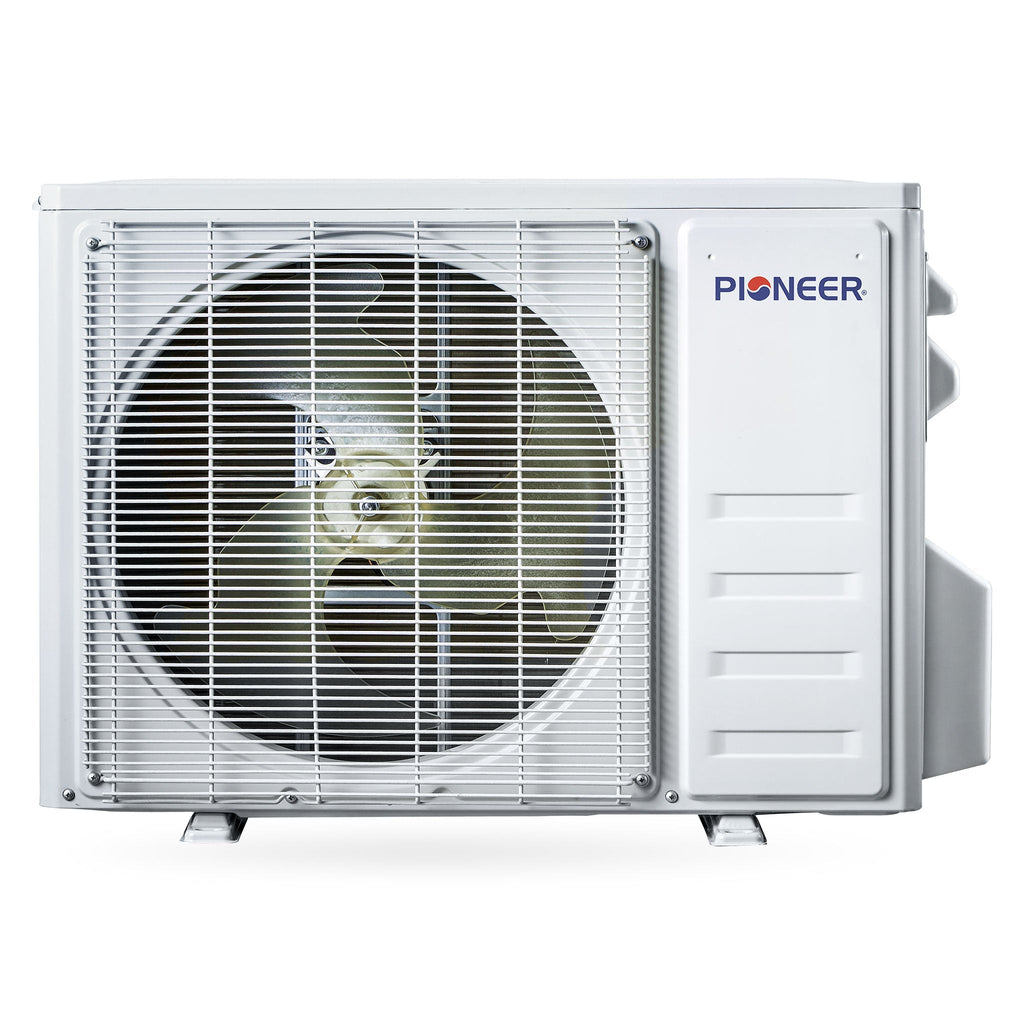

Keep the outdoor condenser coil free from dust, leaves, snow, and debris to support proper heat transfer and inverter energy performance.
-
Inspect condensate drain line and connections regularly to prevent water leakage, odors, or unexpected system shutdowns.
-
Check refrigerant piping insulation and visible wiring annually to avoid capacity loss and ensure safe operation.
-
Wipe the indoor unit panel and air outlet louvers gently with a dry cloth to prevent dust buildup that can restrict airflow.
-
Ensure at least 24 in. clearance around the outdoor unit for optimal ventilation and stable multi-season performance.
-
Schedule professional HVAC servicing once per year for deep coil cleaning, refrigerant pressure testing, and inverter system diagnostics.
