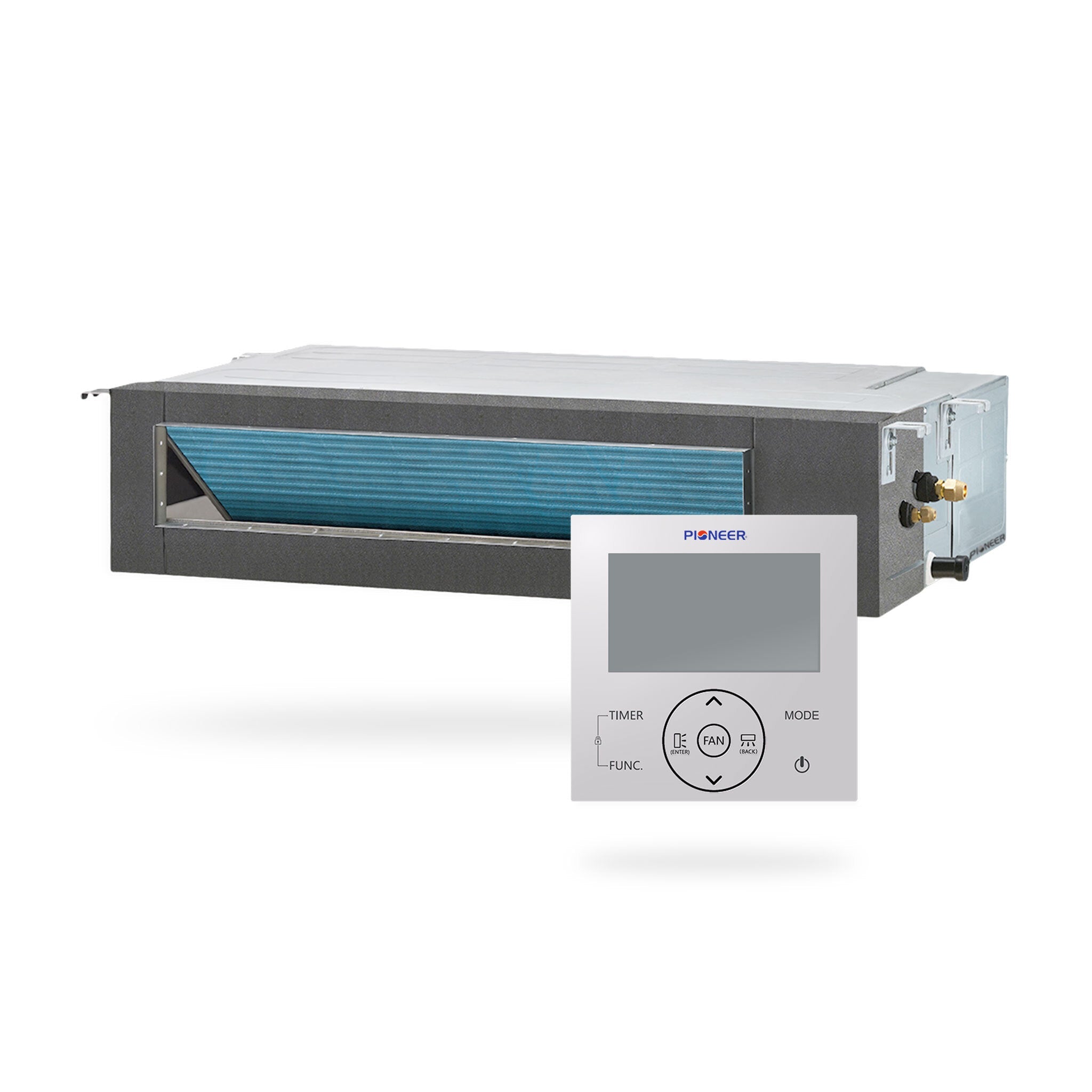

Pioneer Multi Zone 18,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT018GLSILCFHG-10S
-
Part Number: RT018GLSILCFHG
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 18,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Suitable Area: 500~750 sq ft
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 426 / 370 / 300 / 283 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 38 / 36 dB(A)
-
Product Dimensions (WDH): 35-1/2" x 19-1/4" x 7-7/8" Inches
-
Carton Dimensions (WDH): 44-1/8" x 21-7/8" x 9-7/8" Inches
-
Net / Gross Weight: 39.7 / 46.3 lbs
Compatibility
Manuals
Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App

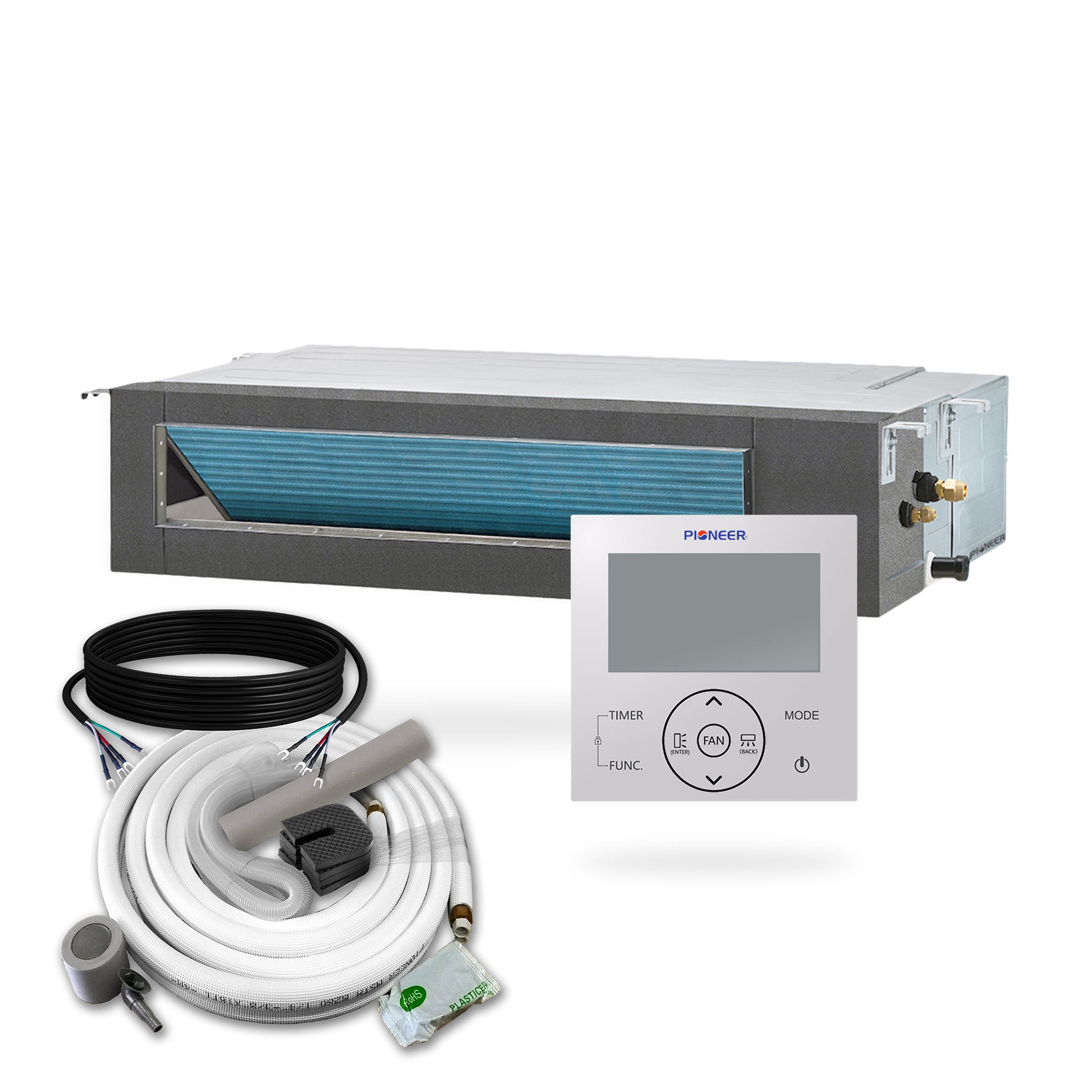

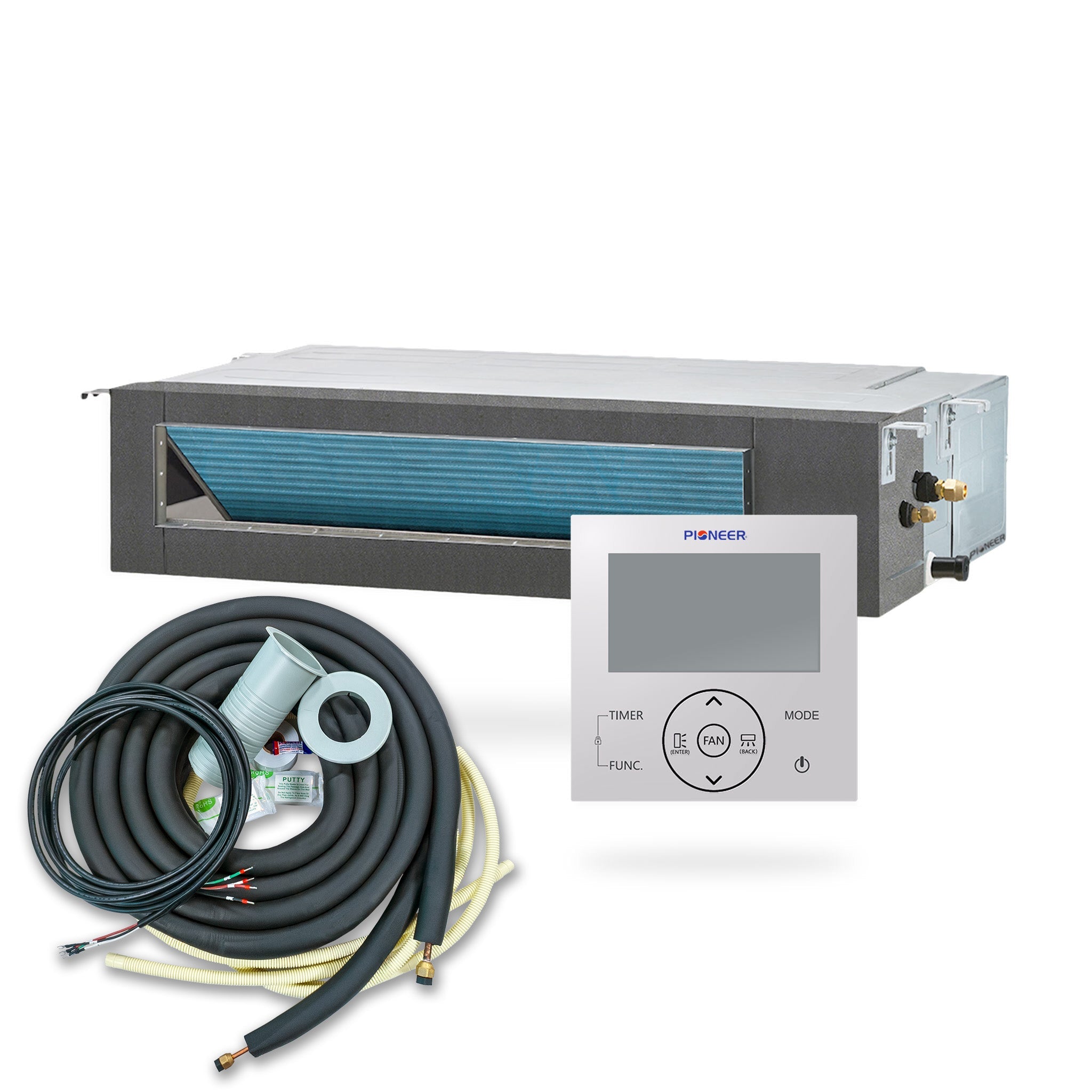

- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
What our Experts Think
-
Robust mid‑size performance (18,000 BTU)
Ideal for medium–large ducted spaces (~650–900 sq ft), this unit provides consistent cooling and heating while keeping indoor aesthetics clean.
-
Concealed ducted comfort
Designed for hidden installation above ceilings, delivering conditioned air through duct runs—perfect where visible units aren’t desired.
-
Inverter++ efficiency for real savings
Advanced DC inverter technology dynamically adjusts output, reducing energy waste and lowering operating costs compared with fixed‑speed systems.
-
Built‑in Wi‑Fi smart control
Integrated Wi‑Fi enables remote temperature adjustment, scheduling, and monitoring via smartphone—boosting convenience and energy optimization.
-
Quiet, balanced airflow
Hidden placement plus optimized fan performance ensures even air distribution with whisper‑quiet operation in living, office, or hospitality spaces.
-
Ye ar‑round heat pump functionality
Works efficiently in both cooling and heating modes, eliminating the need for separate HVAC systems and enabling real‑year comfort.
-
Multi‑zone scalability
Designed to pair with multi‑zone outdoor systems, making it easy to expand comfort across multiple rooms or zones with one condenser.
-
Practical usability features
Includes Turbo, ECO, Sleep, Timer, and Self‑Clean modes, enhancing comfort and ease of use without complexity.
Q&A
Q: What room size is this 18,000 BTU ductable mini split suitable for?
A: Ideal for medium to large rooms (approx. 600–800 sq. ft), such as offices, conference rooms, or open living areas.
Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating.
Q: What type of system is this?
A: Ceiling concealed ductable design, allowing connection to ductwork for flexible air distribution across multiple zones.
Q: Is it compatible with multi-zone systems?
A: Yes, it works with Pioneer multi-zone outdoor condensers (2–5 zones) for whole-home or multi-room setups.
Q: Does it support Wi-Fi and smart control?
A: Yes, built-in Wi-Fi enables remote control, scheduling, and monitoring via the Pioneer Airlink app.
Q: How energy-efficient is this unit?
A: High-efficiency inverter technology with up to 24 SEER2, reducing energy costs while maintaining consistent comfort.
Q: How quiet is the indoor unit?
A: Ultra-quiet operation, typically around 32–35 dB, ideal for offices and residential spaces.
Q: What voltage does it require?
A: Requires 208–230V single-phase power supply.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto diagnostics, and multi-directional airflow for even temperature distribution.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and inverter efficiency for 500–700 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the ceiling-concealed unit
-
Keep indoor & outdoor units dust- and debris-free – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and ceiling damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and energy consumption
-
Schedule yearly professional servicing – Maximizes inverter performance and extends system lifespan
