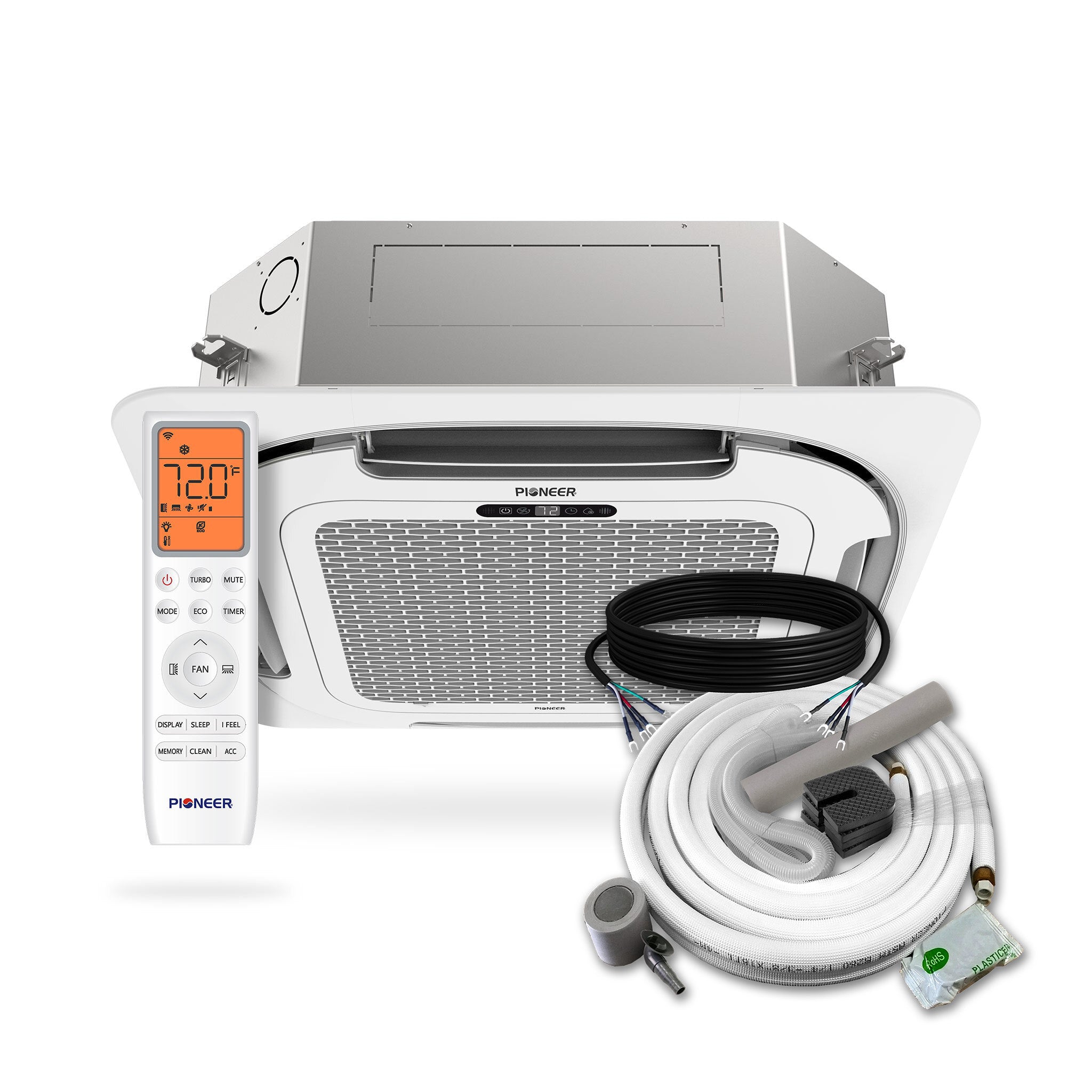

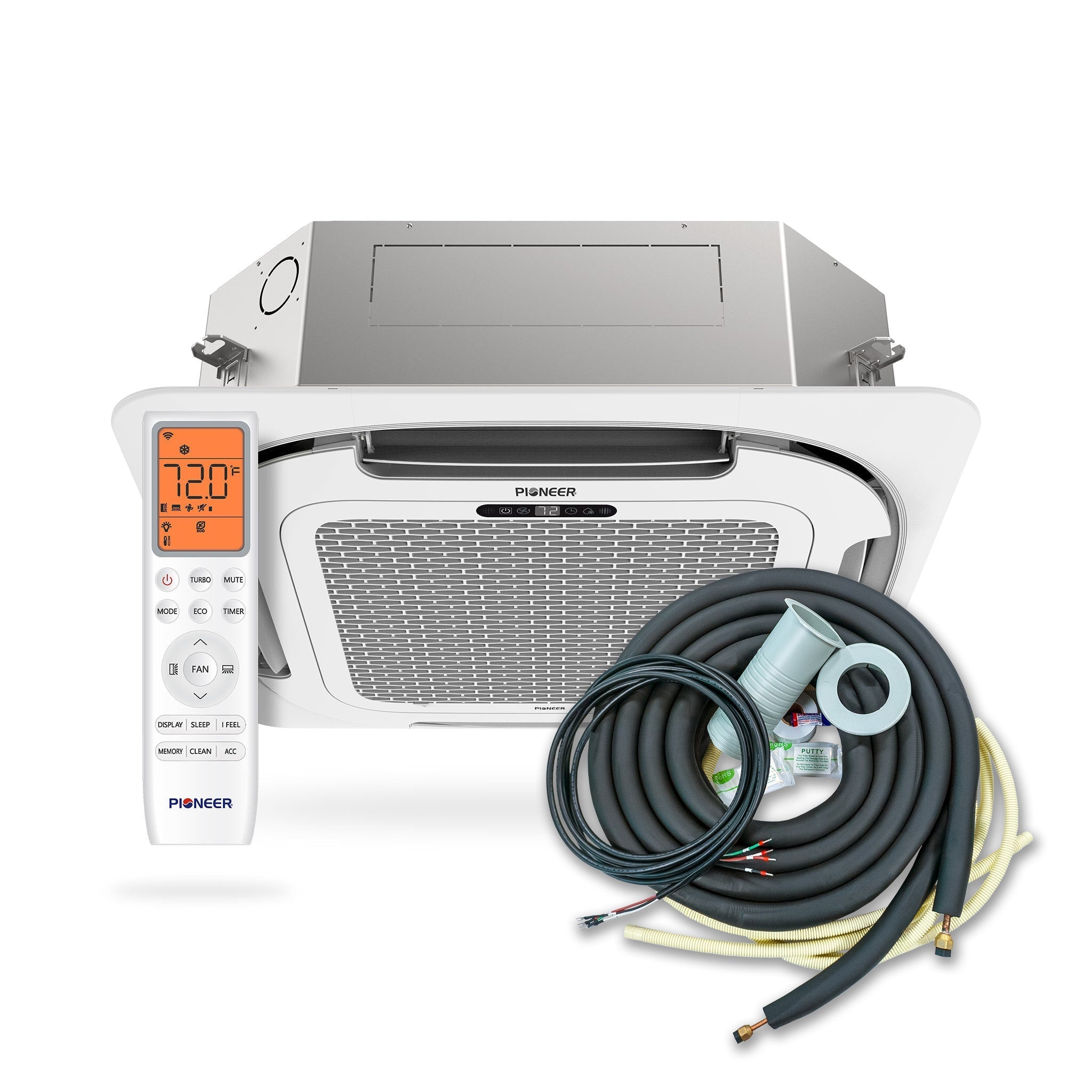

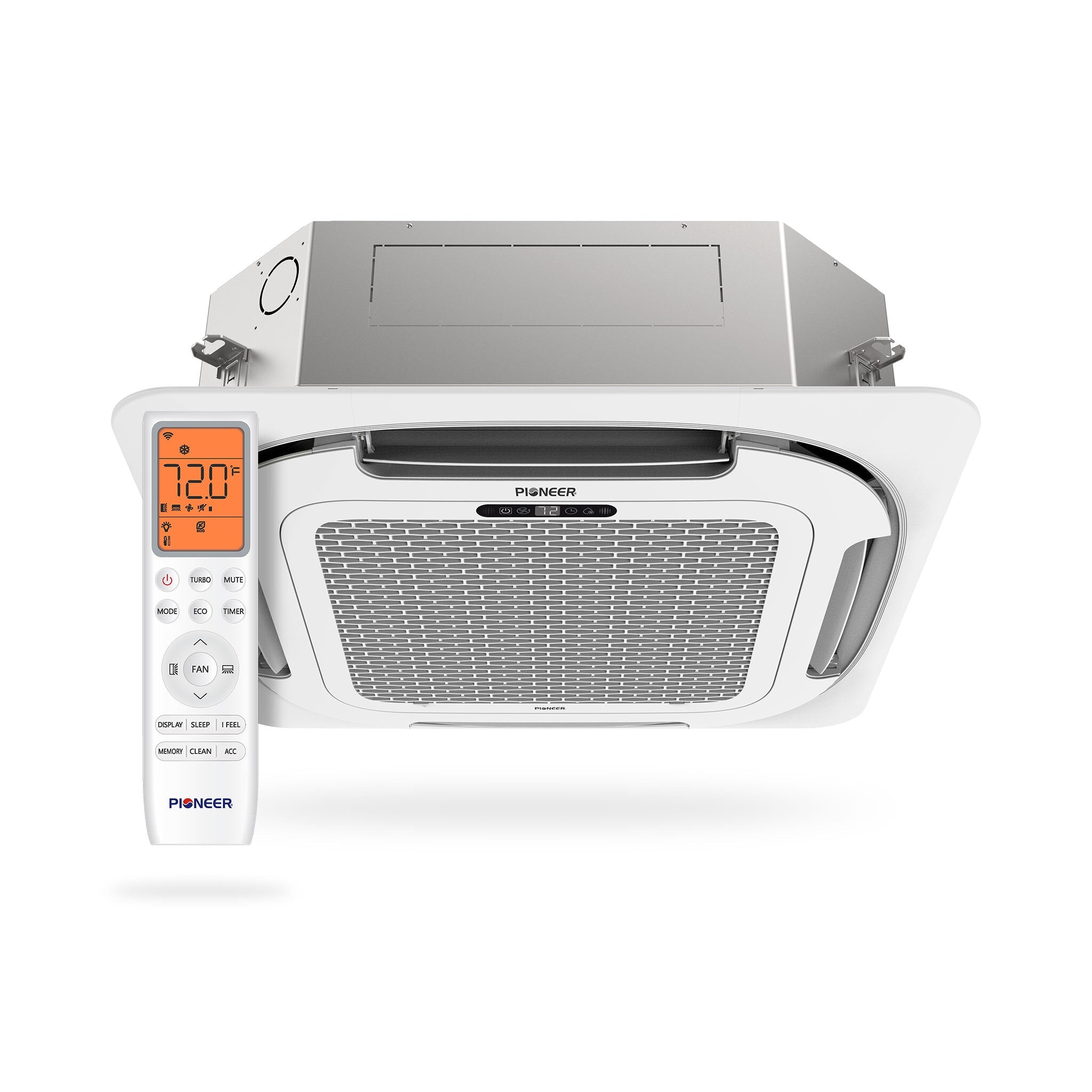

Pioneer Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - CT024GLSILCFHG-10S
-
Part Number: CT024GLSILSFHG
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 24,000 BTU/h
-
Suitable Area: 750~1,000 sq ft
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)
-
Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
-
Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
-
Net / Gross Weight: 51.8 / 59.5 lbs
Compatibility
Manuals
Included
Indoor Unit
Wireless Remote Control
Wi-Fi Module w/ Free App
Full Installation Kit (unless "No Installation Kit" is selected)
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
What our Experts Think
-
Heavy‑duty central split coil solution: The Pioneer 42,000 – 60,000 BTU Furnace‑Connect Multi‑Position Cased AC Heat Pump A‑Coil is designed to serve high‑capacity central air conditioning and heat pump systems, making it ideal for larger homes and zone cooling/heating applications.
-
Versatile multi‑position installation: Flexible layout options — upflow, downflow, left or right horizontal — allow seamless integration with existing ductwork or furnaces in tight attic, closet, or crawl space installations.
-
Broad capacity range: Engineered to work with systems from 42,000 to 60,000 BTU, letting you match the coil to a variety of heat pump or A/C condenser sizes to optimize performance and handle bigger living spaces.
-
Efficient heat exchange design: Precision coils paired with robust casing improve heat transfer efficiency, supporting stronger cooling and heating performance while helping reduce utility costs.
-
Durable construction & condensate management: Factory‑cased design prevents leakage and includes a built‑in condensate system to reliably manage moisture and protect internal components.
-
Furnace‑connect compatibility: Works smoothly with most existing 208‑230 V furnace blowers and refrigerant circuits, making upgrade or retrofit projects easier and more cost‑effective.
-
Pair for peak performance: For best energy and comfort results, experts recommend matching this coil with compatible high‑efficiency Pioneer outdoor heat pump condensers (e.g., YH4248GHFD18R2 / YH4860GHFD18R2).
Q&A
Q1: What type of system is this Pioneer model?
A: It is a furnace-connect multi-position cased A-coil designed for air conditioning and heat pump systems.
Q2: What cooling and heating capacity does it provide?
A: Supports 42,000–60,000 BTU, ideal for medium to large residential or light-commercial applications.
Q3: How does this unit integrate with existing HVAC systems?
A: Furnace-connect design allows seamless installation with compatible gas or electric furnaces.
Q4: What airflow configuration does it support?
A: Multi-position cased design supports horizontal, upflow, or downflow installations for versatile HVAC setups.
Q5: What refrigerant is compatible with this A-coil?
A: Compatible with R-410A refrigerant, ensuring efficient cooling and heat pump operation.
Q6: What electrical requirements does it have?
A: Requires connection to the existing furnace system, with no dedicated high-voltage supply for the coil itself.
Q7: Is it suitable for heat pump applications?
A: Yes, it is fully compatible with heat pump systems, providing efficient heating and cooling integration.
Q8: Can it be used in residential or commercial buildings?
A: Yes, suitable for residential homes, townhomes, and small commercial spaces.
Q9: What makes this A-coil versatile?
A: Multi-position casing allows flexibility in installation orientation and system configuration.
Q10: Does this unit require professional installation?
A: Yes, professional HVAC installation is recommended to ensure proper airflow, refrigerant charge, and system performance.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, cooling/heating efficiency, and indoor air quality.
-
Ensure the ceiling cassette vents and unit interior remain free of dust and debris to optimize airflow and inverter performance.
-
Inspect condensate drain lines and pan regularly to prevent leaks or water damage.
-
Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.
-
Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.
-
Maintain adequate clearance above the cassette panel for proper air distribution and system efficiency.
-
Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and system optimization.
