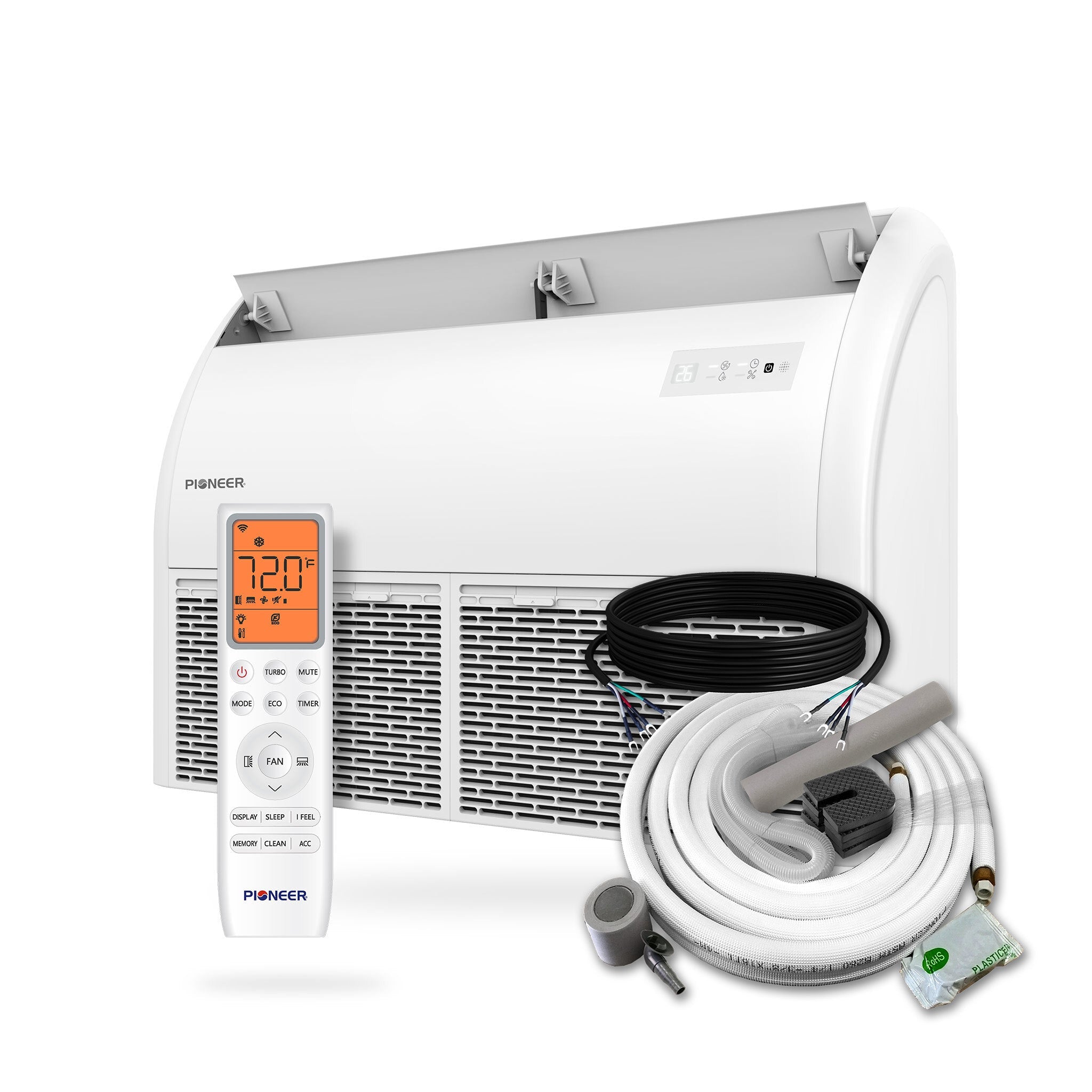

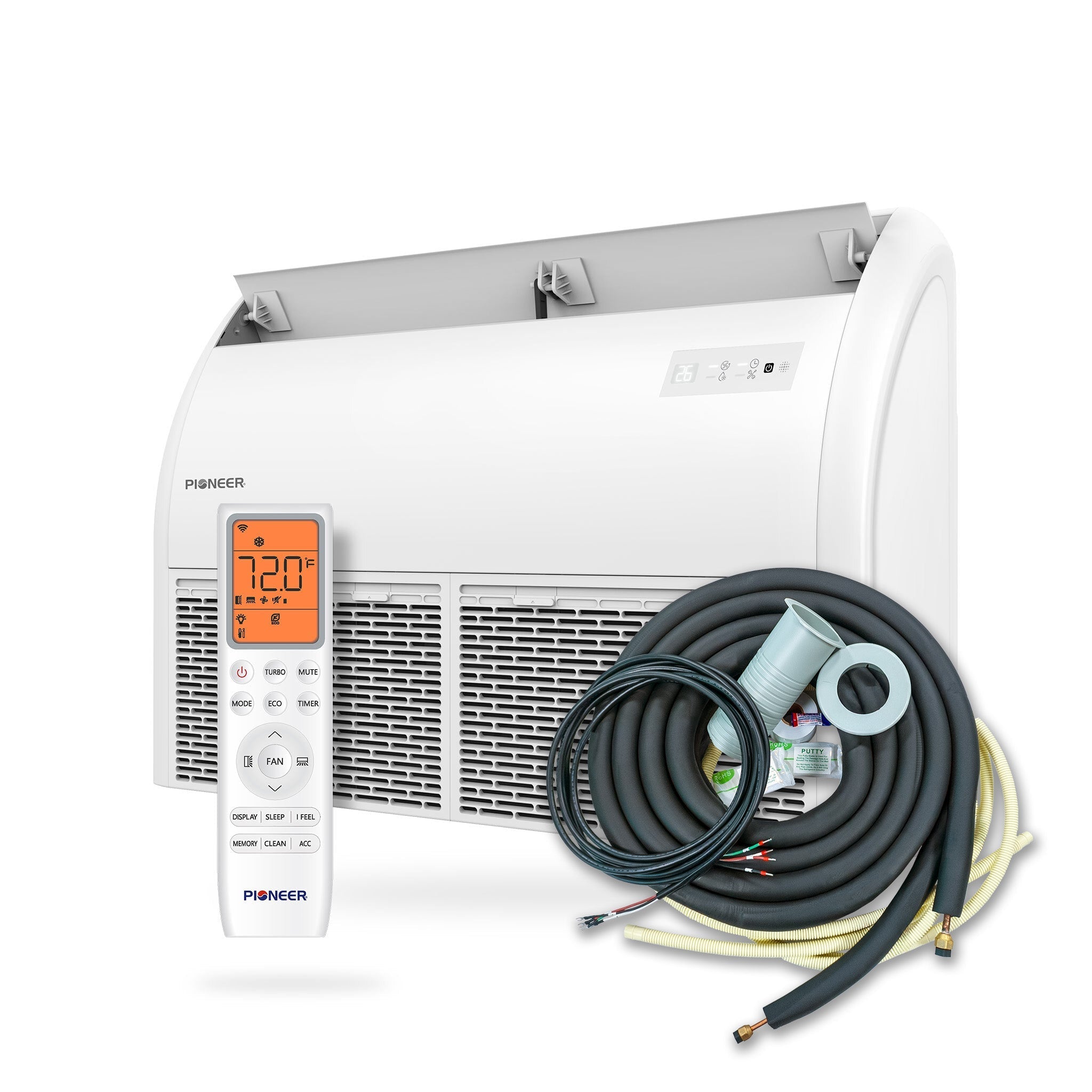

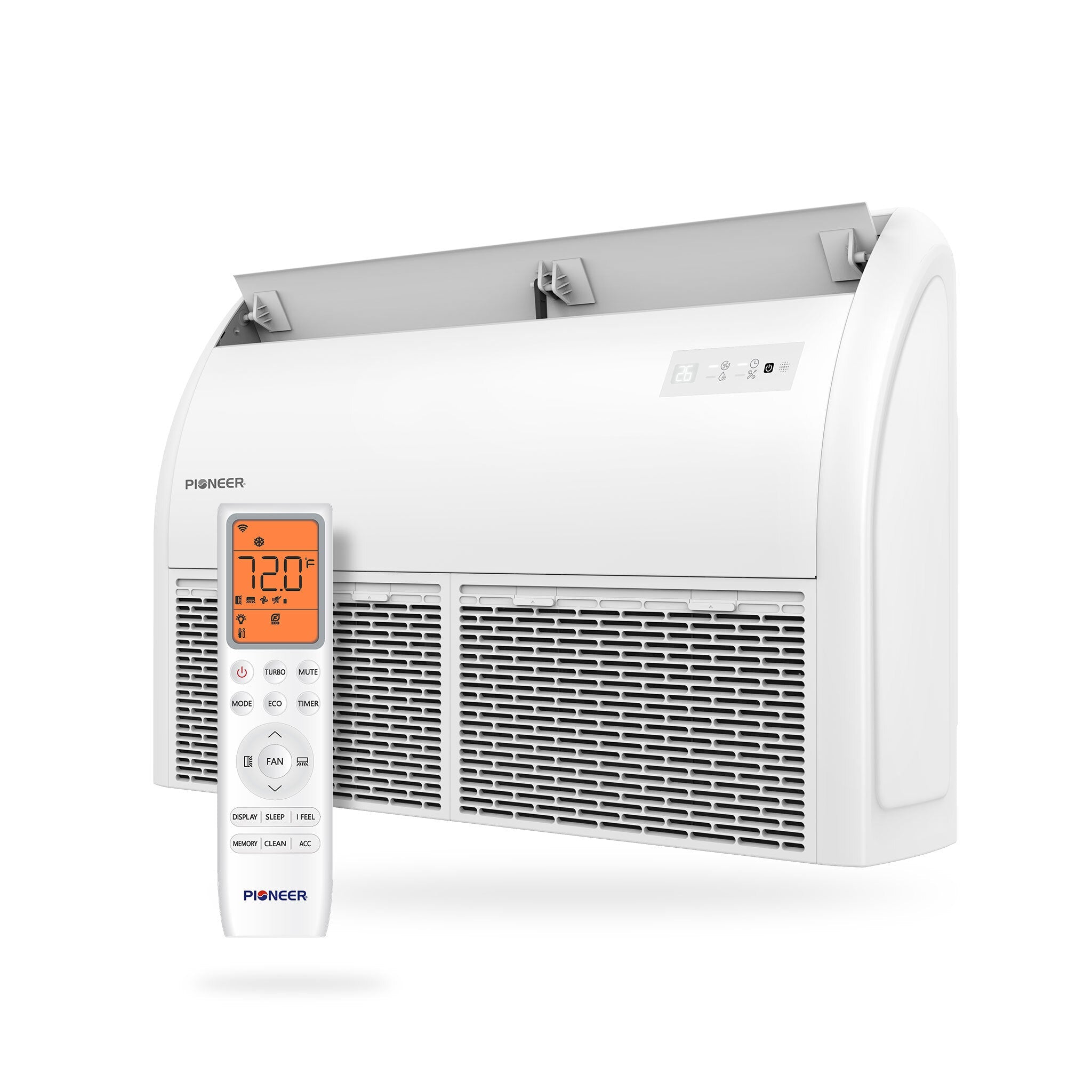

Pioneer Multi Zone 24,000 BTU Quantum Ultra Floor-Ceiling Flex Mount Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - UT024GLSILCFHG-10S
-
Part Number: UT024GLSILSFHG
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 24,000 BTU/h
-
Suitable Area: 750~1,000 sq ft
-
Air Flow (Turbo/Hi/Med/Lo/Mute): 647 / 588 / 517 / 470 / 412 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 53 / 52 / 48 / 44 / 40 dB(A)
-
Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
-
Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
-
Net / Gross Weight: 57.3 / 68.3 lbs
Compatibility
Manuals
Included
Indoor Unit
Wireless Remote Control
Wi-Fi Module w/ Free App
Full Installation Kit (unless "No Installation Kit" is selected)
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
What our Experts Think
-
High‑capacity comfort (24,000 BTU)
Delivers strong cooling and heating performance for large open spaces (~900–1,200 sq ft)—ideal for living rooms, studios, workshops, or commercial areas.
-
Flexible floor‑ceiling installation
The floor‑ceiling cassette design adapts to diverse layouts, offering 360° airflow and unobstructed comfort whether mounted high or low.
-
Inverter++ technology = smarter efficiency
Advanced DC inverter compressor continuously adjusts output, reducing energy waste and maintaining precise temperature control for lower operating costs.
-
Built‑in Wi‑Fi smart control
Integrated Wi‑Fi lets you remotely control settings, schedules, and modes from smartphone apps—enhancing convenience and energy management.
-
Multi‑zone ready & scalable
Designed to pair with multi‑zone outdoor units, making it easy to expand comfort across multiple rooms or zones from a single condenser.
-
Quiet, balanced airflow
Cassette design ensures even air distribution with whisper‑quiet operation, providing comfort without noisy distractions.
-
Year‑round heat pump performance
Works efficiently in both cooling and heating modes, eliminating the need for separate systems and supporting comfort in all seasons.
-
User‑focused comfort modes
Includes practical modes like Turbo, ECO, Sleep, Timer, and Self‑Clean to enhance comfort and efficiency without complexity.
Q&A
Q: What room size is this 24,000 BTU mini split suitable for?
A: Ideal for large rooms (approx. 800–1,200 sq. ft), including living rooms, offices, or open-plan spaces.
Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating.
Q: Is it compatible with multi-zone systems?
A: Yes, designed to work with Pioneer multi-zone outdoor condensers (2–5 zones) for whole-home setups.
Q: Does it support Wi-Fi and smart control?
A: Yes, built-in Wi-Fi allows remote operation via the Pioneer Airlink app for convenient control.
Q: How energy-efficient is this unit?
A: Features high-efficiency inverter technology with up to 24 SEER2, reducing electricity costs while maintaining comfort.
Q: How quiet is the floor-ceiling flex mount indoor unit?
A: Ultra-quiet operation, typically ~32–35 dB, suitable for bedrooms, living spaces, and offices.
Q: What voltage does it require?
A: Requires 208–230V single-phase power supply.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto diagnostics, and 360° multi-directional airflow for even temperature distribution.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and inverter efficiency for 700–1,000 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the floor-ceiling unit
-
Keep indoor unit & outdoor unit dust- and debris-free – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and floor/ceiling damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and full capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and energy consumption
-
Schedule yearly professional servicing – Maximizes inverter performance and extends system lifespan
