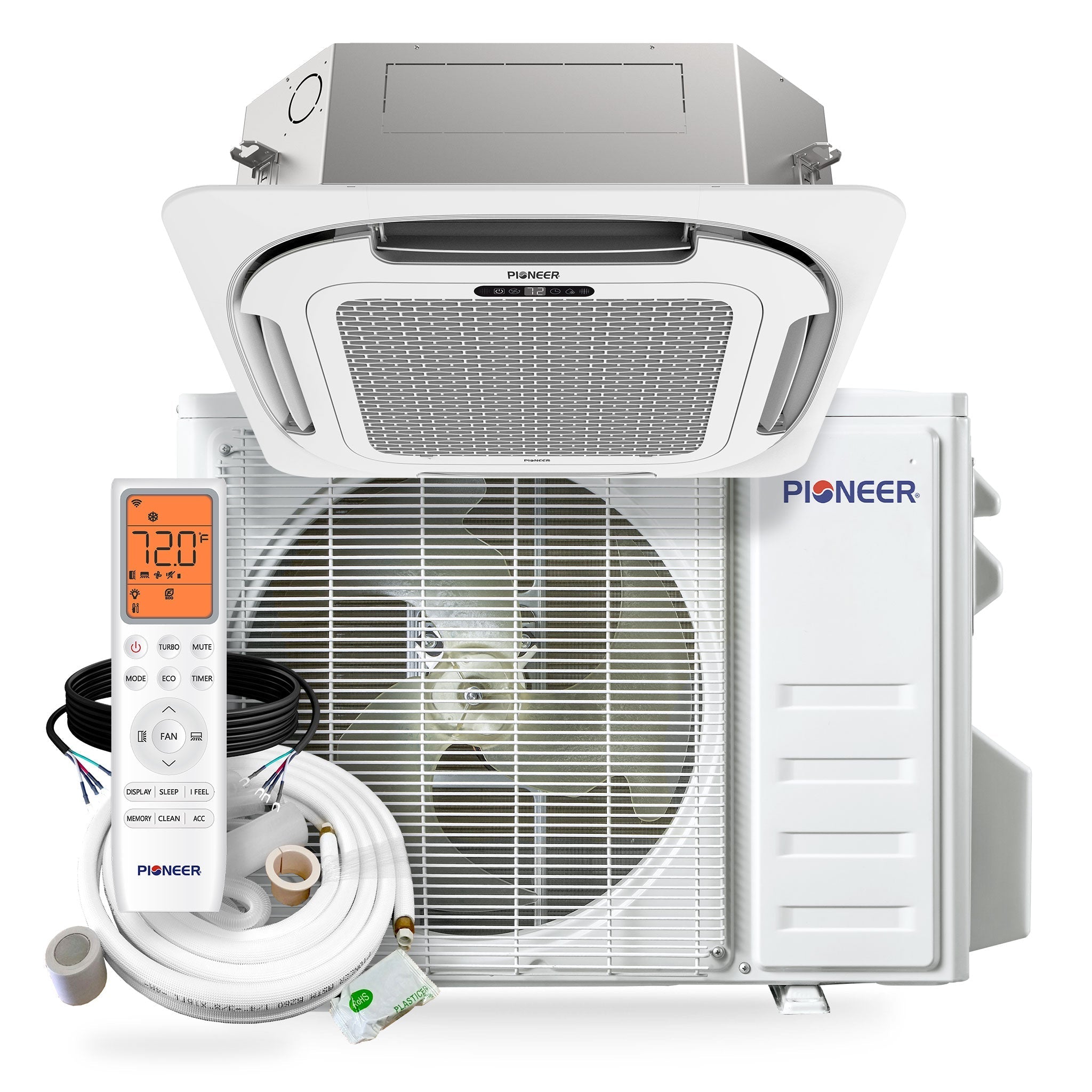

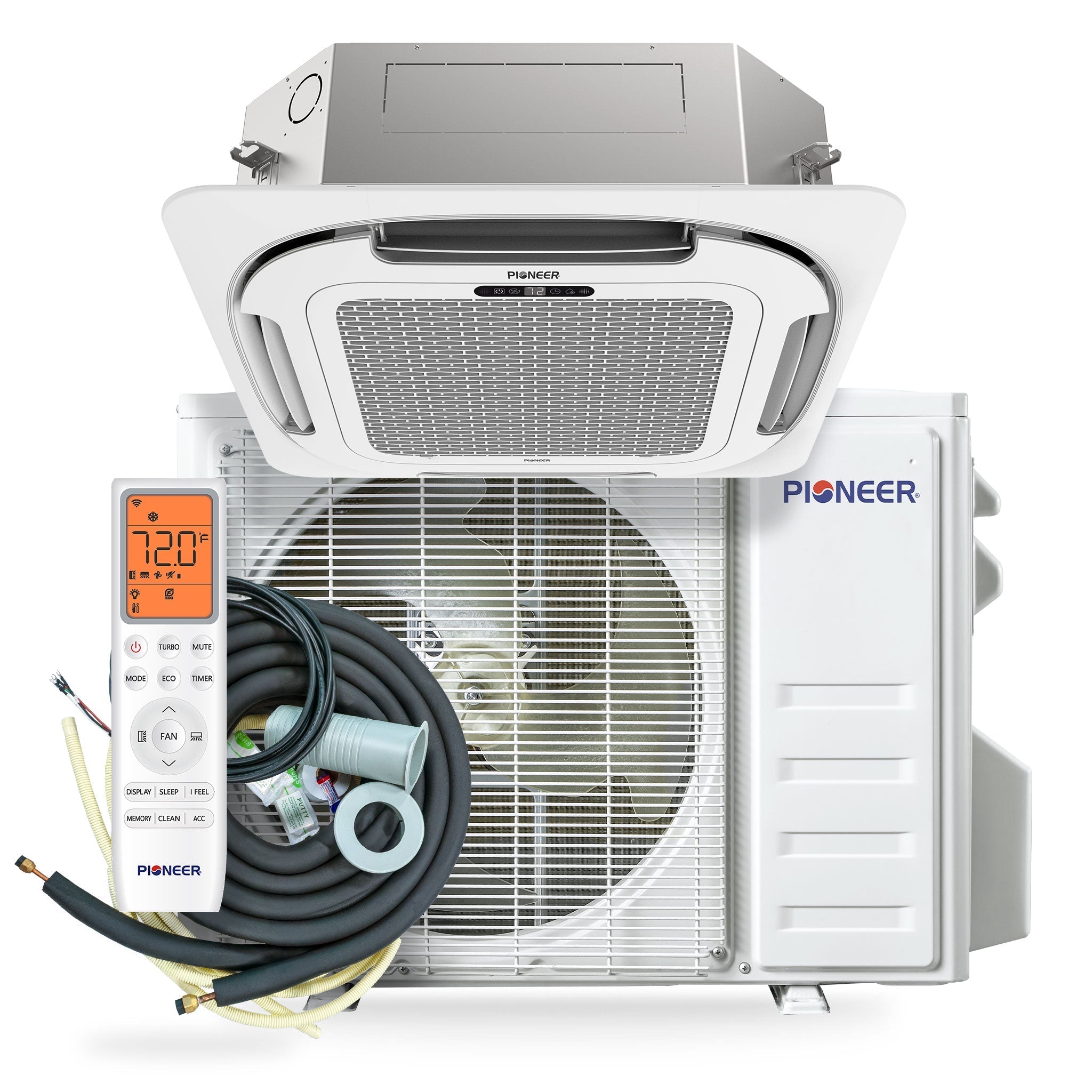

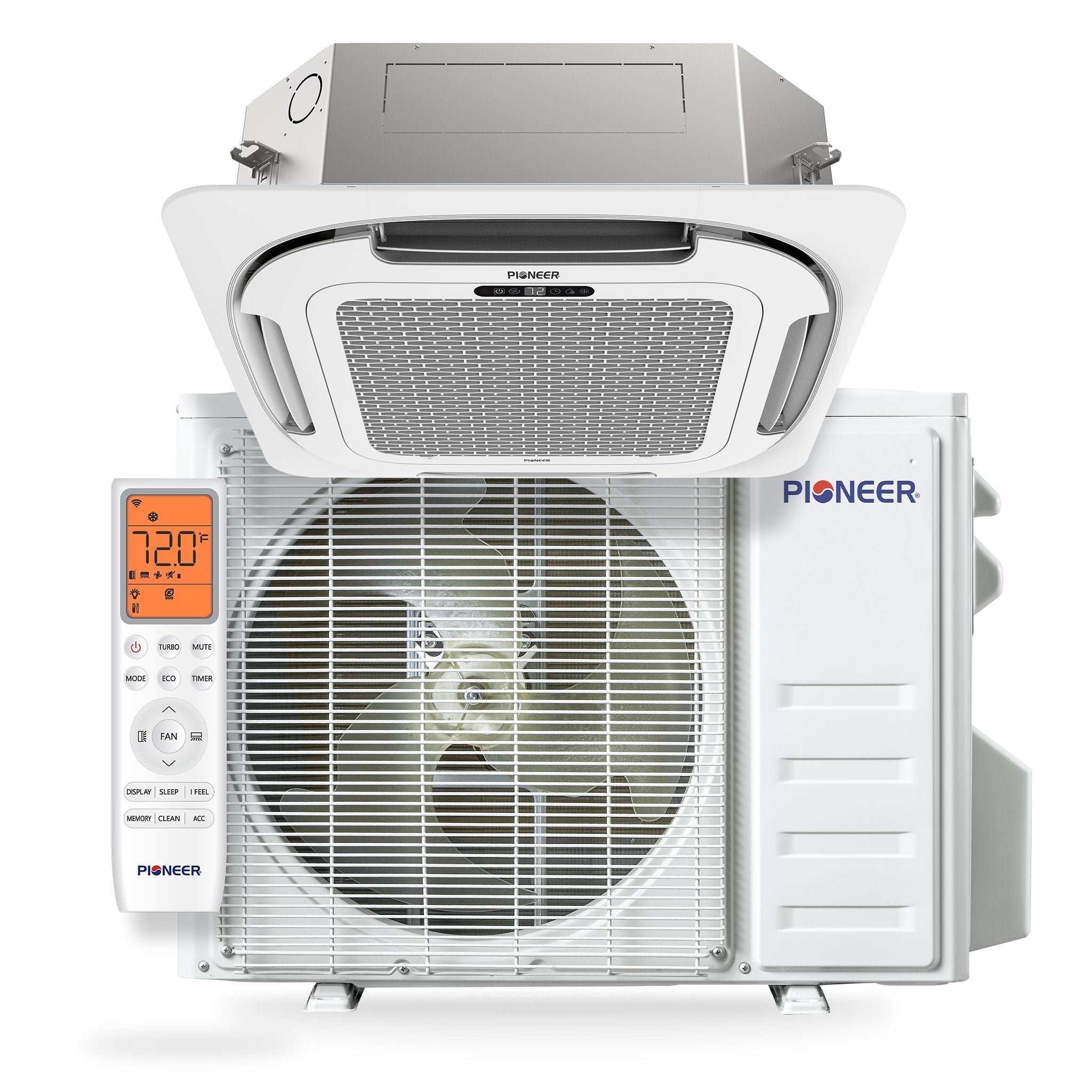

Pioneer Quantum Ultra 23,000 BTU 22.5 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT024GLSI24RL-10S
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-

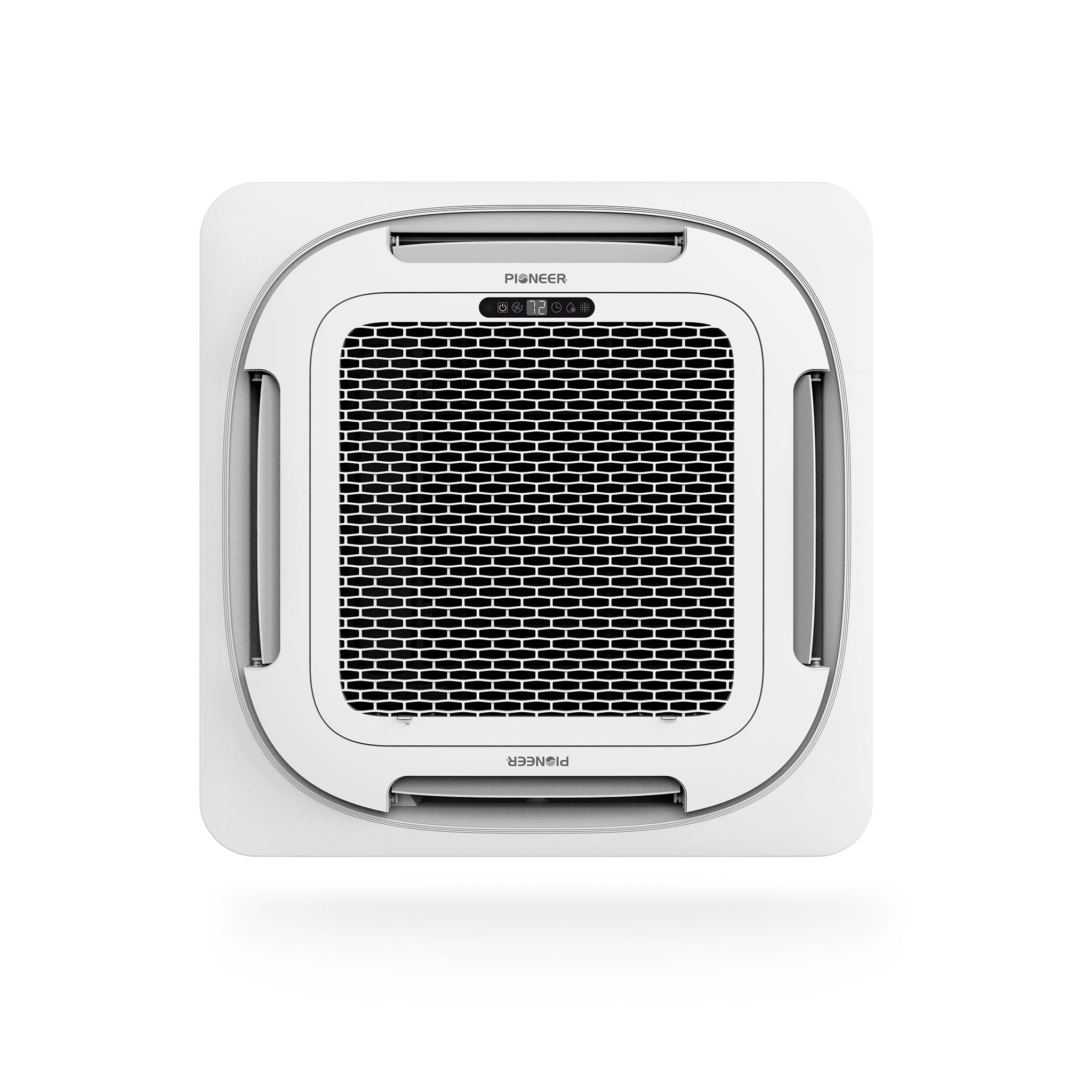

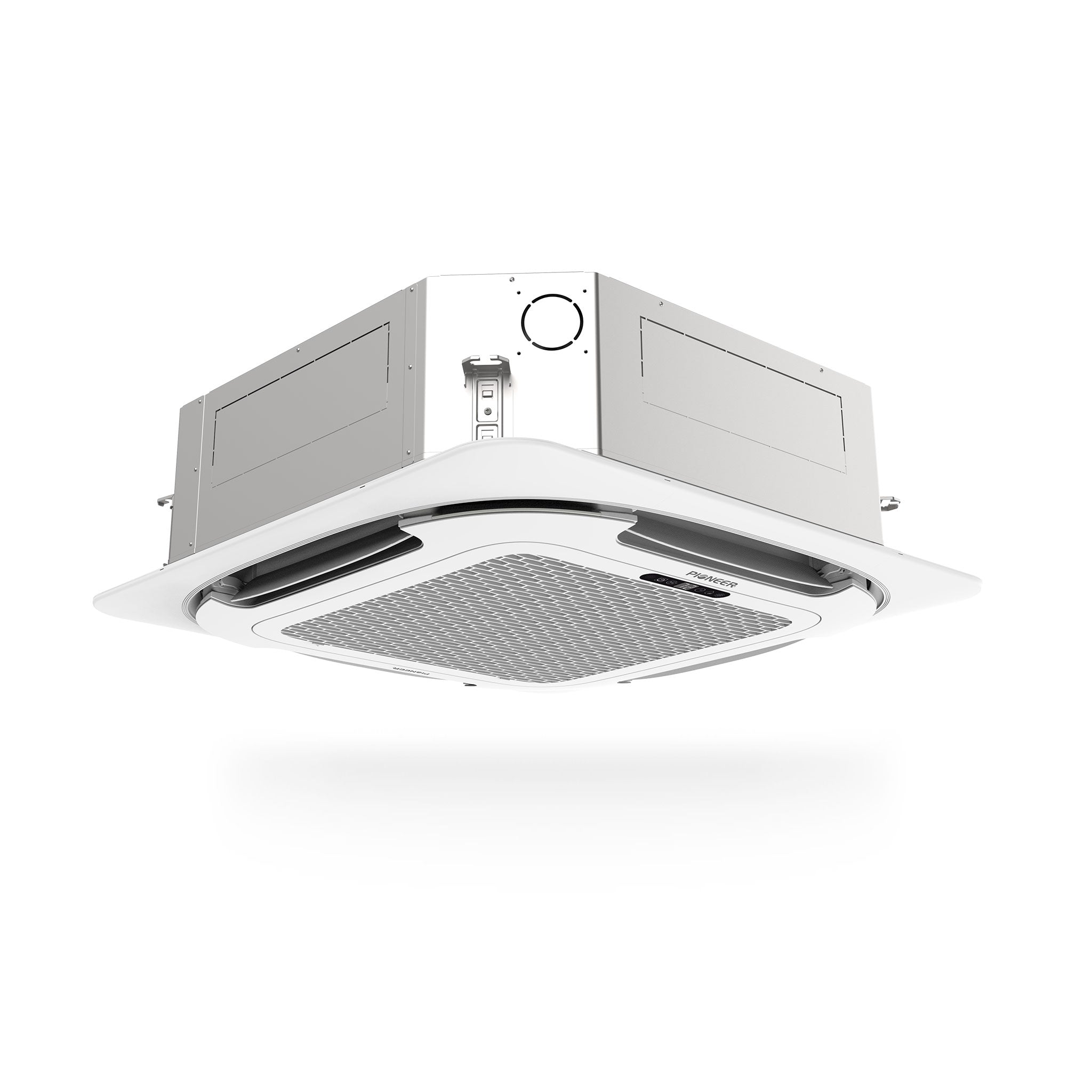

Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

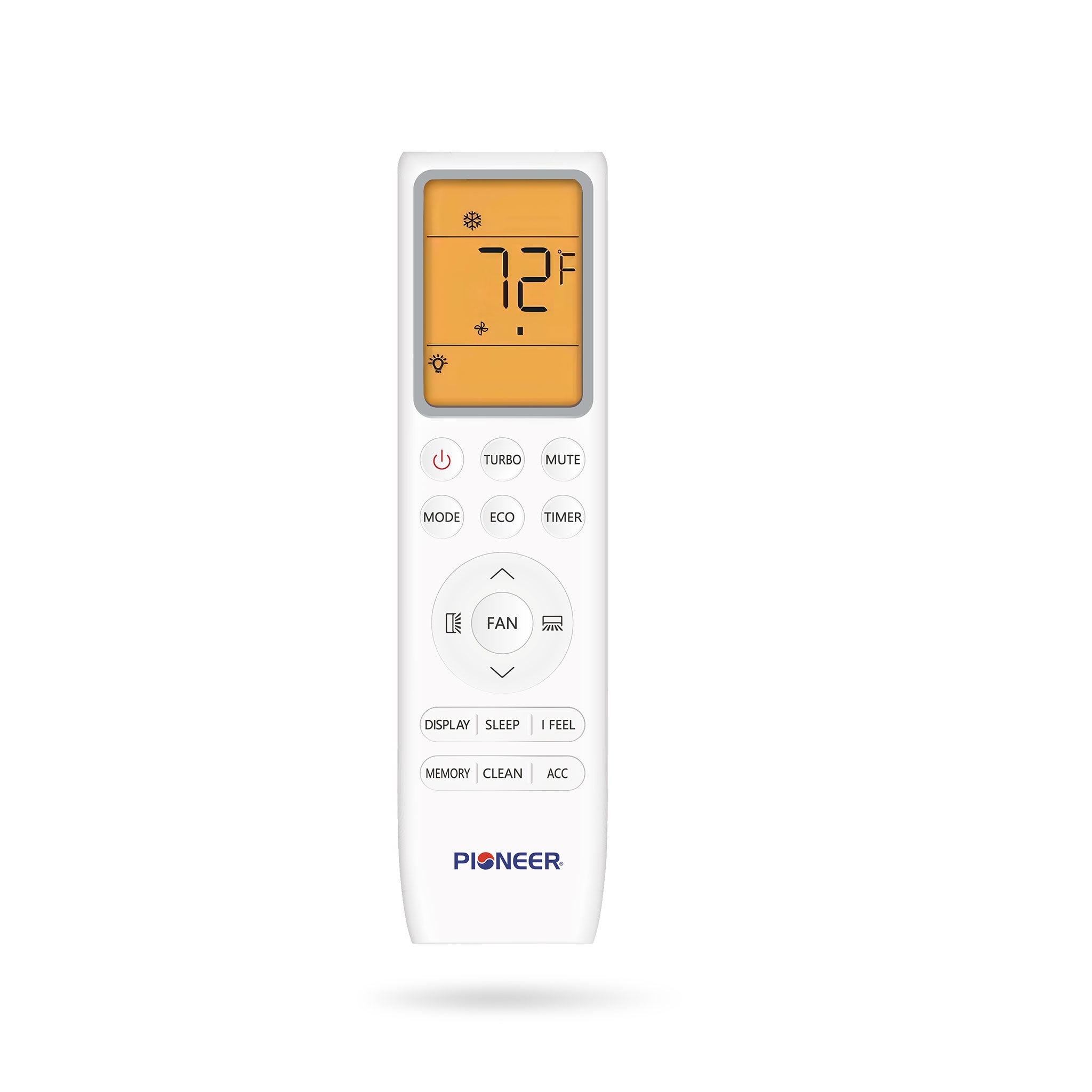

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Premium ceiling‑cassette performance: This Pioneer Quantum Ultra 23,000 BTU 22.5 SEER2 ductless ceiling cassette mini‑split delivers omni‑directional 8‑way airflow for uniform comfort across larger rooms — great for offices, living areas, retail spaces, and more.
-
High efficiency & year‑round comfort: With 22.5 SEER2 cooling efficiency and robust heat pump heating (25,000 BTU), it balances strong seasonal energy savings with reliable performance in diverse climates.
-
Smart airflow & indoor air quality: Advanced dual‑axis louvers, fresh‑air intake option, and washable/reusable filters help improve comfort and air freshness while reducing maintenance needs.
-
Built‑in condensate management: Integrated drain pump (up to ~30 in. lift) simplifies installation and helps avoid water issues in ceiling applications.
-
Quiet, customizable operation: Multi‑speed airflow and low sound levels help maintain a peaceful environment — ideal for bedrooms, classrooms, or shared spaces.
-
App & control flexibility: Compatible with the free Pioneer Airlink app, handheld remote, wired controllers, and voice platforms like Alexa/Google Assistant (where supported), giving you smart control options.
-
Suitable coverage & installation: Designed for ~750–1,000 sq ft areas and includes a full kit (indoor/outdoor units, panel, remote, line sets, and installation essentials) to streamline professional setup.
Q&A
Q1: What type of system is this Pioneer model?
A: It is an 8-way ceiling cassette ductless mini-split air conditioner with integrated heat pump, designed for even multi-directional cooling and heating.
Q2: What cooling and heating capacity does it provide?
A: Offers 23,000 BTU cooling with reliable heat pump heating, ideal for medium to large rooms.
Q3: How energy-efficient is this unit?
A: Features 22.5 SEER2 efficiency and inverter technology for precise temperature control and lower energy consumption.
Q4: What installation style does it support?
A: Designed for ceiling cassette installation, delivering 8-way airflow for uniform comfort.
Q5: Does it include all components?

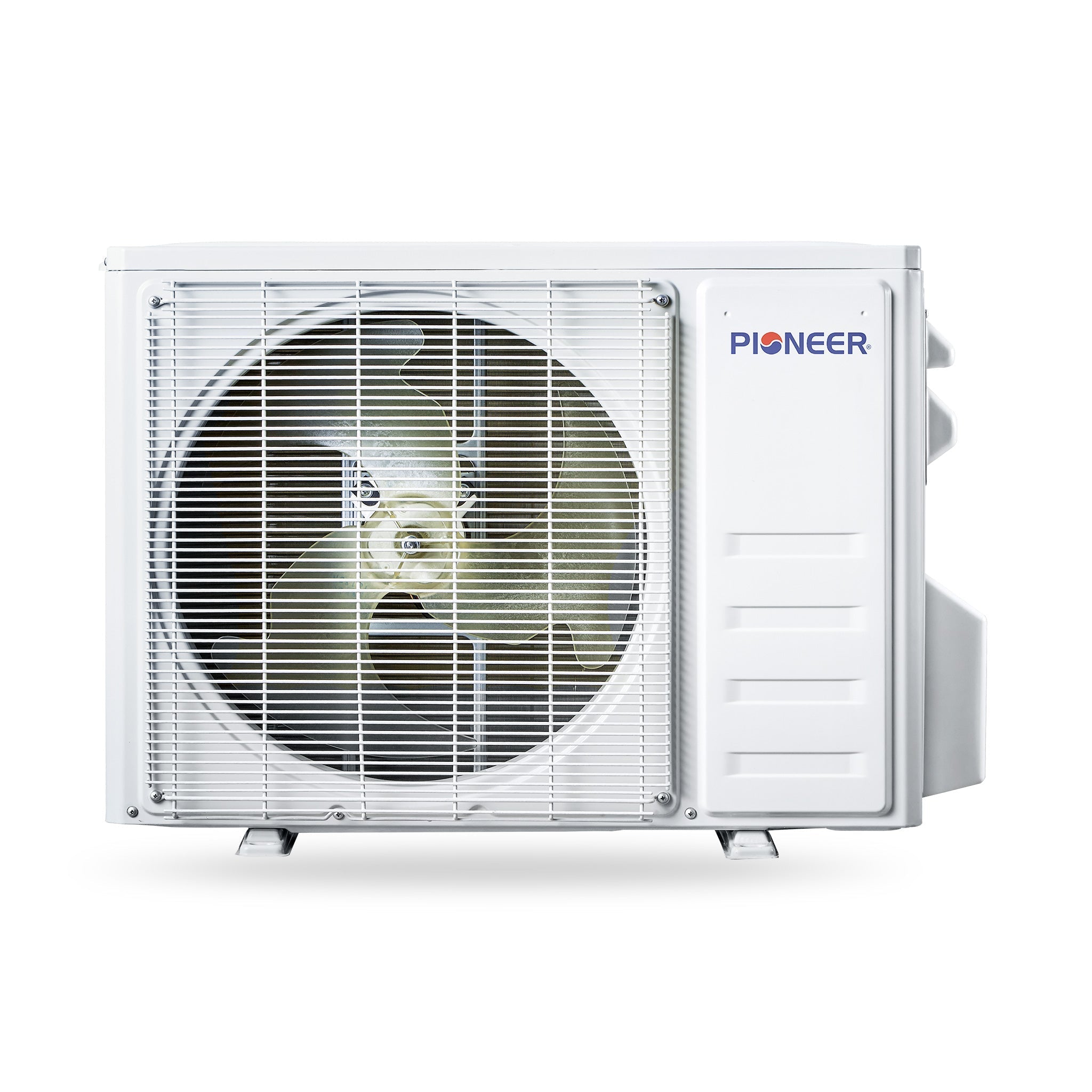

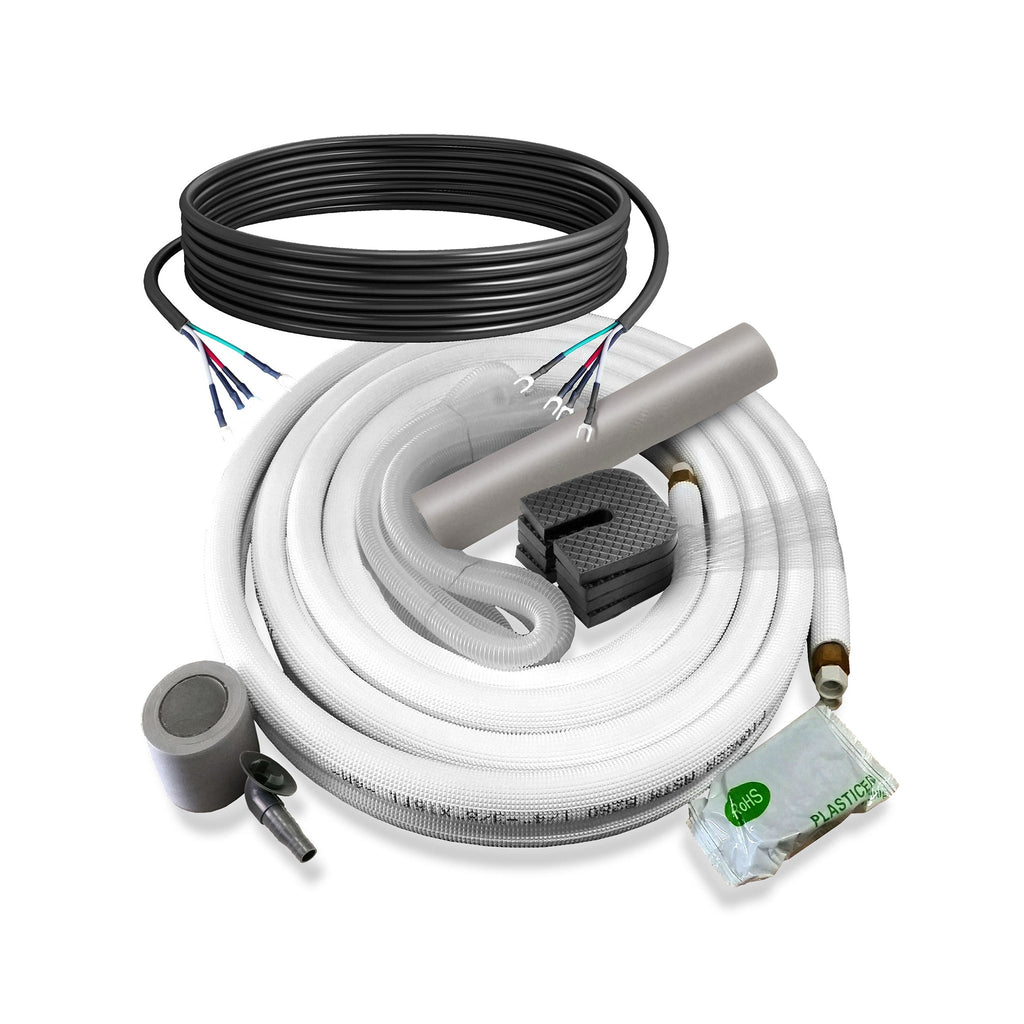

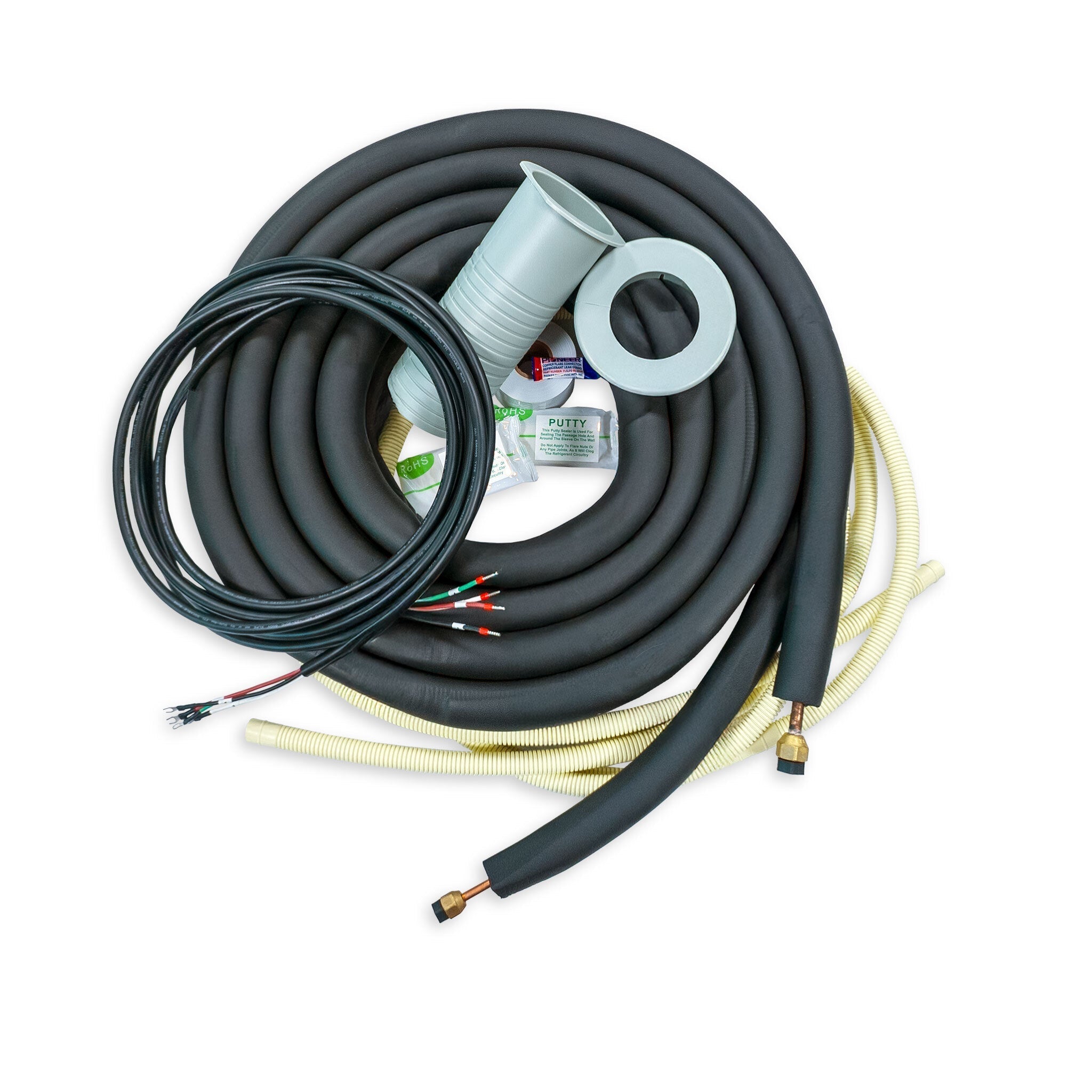

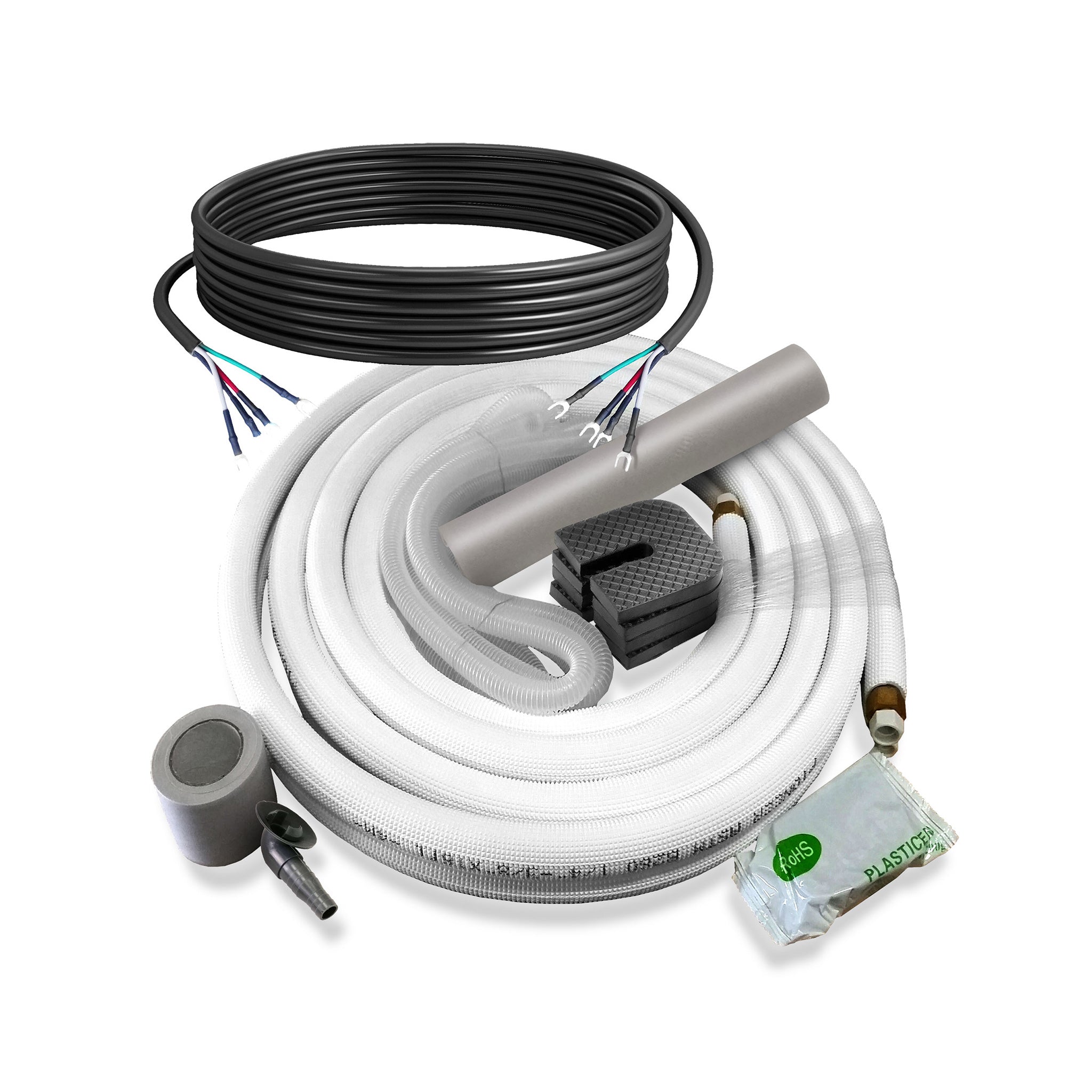

A: Yes, this is a full set, including indoor cassette, outdoor condenser, installation kit, and line set.
Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, suitable for residential or light-commercial installations.
Q7: Can it provide heating in colder climates?
A: Yes, the integrated heat pump supports low-ambient heating for year-round comfort.
Q8: Does it support inverter technology?
A: Yes, variable-speed inverter control ensures quiet operation, energy savings, and precise temperature regulation.
Q9: Is this system suitable for multiple zones?
A: Yes, ideal for single or connected multi-zone setups when paired with compatible Quantum Ultra systems.
Q10: What spaces is this system best suited for?
A: Ideal for offices, conference rooms, open living areas, or medium commercial spaces requiring efficient ceiling-distributed airflow.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.
-
Keep ceiling cassette vents and interior free of dust and debris to ensure optimal airflow and inverter performance.
-
Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.
-
Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.
-
Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.
-
Maintain adequate clearance above the cassette panel for even 8-way air distribution.
-
Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and full system optimization.
