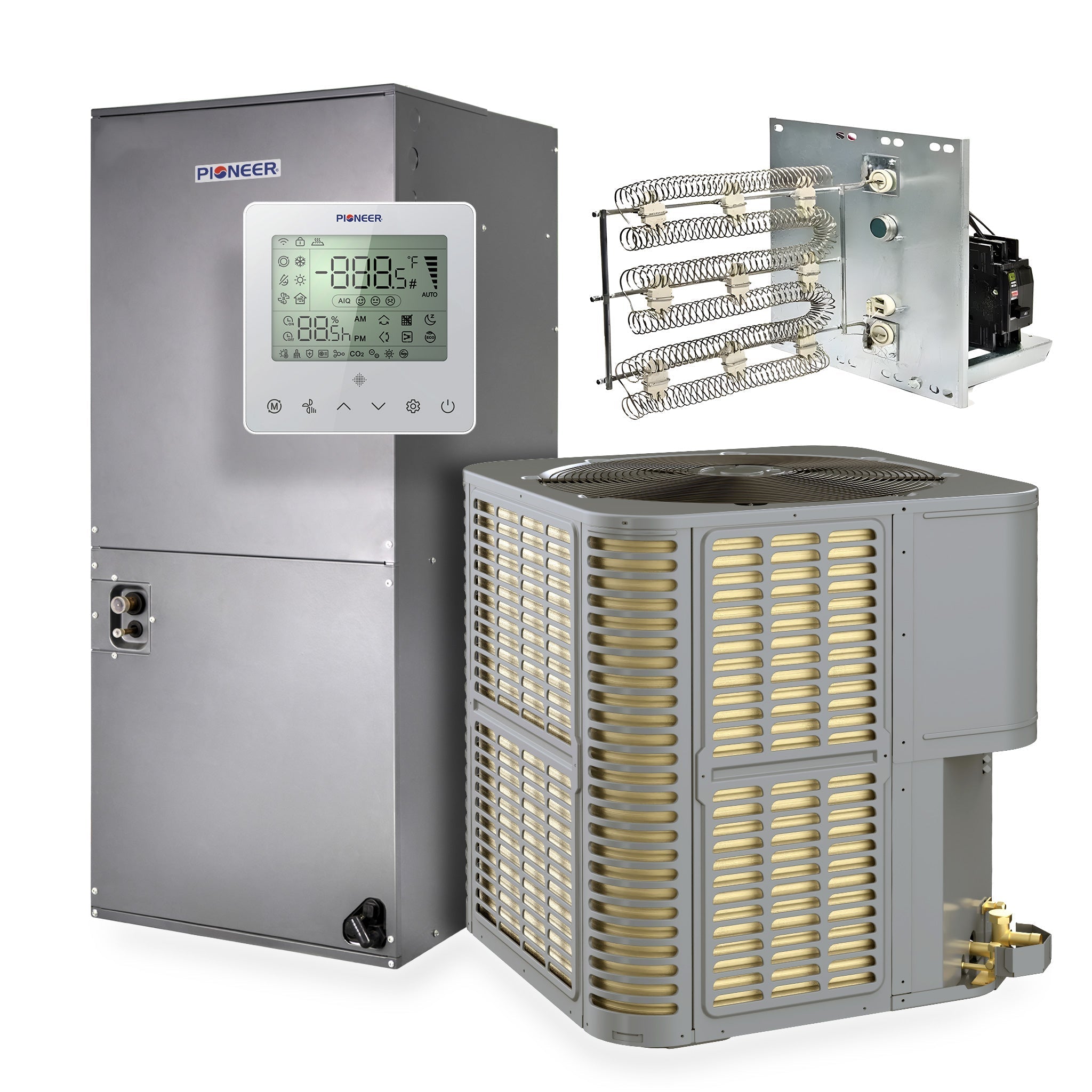

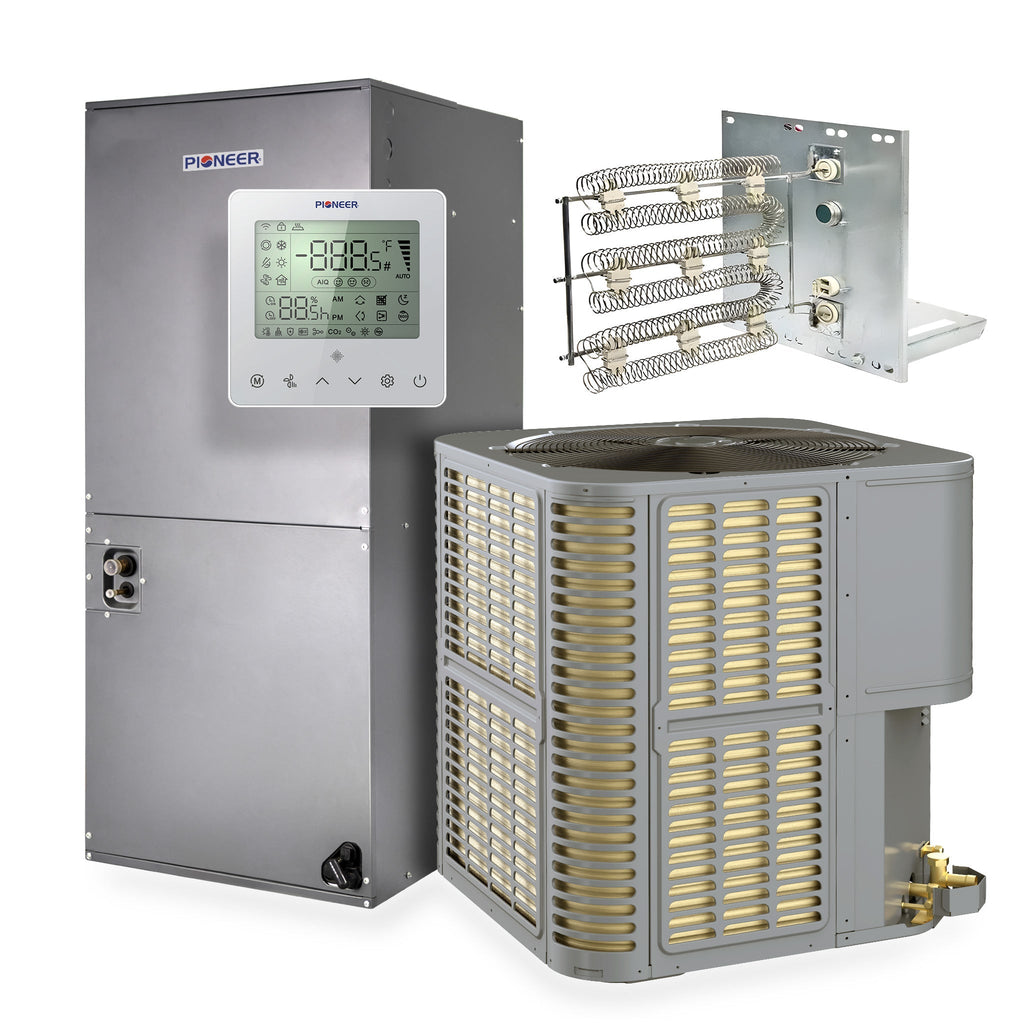

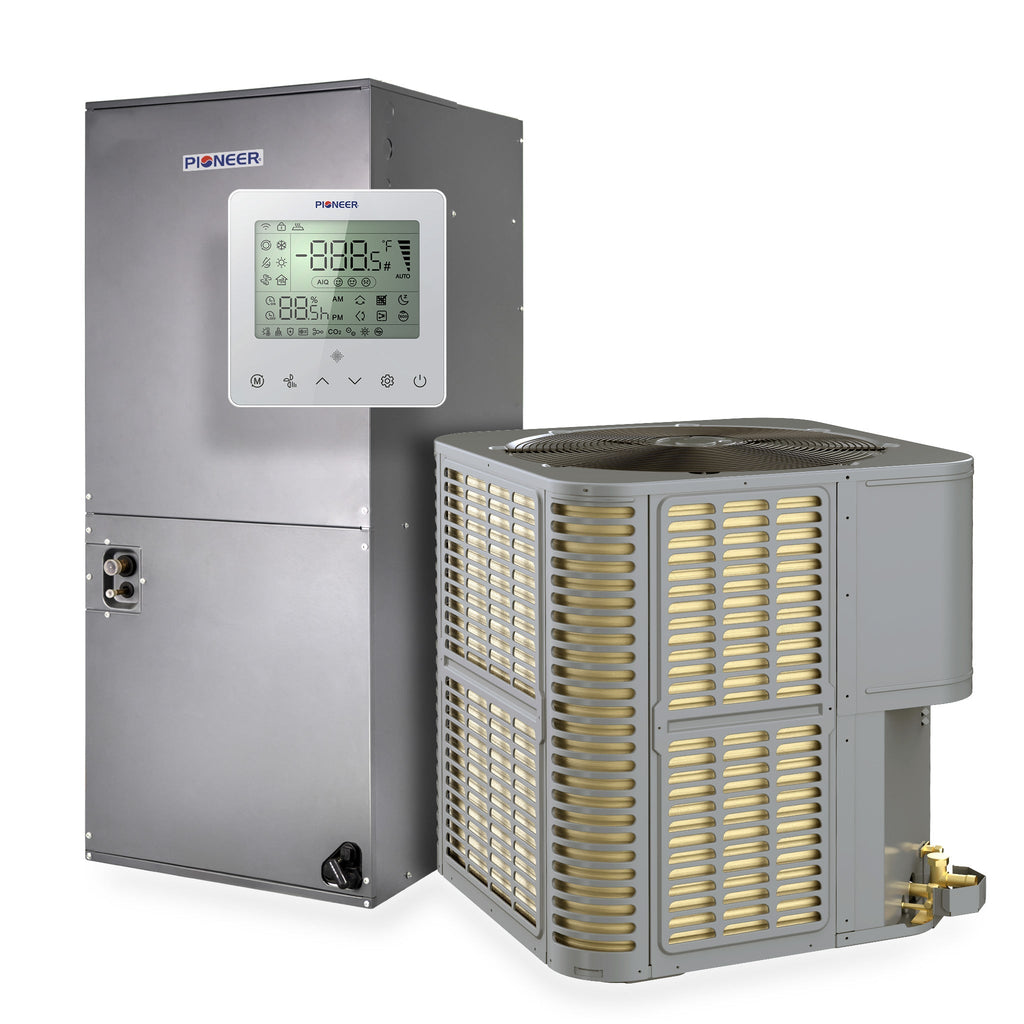

Pioneer Vertex 36,000 BTU 18.6 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump - DYC036GCSI18RD-05B
- High Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 34,000 BTU/H with 18.6 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 34,200 BTU/H with 9.0 HSPF2 / 2.1 COP2 efficiency
-
Voltage: 208/230V, 60Hz, 1Ph
-
Communicating system with dedicated signal transmission
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
What our Experts Think
-
Balanced whole‑home performance: The Pioneer Vertex 36,000 BTU 18.6 SEER2 230 V Ducted Central Split Air Conditioner Inverter Heat Pump delivers robust ~34,000 BTU cooling and ~34,200 BTU heating performance with variable‑speed inverter efficiency, helping reduce energy use across larger ducted areas.
-
Energy‑smart inverter design: Variable‑speed DC inverter technology improves part‑load efficiency and reduces compressor cycling for smoother, more efficient temperature control compared with traditional fixed‑speed systems.
-
Flexible whole‑home comfort: Engineered for use with duct systems, it evenly distributes conditioned air throughout multiple rooms or open floorplans — ideal for larger homes and year‑round climate needs.
-
Reliable performance range: Capable of operating in low ambient heat pump conditions (down to –4 °F) and high heat (up to 131 °F), it supports dependable comfort in diverse climates.
-

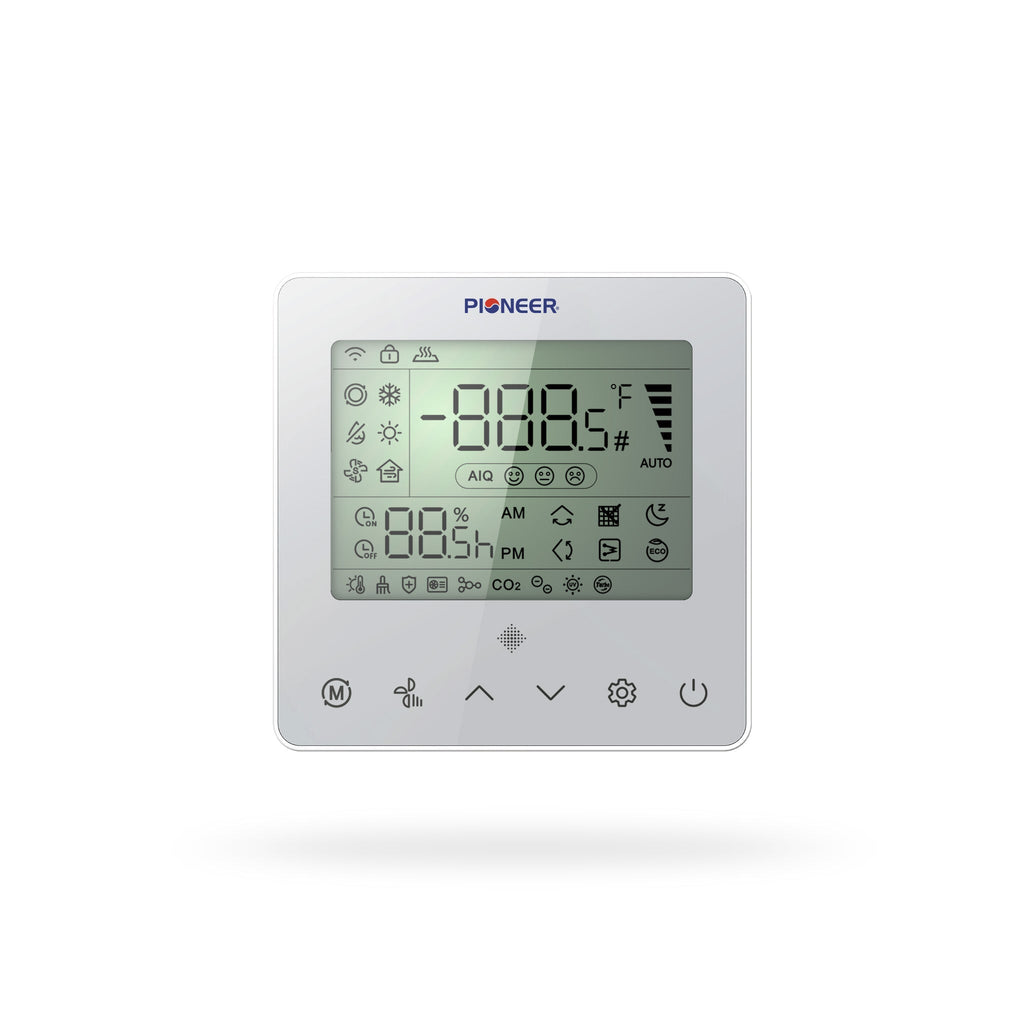

Communicating system & modern refrigerant: Factory‑precharged with R454B refrigerant and featuring a communicating control system for streamlined thermostat integration and consistent performance.
-

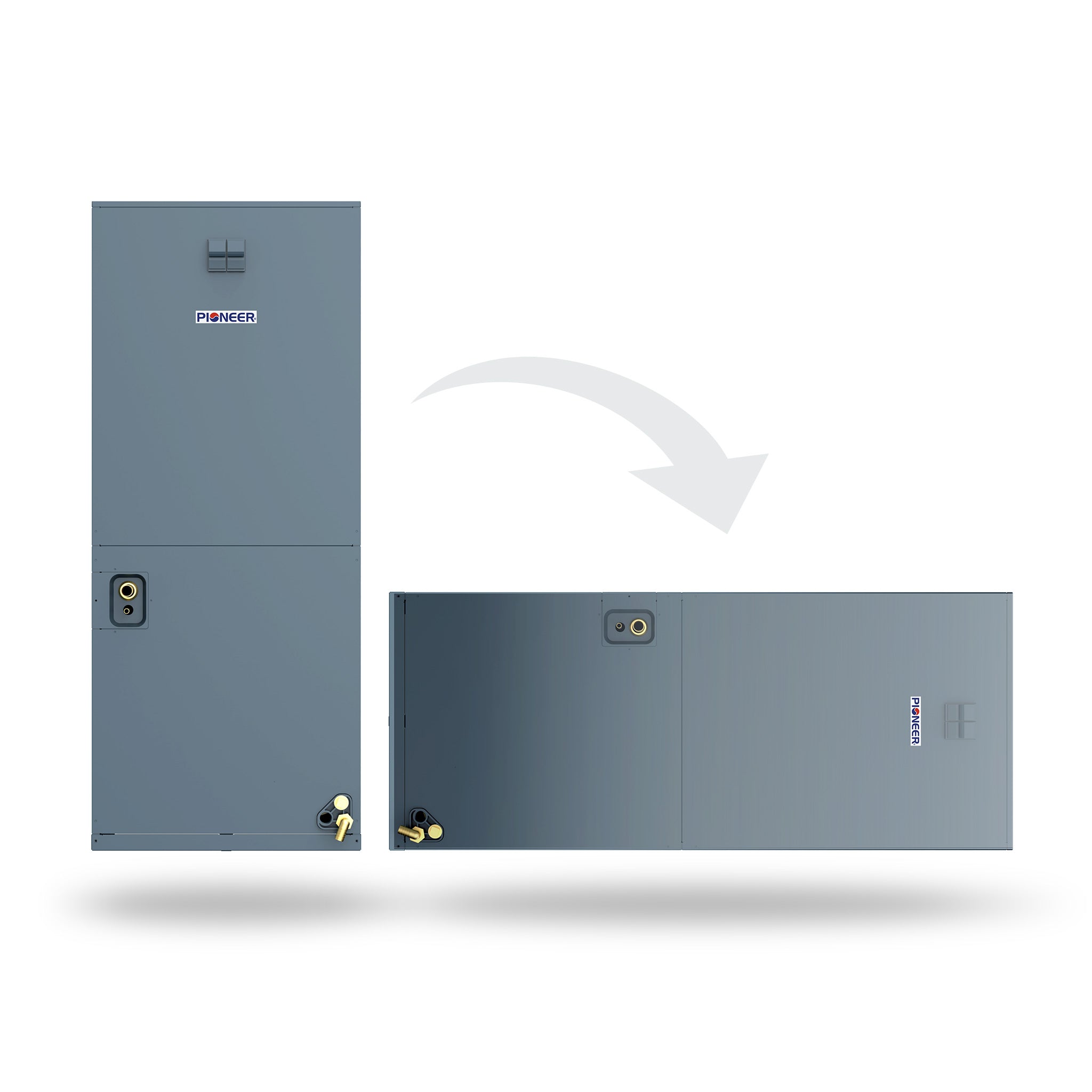

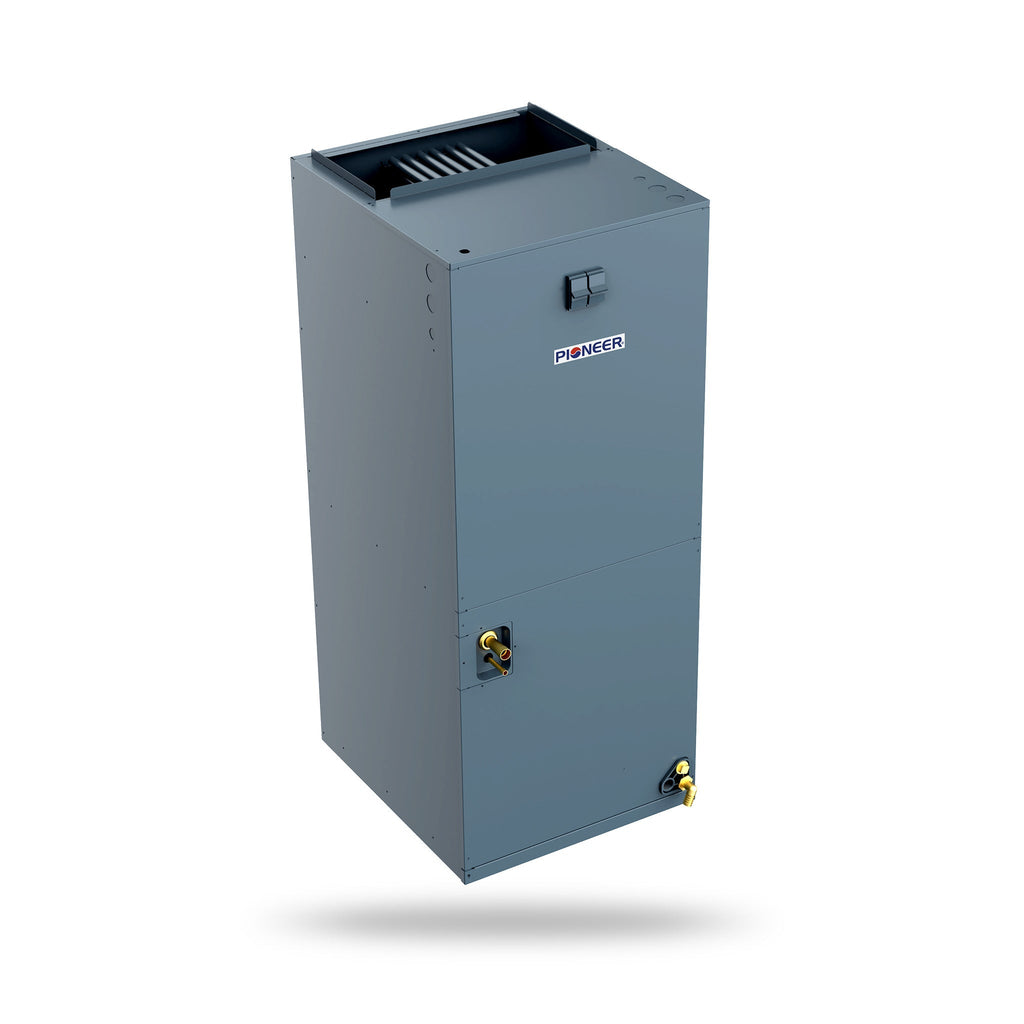

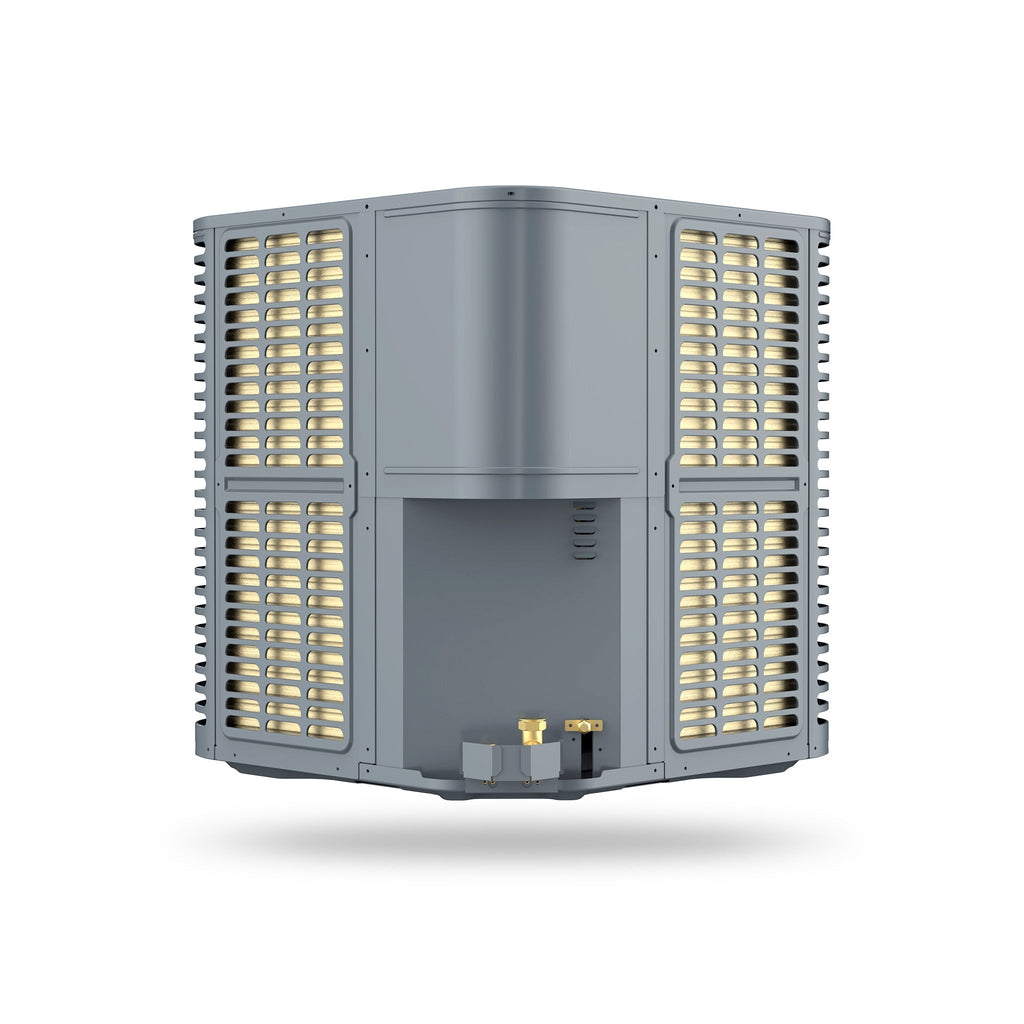

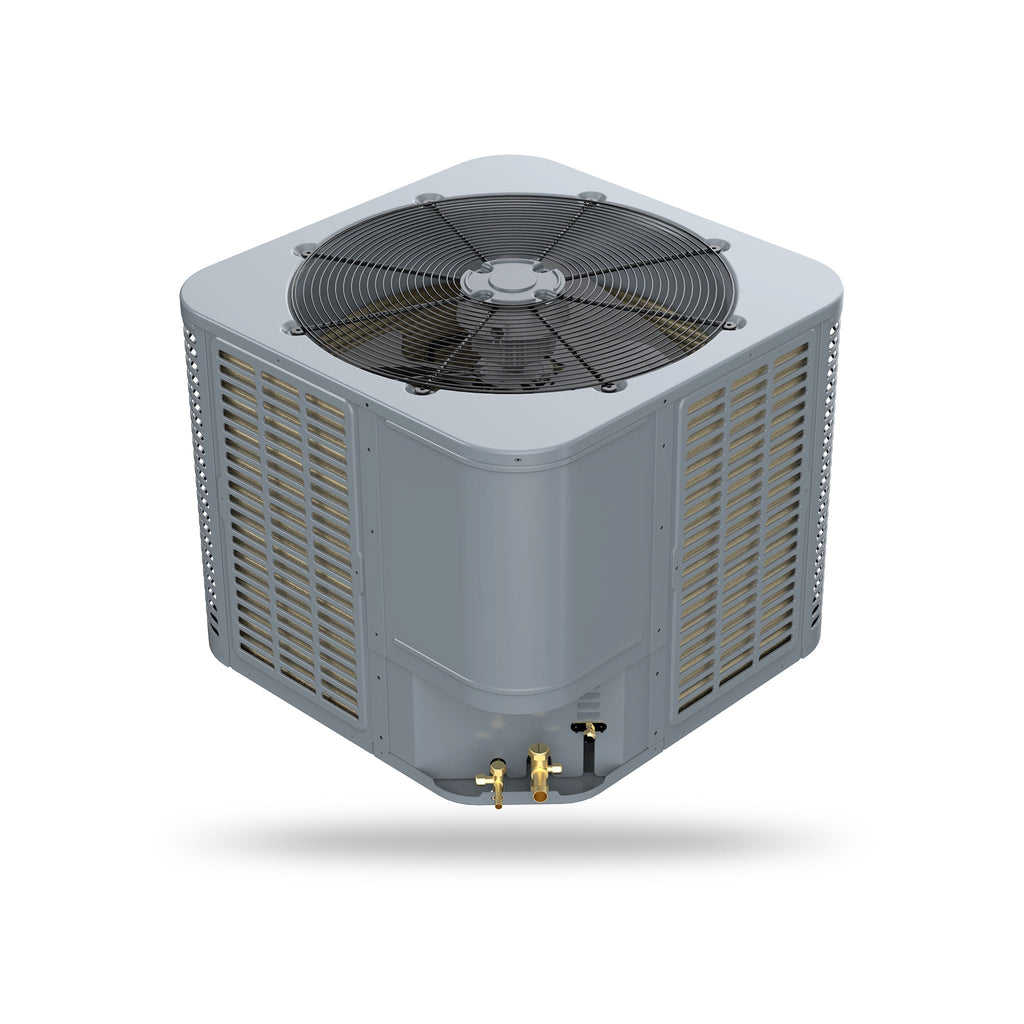

Quiet, efficient airflow: The multi‑position indoor air handler delivers up to 920 CFM airflow at moderate sound levels (~49–52 dB), while the outdoor unit runs around 79 dB, balancing airflow, efficiency, and noise.
-
Professional installation ready: Built as a 208–230 V single‑phase heat pump, it includes advanced control wiring and communications — ideal for custom ducted HVAC setups
Q&A
Q1: What type of system is this Pioneer model?
A: It is an 8-way ceiling cassette ductless mini-split air conditioner with integrated heat pump, designed for uniform multi-directional airflow.
Q2: What cooling and heating capacity does it provide?
A: Offers 12,000 BTU cooling with reliable heat pump heating, suitable for small to medium rooms.
Q3: How energy-efficient is this unit?
A: Features 21 SEER2 efficiency and inverter technology for precise temperature control and lower energy consumption.
Q4: What installation style does it support?
A: Designed for ceiling cassette installation, providing 8-way airflow for even temperature distribution.
Q5: Does it include all components?
A: Yes, this is a full set, including indoor cassette, outdoor condenser, installation kit, and line set.
Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with residential or light-commercial circuits.
Q7: Can it provide heating in colder climates?
A: Yes, the integrated heat pump supports low-ambient heating for year-round comfort.
Q8: Does it support inverter technology?
A: Yes, variable-speed inverter control ensures quiet operation, energy savings, and precise temperature regulation.
Q9: Is this system suitable for multi-zone setups?
A: Yes, it can be integrated into single or connected multi-zone Quantum Ultra systems.
Q10: What spaces is this system best suited for?
A: Ideal for offices, bedrooms, conference rooms, or small commercial spaces needing efficient ceiling-distributed airflow.
Maintenance Tips
-
Inspect and clean air filters every 1–3 months to maintain airflow, efficiency, and indoor air quality.
-
Keep ductwork and vents clear of dust and debris to ensure consistent airflow and optimal system performance.
-
Ensure the outdoor condenser coil is free from leaves, dirt, and obstructions for proper heat transfer.
-
Check condensate drain lines and pan regularly to prevent water buildup or overflow.
-
Inspect refrigerant lines, electrical connections, and unit mounting annually for safe and efficient operation.
-
Schedule professional HVAC servicing yearly for inverter diagnostics, refrigerant pressure checks, and system optimization.
-
Maintain sufficient clearance around the outdoor unit for consistent cooling and heating efficiency.
