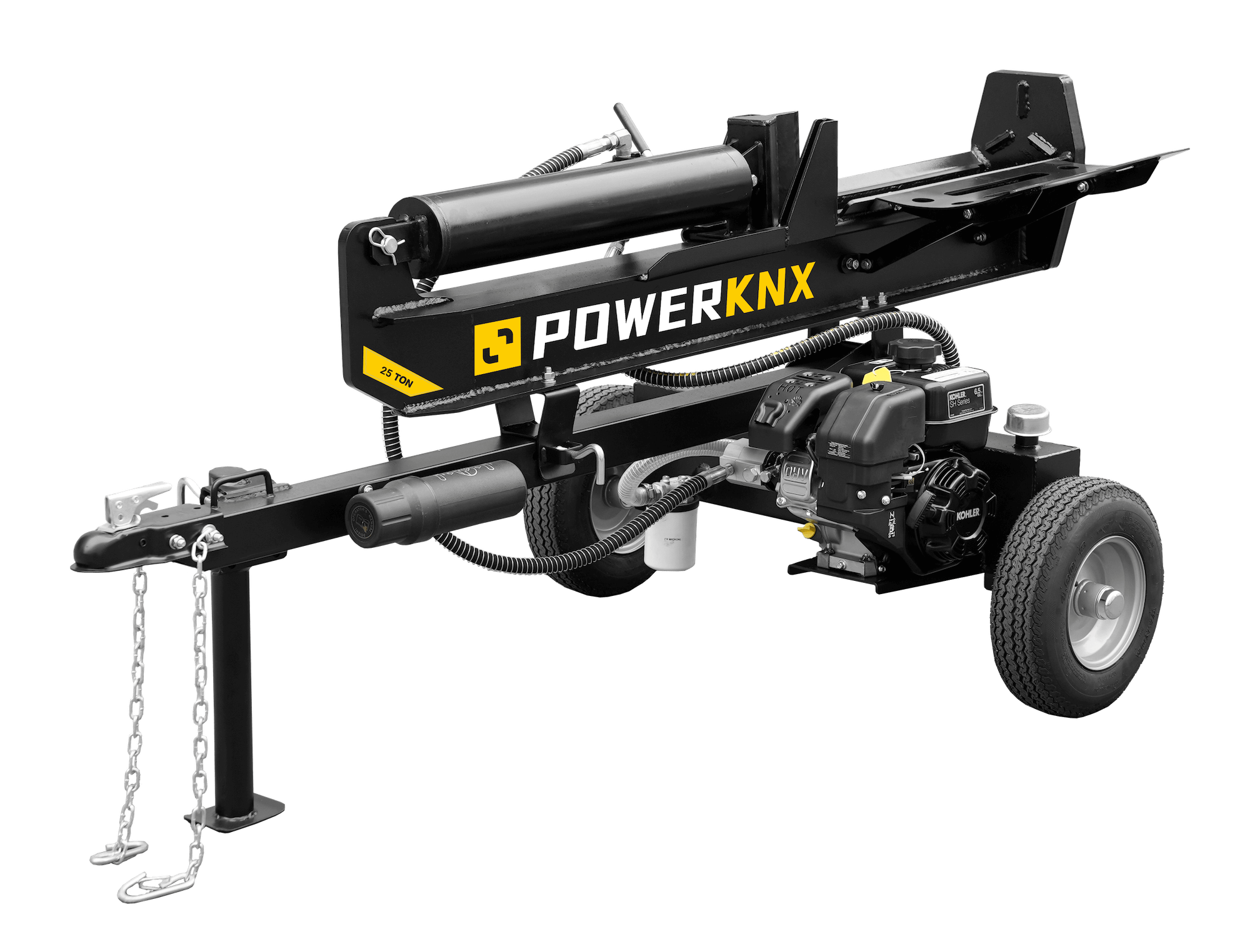

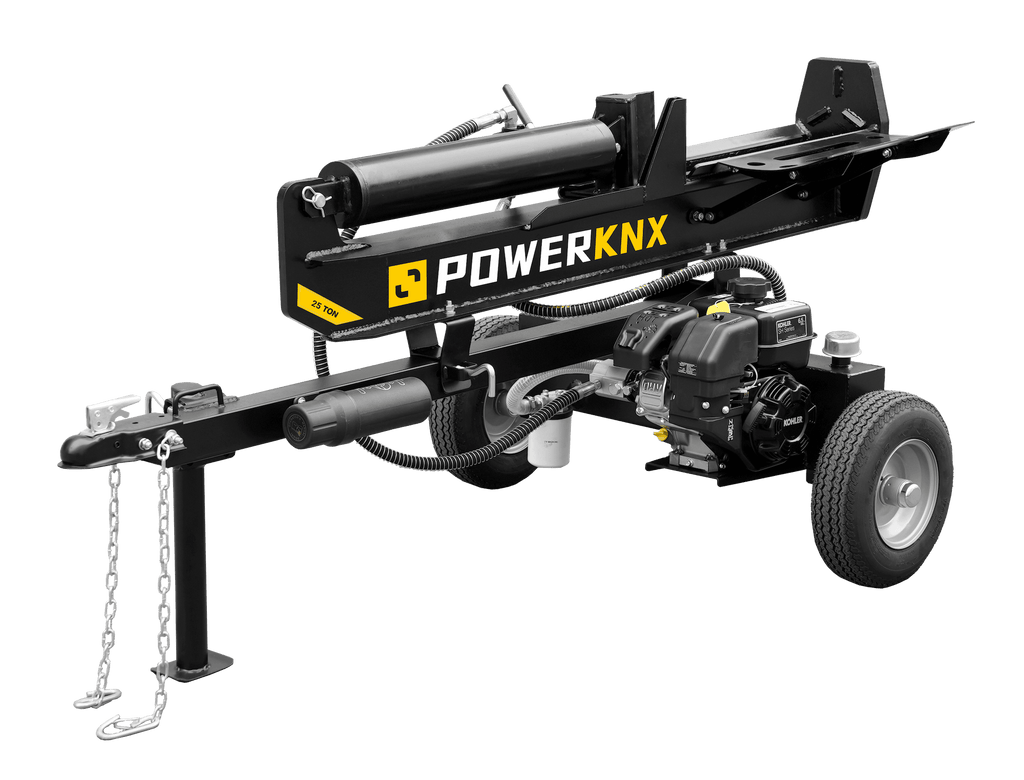

POWERKNX 25-Ton Vertical/Horizontal Gas Log Splitter - 31-403
POWERKNX is based in Colorado and their parent company has been distributing and manufacturing outdoor power equipment for decades.
You have a choice to upgrade this engine to a Honda GX200.
Protect your log splitter with a cover! This heavy duty cover will keep your splitter out of the elements, and ready for work! This log splitter cover is manufactured with PVC coated polyester to shield from water, UV, mildew and extreme temperatures. Made of a higher grade material than cheaper models and has draw string at the bottom to cinch up tight. Cover is optional for an extra fee, only available in black.
Fluids are not included with this log splitter. Some images may show the log splitter with optional accessories which are not included with the log splitter.
You will not have to pay the $75 charge if you can ship to a business and you can unload the crate off the back of the freight truck. Shipping to a business is your best choice if possible saving you $75.
These deliveries are "curb-side" only, please read the details about curb-side, lift gate and residential freight deliveries.
This log splitter may have a limited delivery area.
If you would like to check ahead of time please email us or we will tell you after order if there is limitations.
Features
-
Maximum Splitting Force: 25 Tons
-
Engine: Kohler 6.5HP (EPA/CARB Approved)
-
Maximum Log Length: 25"
-
Cycle Time: 11.2 Seconds (Up & Down)
-
Cylinder: 4" Diameter x24 Stroke
-
Pump: 2-Stage 15GPM
-
Hydraulic Capacity: 6.5 Gallons Max. System, 5 Gallons Operational
-
Wedge: 8" Hight Heat-Treated Steel
-
Beam: 8" Foot Plate
-
Valve: Auto-Return with Adjustable Detent
-
Wheels: D.O.T. Approved 16" O.D. Road Tires
-
Coupler: 2" Ball with Safety Chains
-
Log Catcher: Included
-
Accessories: 4-Way Wedge
-
Replacement Filters: Return Filter & Suction Screen
-
Weight: 412 Lbs
Documentation
Owners manual
What our Experts Think
-
Powerful 25‑ton splitting force — Delivers robust hydraulic pressure to handle seasoned hardwoods and knotty logs with far less effort than manual methods, ideal for frequent home or small farm use.
-

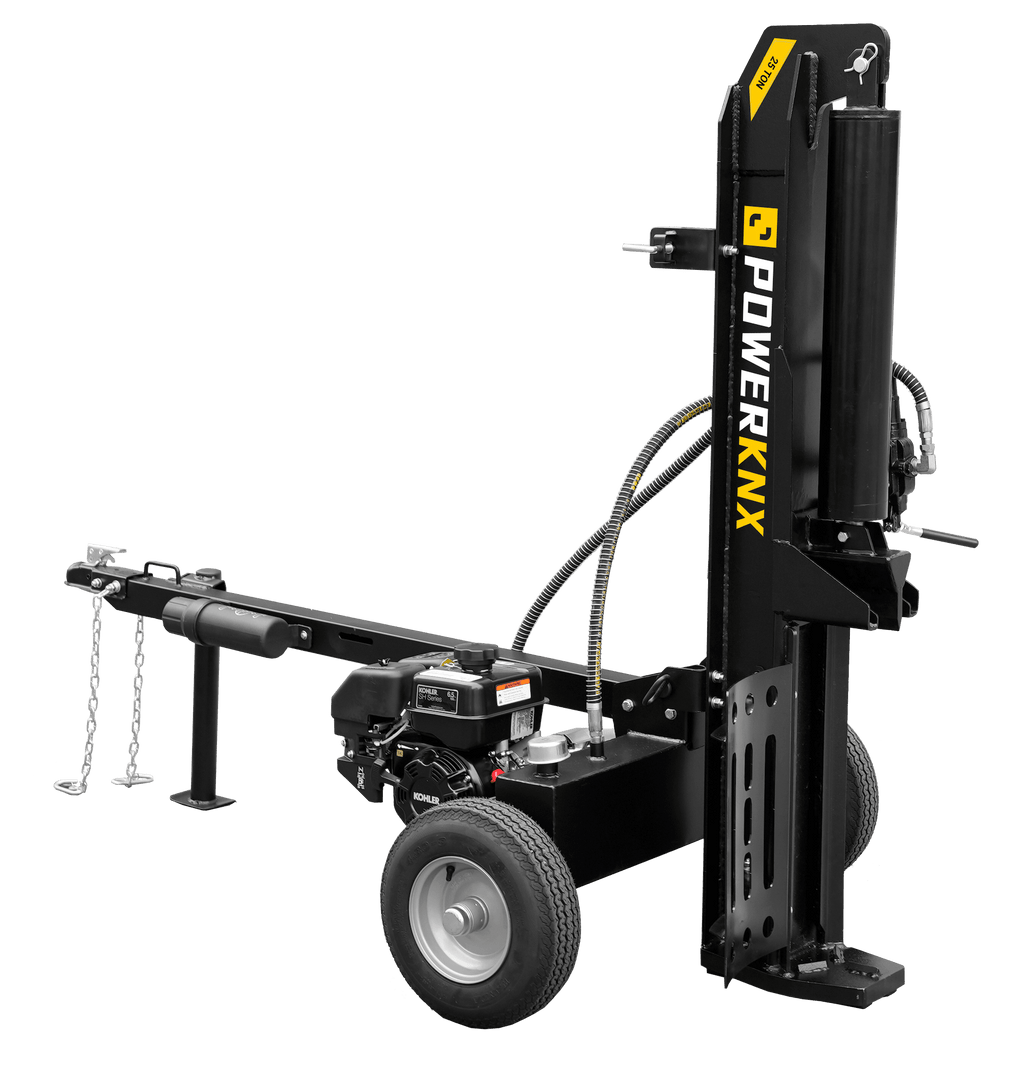

Dual orientation (horizontal & vertical) — Easily convertible between horizontal and vertical positions — splitting large rounds upright reduces heavy lifting and back strain.
-
Gas engine mobility — Fueled by a 6.5 hp (≈196 cc) gasoline engine, it works anywhere outdoors without cords or outlets, perfect for remote properties and firewood yards.
-
Efficient cycle time (~9.4 s) — Fast splitting cycle and auto return design speed up workflow so you chip through large volumes without long waits between cycles.
-
Tow‑ready and rugged — Towable chassis with highway‑rated 16″ wheels and durable powder‑coated steel finish make transport and long‑term outdoor storage practical.
Q&A
Q1: What is the POWERKNX 31‑403 log splitter?
A1: It’s a towable gas‑powered log splitter that delivers up to 25 tons of splitting force in both horizontal and vertical positions, ideal for firewood and heavy‑duty wood‑splitting tasks.
Q2: What engine and power does it use?
A2: Powered by a 6.5 hp (≈196 cc) gas engine with a two‑stage 15 gpm hydraulic pump, providing enough power to split hard or knotty wood efficiently.
Q3: What log size and performance can I expect?
A3: Handles logs up to ≈25 inches long with a fast cycle time (≈9.4 sec), and includes a log catcher for safe operation.
Q4: What transport and setup features are included?
A4: Equipped with 16″ highway‑rated wheels and a 2″ ball coupler for easy towing behind ATVs, UTVs, lawn tractors, or trucks.
Q5: Can it switch between horizontal and vertical positions?
A5: Yes — the beam converts quickly between horizontal and vertical modes to reduce lifting and improve ergonomics.
Q6: Who should use this log splitter?
A6: Ideal for homeowners, property managers, and woodlot owners who need a reliable, heavy‑duty splitter for regular firewood production.
Maintenance Tips
-
Check fluids before use: Inspect and top off engine oil and hydraulic fluid before each session; correct levels help maintain power and prevent damage.
-
Clean and protect: Keep the beam, frame, and engine area free of dirt, wood chips, and debris; clean and dry after use to prevent corrosion and buildup.
-
Inspect hoses & fittings: Regularly check hydraulic hoses, hoses clamps, and fittings for leaks, cracks, or wear and tighten or replace as needed.
-
Grease moving parts: Lightly lubricate pivot points, wheel bearings, and other moving parts periodically to ensure smooth operation.
-
Tire & fastener care: Maintain proper tire pressure and periodically check that all nuts, bolts, and hitch components are tight.
-
Annual hydraulic service: Replace or refresh hydraulic oil at least annually (or per manufacturer schedule) to maintain optimal pressure and performance.
-
Store properly: Before storing for long periods, clean the unit, relieve hydraulic pressure, and store in a dry place; add fuel stabilizer or drain fuel to prevent gumming.
