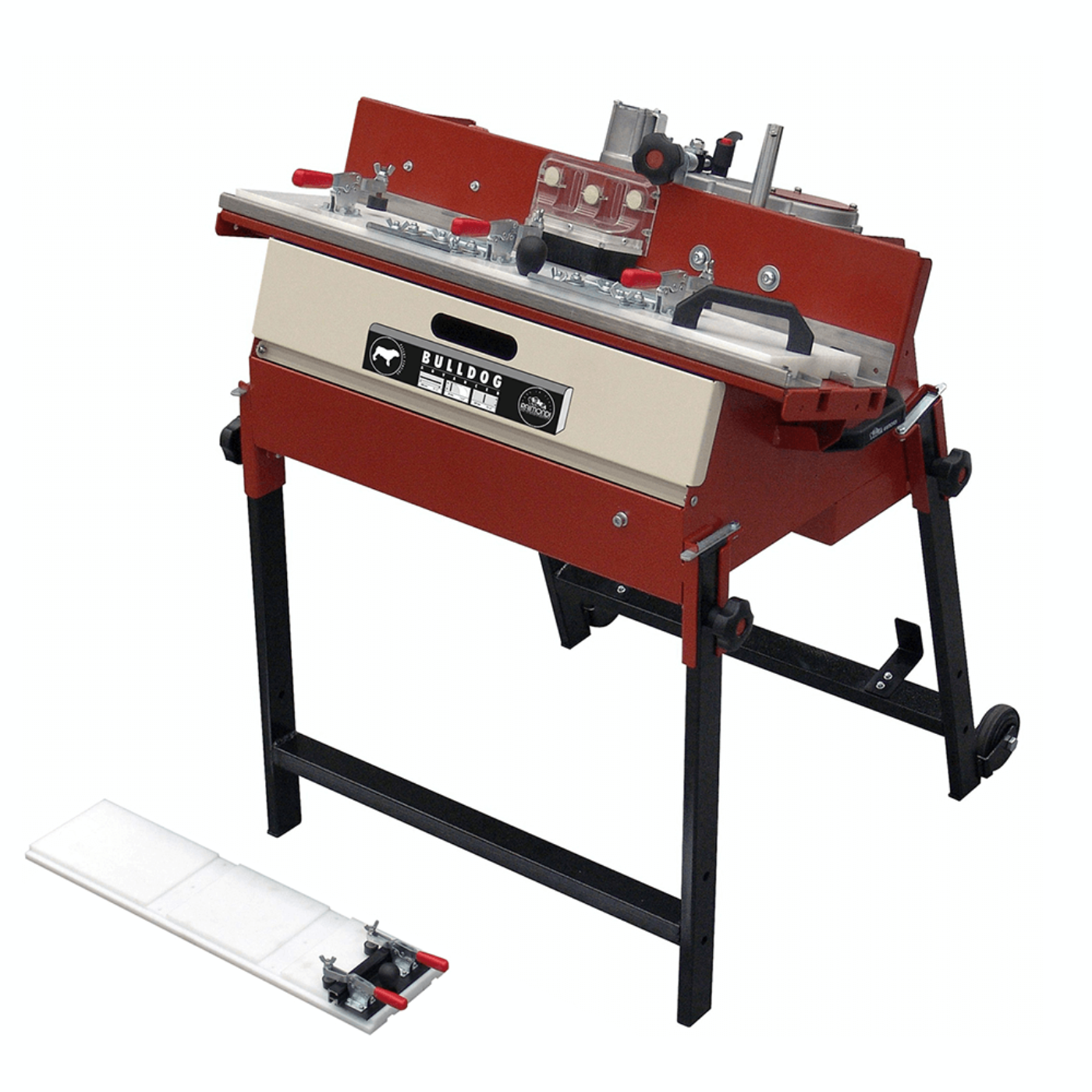

Raimondi Bulldog Advanced Bullnose Machine - BD1WD
Raimondi Bulldog Advanced Bullnose Machine will profile a perfect half/full bullnose, 45° bevel (Jolly) or finished flat edge on marble, porcelain tile or natural stone up to 1-3/16" (30 mm) thick. This machine provides a 31-1/2" maximum length of shaping and it's single motor in-line connection supplies 3 levels of finishing for milling, rough finishes and polishing. The single motor BD1WD is equipped with a powerful 1-1/2 hp electric motor that runs up to 3,360 RPM at 110 volts.
Features
- Profile or bevel edges of porcelain, ceramic, stone, marble, granite and more
- Powerful single motor application provides 3 levels of finishing
- 31" maximum profiling length
- Can work on materials up to 1-3/16" thick
- Heavy duty water pump will cool down profile wheels
- Telescopic legs equipped with a wheel kit for easy transportation and set up
- Machine has 20 mm arbor and wheel distance is adjustable
- Clamping mechanism and adjustable pressure wheel will not allow material to shift
- Magnetic splash guard keeps water and debris away from the operator
-
Includes 31" sliding table, tool kit, dressing stone and operator's manual
- All bullnose wheels are sold separately
Specifications
| Raimondi Bulldog Specifications |
| Power |
1-1/2 hp |
| Voltage |
110 V |
| Max Profiling Length |
31-1/2" (80 cm) |
| Max Profiling Depth |
1-3/16" (3 cm) |
| Min Tile Width |
1-1/2" (4 cm) |
| Max Tile Width |
23-5/8" (60 cm) |
| RPM (Motor/Wheel) |
3360/5370 |
| Arbor |
20 mm |
| Weight |
165 lb |
What our Experts Think
-
Pro‑grade edge finishing: Designed for bullnosing, full bullnose, 45° bevel (Jolly) and flat edges on porcelain, ceramic, stone, marble and granite — ideal for professional tile fabricators and contractors.
-
Powerful single‑motor system: A 1.5 HP belt‑driven motor delivers three levels of finishing (milling → rough → polished), ensuring smooth, consistent profiles every run.
-
Versatile material handling: Works with slabs up to 31‑1/2″ long and 1‑3/16″ thick, making it suitable for most tile and stone edge work.
-
Water‑cooled wheel performance: Heavy‑duty water pump keeps diamond profile wheels cool, extending tooling life and improving cut quality.
-
Jobsite‑friendly design: Equipped with telescoping legs with wheels, magnetic splash guard, sliding table, tool kit and dressing stone — portable yet rugged for on‑site use.
Q&A
Q: What is this product?
A: The Raimondi Bulldog Advanced Bullnose Machine (BD1WD) is a professional tile edge profiling and finishing machine for creating custom edge profiles on tiles and stone materials.
Q: What edge profiles can it produce?
A: It can create half bullnose, full bullnose, 45° bevel (Jolly), and finished flat edges on porcelain, ceramic, glass, marble, granite and more. .
Q: What’s included with the machine?
A: Includes a 31″ sliding table, tool kit, dressing stone and operator’s manual. Diamond profiling wheels are typically sold separately.
Q: Why choose this bullnose machine?
A: It’s ideal for tile contractors, installers and stone fabricators needing on‑site customization of tile edges with professional‑grade control, finish quality and versatility.
Maintenance Tips
-
Clean After Every Use: Rinse and wipe the machine, cutting head, water nozzles and sliding table to remove slurry and debris — prevents buildup that can affect wheel performance and water flow.
-
Inspect & Maintain Wheels: check diamond wheels before each job for wear, chipping or glazing and replace as needed to keep edge profiles precise and consistent.
-
Water System Care: clean water filters, pump and hoses regularly to ensure steady cooling flow for the wheels and avoid overheating.
-
Lubricate Moving Parts: apply the recommended lubricant to guide rails and moving joints to maintain smooth operation and reduce wear.
-
Alignment & Fasteners: verify the cutting head and table are properly aligned; tighten all screws and bolts periodically to maintain accuracy and machine stability.
-
Electrical & Storage: inspect the power cord and connections for damage before use, and store the machine in a clean, dry place to prevent corrosion and protect electronics.
