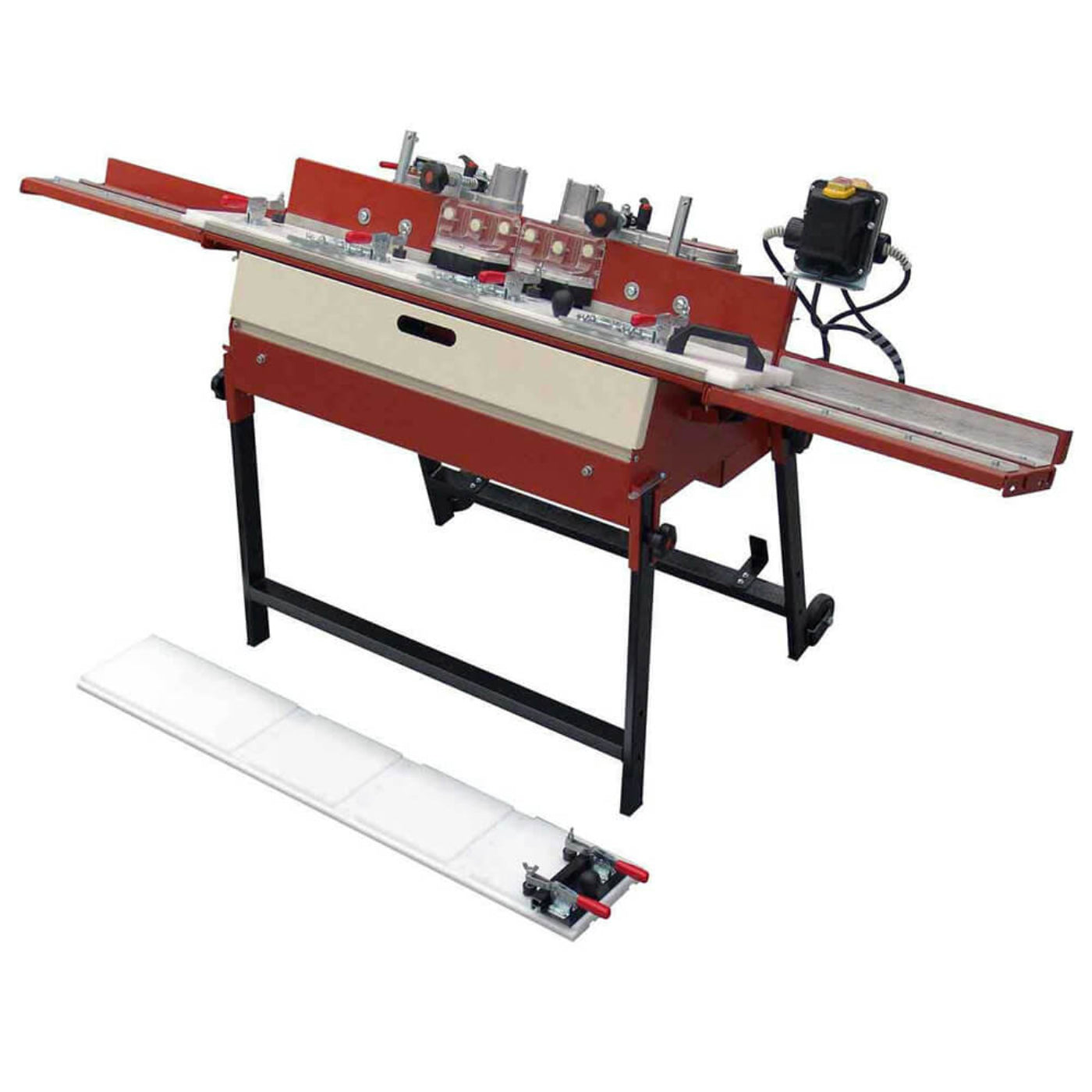

Raimondi Bulldog Advanced Dual-Head Bullnose Machine - BD2WD
Raimondi Dual-Head Bulldog Advanced Bullnose Machine will profile a perfect half/full bullnose, 45° bevel (Jolly) or finished flat edge on marble, porcelain tile or natural stone up to 1-3/16" (30 mm) thick. This machine provides a 47-1/2" maximum length of shaping and it's dual-head in-line connection supplies 3 levels of finishing for milling, rough finishes and polishing. The dual-head BD2WD is equipped with a powerful 1-1/2 hp electric motor that runs up to 3,360 RPM at 110 volts.
Features
- Profile or bevel edges of porcelain, ceramic, stone, marble, granite and more
- Powerful dual-head motor set up provides 3 levels of finishing
- 47-1/4" maximum profiling length
- Can work on materials up to 1-3/16" thick
- Two heavy duty water pumps will cool down profile wheels
- Telescopic legs equipped with a wheel kit for easy transportation and set up
- Machine has 20 mm arbor and wheel distance is adjustable
- Clamping mechanism and adjustable pressure wheel will not allow material to shift
- Magnetic splash guard keeps water and debris away from the operator
-
Includes 47" sliding table, tool kit, dressing stone and operator's manual
- All bullnose wheels are sold separately
Specifications
| Raimondi Dual-Head Bulldog Specifications |
| Power |
1-1/2 hp |
| Voltage |
110 V |
| Max Profiling Length |
47-1/4" (120 cm) |
| Max Profiling Depth |
1-3/16" (3 cm) |
| Min Tile Width |
1-1/2" (4 cm) |
| Max Tile Width |
23-5/8" (60 cm) |
| RPM (Motor/Wheel) |
3360/5370 |
| Arbor |
20 mm |
| Weight |
245 lb |
What our Experts Think
-
Pro‑level edge shaping: Designed to profile, bevel, and finish tile and stone edges — including half bullnose, full bullnose, and 45° bevel — on porcelain, ceramic, natural stone, marble and granite up to ~30 mm thick.
-
Dual‑head performance: Two powerful motors running up to ~3,360 RPM drive three levels of finishing (rough → finished → polished) in one pass, boosting efficiency on big jobs.
-
Extended profiling capacity: Standard sliding table supports up to ~47 1/4″ shaping length, and the robust clamping/pressure system keeps material stable during precision edge work.
-
Water‑cooled wheel runs: Heavy‑duty integrated water pumps cool diamond profile wheels during cutting to extend tooling life and reduce heat damage.
-
Built for the jobsite: Adjustable legs with wheels, magnetic splash guard, tool kit, dressing stone and operator manual make setup and operation simple and safe.
Q&A
Q: What is this product?
A: The Raimondi Bulldog Advanced Dual‑Head Bullnose Machine (“BD2WD”) is a professional tile edge profiling and finishing machine designed to create bullnose and bevel edges on porcelain, ceramic, stone, marble and granite.
Q: What edge profiles can it make?
A: This machine produces half bullnose, full bullnose, 45° bevel (Jolly) and finished flat edges, giving versatile edge options in one setup.
Q: What makes this dual‑head model special?
A: It features two belt‑driven 1.5 HP motors for dual‑head operation — allowing simultaneous shaping and polishing on each pass for faster, smoother results.
Q: What materials and size range does it support?
A: Works on tile and stone up to 1‑3/16″ (30 mm) thick, with a 47‑1/4″ (120 cm) max profiling length and support for widths from roughly 1‑1/2″ to 23‑5/8″.
Q: What key features are included?
A: Includes a 47″ sliding table, tool kit, dressing stone and manual, heavy‑duty water pumps for cooling wheels, telescopic legs with wheels for mobility, adjustable pressure wheel and magnetic splash guard.
Q: Why choose this machine?
A: It delivers professional‑grade edge finishing with precision and speed, reducing need for factory profiling, and supports multiple levels of finish quality — rough to polished — on a wide range of materials.
Maintenance Tips
-
Clean After Every Use: Rinse and wipe the machine bed, diamond wheels, water nozzles, and splash guard to remove slurry, grit, and debris that can hinder performance and wear components prematurely.
-
Inspect Diamond Wheels: Check wheel condition before each session and dress or replace wheels showing wear, chipping, or glazing to maintain smooth, accurate profiles.
-
Maintain Water Cooling: Ensure water pumps, hoses, and nozzles are free of blockages and flowing properly — consistent cooling prevents overheating and extends wheel life.
-
Check Belts & Fasteners: Inspect drive belts, pulleys, and all fasteners regularly; tighten loose hardware and replace worn belts to prevent vibration and uneven cutting.
-
Level & Align: Verify table, guides, and heads are properly aligned and level to ensure accurate bullnose and bevel profiles.
-
Store Dry & Protected: Keep the machine in a dry, covered area when not in use to prevent corrosion and protect electrical components.
