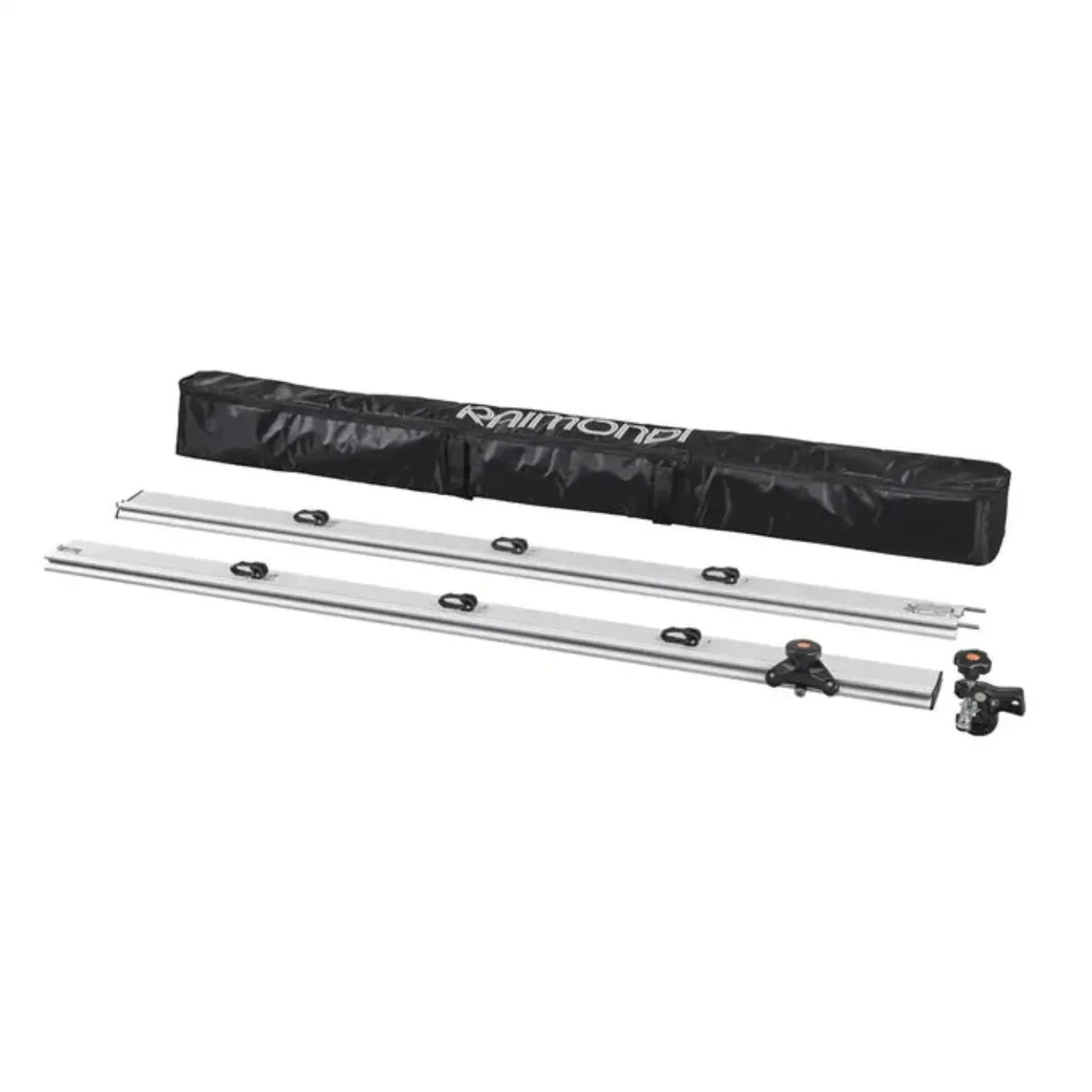

Raimondi Raizor MkII Large Format Tile Cutting System - TC10RAIZMK2
Features
- Rail cutting system for large format tiles
-
*Not Compatible with the first-gen Raizor system (TC10RAIZOR)*
- Two lightweight, aluminum 5.2' (160 cm) rails easily connect together
- Three (3) stain-free suction cups on each rail will not mark delicate or expensive tile
- Suction cup handles perform a 180° movement and offer greater grip thanks to their double-lip profile
- MkII scoring unit has three wheel bearings that fit snugly on either side of the rail
- Push down with a light amount of pressure to quickly and easily score along panels
- The 7/8" (22 mm) TiAln-coated wheel is equipped with an internal bearing for maximum smoothness, extreme precision and effectiveness and easy and quick replacement
- Replacement scoring wheels available (ref.)
- Pliers provided for max thickness of 1/8"-1/2" (3-12 mm) tile
- The padded bag protects the rails and allows for easy carrying and has an outside pocket for personal items and/or tools
What our Experts Think
-
Designed for XXL Tiles & Slabs: Precision rail cutting system handles large format porcelain, ceramic, and stone panels up to ~330 cm (10.8 ft) — extendable further with optional rails.
-
Ultra‑Smooth Scoring: Die‑cast aluminium cutter with titanium‑coated scoring wheel and built‑in bearing delivers clean, consistent scoring for straight, reliable cuts.
-
Stable Rail & Suction System: Each rail features dual‑lip suction cups with release tabs that securely hold the guide in place, even on textured surfaces.
-
Ergonomic & Portable: Lightweight yet rigid extruded aluminium rails make it easy to transport and set up on site, plus a padded carry case keeps everything organized.
-
Complete Cutting Kit: Includes SNAP cutting‑off pliers for tiles from ~3–12 mm thickness — ideal for modern thin panels.
-
Modular & Expandable: Optional extensions increase cutting length for oversized jobs and accessories (like diamond‑disc cutting units) expand cutting versatility.
Q&A
Q: What is this tool used for?
A: Precision cutting system designed for large-format tiles and slabs, ensuring clean, straight cuts.
Q: What size tiles can it handle?
A: Ideal for ceramic, porcelain, and natural stone tiles of very large dimensions, including oversized slabs.
Q: Is it portable?
A: Yes, modular design allows for easy transport and setup on-site or in workshops.
Q: What is its cutting mechanism?
A: Smooth sliding system with reinforced scoring wheel for accurate, effortless cuts.
Q: Who is this cutting system ideal for?
A: Professional tilers, contractors, and installers handling large-format or heavy tiles requiring precision.
Maintenance Tips
- Wipe frame, rails, and cutting head with a soft, damp cloth after use.
- Lubricate rails and moving parts periodically with light machine oil.
- Inspect cutting wheel and replace if worn or damaged.
- Tighten all bolts and screws regularly to maintain cutting accuracy.
- Store in a dry area to prevent rust and ensure long-lasting performance.
