What our Experts Think
-
Purpose-built for carbon fiber performance
Specifically engineered for carbon fiber-reinforced filaments, delivering exceptional strength-to-weight ratio, heat resistance, and durability—ideal for functional end-use parts.
-
IDEX dual extrusion = advanced production workflows
Independent dual extruders enable mirror mode, duplication mode, and multi-material printing, boosting efficiency for batch production and complex geometries.
-
Industrial-grade components for abrasive materials
Silicon carbide nozzles and hardened dual-drive gears are built to withstand wear from carbon fiber filaments, ensuring long-term reliability.
-
Wide compatibility with engineering materials
Supports CF-reinforced PLA, Nylon, PET, PC, and more—making it suitable for aerospace, automotive, tooling, and mechanical applications.
-
Consistent print quality with smart automation
Features like auto bed leveling, filament run-out detection, and power-loss recovery minimize failures and ensure consistent output.
-

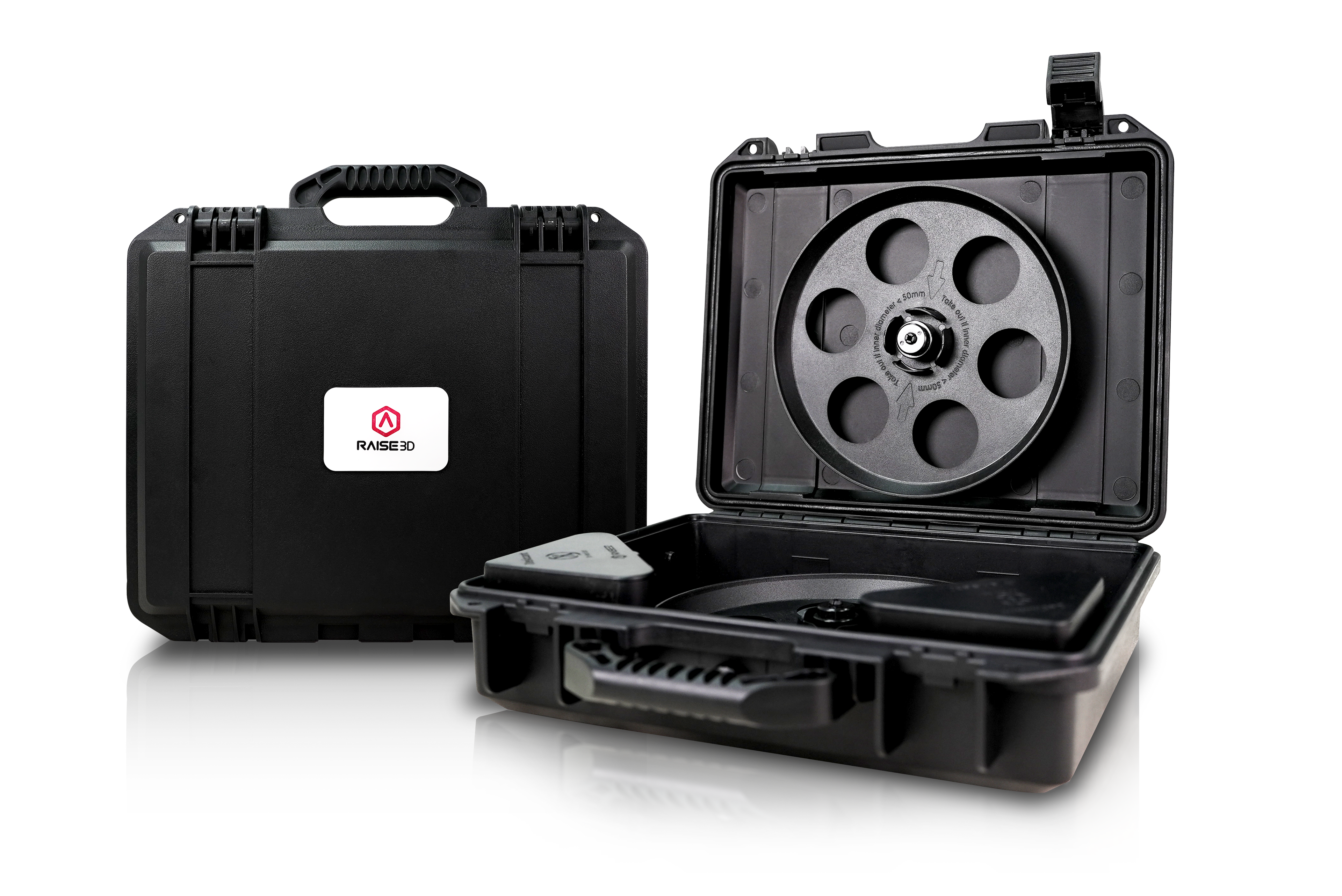

Integrated dry storage improves material performance
Built-in dry box protects hygroscopic filaments, maintaining print quality and material integrity over long jobs.
-
Production-ready ecosystem & remote control
Seamless integration with ideaMaker and RaiseCloud enables remote monitoring, slicing optimization, and workflow management.
Q&A

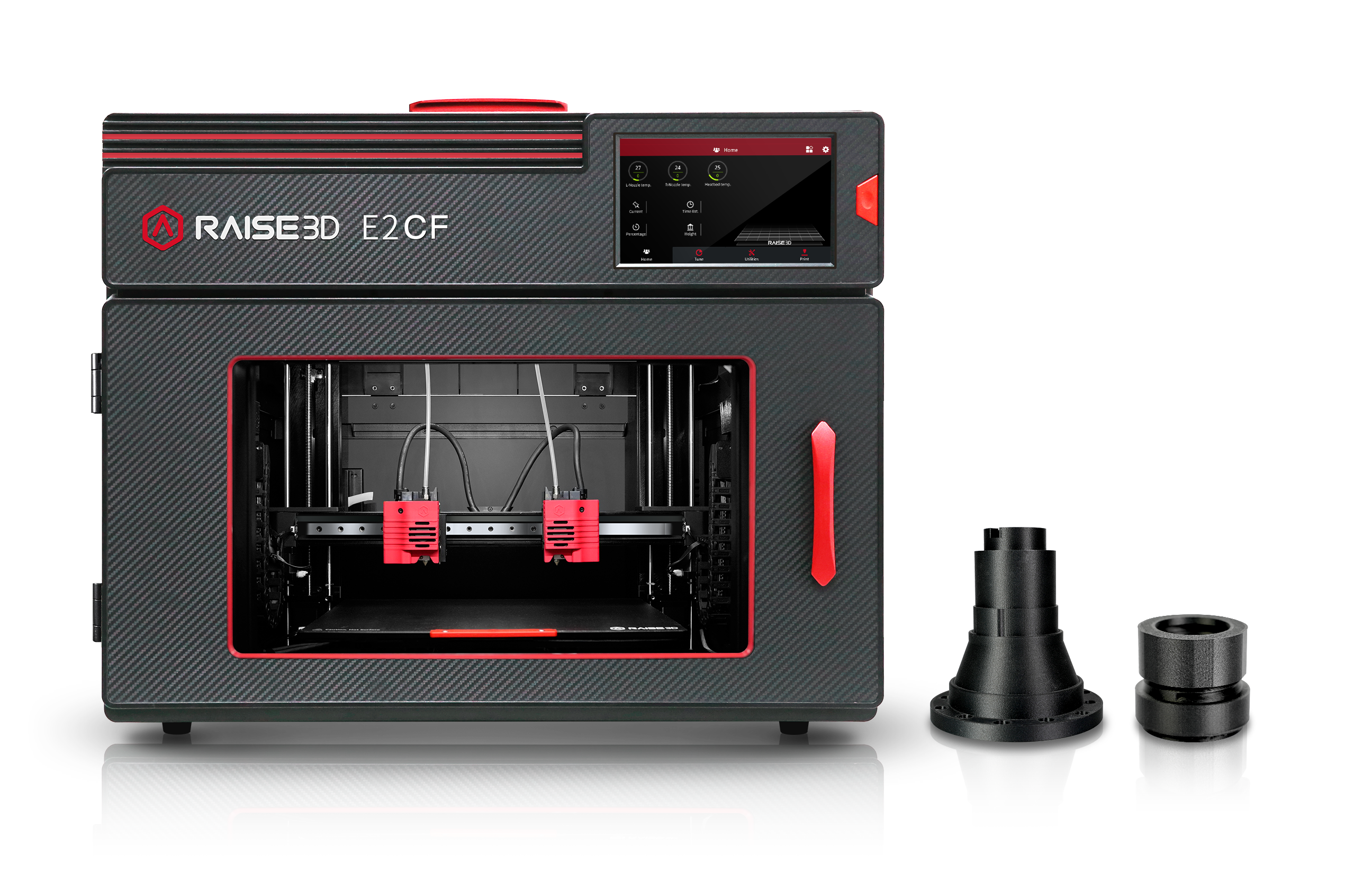

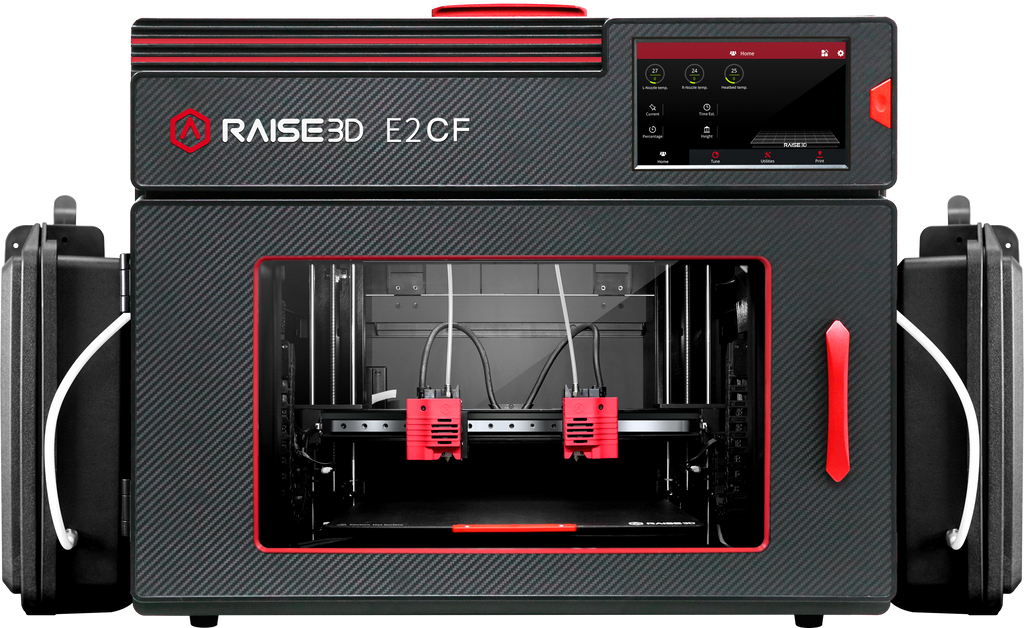

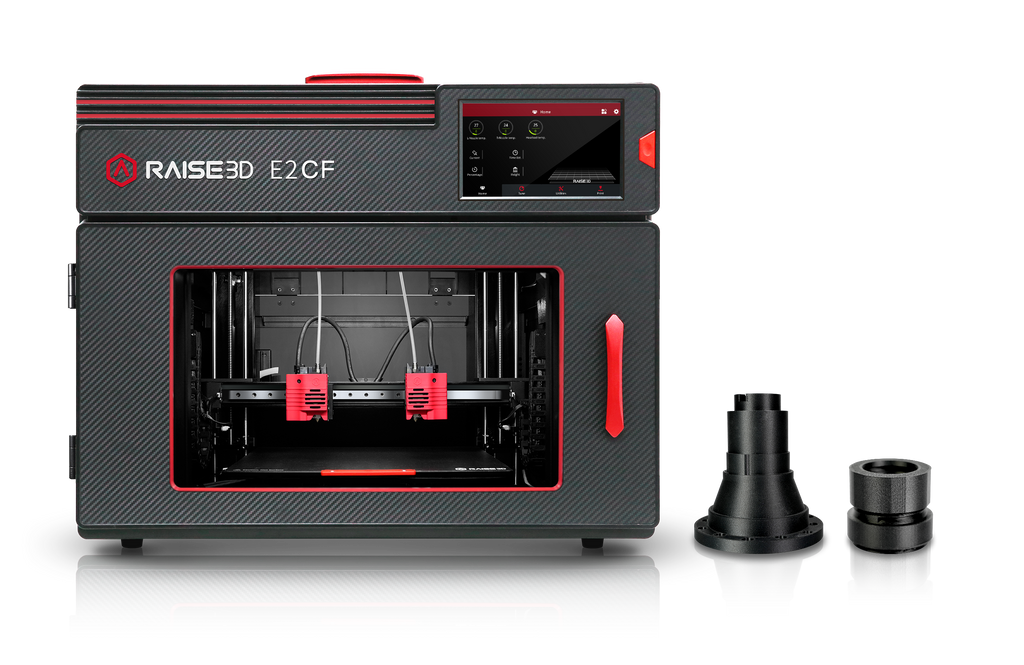

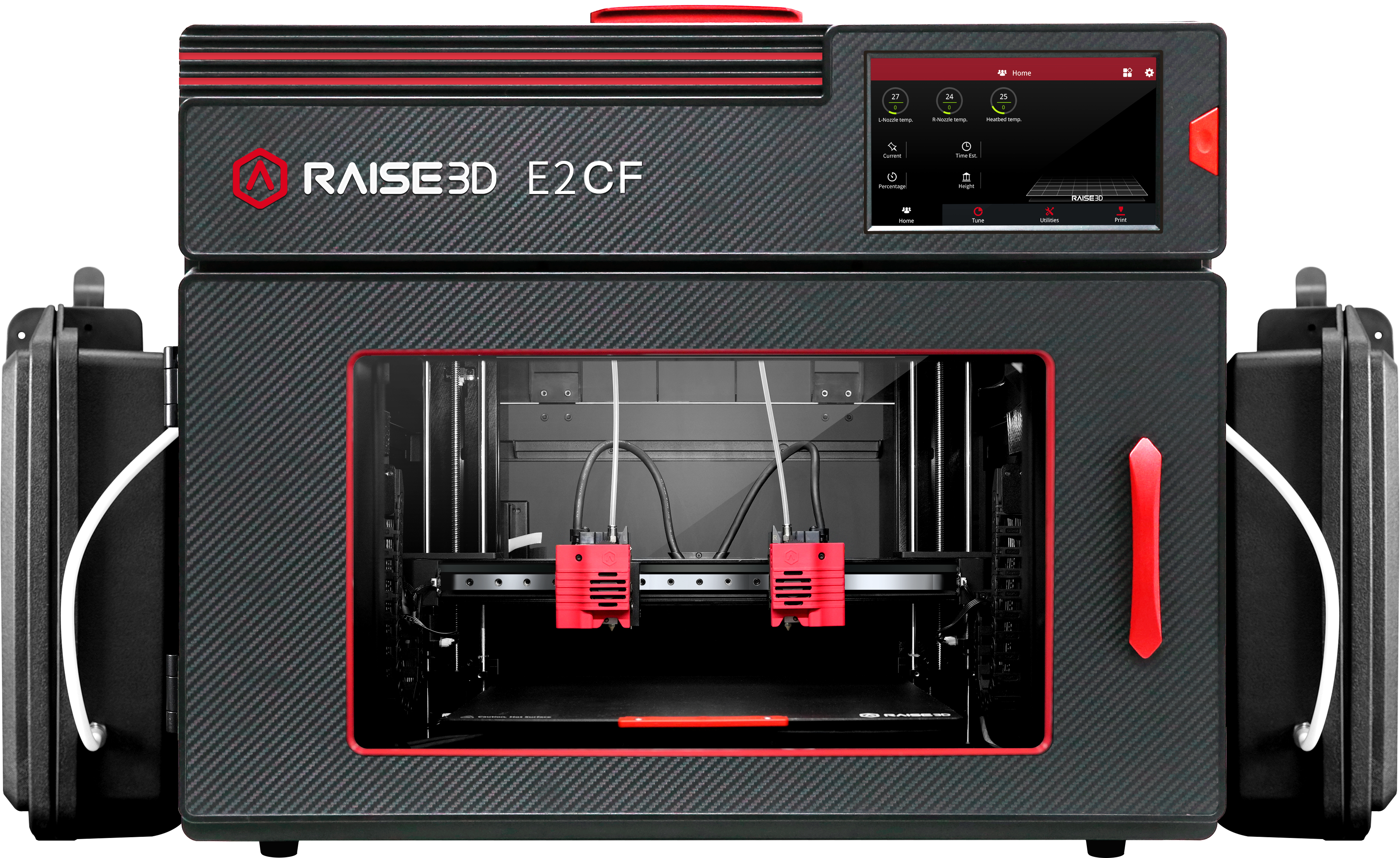

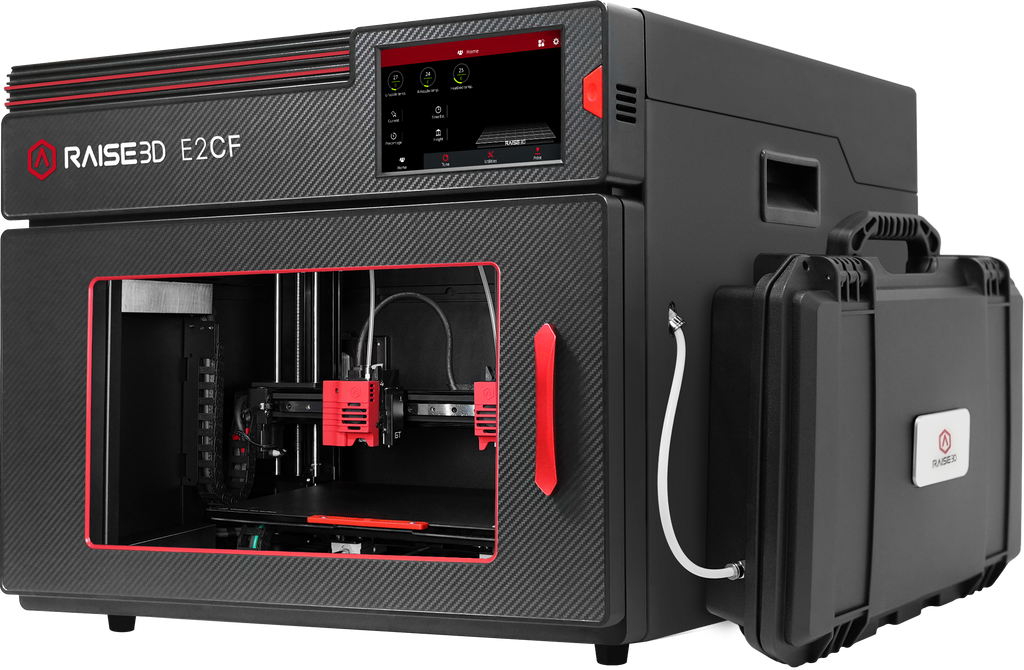

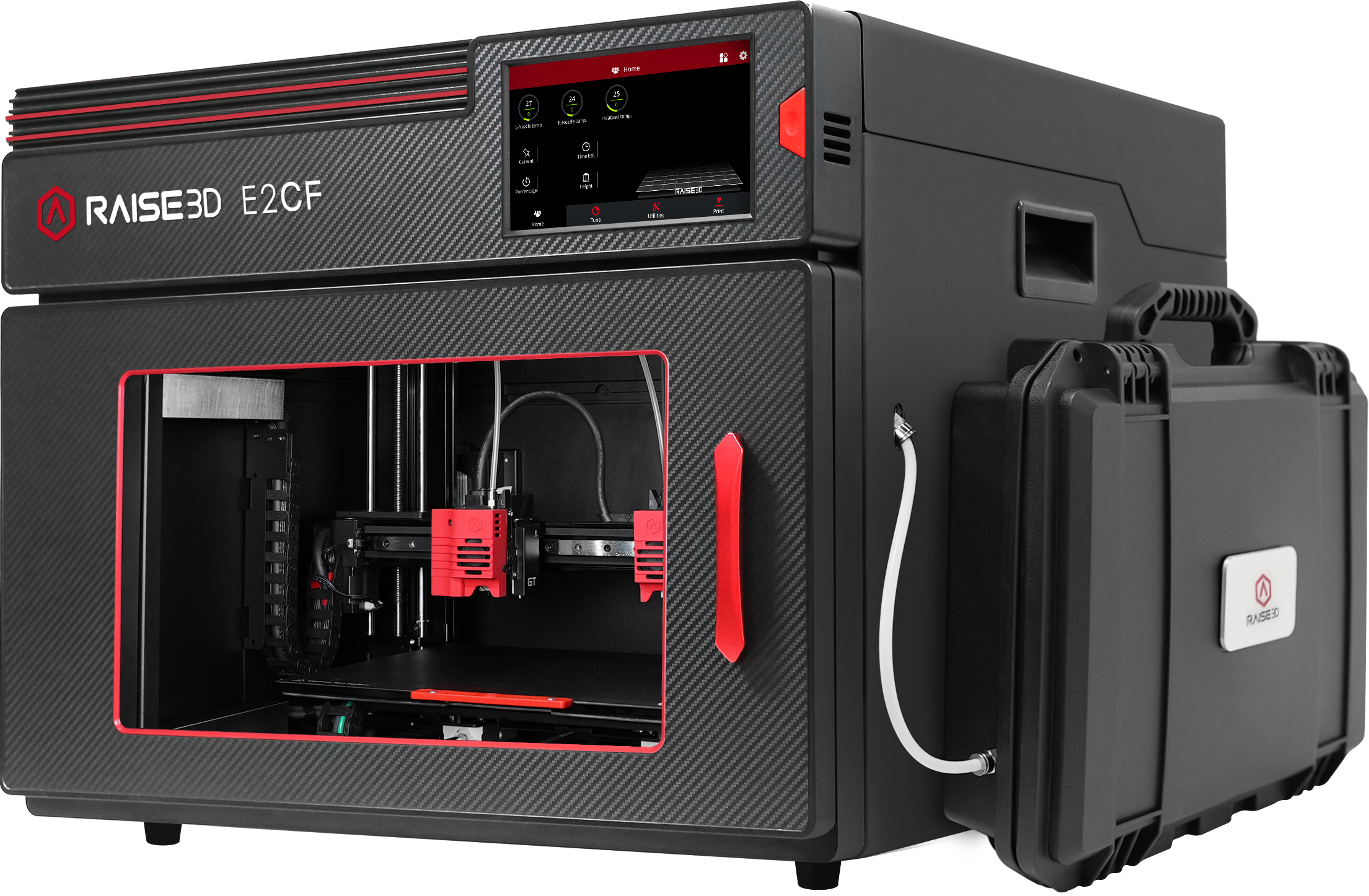

Q: What is the Raise3D E2CF designed for?
A: It’s a professional desktop 3D printer specifically optimized for carbon fiber and fiber-reinforced filaments, ideal for functional prototyping and end-use parts.
Q: What makes it suitable for carbon fiber 3D printing?
A: It features wear-resistant silicon carbide nozzles, hardened dual-drive extruders, and sealed dry boxes to handle abrasive, moisture-sensitive carbon fiber materials reliably.
Q: Does it support dual extrusion printing?
A: Yes, the IDEX (Independent Dual Extruder) system enables advanced functions like dual-material printing, duplication mode, and mirror mode for increased productivity.
Q: What is the build volume of the Raise3D E2CF?
A: Up to 330 × 240 × 240 mm (single extrusion) and 295 × 240 × 240 mm (dual extrusion), making it suitable for medium-sized industrial parts.
Q: What materials can the E2CF print?
A: It supports a wide range of engineering-grade materials including carbon fiber-reinforced PLA, ABS, Nylon (PA12 CF), PETG, ASA, PC, and more.
Q: Is the printer easy to operate?
A: Yes, it includes auto bed leveling, pre-configured slicing profiles in ideaMaker, and a 7-inch touchscreen for simplified setup and operation.
Q: Can I monitor prints remotely?
A: Yes, built-in camera and RaiseCloud integration allow real-time remote monitoring and print management.
Maintenance Tips
-
Use hardened / silicon carbide nozzles only – carbon fiber filaments are highly abrasive; inspect regularly for wear and replace early to maintain accuracy.
-
Keep filament dry at all times – use the sealed dry boxes to prevent moisture absorption, which can ruin CF prints and clog extruders.
-
Clean dual direct-drive extruders to avoid gear wear and filament grinding—especially with reinforced materials.
-
Run auto bed leveling frequently for consistent first-layer adhesion and precision with fiber-filled filaments.
-
Inspect and clean build plate after each print to ensure strong adhesion and easy removal using the flexible plate.
-
Lubricate motion system & check frame stability to maintain high-precision industrial output.
-
Replace HEPA filter periodically to keep airflow clean and stable inside the enclosed chamber.
-
Monitor filament run-out & sensors to prevent failed prints and material waste.
-
Calibrate dual extruders (IDEX) for alignment—critical for mirror/duplication modes and multi-material accuracy.
-
Update ideaMaker & RaiseCloud software for optimized slicing profiles and performance improvements.
