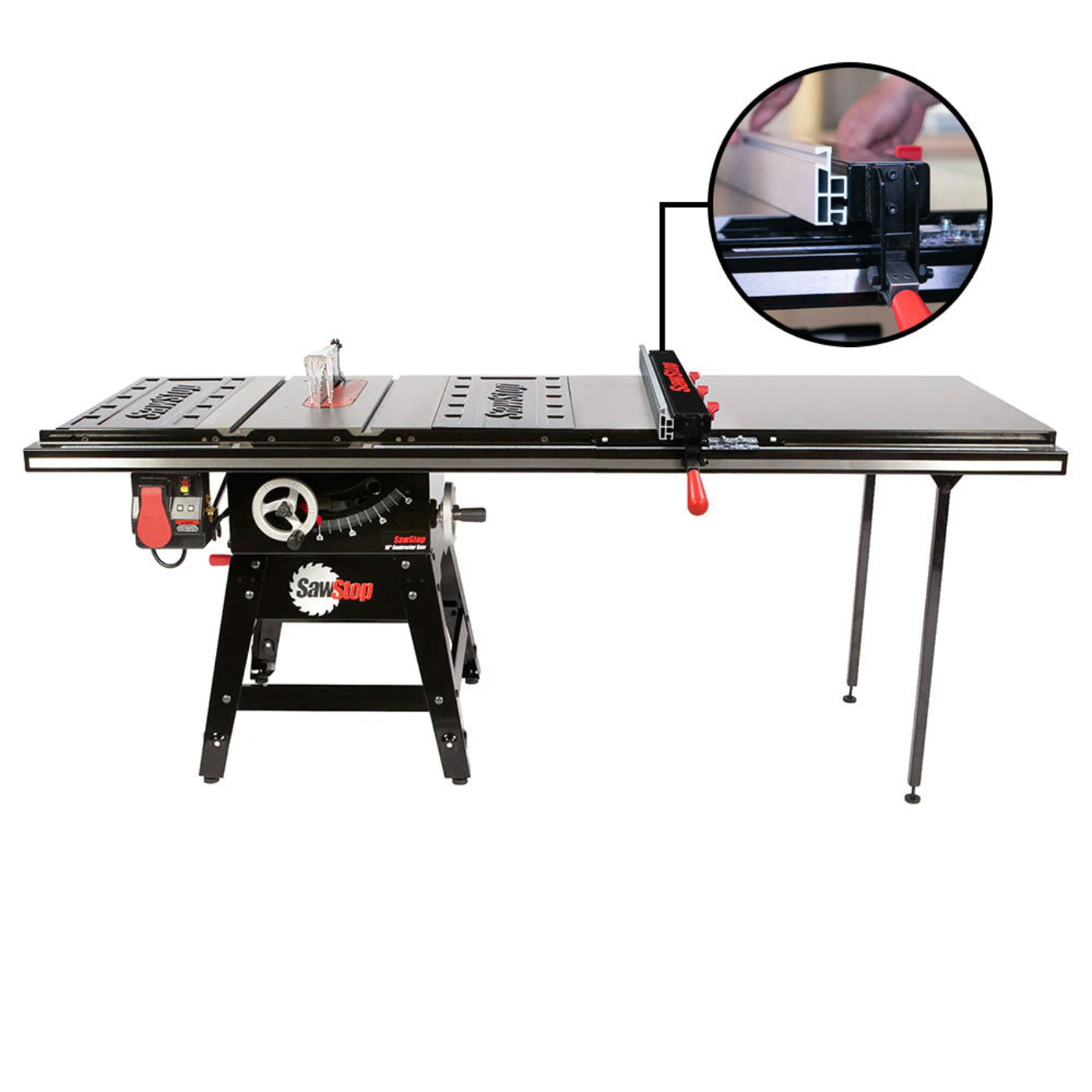

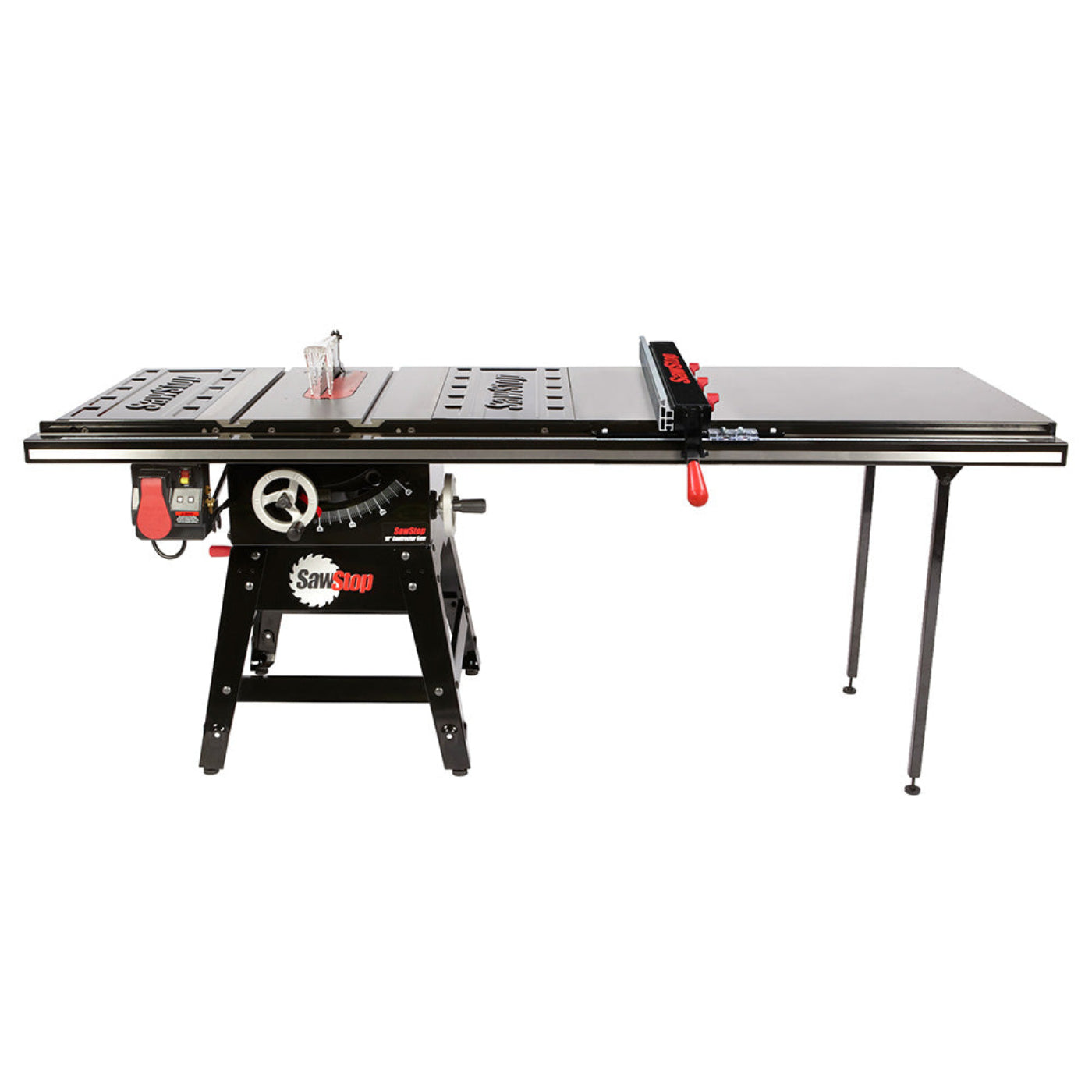

SawStop 1.75HP Contractor Saw w/52" T-Glide Advance Fence, Rails & Extension Table - CNS175-ATGP52
The SawStop Contractor Saw combined SawStop’s patented safety technology with tons of features that can be configured to meet your needs on the jobsite. As SawStop’s most configurable saw, it is truly versatile. This contractor saw combines mobility and stability with impressive performance, durability, and safety.
The heart of the SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.

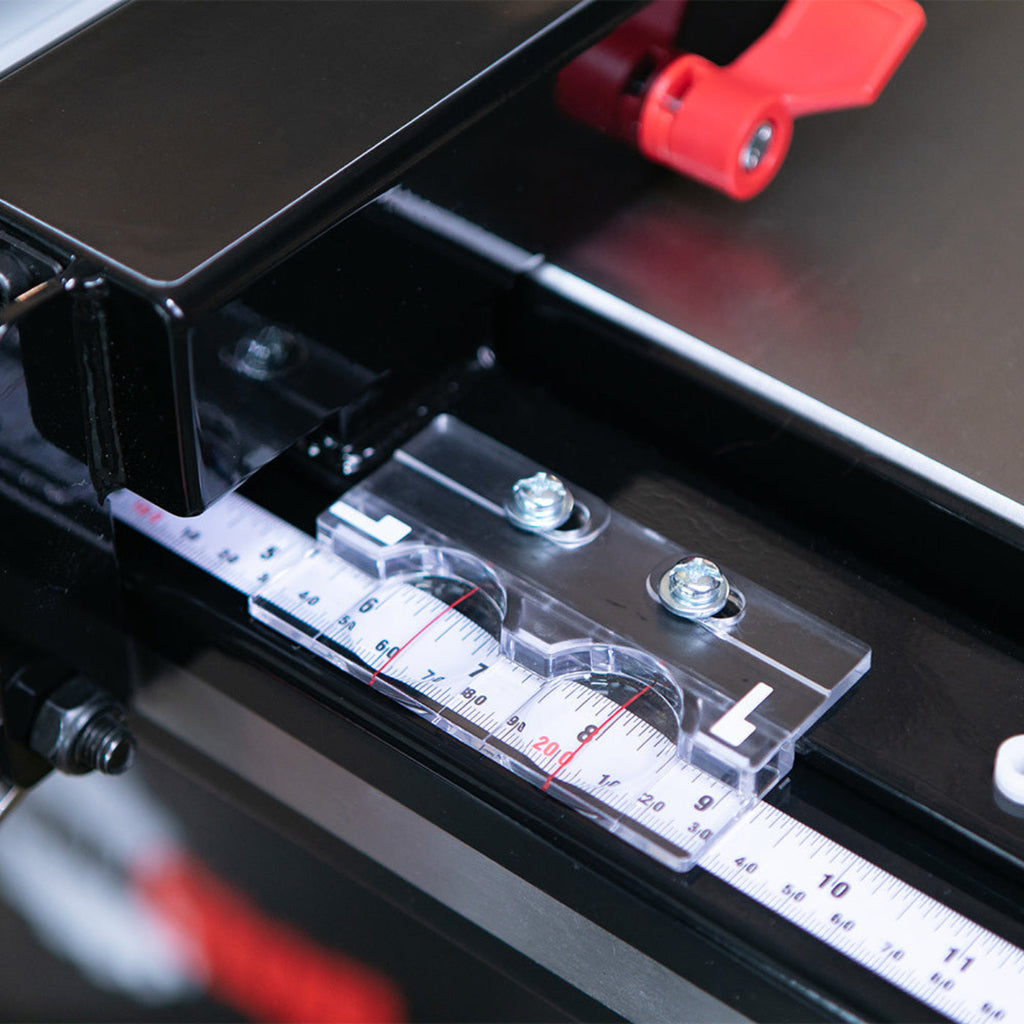

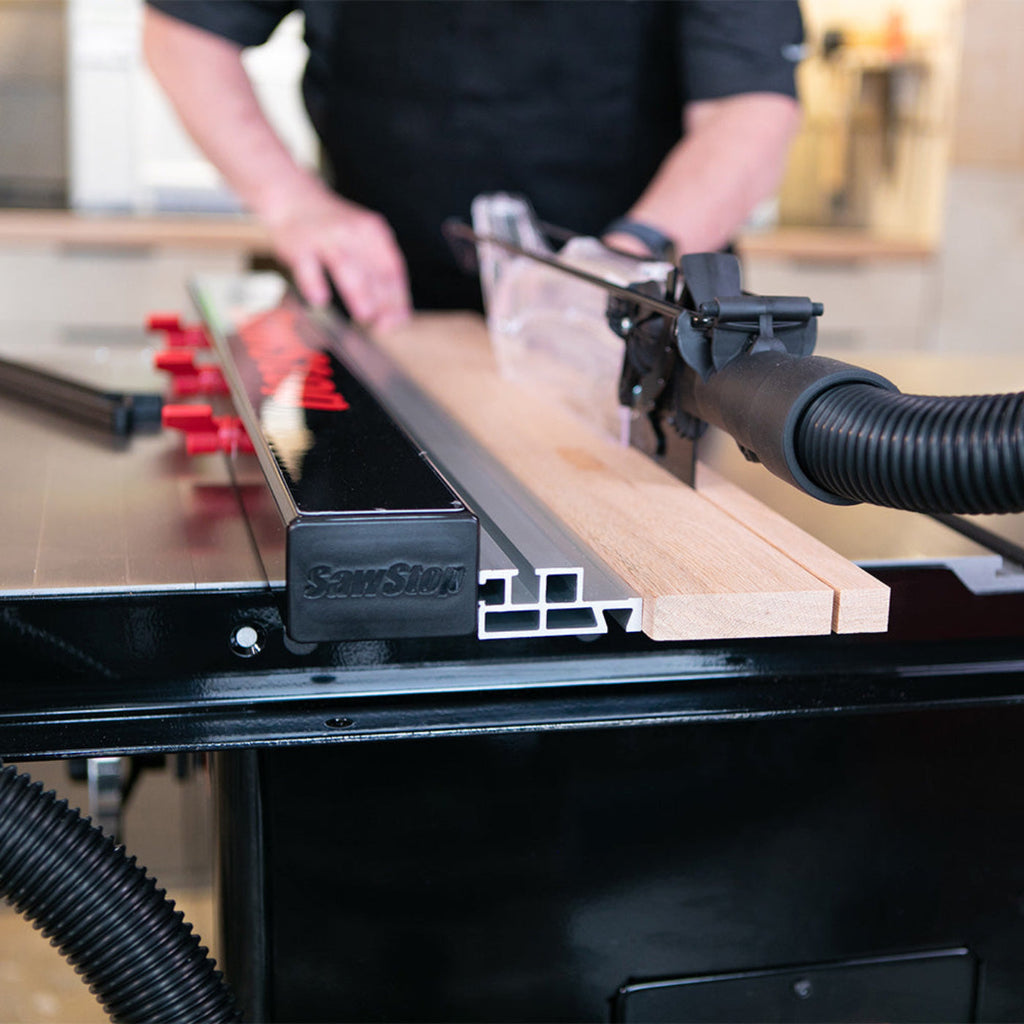

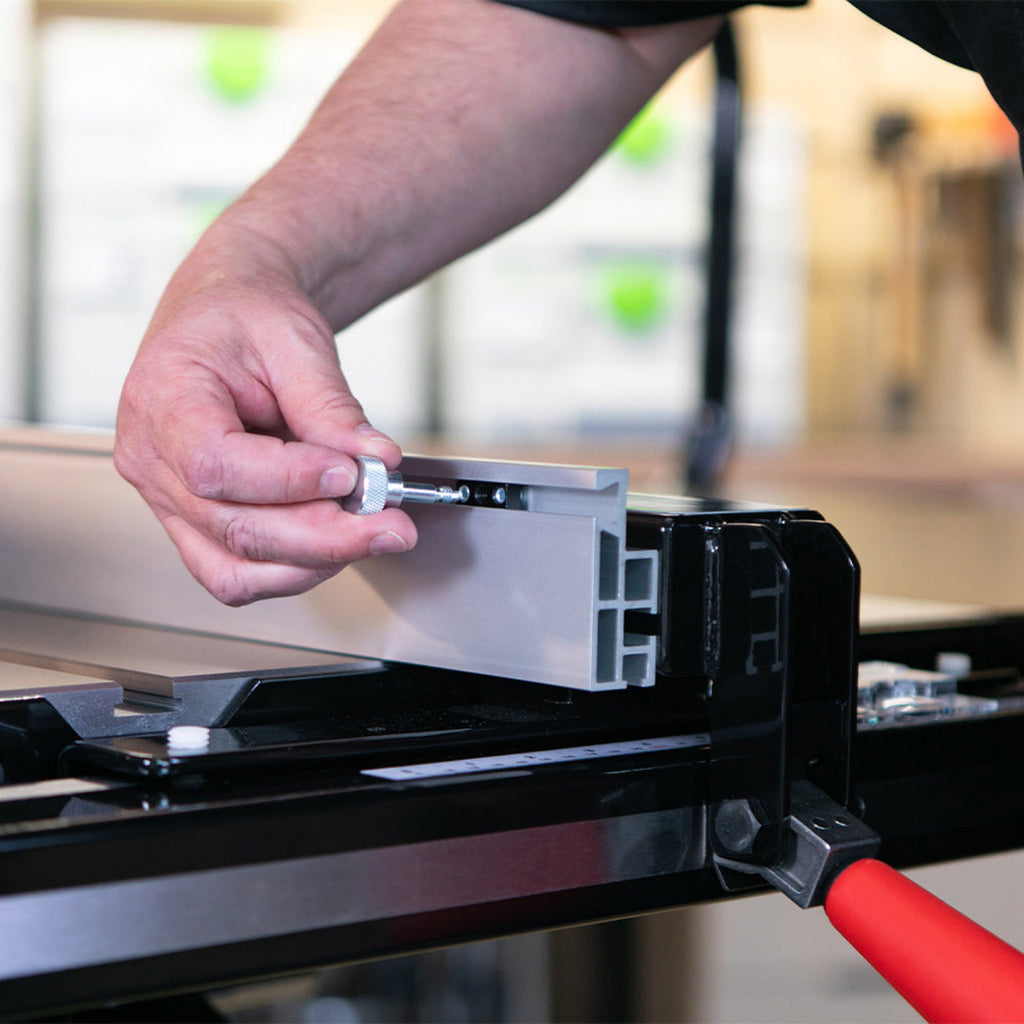

The 52" Professional T-Glide Advance Rip Fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market. It uses a Hi-Low aluminum face made for use in three positions: high (standard), low, and as an L-fence. A dovetailed-shaped groove allows you to mount feather boards, sacrificial fences, jigs, and other accessories.
The elevation system operates on a vertical slide. This unique design provides consistent and precise blade alignment along all elevation levels. Not only does this improve the accuracy of your cuts, it also reduces the risk of binding and kickback. Additionally, the Zero Clearance insert supports the wood along the cut and reduces tearout.
Dust collection is maximized on your SawStop Contractor Saw. Under-table shrouding funnels dust out of the saw. You can attach your contractor saw directly to a 4” dust collection tube or to SawStop’s Dust Collection Panel, which has both 2.5” and 4” ports for compatibility with a variety of dust collection systems. You can also upgrade to a Dust Collection Blade Guard and step up to SawStop’s advanced dust collection above the table.
With a 1.75hp motor, the SawStop Contractor Saw delivers the power you need in a compact package. The poly-v-ribbed belts transfer more power to the blade for better cuts with less vibration. Powder-coated steel resists rust and corrosion to ensure life-long reliability. This contractor saw is sturdy and solid with considerably more cast iron for reduced vibration.
The SawStop Contractor Saw offers versatility, mobility, power, and reliability. From the job site to your home shop, it’s ready to get the job done! Includes a 2-year warranty with registration.
Features
- 52" Professional T-Glide Advance Rip Fence
- Over 150 unique configurations
- SawStop Safety System stops on contact with skin
- Includes Two Steel Extension Wings
- The most configurable saw in the SawStop lineup
- Under-table shrouding funnels dust out of the saw
- Safety bypass switch allows you to cut conductive material without activating the safety system
- Large start/stop paddle provides hands-free shutoff, allowing you to safely stop the blade even when both hands are occupied
Specifications
| Motor: 60Hz, TEFC, 1.75 HP, 120v, 14A |
| Overall saw dimensions: 85-1/4" W x 45" D x 34-3/4" H |
| Saw body w/stand footprint: 25-3/4" W x 27" D |
| Cast iron table: 20" W x 27" D |
| Cast iron table (w/ extension wings): 44" W x 27" D |
| Stamped Steel Wings: 12" W x 27" D (opt cast iron for purchase) |
| Extension table: 40-1/8″ W x 27″ D |
| Assembled weight: 335 lbs. |
| Weight - table saw only: 225 lbs. |
| Blade: 40-tooth, prof. grade, 5/8" arbor |
| Blade diameter: 10" |
| Blade tilt: Left |
| Blade kerf: 0.118" (3mm) |
| Blade plate thickness: 0.078" (2mm) |
| Max. depth of cut, blade at 0º: 3-1/8" |
| Max. depth of cut, blade at 45º: 2-1/4" |
| Max. rip, right of blade: 52-1/2" |
| Max. rip, left of blade: 12-1/2" |
| Dado diameter: 8" (req. dado brake + insert) |
| Dado max. width: 13/16" |
| Arbor diameter at blade: 5/8" |
| Main bearing size: 62 mm OD x 30 mm ID |
| Second bearing size: 52 mm OD x 25 mm ID |
| Table in front of blade (max. elevation): 10-5/8" |
| Table behind blade (max. elevation): 7-1/8" |
| Arbor Runout: 0.001" Maximum allowable runout |
| Table flatness measured diagonally: 0.016" Maximum gap |
| Blade alignment with miter slot: 0.010" Maximum displacement |
| Deviation of miter gauge indexing stops from actual: +/- 0.25 degrees |
| Alignment between splitter and blade: 0.010" Maximum difference |
| Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep |
| Miter slots center: 11-1/8" center-to-center |
| Miter slots info: 5-1/2" (arbor flange to center of right slot) |
| Dust collection port diameter: 4" under table top |
| Riving knife / splitter thickness: 0.090" (2.3 mm) |
| Micro blade guard: polycarbonate, extends 1" right of blade (opt dust guard for purchase) |
| Insert: zero clearance, phenolic core, melamine surfaces |
| Hand wheels: 6" diameter, cast alum. w/ ABS handle |
| Belts: V-ribbed belt – static dissipative |
Included
- (2) Steel Extension Wings
- (1) Miter Gauge
- (1) Micro Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10" Blade
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (1) Assembly Instructions
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm hex Key
- (1) Blade Spacing Adjustment Gauge.
What Our Experts Think
-
Powerful 1.75HP motor for reliable contractor‑grade performance
-
52" T‑Glide Advance Fence delivers precise, smooth rip cuts
-
Rails and extension table included for full workflow support
-
Sturdy construction minimizes vibration for cleaner cuts
-
Excellent balance of power, precision, and value
Q&A
-
Q: What power does this saw use?
A: 1.75HP motor, ideal for contractor applications.
-
Q: What rip capacity is offered?
A: 52" with the T‑Glide Advance Fence.
-
Q: Are rails and extension table included?
A: Yes, both are included.
-
Q: Is this saw suitable for heavy use?
A: Yes, built for regular workshop use.
Maintenance Tips
-
Keep table surface clean and waxed
-
Check blade alignment regularly
-
Clean dust collection ports frequently
-
Inspect fence calibration periodically
-
Tighten hardware as needed for accuracy
