Scag 52IN RC Extreme Slope Mower W/ 37hp Briggs Vanguard - SRC-52D-37BV-OG-EFI

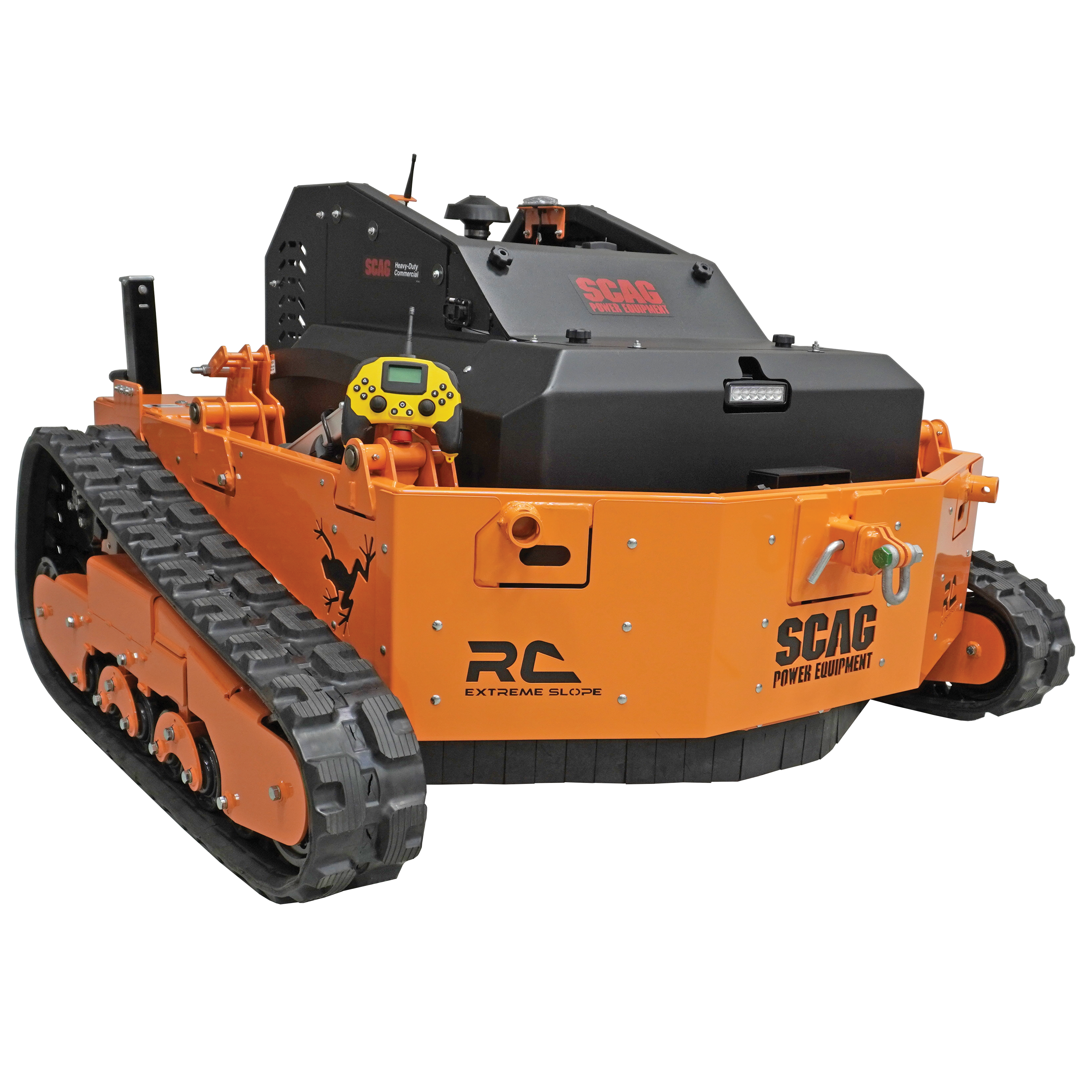

The Scag RC Extreme Slope Mower SRC-52D-37BV-OG-EFI is engineered for safe mowing on extreme slopes, embankments, detention ponds, and hard‑to‑reach areas where a ride‑on machine would be unsafe. A hybrid system combines a 37 hp Vanguard BIG BLOCK EFI/ETC engine with Oil Guard driving a 7 kW alternator that recharges the onboard 9 kWh battery pack, which in turn powers the electric drive system and 52" cutter deck. The unit is fully remote controlled, so the operator can stay clear of hazards while maintaining precise control of travel, steering, and cutting functions.[web:143][web:147][web:158]
Features
- Remote‑controlled hybrid slope mower for extreme terrain and hazardous areas.[web:143][web:147]
- Tracked undercarriage for stability and traction on steep slopes and soft or uneven ground.[web:143][web:144]
- 37 hp Vanguard BIG BLOCK V‑Twin EFI engine with ETC and Oil Guard for long oil intervals and strong performance.[web:143][web:148][web:150]
- 9 kWh battery system with 7 kW engine‑driven alternator providing all‑day power and improved fuel efficiency.[web:143][web:147][web:158]
- Easy‑to‑use long‑range remote (up to about 1000 ft line of sight) with emergency stop on signal loss.[web:147][web:159]
Specifications
| Model |
SRC‑52D‑37BV‑OG‑EFI |
| Machine Type |
Remote Control Extreme Slope Mower |
| Cutting Deck Width |
52 in |
| Cutting Deck Type |
Heavy‑duty brush deck |
| Blade Configuration |
4‑blade “Diamond” deck |
| Max Material Clearing Thickness |
Up to ~1.5 in |
| Cutting Direction |
Forward |
| Engine Model |
Vanguard BIG BLOCK V‑Twin EFI |
| Engine Power |
37 hp |
| Fuel System |
Electronic Fuel Injection (EFI) |
| Engine Protection |
Oil Guard system |
| Engine Control |
ETC system |
| Drive System |
Hybrid electric (no PTO) |
| Battery Pack |
9 kWh |
| Alternator |
7 kW |
What our Experts Think
-
Unmatched safety & slope capability
The Scag RC Extreme Slope Mower SRC‑52D‑37BV‑OG‑EFI is engineered to tackle extreme slopes and hazardous terrain while keeping the operator completely off the machine via remote control, dramatically reducing risk of rollovers and injury.
-
True hybrid powertrain for long runtime
A 37 hp Briggs & Vanguard BIG BLOCK EFI engine drives a 7 kW alternator to recharge the 9 kWh battery system, providing efficient power delivery, reduced emissions, and all‑day performance.
-
Superior traction & stability
Tracked undercarriage and electric drive motors ensure exceptional grip and controlled operation on slopes up to around 45° without winch—ideal for banks, embankments, ponds, and inaccessible areas.
-

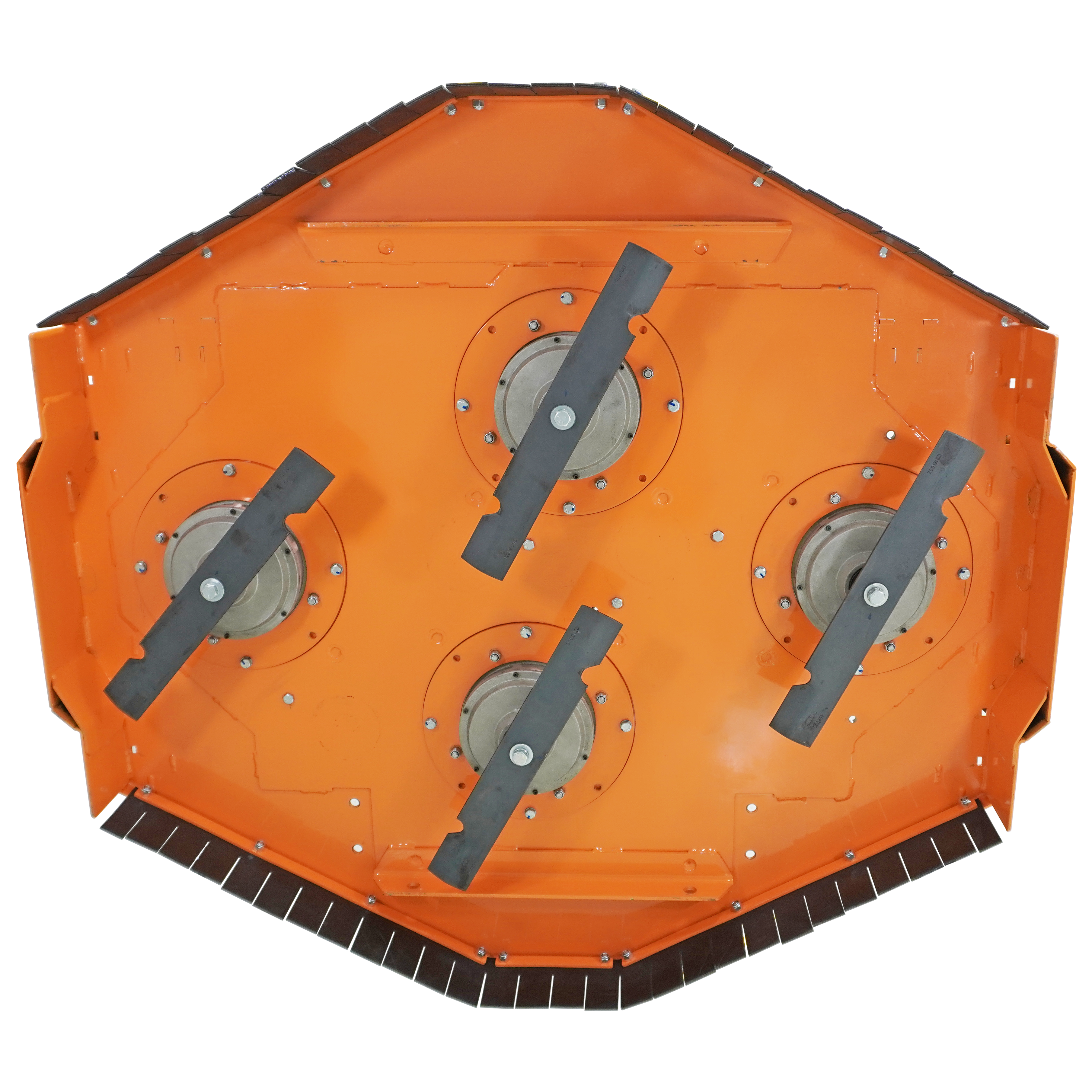

52″ four‑blade “Diamond” cutter deck
Delivers consistent cuts forward and reverse (no need to turn around), saving time and improving productivity on large, rough terrain.
-

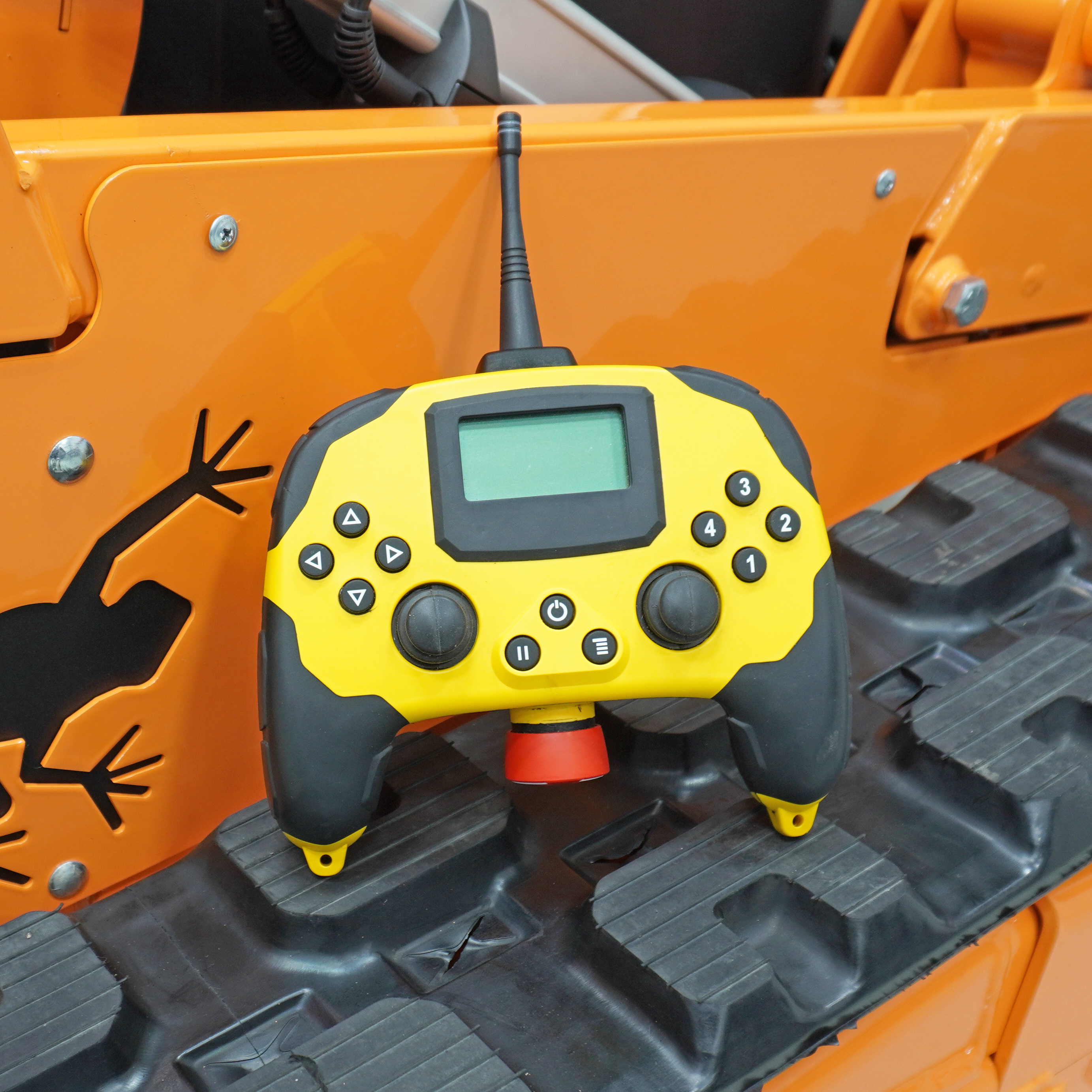

Remote system with extended range
The intuitive remote gives line‑of‑sight control up to roughly 1000 ft, with battery status, machine diagnostics, and safety e‑stop on signal loss.
-
Industry‑ready features included

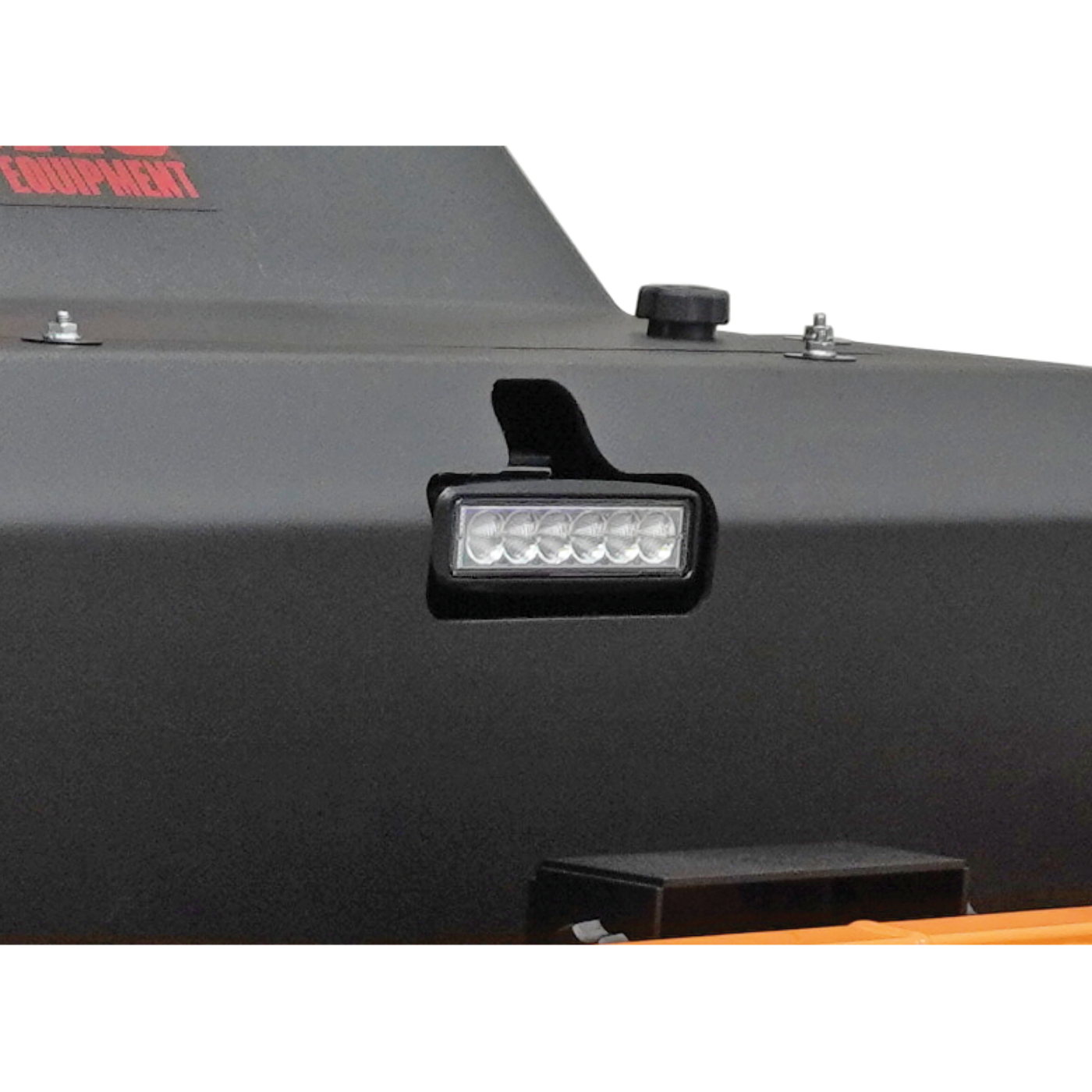

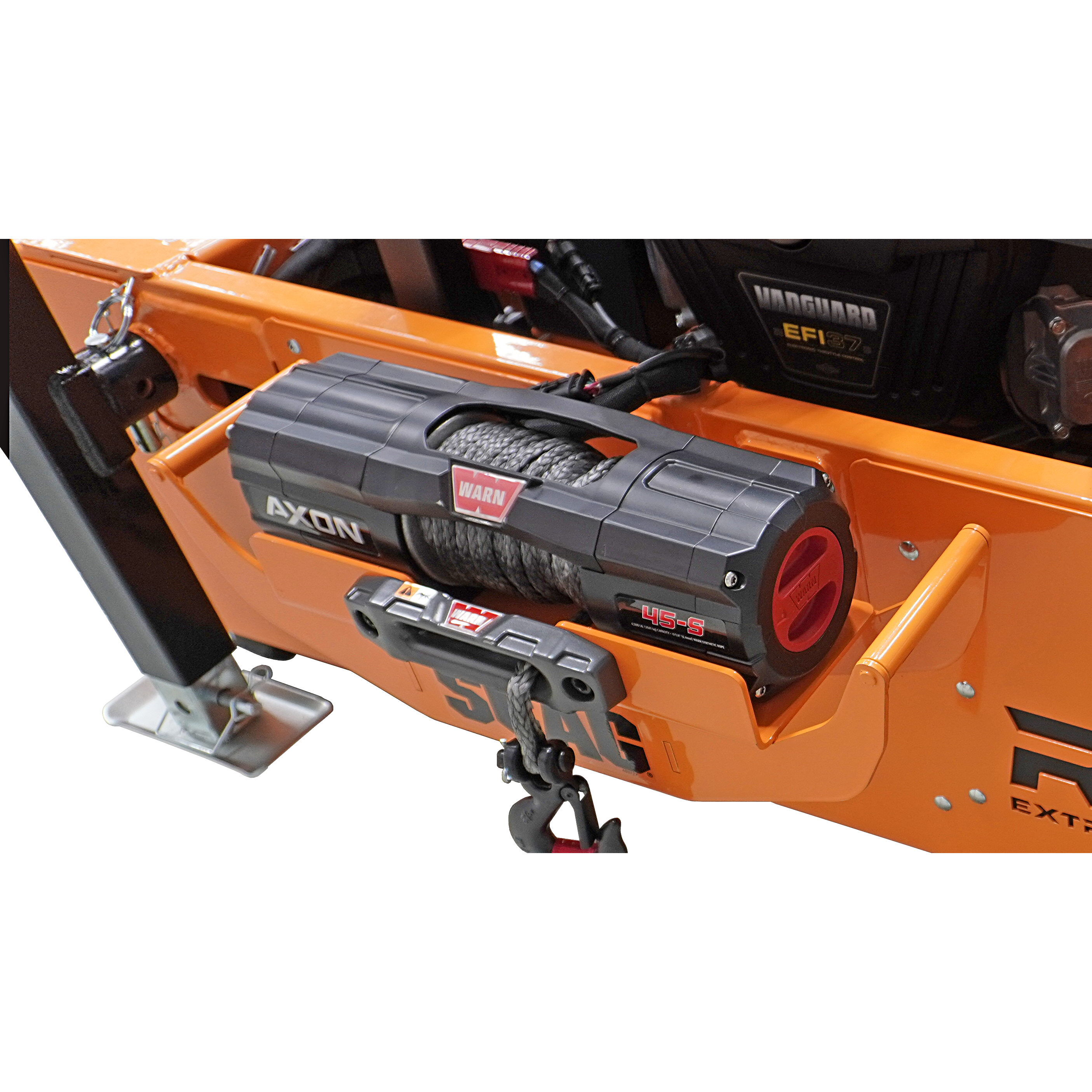

Built‑in 4500 lb winch, LED work lights, adjustable cutting height (~3.5″–11.5″), and robust grease track tension system improve field performance and reduce downtime
Q&A
Q: What is the Scag 52IN RC Extreme Slope Mower W/ 37hp Briggs Vanguard - SRC-52D-37BV-OG-EFI designed for?
A: A remote‑controlled hybrid slope mower engineered to safely cut grass on extreme slopes, embankments, hard‑to‑reach terrain, and hazardous areas without an operator onboard.
Q: What power system does it use?
A: Hybrid gas/electric power: a 37 hp Briggs & Vanguard BIG BLOCK EFI V‑Twin engine with Oil Guard driving a 7 kW alternator that recharges a 9 kWh battery pack, which powers the electric drive and cutter deck for efficient all‑day performance.
Q: How is the mower controlled?
A: Fully remote‑controlled operation with up to ~1000 ft line‑of‑sight range and an emergency stop feature if the signal is lost — keeping the operator far from danger.
Q: What are the cutting capabilities?
A: 52″ cutter width with a four‑blade “Diamond” deck that cuts forward and reverse, adjustable height, and can handle tall grass, heavy weeds, and brush up to ~1.5″ thick.
Q: What terrain can it handle?
A: Tracked undercarriage offers traction and stability on extreme hills; it can safely operate on steep slopes where conventional mowers would be unsafe.
Q: What additional features improve usability?
A: Standard winch capable of ~4,500 lb pulls, heavy‑duty grease‑track tension system, easy track installation, and front/rear LED work lights for extended working hours.
Q: Why choose this slope mower?
A: Combines hybrid efficiency, remote safety, strong cutting performance, and rugged construction — ideal for professional landscapers, municipalities, and maintenance crews tackling steep and challenging terrain.
Maintenance Tips
-
Follow Safe Service Procedures
Always stop the machine, engage emergency stop, remove key/spark‑plug wire, and disconnect battery power before maintenance to prevent accidental starts.
-
Engine Oil & Filter
Maintain proper oil levels in the 37 hp Briggs Vanguard EFI engine and change oil/filters at regular intervals per engine manual to protect internal bearings and lubrication systems.
-
Air & Fuel System Care
Keep air intake clear of debris and inspect fuel system components to sustain engine efficiency and avoid power loss under load.
-
Battery & Electrical Checks
Inspect and clean battery terminals; check battery health regularly to ensure reliable remote system and electric drive power.
-
Track & Drive System Greasing
Lubricate track tension grease points regularly to maintain traction and smooth remote‑controlled operation on slopes.
-
Cutter Deck & Blades
Sharpen or replace blades frequently; remove grass buildup from deck to ensure clean cuts and prevent strain on motors and engine.
-
Cooling & Debris Removal
Keep engine cooling elements, alternator area, and undercarriage free of grass and dirt to prevent overheating and maintain performance.
-
Scheduled Professional Inspection
Have dealer or qualified technician perform annual or hourly‑based service per operator manual to catch wear early and keep warranty effective.
