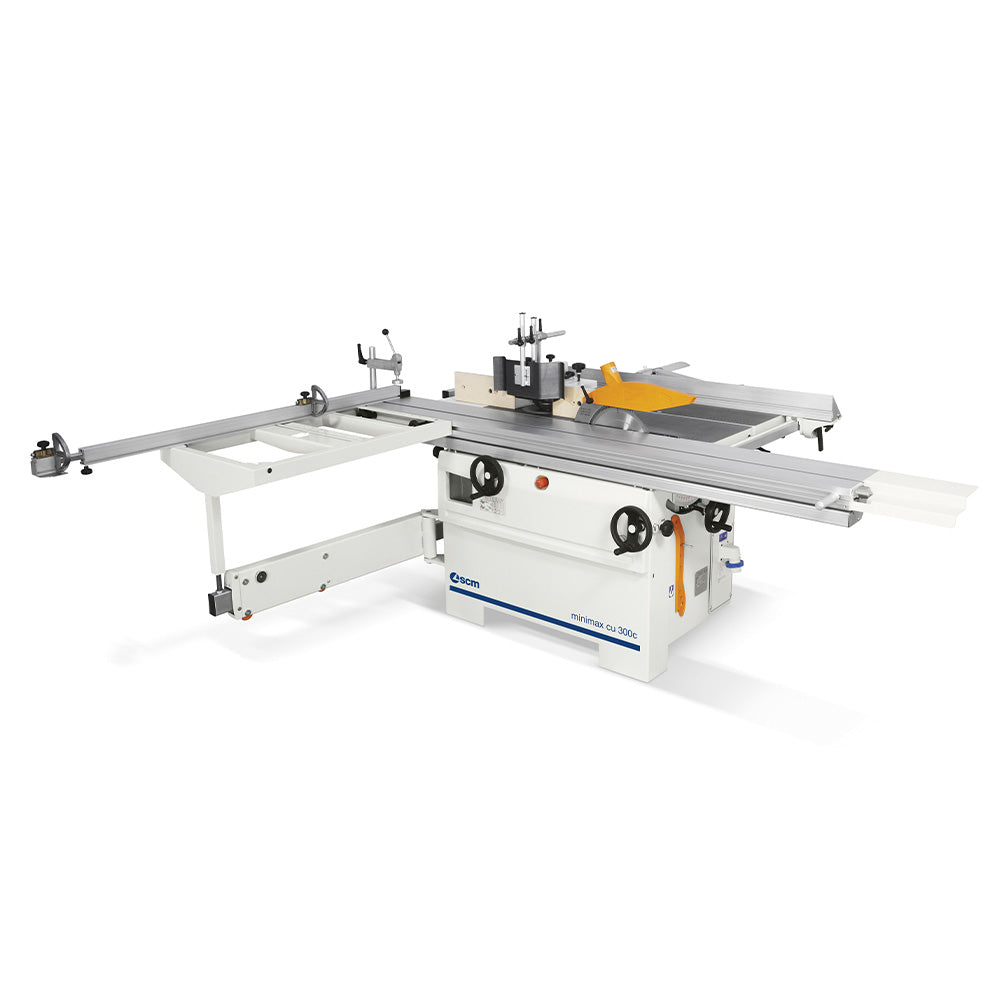

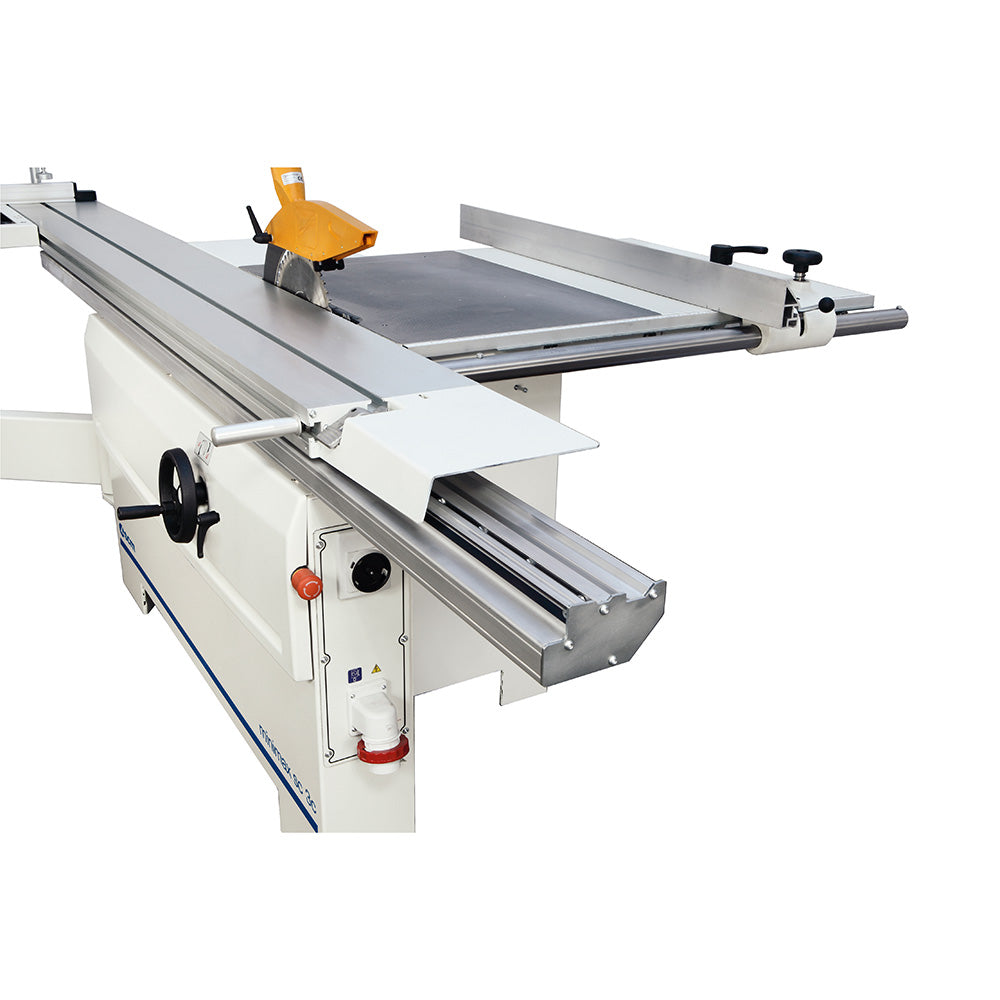

SCM's most popular combination machine for years sets the bar higher than any other manufacturer. This machine has proven itself in American shops countrywide. It boasts a 5.5’ sliding table and has features normally found on much more expensive machines for a fraction of the cost. The Minimax CU 300C features five machines in one: table saw, jointer, planer, shaper, and mortiser!
This custom version of the CU 300C - X comes standard with dado capability. The machine can support a maximum of an 8" (200mm) diameter and a 3/4" (19mm) thick dado blade. Also featured on this custom version is a belt-driven scoring unit that can be adjusted from the outside of the machine without tools. This unit comes complete with an 80mm scoring blade.

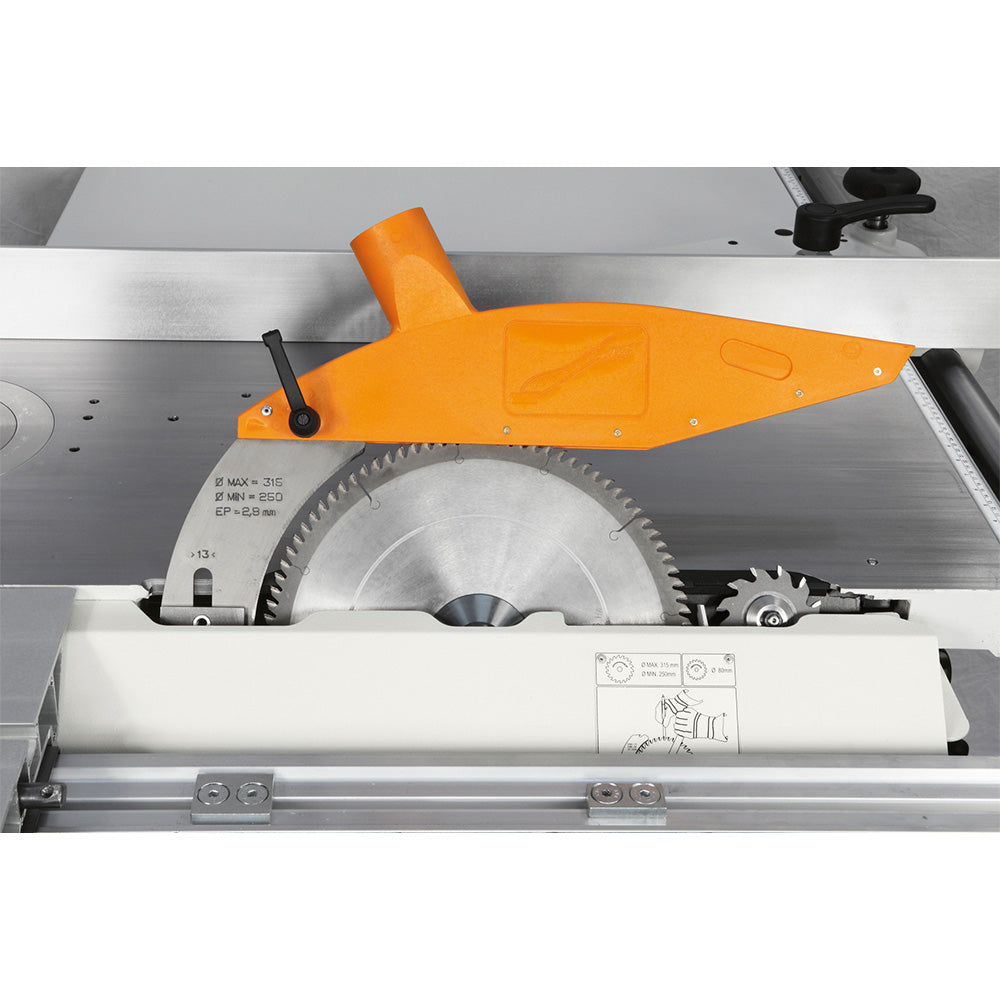

This machine comes standard with scoring. This allows you to not only accurately cut panels, but you can cleanly cut them too. This is important when cutting particle board, melamine, laminated panels, or anything else to which you want to apply some type of edge banding. If you are cutting solid wood, simply drop it below the table surface independently of the main blade. A 12” main blade capacity is featured without having to remove the scoring blade.
This Italian-made machine features a XYLENT spiral cutterhead developed by SCM. The attack angle and shape of the solid carbide knives on the XYLENT cutterhead get the best finish with the least amount of "ghosting" found on other spiral heads. Since the XYLENT cutterhead shears at an angle instead of head-on, less rippling patterns are left behind on workpieces. Much smaller shavings are produced, which greatly improve dust extraction. The XYLENT cutterhead is also significantly quieter than other cutterheads.
Note: Does not include saw blade.
[TABS]
Features
- Extruded anodized aluminum sliding table built on high precision hardened steel guideways

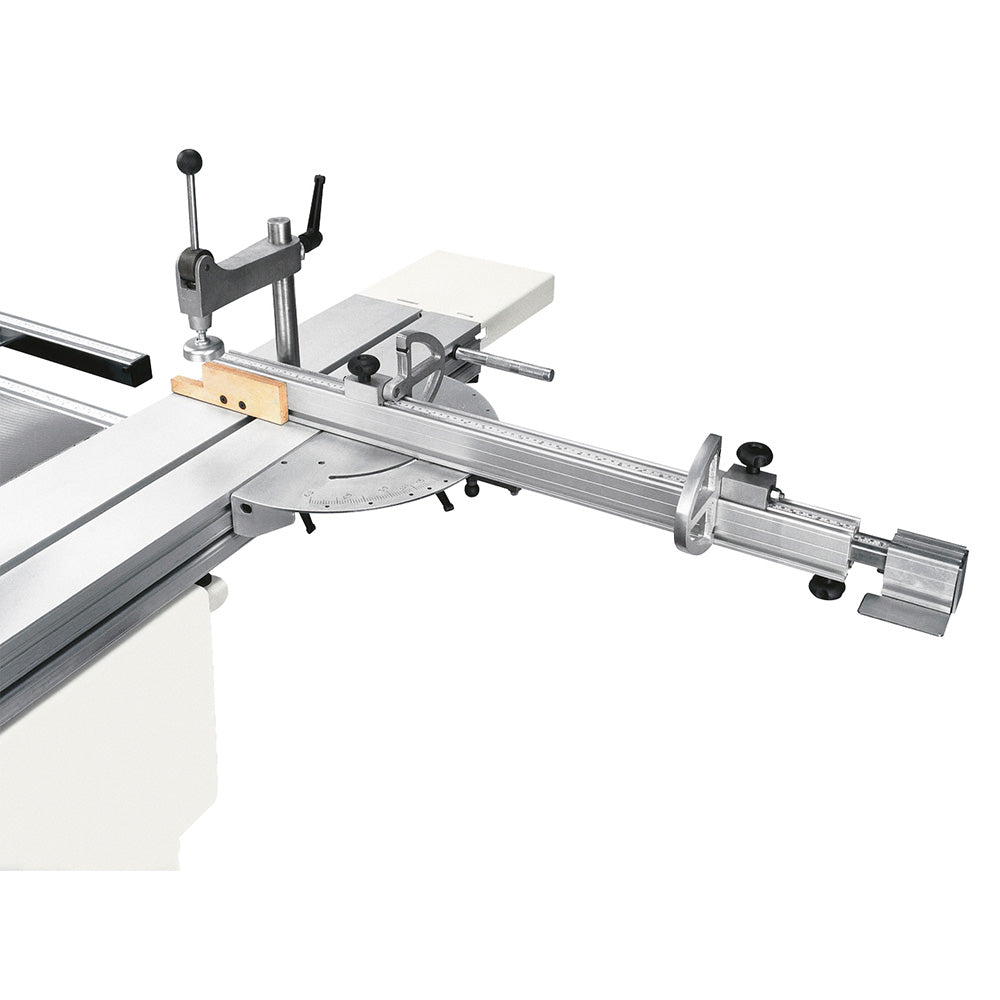

- Squaring frame complete with telescopic fence, 2 crosscut flip-over stops, eccentric clamp, and swinging arm support
- Saw unit with 315mm max. diameter blade capacity

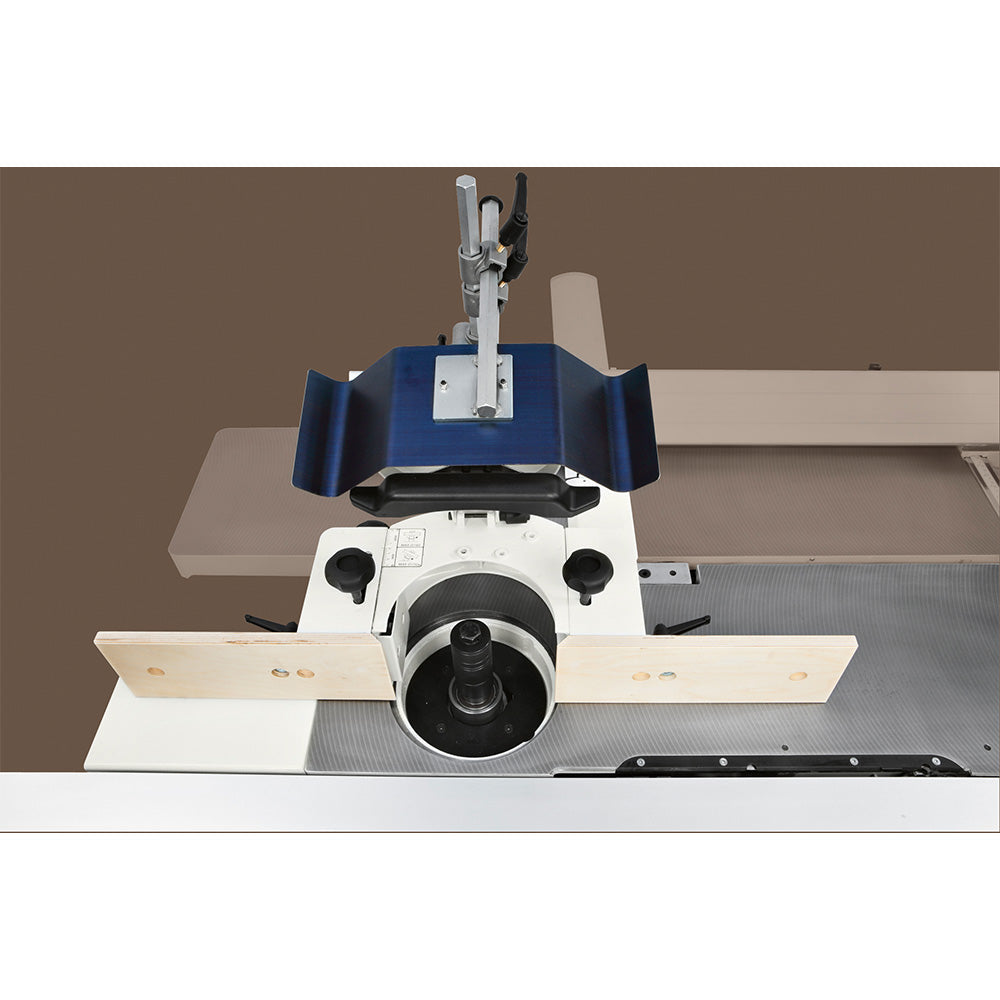

- Adjustable spindle molder fence with micrometric adjustment
- Pre-setting for mortise
- Quick jointer to planer changeover time
- XYLENT cutterhead
- Dado set capability
- Belt-driven scoring unit (includes blade)
- Reverse spindle rotation
- Handwheel with gravitational numerical readout
- Mobility kit
- Made in Italy
Specs
*Electrical: 230V, single-phase, 60 Hz, 20 A
Horsepower: 4.8hp
Recommended Circuit: 30 amp
Min. dust extraction volume: 600 CFM
Net weight: 1,400 lbs.

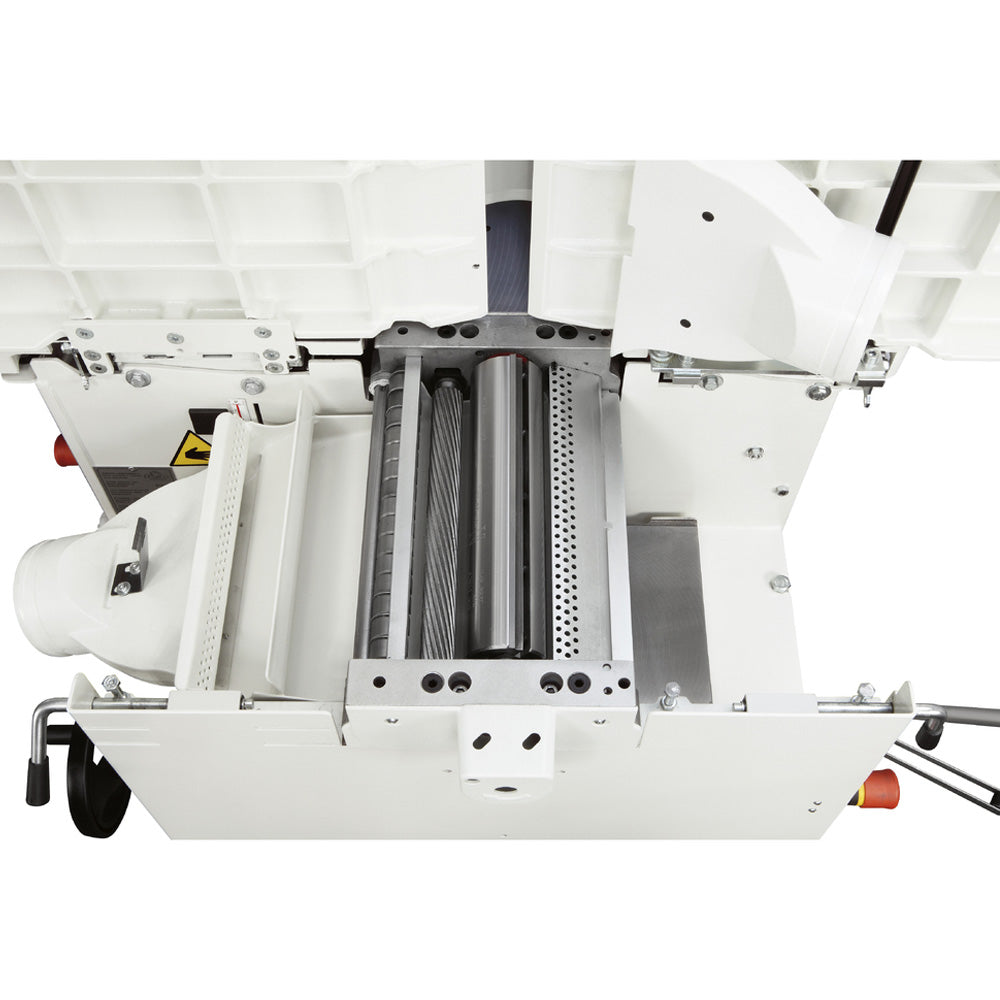

Jointer
Working width: 12"
Total jointer table length: 59" (1510 mm)
Cutterhead speed: 5,200 RPM
Max. depth of cut: 0.125"
Fence size/tilt: 6" x 51" / 0° - 45°

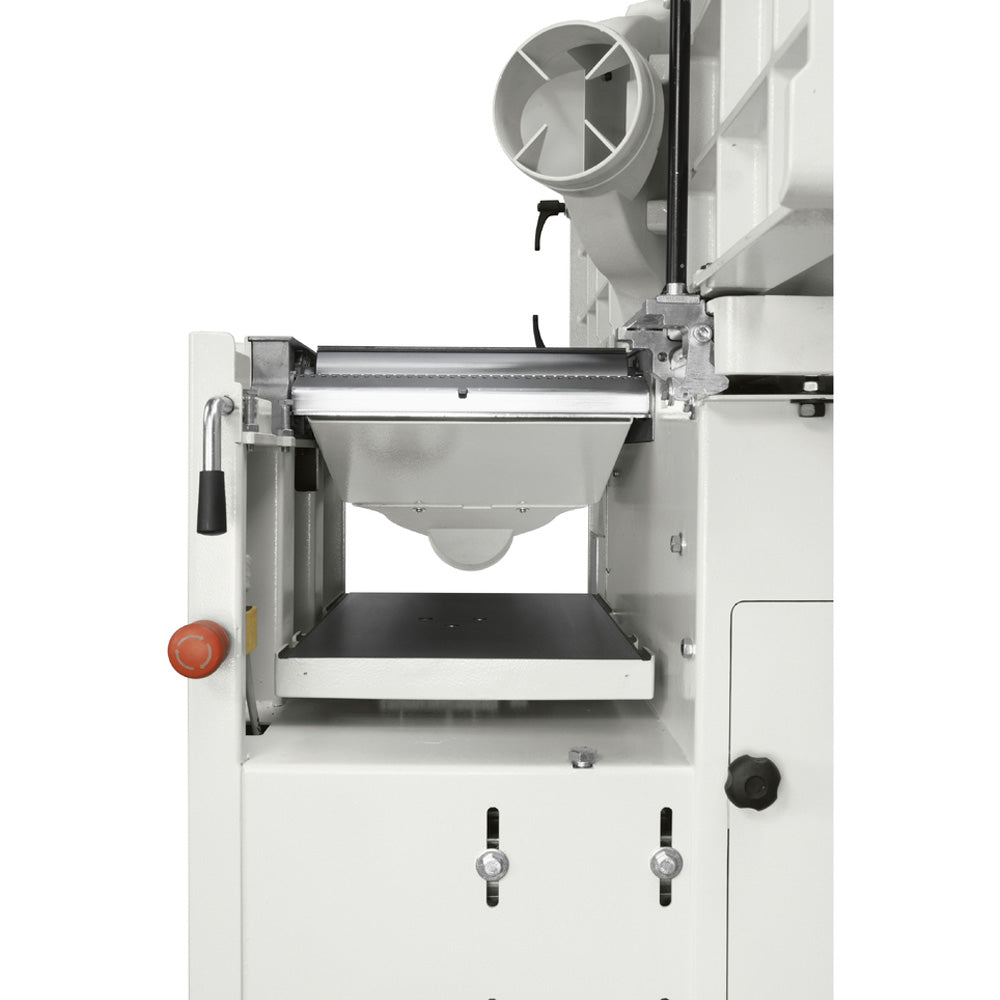

Planer
Table size: 12" x 22.25"
Max. working thickness: 9"
Min. working thickness: 0.125"
Max. stock removal: 1/8"
Feed speed: 23 fpm

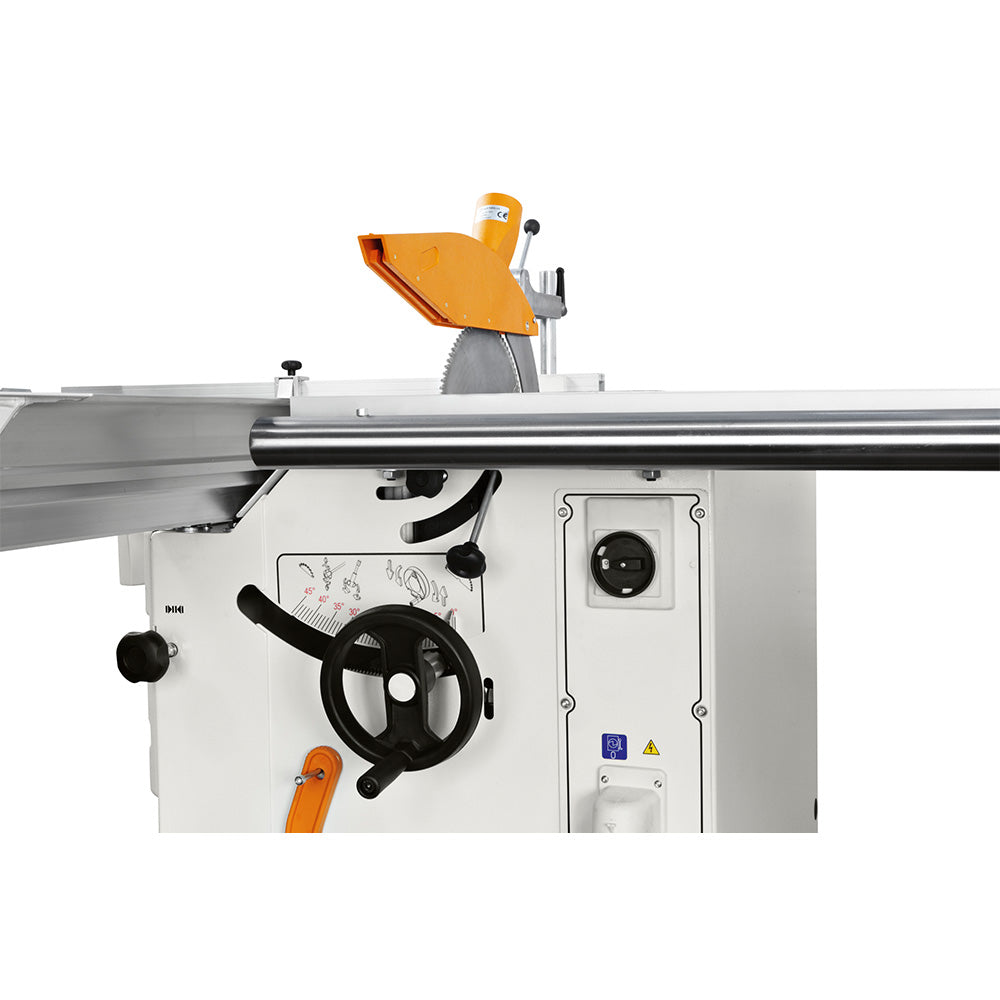

Table Saw
Sliding stroke length: 5.5' (1,600mm)
Max. blade dia.: 12.37" (315mm)
Blade arbor size: 5/8" (15.88mm)
Max. cut width on parallel fence: 32.25" (820mm)
Max. dado blade dia.: 8" (200mm)
Max. dado blade thickness: 3/4" (19mm)
Max. scoring blade dia.: 80mm
Scoring unit speed: 7,700 RPM

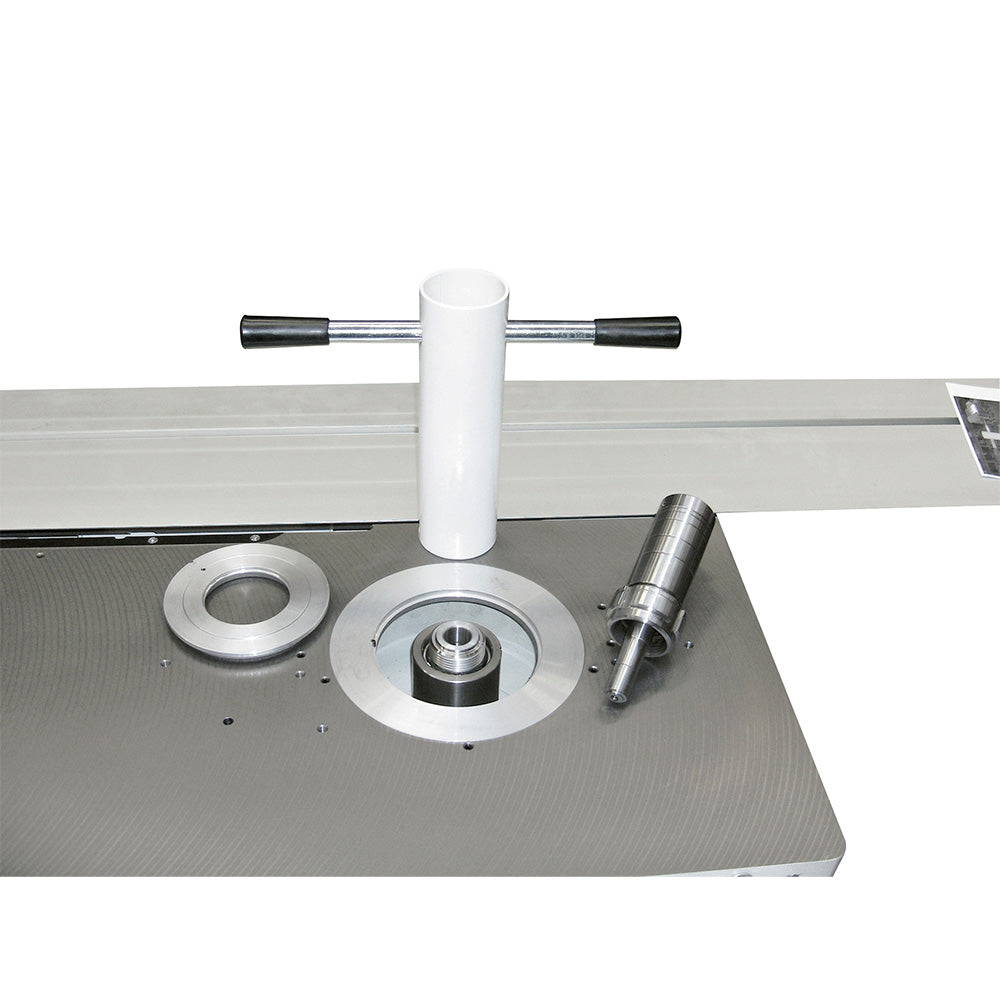

Shaper
Spindle size: 1.25"
Capacity, under-the-nut: 3.5"
Spindle speeds (RPM): 1,700 / 4,000 / 7,000 / 9,000
Max. tooling dia.: Shaping/Tenoning: 8.25" / 10.5625"

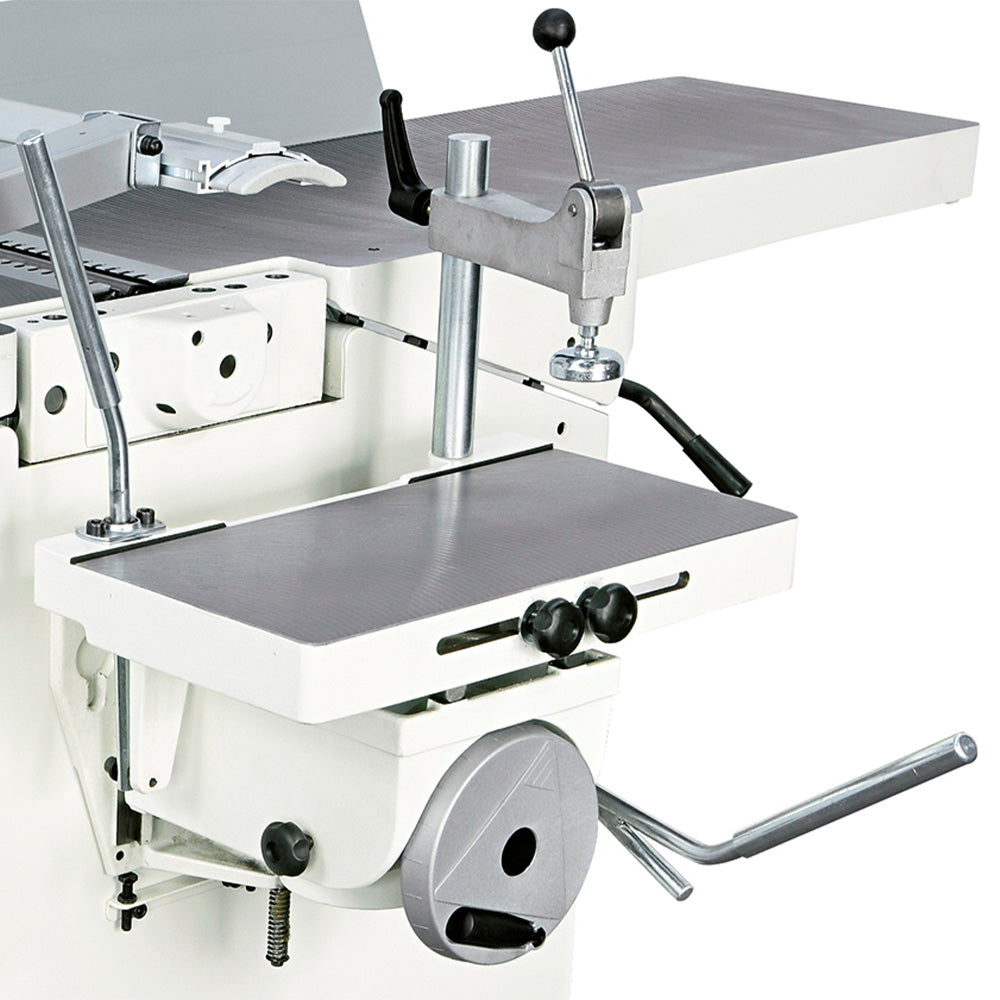

Mortiser
Worktable dimensions: 18.5" x 9.1" (470 x 230 mm)
Exhaust hood dia.: 4.7" (120 mm)

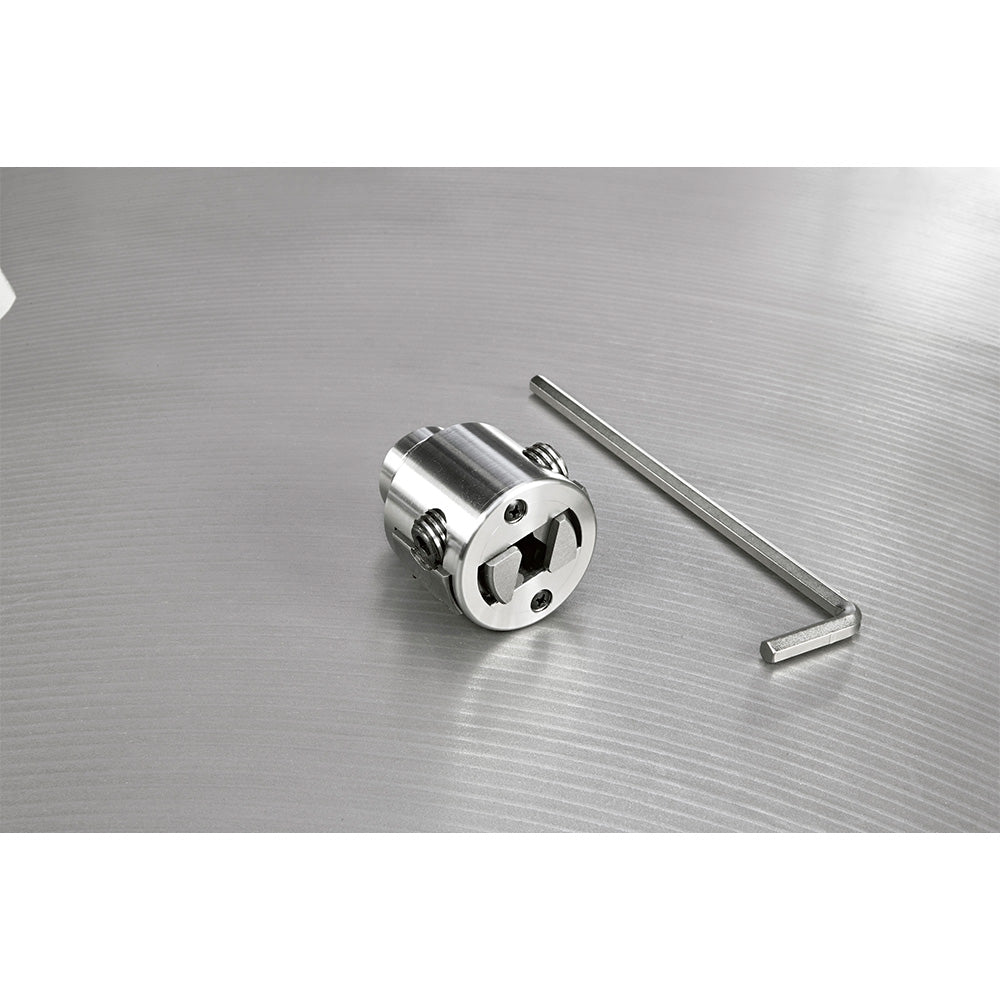

Chuck: 0.6" (16 mm)
X stroke: 6.3" (160 mm)
Y stroke: 4.7" (120 mm)
Z stroke: 4.3" (110 mm)
*Subject to change; must be verified prior to installation.
Includes
- (10) Spare XYLENT insert kits
- Squaring frame complete with telescopic fence with 2 crosscut flip-over stops, eccentric clamp, and swinging arm support
- 80 mm scoring blade
- Mobility kit
