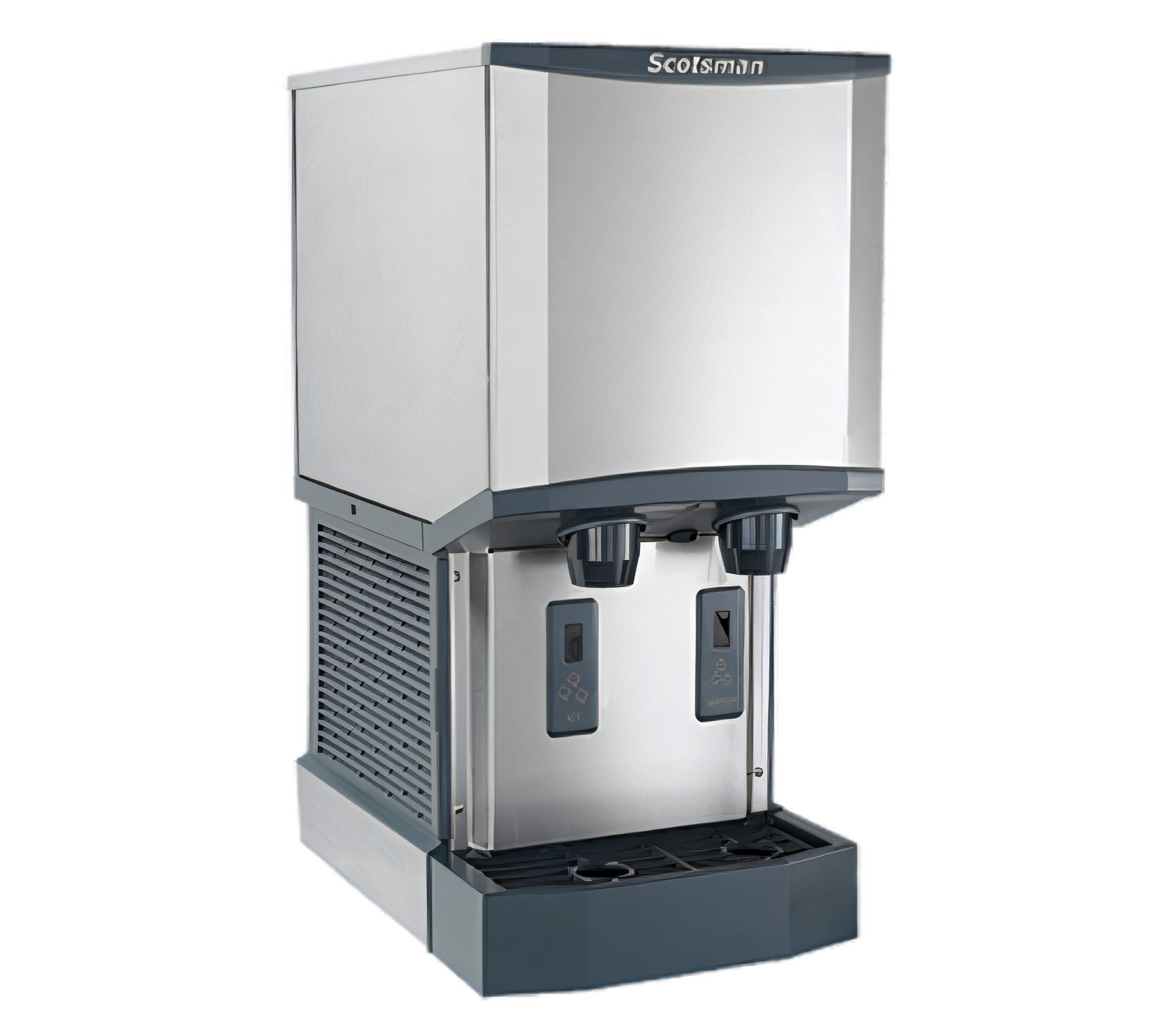

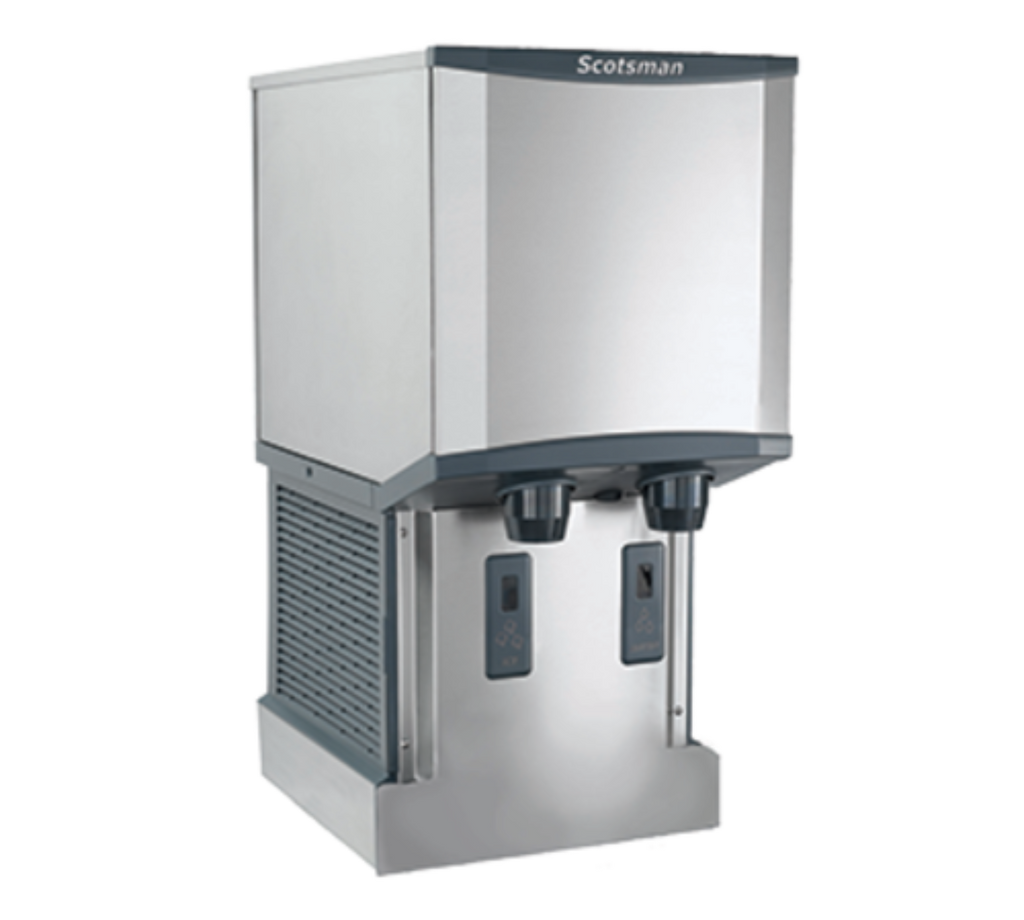

Scotsman Meridian Ice & Water Dispensers - HID312AWX-1
Scotsman HID312AWX-1 Meridian: wall-mounted Touchfree nugget ice & SmoothStream water dispenser—high capacity, stainless steel, antimicrobial.
What our Experts Think
-
High Nugget Ice Production – The Scotsman HID312AWX-1 Meridian Ice & Water Dispenser produces up to 260 lbs of chewable H2 nugget ice per day, making it ideal for busy beverage stations, healthcare environments, and commercial breakrooms.
-
Touch-Free Hygienic Dispensing – Infrared dispensing allows users to get ice and water without touching the unit, helping reduce cross-contamination in high-traffic environments.
-
Wall-Mount Space Efficiency – The wall-mounted design frees up valuable counter space while maintaining strong performance for commercial installations.
-
SmoothStream Water Flow – Advanced water dispensing technology provides a smooth, splash-reducing flow and an enlarged 11" dispensing area for easy cup or bottle filling.
-
Sanitation-Focused Construction – Built with AgION® antimicrobial protection and a stainless-steel evaporator and exterior to help inhibit bacteria and maintain hygiene.
-
Service-Friendly Design – Removable bin, air filter, and spouts allow quick cleaning and easier maintenance, reducing downtime.
Q&A
Q1: What is the Scotsman HID312AWX-1 Meridian Ice & Water Dispenser?
A: The HID312AWX-1 is a commercial wall-mounted ice and water dispenser designed for offices, healthcare facilities, restaurants, and breakrooms. It produces chewable nugget ice and dispenses both ice and water from a compact Meridian™ series unit.
Q2: How much ice can the HID312AWX-1 produce daily?
A: This unit produces up to 260 lbs of H2 nugget ice per 24 hours, with an AHRI-certified production of about 225 lbs per day under high-temperature conditions.
Q3: What type of ice does the Scotsman HID312AWX-1 make?
A: It produces H2 nugget ice, a soft, chewable ice that cools beverages quickly and is popular in restaurants, cafés, and healthcare environments.
Q4: What is the storage capacity of the ice bin?
A: The built-in bin stores up to 12 lbs of ice, allowing continuous dispensing during busy service periods.
Q5: Does the dispenser support touch-free operation?
A: Yes. The HID312AWX-1 features touch-free infrared dispensing and SmoothStream™ water flow to improve hygiene and reduce splashing.
Q6: What sanitation and durability features are included?
A: The unit includes AgIO antimicrobial protection, stainless steel construction, sealed maintenance-free bearings, and removable components for easier cleaning and maintenance.
Q7: What are the installation and electrical requirements?
A: The dispenser is wall-mounted, measures approximately 18.25" W × 24.38" D × 35" H, and operates on 115V / 60Hz single-phase power with a standard NEMA 5-15P plug.
Q8: Where is the HID312AWX-1 commonly used?
A: It is ideal for restaurants, hospitals, hotel beverage stations, cafeterias, and office breakrooms where hygienic ice and water dispensing is required.
Maintenance Tips
-
Clean the Air Filter Regularly: Remove and wash the front-accessible air filter to prevent dust buildup and maintain proper airflow for efficient ice production.
-
Sanitize the Ice & Water System: Periodically clean the ice-making water system and dispensing components using an approved ice machine cleaner to remove scale and bacteria.
-
Maintain the Drain System: Flush the drip tray and drain basin with warm water to prevent clogs and ensure proper drainage.
-
Clean the Ice Bin & Dispense Chutes: Remove and sanitize the bin, rotor, and chutes to keep nugget ice hygienic and maintain smooth dispensing.
-
Inspect the Condenser Coil: Brush and vacuum condenser fins periodically to remove lint and dirt that reduce cooling efficiency.
-
Check Ice Level Sensors: Clean photo-eye sensors to ensure accurate ice level detection and prevent dispensing issues.
-
Schedule Annual Professional Service: A yearly inspection helps maintain performance, reliability, and long equipment lifespan.
