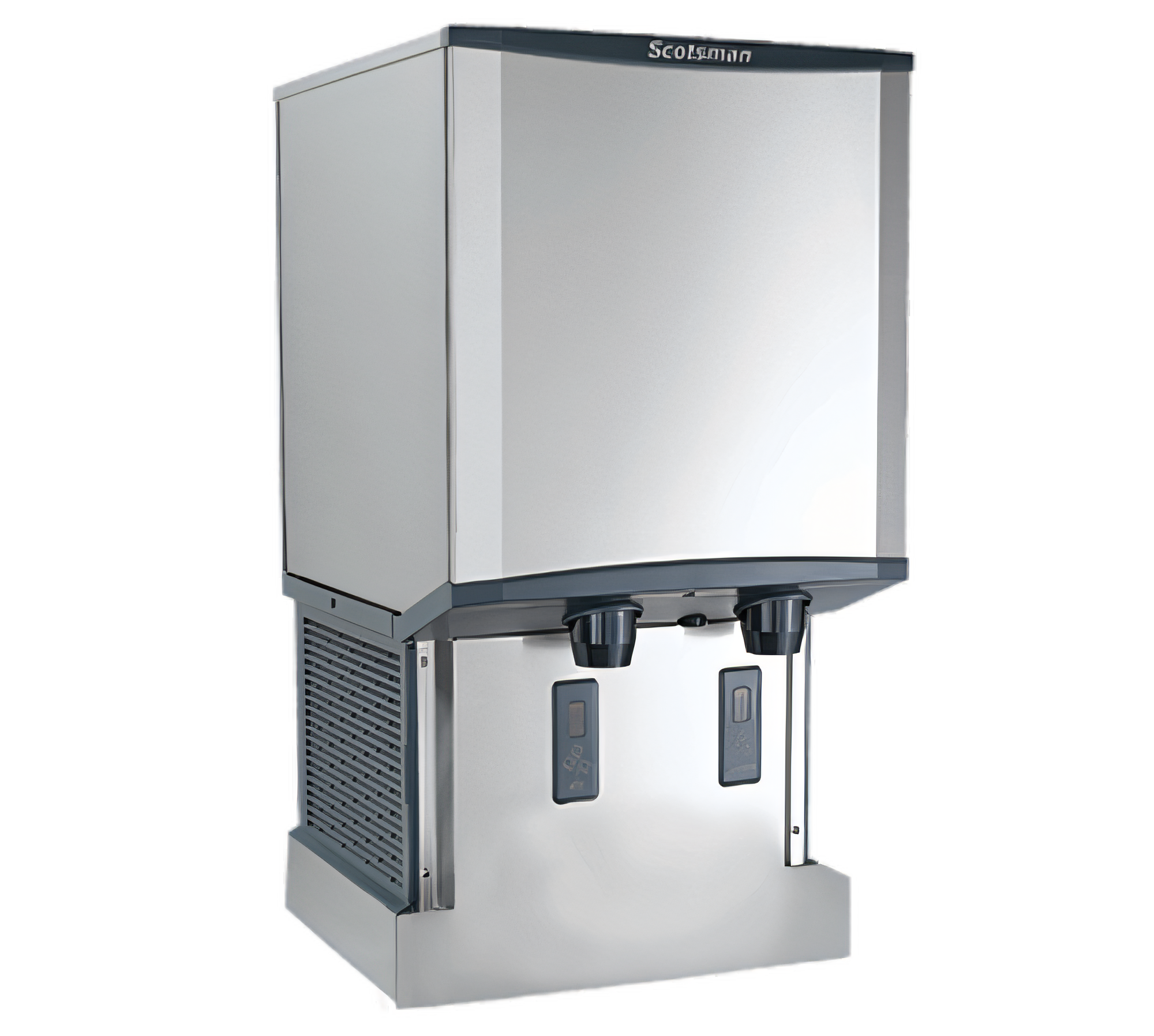

Scotsman Meridian Ice & Water Dispensers - HID540AW-1

Scotsman  Meridian Ice & Water Dispensers - HID540AW-1

Scotsman Meridian HID540AW-1: wall‑mounted Touchfree nugget ice & SmoothStream water dispenser, 500 lb/day capacity, stainless steel,

What our Experts Think

• Massive Ice & Water Capacity – The Scotsman Meridian HID540AW‑1 produces up to 500 lb of chewable nugget ice in 24 hrs with a 40 lb storage bin, ideal for high‑traffic beverage stations and commercial service points.

• Wall‑Mounted Space Saver – Designed for wall installation to free up counter space, making it perfect for kitchens, cafeterias, healthcare hydration stations, and busy breakrooms.

• Sanitary Touch‑Free Dispensing – Infrared sensor dispensing reduces physical contact, helping minimize contamination and support higher hygiene standards.

• Sanitation‑Driven Design – Built‑in antimicrobial protection on key components and fully removable parts like bin, spouts, air filter, sink, and grill make routine cleaning fast and effective.

• Durable Commercial Construction – Stainless steel evaporator and exterior panels with sealed maintenance‑free bearings ensure long‑lasting performance in demanding environments.

• Enhanced Usability & Service – Features such as an external air filter, LED diagnostic lights, USB software update port, and QR code access streamline maintenance and troubleshooting.

• Smooth Water Flow – SmoothStream water dispensing reduces splashing and improves user experience while keeping surroundings cleaner.

Q&A

Q1: What is the Scotsman HID540AW‑1 Meridian Ice & Water Dispenser?
A: A commercial wall‑mounted ice and water dispenser designed for high‑demand hospitality, healthcare, and foodservice locations, providing reliable nugget ice and chilled water.

Q2: How much ice does the HID540AW‑1 produce?
A: This dispenser produces up to 500 lb of H2 nugget ice per 24 hours, with about 365 lb AHRI‑certified output under higher temperature conditions.

Q3: What type of ice does this model make?
A: It creates H2 nugget ice, a soft, chewable ice popular for beverages, cafes, and hydration stations.

Q4: What is the storage capacity?
A: Includes a built‑in 40 lb ice storage bin to support continuous dispensing during peak usage.

Q5: What sanitation and maintenance features are included?
A: Features touch‑free infrared dispensing, removable bin, air filter, spouts, and sink for easy cleaning, plus antimicrobial protection for hygiene.

Q6: What materials and construction are used?
A: Constructed with a stainless steel exterior and internal components for durability, corrosion resistance, and long‑term commercial use.

Q7: What are the power and installation requirements?
A: Operates on 115 V/60 Hz power with ~9.0 A draw and features an air‑cooled refrigeration system in a wall‑mounted configuration.

Q8: Where is this unit best used?
A: Ideal for busy restaurants, cafeterias, hotels, offices, and healthcare hydration stations where continuous ice and water service is needed.

Maintenance Tips

• Regular Cleaning & Sanitizing: Empty the ice bin and sanitize food‑contact parts (ice bin, spouts, sink) with approved cleaners to prevent scale, odor, and bacterial growth.

• Water Filter Replacement: Change the water filter every 6 months to maintain water quality, protect internal components, and improve ice taste.

• Air Filter Maintenance: Remove and wash or vacuum the air intake filter frequently to ensure proper airflow and maintain efficient cooling.

• Descale the System: Use manufacturer‑approved descaler on the evaporator and water lines as needed to reduce mineral buildup and sustain optimal ice production.

• Drain & Drip Care: Flush and clean the drain line and drip tray regularly to avoid clogs and standing water.

• Check Key Components: Periodically inspect condenser coils, sensors, and water valves for dust, wear, or damage to support reliable operation.

• Annual Professional Tune‑Up: Schedule a yearly professional inspection and service to extend equipment life and ensure peak performance.
