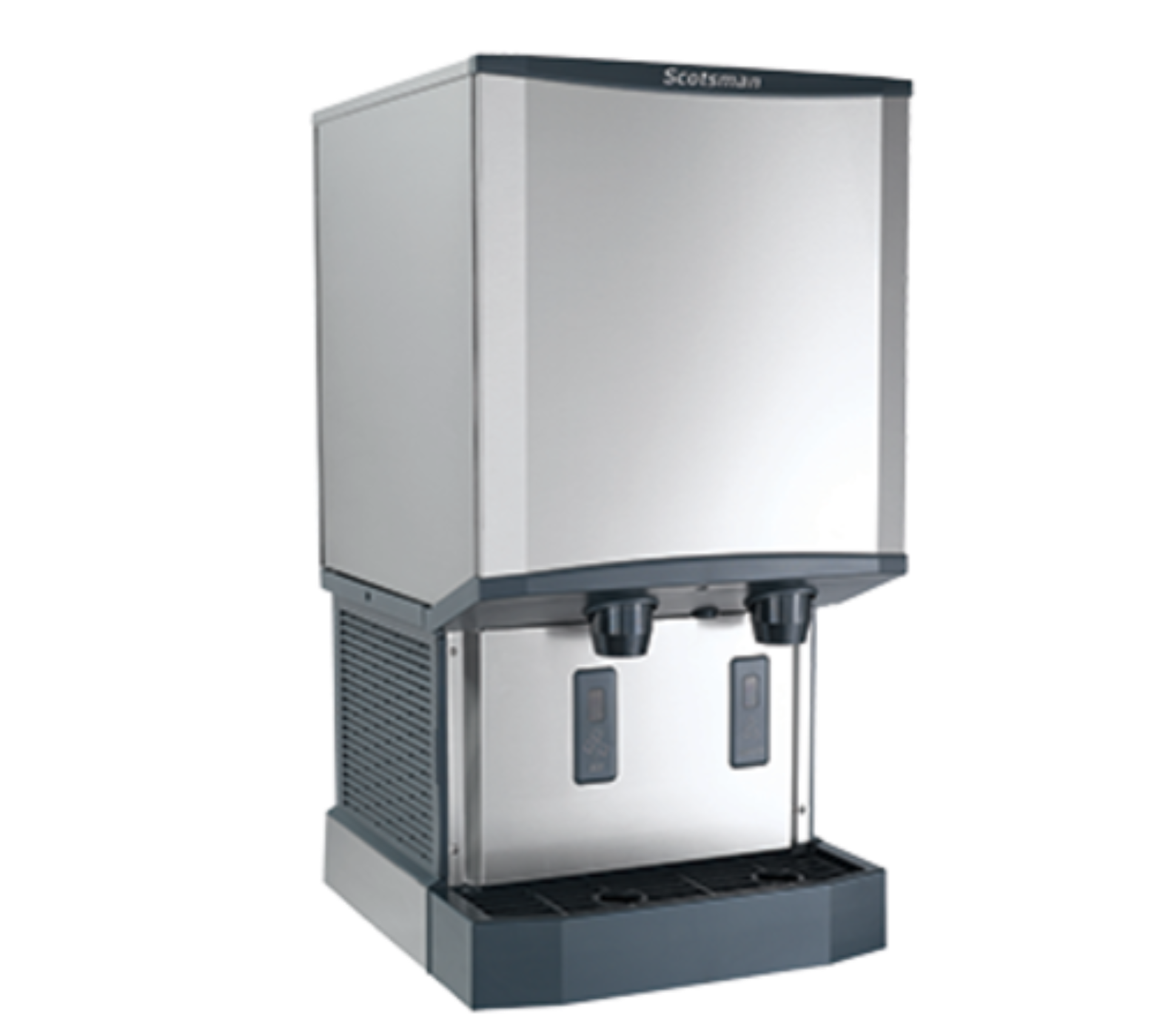

Scotsman Meridian Ice & Water Dispensers - HID540AX-1
Scotsman HID540AX-1 Meridian touchfree nugget ice & water dispenser — 500 lb/day, 40 lb bin, stainless, NSF, energy-efficient R290.
What our Experts Think
-
Huge Ice & Water Output – The Scotsman Meridian HID540AX‑1 produces up to 500 lb of H2 nugget ice in 24 hrs with a 40 lb storage bin, making it ideal for high‑traffic beverage stations, cafeterias, and commercial hydration points.
-
Touch‑Free Hygienic Dispensing – Infrared dispensing lets users get both ice and water without touching the unit, helping reduce cross‑contamination in busy settings.
-
Smooth Water Delivery – SmoothStream water flow and an enlarged 11″ dispensing area make cup and bottle filling cleaner and easier during peak service times.
-
Sanitation‑Driven Design – AgION antimicrobial protection and fully removable components (bin, spouts, sink, air filter) simplify cleaning and help uphold food‑safe hygiene.
-
Durable Commercial Construction – Stainless steel exterior, evaporator, and auger with sealed maintenance‑free bearings support long‑lasting performance in demanding environments.
-
Service‑Friendly Features – Front‑accessible removable parts, recessed utility chase, USB upgrade port, and QR code access to manuals speed maintenance and reduce downtime.
-
Energy & Environment Efficiency – Efficient air‑cooled design with R290 refrigerant offers energy and water savings while meeting commercial safety certifications.
Q&A
Q1: What is the Scotsman HID540AX‑1 Meridian Ice & Water Dispenser?
A: A commercial countertop ice and water dispenser that provides high‑capacity nugget ice and chilled water for restaurants, hotels, cafeterias, breakrooms, and healthcare hydration stations.
Q2: How much ice does the HID540AX‑1 produce?
A: It produces up to 500 lb of H2 nugget ice per 24 hours at standard conditions, with about 365 lb AHRI‑certified output under higher temperature conditions.
Q3: What type of ice does this model make?
A: The unit makes H2 nugget ice, a soft, chewable ice ideal for beverages, cup fills, and high‑traffic drink stations.
Q4: What storage capacity and dispensing area does it have?
A: Includes a 40 lb built‑in ice bin and an enlarged 11″ dispensing area to accommodate cups, bottles, and containers.
Q5: What support hygiene and maintenance?
A: Features touch‑free infrared dispensing, SmoothStream water delivery, removable components (bin, spouts, sink, air filter), and antimicrobial protection for easy cleaning and sanitary operation.
Q6: What materials and construction quality does it offer?
A: Built with a stainless steel exterior, evaporator, and auger plus sealed, maintenance‑free bearings and recessed utility chase for durable performance.
Q7: What are the power and installation specifications?
A: Operates on 115 V/60 Hz power with about 9.0 amps, uses air‑cooled refrigeration, and includes a 7.5 ft power cord with NEMA 5‑15P plug for easy countertop setup.
Maintenance Tips
-
Clean & Sanitize Regularly: Empty the ice bin and thoroughly sanitize all food‑contact parts (ice bin, water spouts, sink) with approved cleaners to prevent odors, scale, and bacterial buildup.
-
Replace Water Filters: Change the water filter every 6 months to maintain high‑quality ice/water output and protect internal components.
-
Air Filter Maintenance: Clean or vacuum the air intake filter frequently to maintain proper airflow and efficient refrigeration.
-
Descale Internal Components: Use a manufacturer‑approved descaler on the evaporator and water pathways to remove mineral buildup and sustain optimal ice production.
-
Drain & Drip Care: Flush the drain system and clean the drip tray regularly to avoid clogs, standing water, and hygiene issues.
-
Inspect Key Parts: Periodically check condenser coils, sensors, and valves for dust, wear, or damage to ensure smooth, reliable operation.
-
Annual Professional Service: Schedule a yearly professional inspection and service to extend equipment life, maintain efficiency, and reduce downtime.
