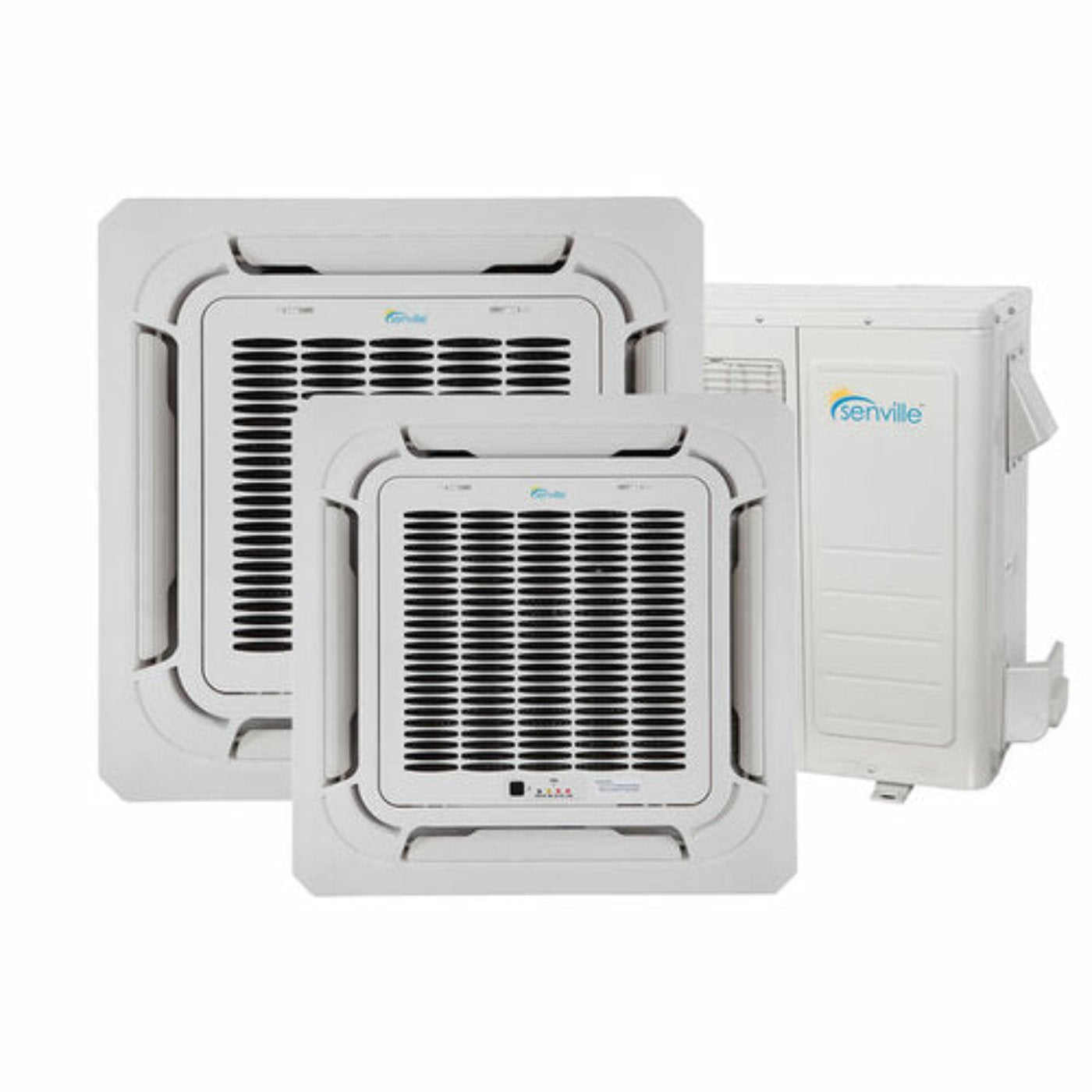

Senville 28000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/30HF/DIC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look without the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool, climate-controlled living space as well as efficient heating that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star-certified Senville AURA Series is Senville’s most efficient mini-split air conditioner and heat pump. With an astonishing 23.8 SEER efficiency rating, the Senville AURA Series surpasses many of the top-name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hookup for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud to offer one of the most advanced heating and cooling systems in the world. Our ultra-inverter technology allows our mini split systems to provide cooling and heating at up to -22 °F with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating all year round, even in the coldest climates.  Opt for a mini-split system with ultra-inverter technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features, including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 23.8 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30°C / -22°F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket-Free Outdoor Design
• Self-Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• Heats and cools up to 1400 sq ft in total
• AHRI Certified (View Certificate)

Included with your purchase

• Senville AURA Series 28,000 BTU Mini Split AC/Heat Pump

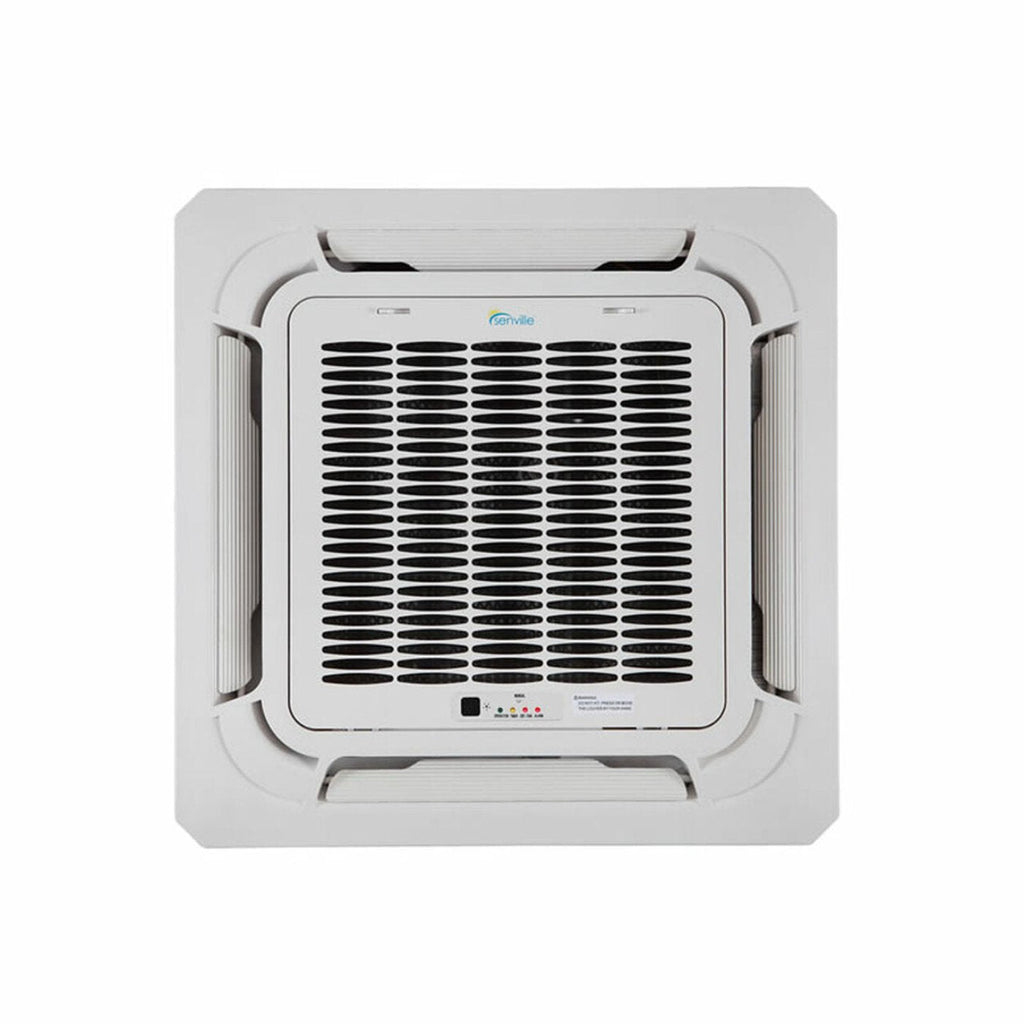

• 2x Senville Indoor Ceiling Cassettes (choose sizes above)

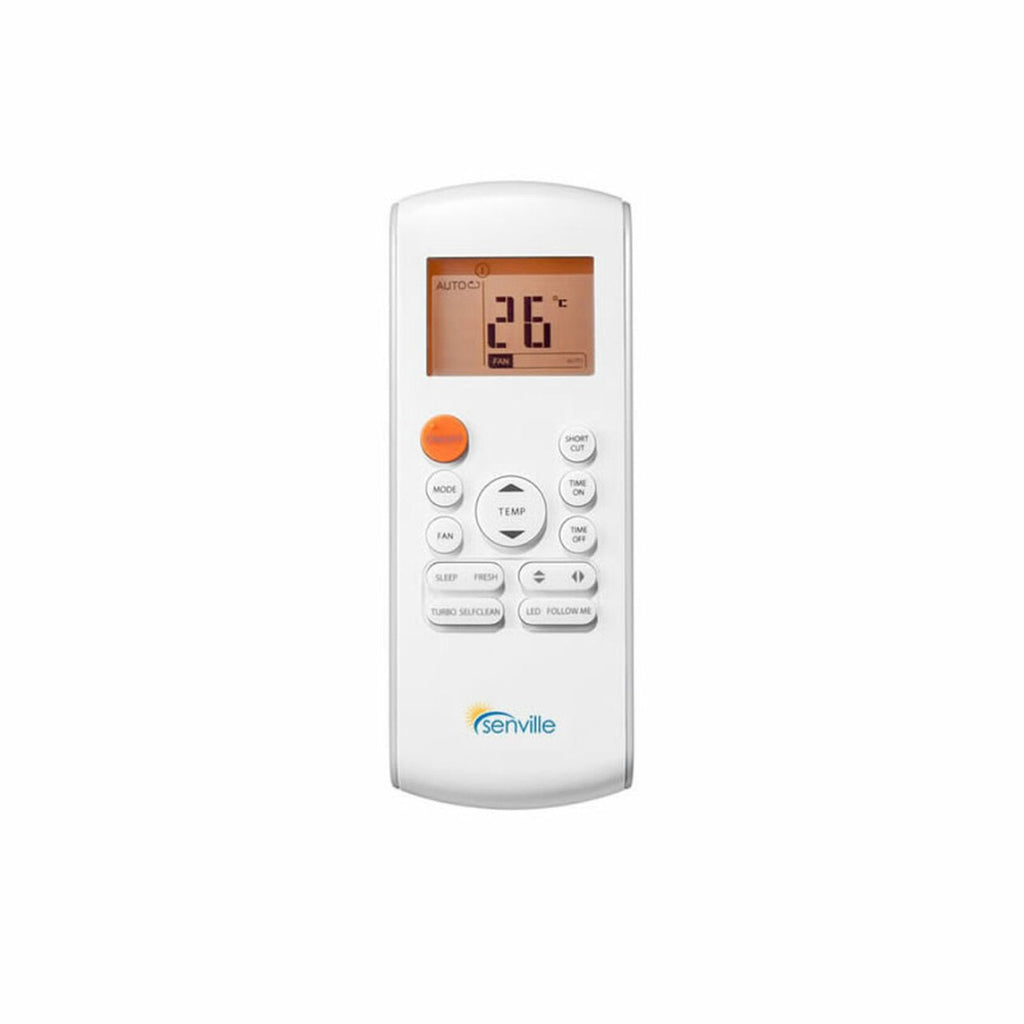

• Remote Control

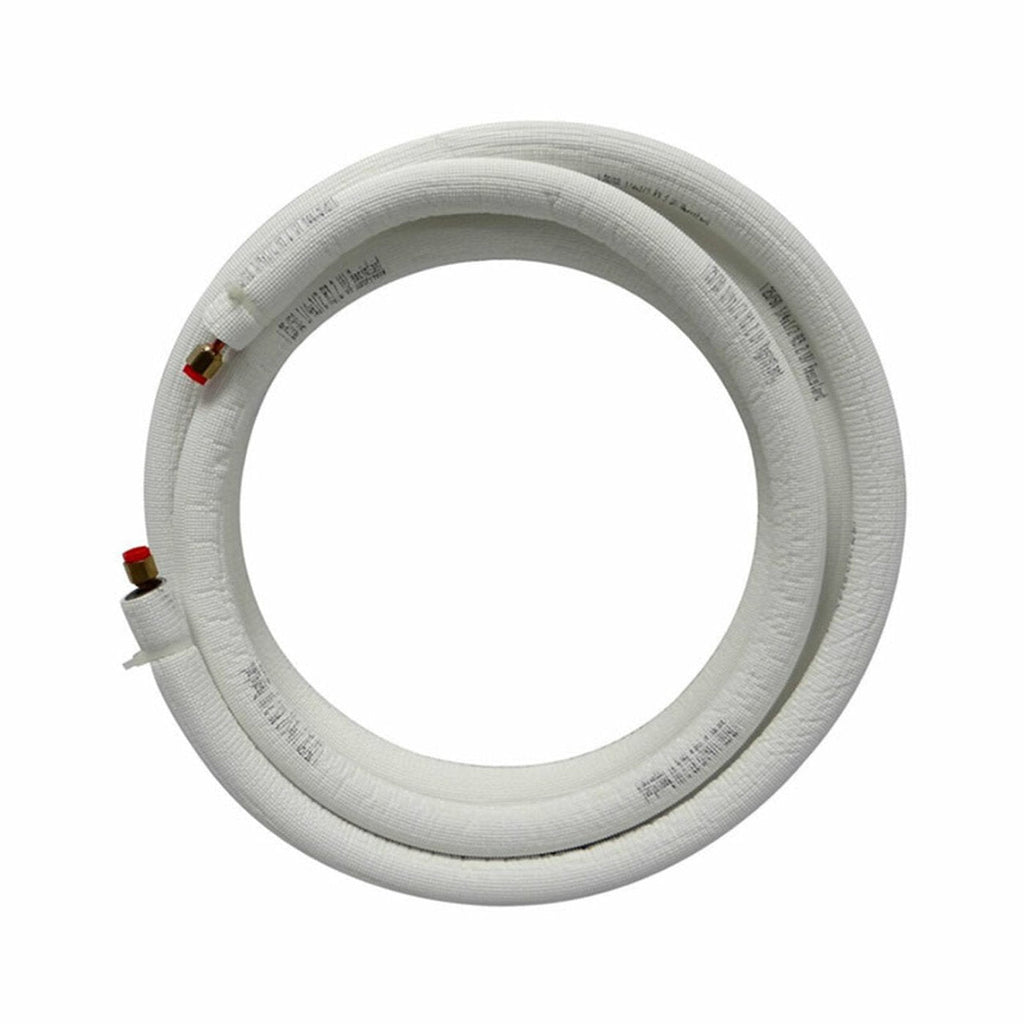

• Installation Kit: 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

Warranty

All Senville models are backed by a comprehensive 10-year warranty designed to protect your purchase. All warranty claims are processed by the North American headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10-year warranty offers coverage on the compressor and a 5-year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Specifications

• Model Number:  SENA-30HF-MOQ
• Style:  Ceiling Cassette Ductless Mini Split AC With Heat Pump
• Number of Zones: 2–3
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range:  187-253
• SEER:  23.8
• EER:  12.5
• Cooling (Range):  9838~30438
• Input (W):  2240
• Rated current:  11A
• Heating (Range):  8218~31000
• Input (W): 2200
• Rated Current (A):  10.5
• HSPF4:  10.5
• HSPF5:  8.8
• COP W/W:  3.73
• Minimum Circuit Ampacity (A):  24.5
• Max. Fuse (A):  30

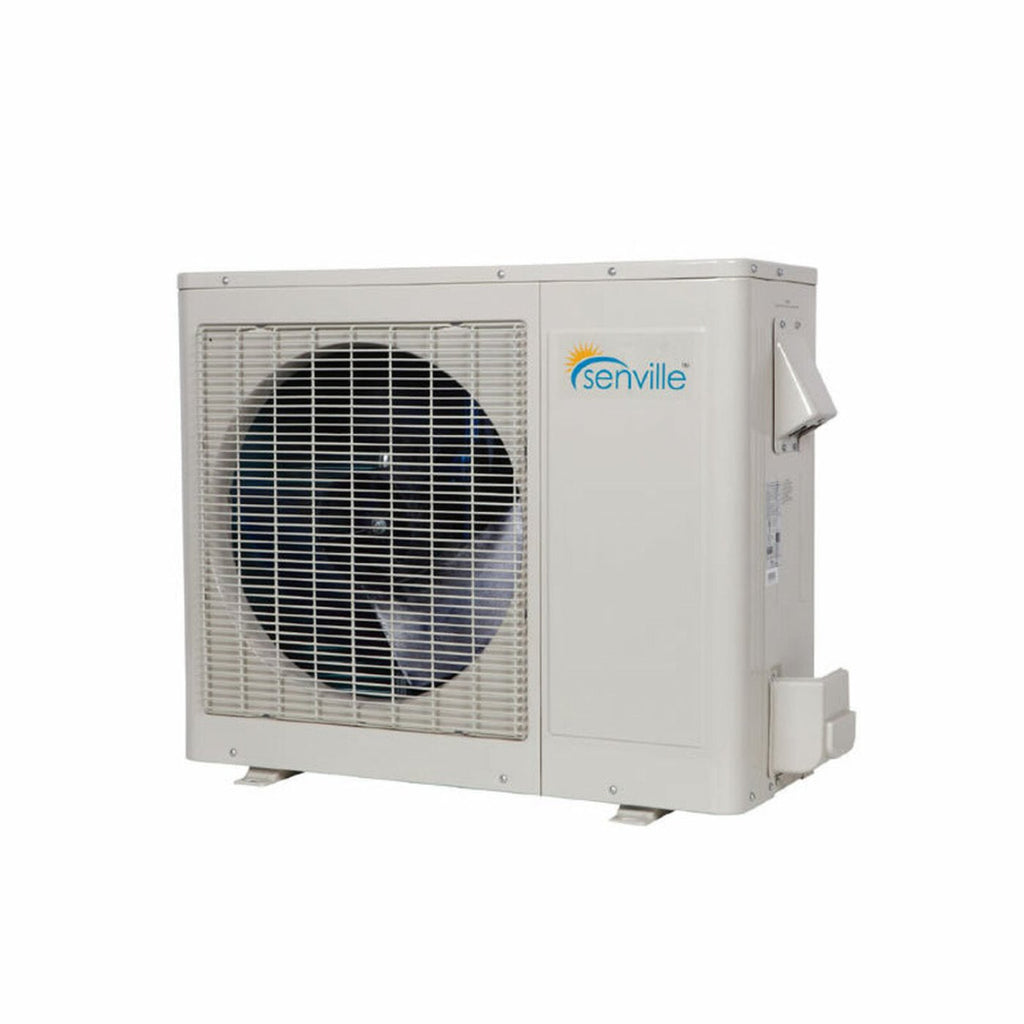

• Outdoor Dimensions (WxDxH) (in.):  37.24x16.14x31.89
• Outdoor Noise Level dB:  61
• Outdoor Air flow  (Max) CFM:  2129.41
• Refrigerant Type:  R410A / 91.7 Oz
• Refrigerant Pre-charge: 75 ft.
• Thermostat Type:  Remote Control
• Warranty:  10 Years Compressor / 5 Years Parts
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Downloads

Senville 28000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/30HF/DIC Installation Manual

Senville 28000 BTU Ceiling Cassette Air Conditioner  - Heat Pump - SENA/30HF/DIC Ceiling Cassette Installation Manual

Senville 28000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/30HF/DIC Energy Guide

What Our Experts Think

• Ceiling-Mounted Multi-Zone Comfort: The Senville 28,000 BTU Ceiling Cassette Air Conditioner with Heat Pump provides efficient cooling and heating for multiple zones, perfect for larger homes or commercial spaces.
• Year-Round Efficiency: Offering both air conditioning and heating, it ensures reliable climate control in all seasons, ideal for spaces up to 1,400 sq. ft.
• Advanced Inverter Technology: Optimizes energy usage by adjusting the system's output to match the demand, helping reduce your energy consumption and keep utility costs down.
• Discreet & Quiet Operation: The ceiling cassette design delivers efficient performance without taking up floor space, operating quietly to maintain a peaceful atmosphere.
• Sleek, Space-Saving Design: The unit's compact, ceiling-mounted design ensures seamless integration with your space while maintaining a modern, clean look.

Q&A

Q: What is the Senville 28000 BTU Ceiling Cassette Air Conditioner - Heat Pump (SENA/30HF/DIC)?
A: A 28000 BTU ceiling cassette mini split system with both cooling and heating capabilities, designed for efficient, discreet temperature control in larger spaces or multi-zone areas.

Q: Who is this system ideal for?
A: Perfect for large homes, offices, or commercial spaces that require powerful, efficient, and space-saving climate control, while offering minimal visibility with its ceiling-mounted design.

Q: What are its key features?
A: 28000 BTU cooling and heating capacity, ceiling cassette design for hidden installation, energy-efficient inverter technology, multi-zone control, and quiet operation for a comfortable environment.

Q: Why choose the Senville Ceiling Cassette Mini Split?
A: Offers efficient, year-round comfort in a compact, space-saving design, making it an excellent choice for areas that need powerful temperature control while maintaining a clean, modern aesthetic.

Maintenance Tips

• Clean Air Filters Regularly: Clean or replace the air filters every 2-4 weeks to maintain airflow and maximize system efficiency. Wash or vacuum to remove dust and dirt.
• Inspect and Clean Coils: Clean the evaporator and condenser coils at least once a year to avoid dirt buildup, which can decrease performance and efficiency.
• Clear the Condensate Drain: Check the condensate drain for clogs and clear any debris to prevent water backup and mold growth.
• Inspect Refrigerant Lines: Periodically check refrigerant lines for leaks, damage, or wear. If any issues are found, call a professional for repairs.
• Remove Debris from the Ceiling Unit: Inspect the ceiling cassette for dust or debris, and clean the vents and surroundings to ensure proper airflow.
• Test Remote Control and Thermostat: Ensure both the remote control and thermostat are working correctly. Replace batteries in the remote as needed.
• Schedule Professional Maintenance: Have a professional technician service the system annually to check refrigerant levels, clean the coils, and ensure proper operation.
• Protect During Off-Season: If the system is not used during certain seasons, cover the unit to protect it from dust and environmental damage.
