Looking for the best concealed duct mini split air conditioner heat pump that will offer a versatile and affordable solution to cooling and heating your tiny home? Look no further than the Senville AURA Series mini split air conditioners and heat pumps!
Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!
The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 20.6 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience. Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.
Senville is proud to offer one of the most advanced heating and cooling systems in the world. The AURA Series is equipped with Ultra-Inverter Technology, which allows their mini split systems to provide cooling and heating at up to -22F/-30C. With up to 75% efficiency, you won't experience any additional cost overages on your energy as temperatures drop. Ultra-Inverter Technology drastically helps the ductless system reach such high SEER ratings. Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.
The Senville Aura Series is fully certified by Energy Star for the highest levels of energy efficiency. With ultra energy efficient air conditioners, you can expect to save upwards of 40% on your energy costs annually. This model makes a great companion for anyone looking to cool and/or heat their home or business, while minimizing running costs in the long-term.
The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency. Live comfortably with the Senville AURA Series in your tiny home today!
Features
- 20.6 SEER (CEE Tier 2)
- With Heat Pump (Up to -30C / -22F)
- Energy Star Certified
- Whisper Technology (Ultra Quiet)
- Refrigerant Leak Detection
- Inverter Technology
- Built-In De-humidification Function
- Low Ambient Cooling (Up to -15C / -4F)
- Self-Cleaning Mode
- PTC Heat Belt and Pan
- Bucket Free Outdoor Design
- Self Diagnosis System
- ENERGY STAR Certified
- ETL Certified
-
AHRI Certified (View Certificate)
- Recommended for rooms up to 1400 sq. ft.
Included with your purchase

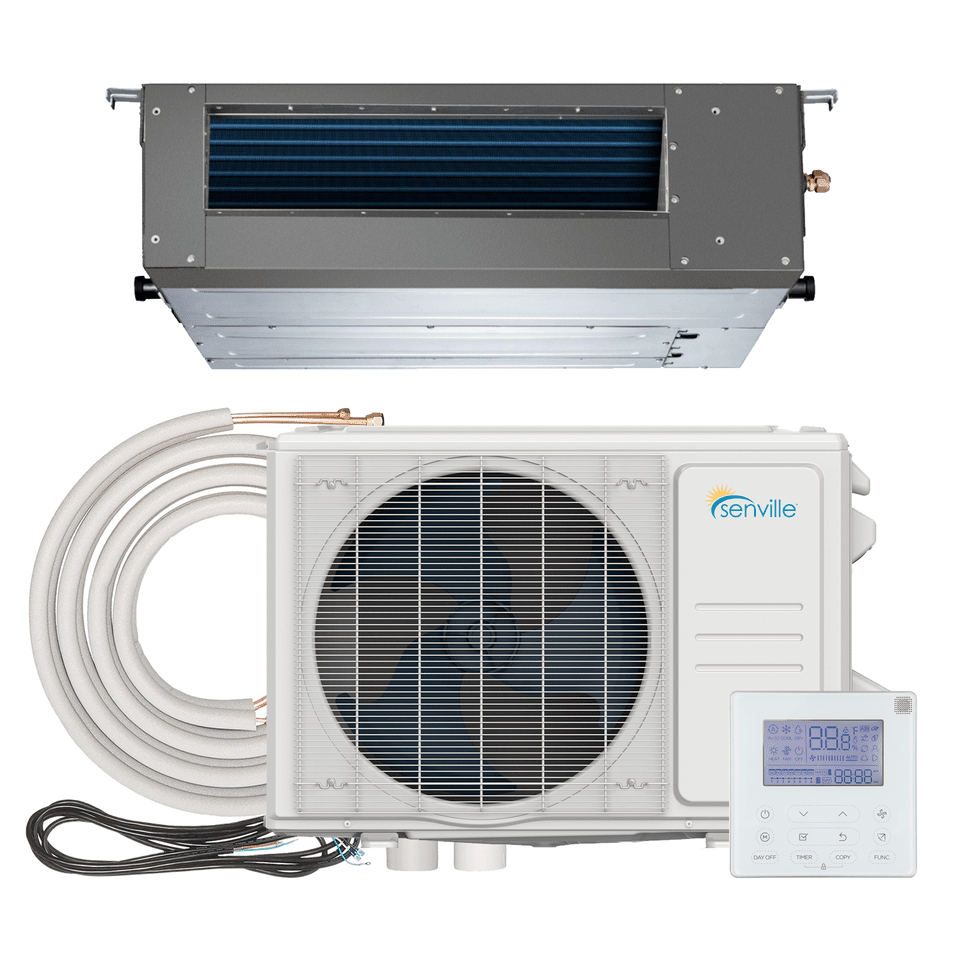

- Senville AURA Series 24,000 BTU Mini Split AC/Heat Pump
- Installation Kit - 16ft, 25ft, or 50ft
- Wired Remote Control Thermostat
- Owner's Manual
-
Installation Manual
Specifications
-
Model Number: SENA-24HF-IDQ
-
Style: Concealed Ducted Mini Split AC With Heat Pump
-
Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
-
Voltage Range: 187-253
-
SEER: 20.6
-
EER: 12.5
-
Cooling (Range): 6500~27800
-
Input (W): 1920
-
Rated current A: 8.52
-
Heating (Range): 12200~32200
-
Input (W): 1920
-
Rated Current (A): 8.19
-
HSPF4: 12.6
-
HSPF5: 10.7
-
COP W/W: 3.66
-
Minimum Circuit Ampacity (A): 25
-
Max. Fuse (A): 35
-
Indoor Dimensions (WxDxH) (in.): 43x30x10
-
Indoor Air Flow (H/M/L) CFM: 775.47/693.06/434.88
-
Indoor Noise Level (H/M/L) dB: 44/40/35.5
-
Outdoor Dimensions (WxDxH) (in.): 37.24x16.14x31.89
-
Outdoor Noise Level dB: 62
-
Outdoor Air flow (Max) CFM: 1764.7
-
Refrigerant Type: R410A / 91.7 Oz
-
Refrigerant Pre-charge: 25 Ft.
-
Connection Wiring: 14*4 AWG
-
Thermostat Type: Wired Wall Remote Control
-
Warranty: 10 Years Compressor / 5 Years Parts
-
Application Area (8 Ft Ceilings): 1400 sq. ft.
-
Warning: California Proposition 65
Warranty
All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.
***Professional Installation Required: This unit must be installed by a state certified or licensed HVAC professional in order for the 10-year limited warranty to be valid.***
Downloads
Senville AURA 24000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/24HF/ID Installation Manual
Senville AURA 24000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/24HF/ID Concealed Duct Installation Guide
Senville AURA 24000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/24HF/ID Energy Guide
