Spectrum X LED Grow Light
Spectrum X is one of the most advanced multi-bar LED grow light for indoor plants. It delivers powerful 2200 μmol/s PPF output in the 880 watt class and high-efficacy 2.8 μmol/J that helps you effectively optimize plant growth, enhances the quality and cuts operational costs. The body of the light is crafted from the strongest grade Aluminum alloy and engineered for maximum durability.

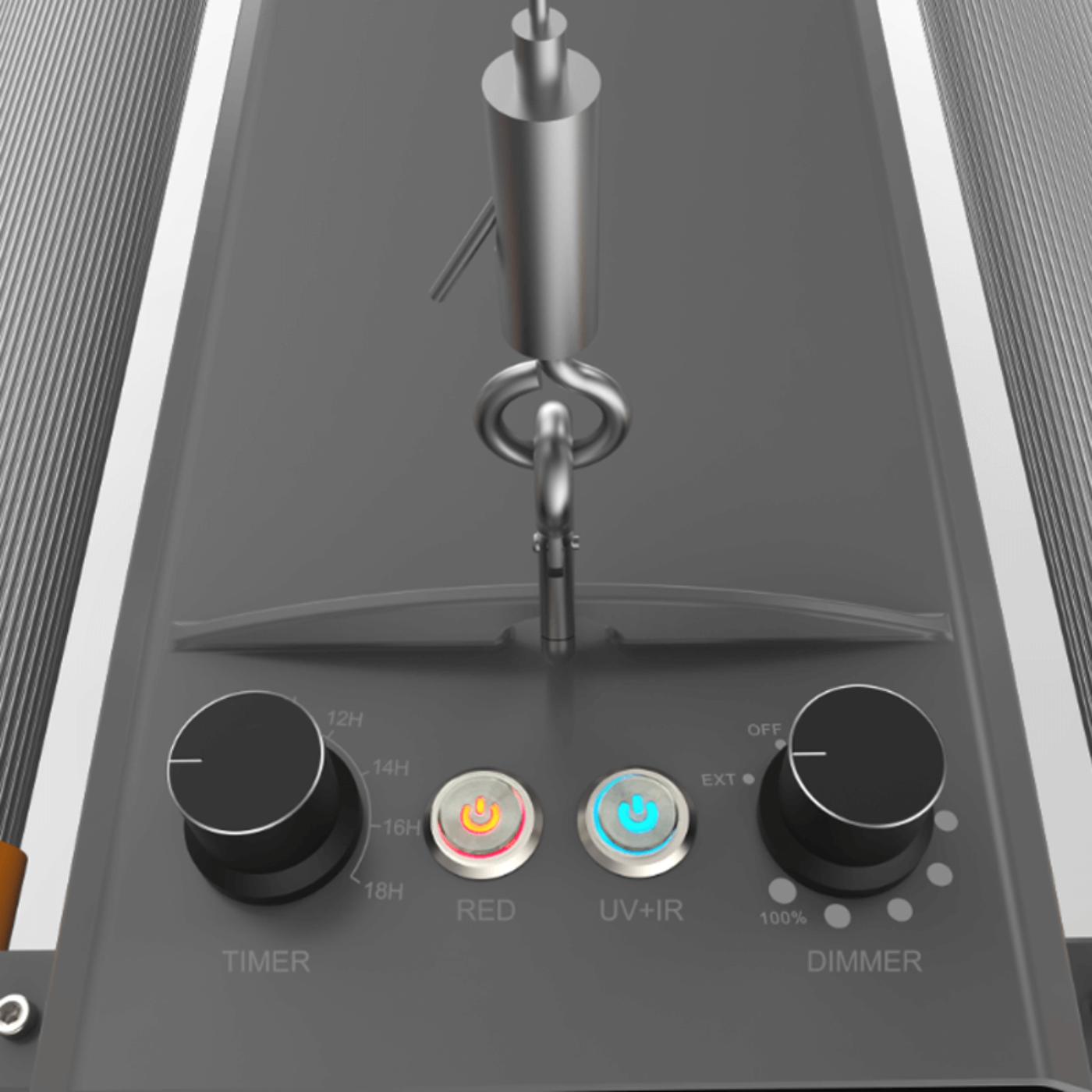

The integrated LED display shows the selected spectrum, actual wattage, PPF value and more! There are two turning knobs placed on top of the screen. Twisting left will set the lighting schedule to 6/12/14/ 16/18hrs per day, turning right will adjust the brightness at your desired level from 100% -30%.
Available with 2 easy detachable UV/IR LEDs panels, you can expect to have 4 tunable spectrum options: V1, V1+UV&IR, F1 and F1+UV&IR. V1 spectrum offers a balanced blue and red wavelength essential for the vegetative stage. F1 offers an appropriate amount of deep red which, stimulates extra photosynthesis for the blooming. When your plants approach the flowering stage, adding a few UV or IR LEDs would be very effective at promoting robust stem growth, proper node spacing, and more flowers.
The commercial growers can sync 50 pieces of spectrum Y lights with one Spectrum X and control them simultaneously. In other words, these 50 fixtures act as workstations and Spectrum X as a master. The growers only need to control the master to make the stations work together. No matter which spectrum, lighting level, or any light cycle you set on Spectrum X, the S pectrum Y lights can complete the same work. Click here to view Spectrum Y lights .

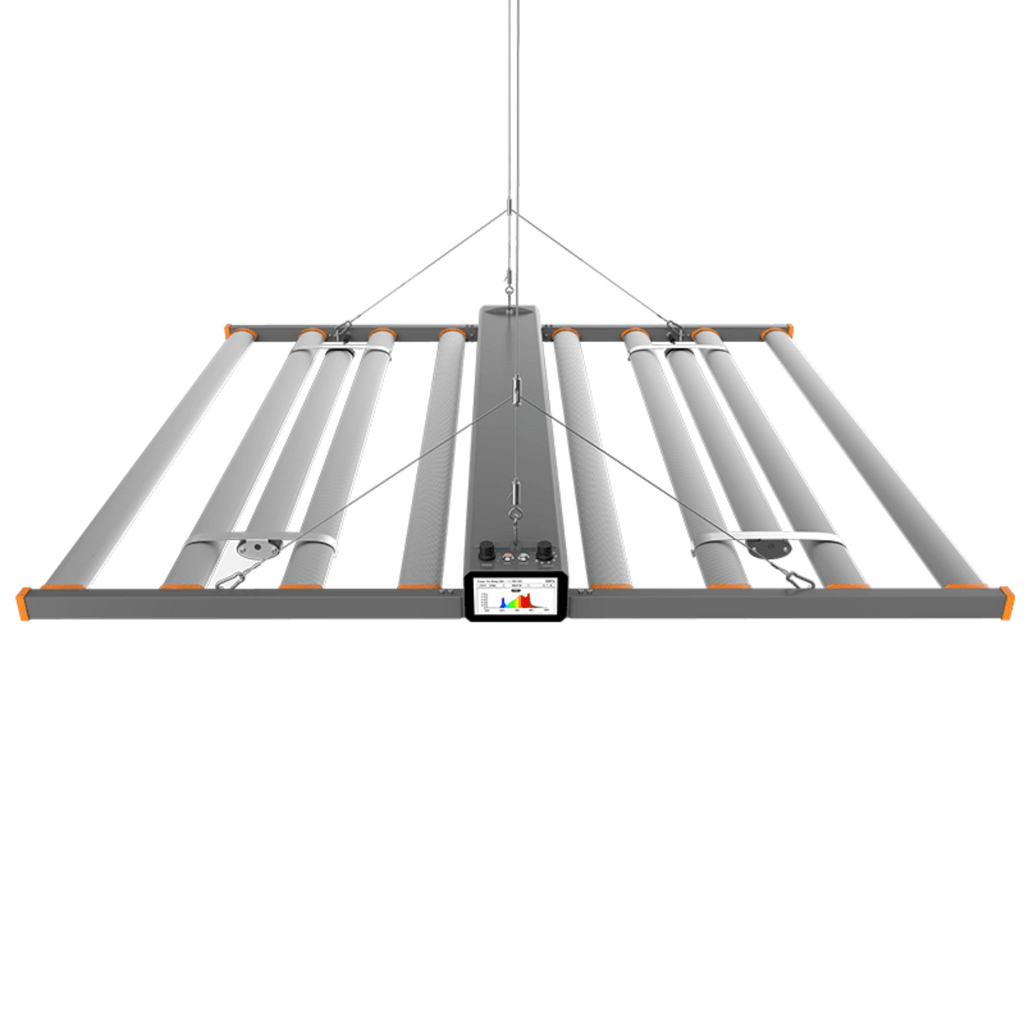

Need an easy installation? No worries! Spectrum X along with its 50 followers are featured with balancing dampers. These are simple mechanisms that allow you to adjust fixtures to any angle you want. Say goodbye to the labor charges of installation. Now you can hang Spectrum X on your own or take a little help from a friend.
Our lights are designed by the growers, for the growers and the growers come first. Great thanks to several indoor growers for providing us access to their grow rooms for testing our state of the art Spectrum X, an innovation for the hydroponic growers across the world .
Spectrum X LED Grow Lights Features
-

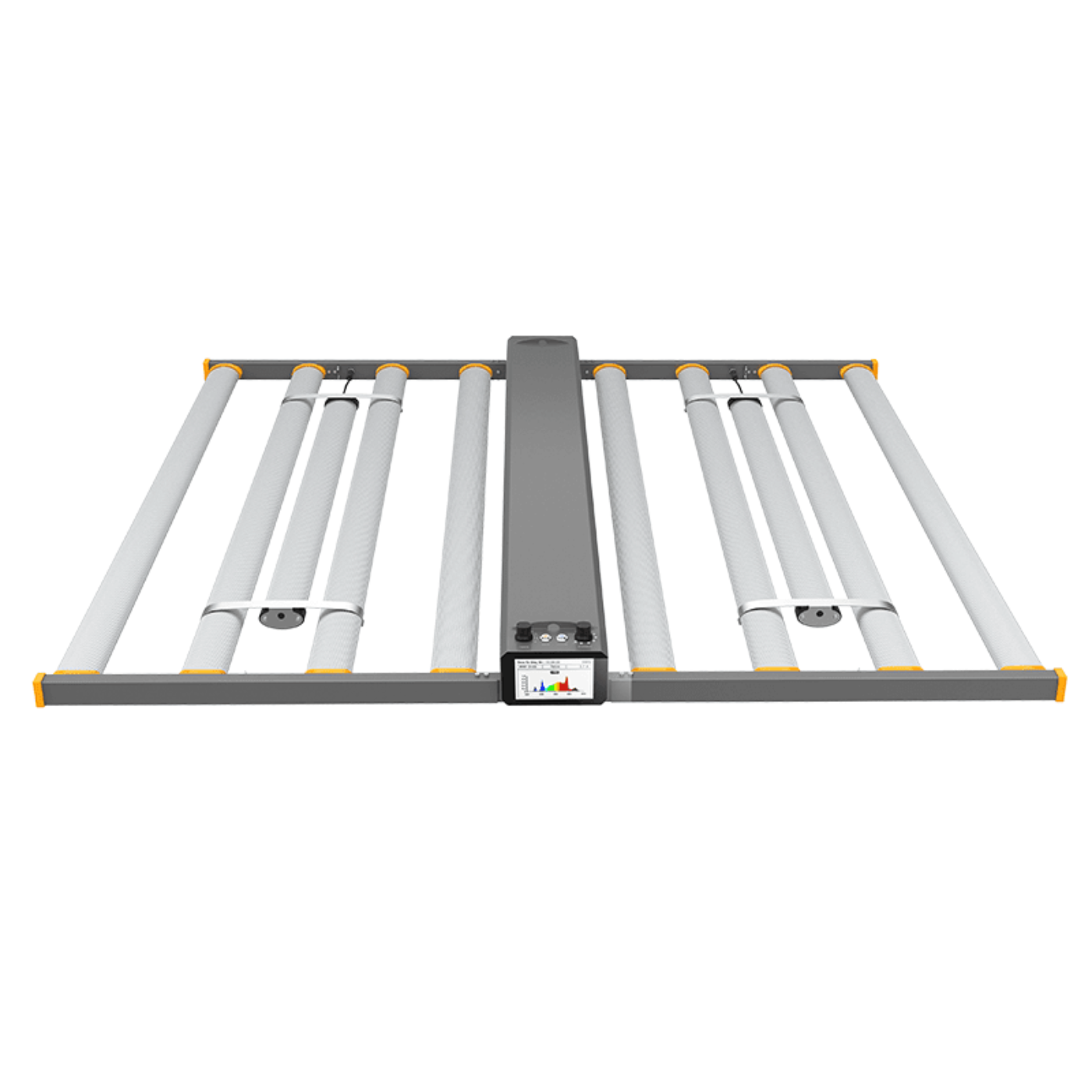

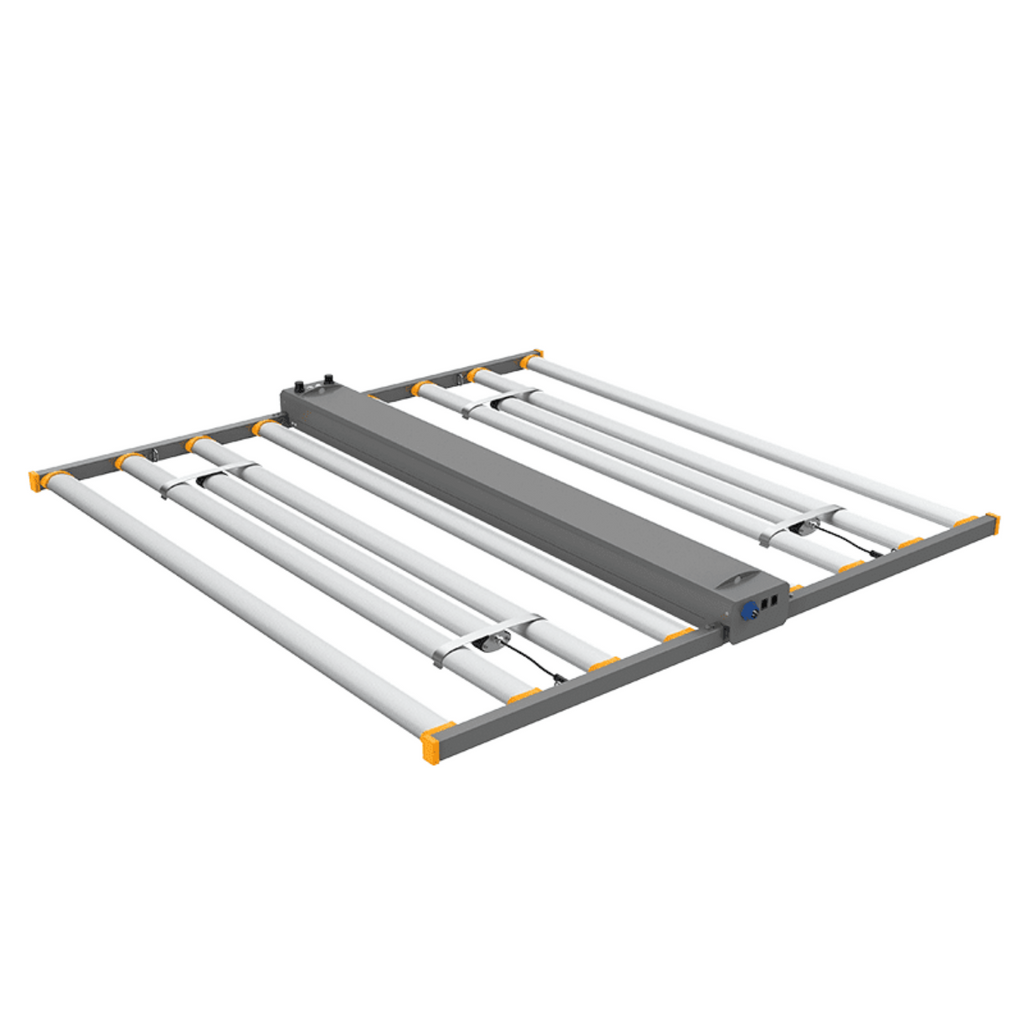

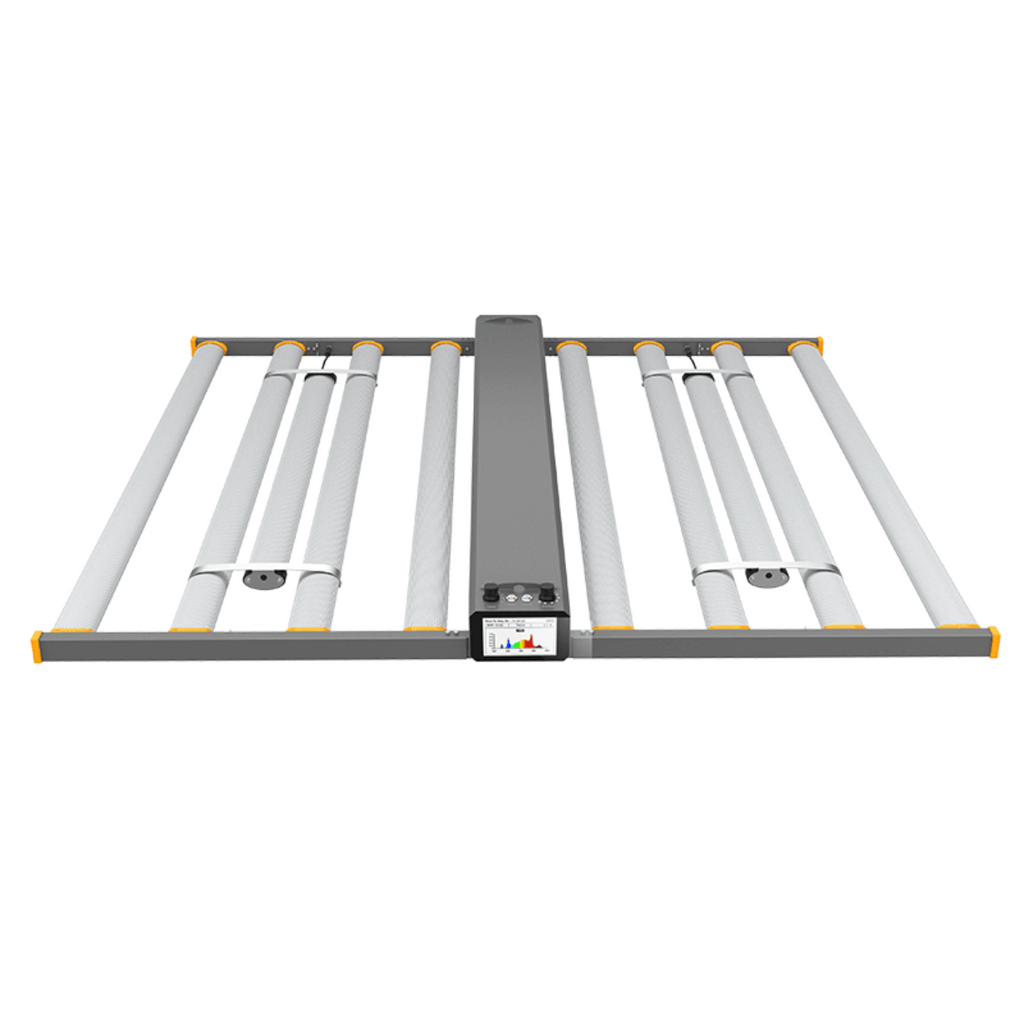

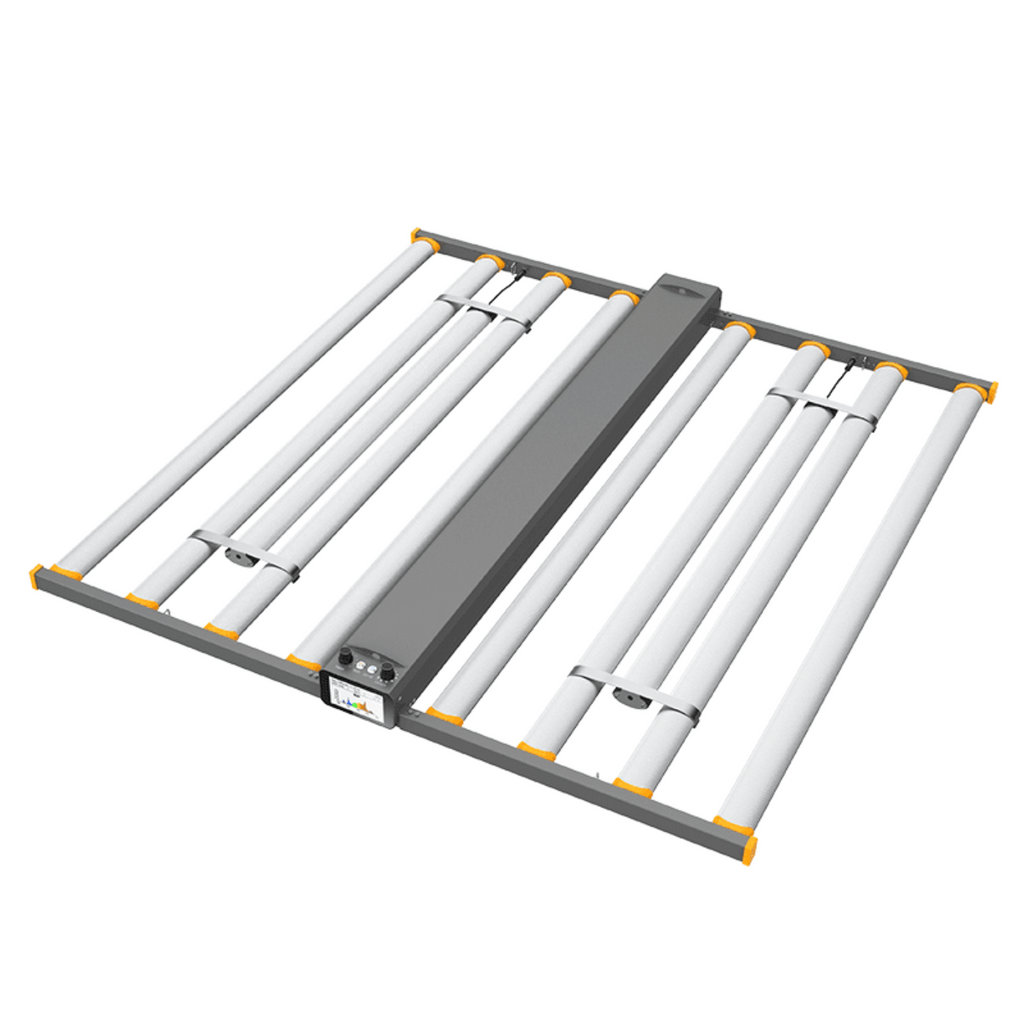

8-bar configuration allows for application in indoor rooms, on vertical racks, over benches, and even in grow tents.
- High efficacy (2.8 μmol/J). PPF up to 2184 μmol/s.
- The integrated LCD display showing all the parameters that matter to your growth.
- Spectrum Tunable. Flexible to change spectrum from vegetative to bloom stage.
- Veg & Bloom Button (Red Button)
- One Spectrum X can control up to 50pcs of Spectrum Y lights.
- Dimmable from 100% to 30%.
- Easy Timing Settings.
- Embedded dampers make installation much easier.
- Two UV & IR bars.
- Sosen Driver
- Default voltage of 110-277V, and 347-480V is customizable
Spectrum X And Spectrum Y LED Grow Light

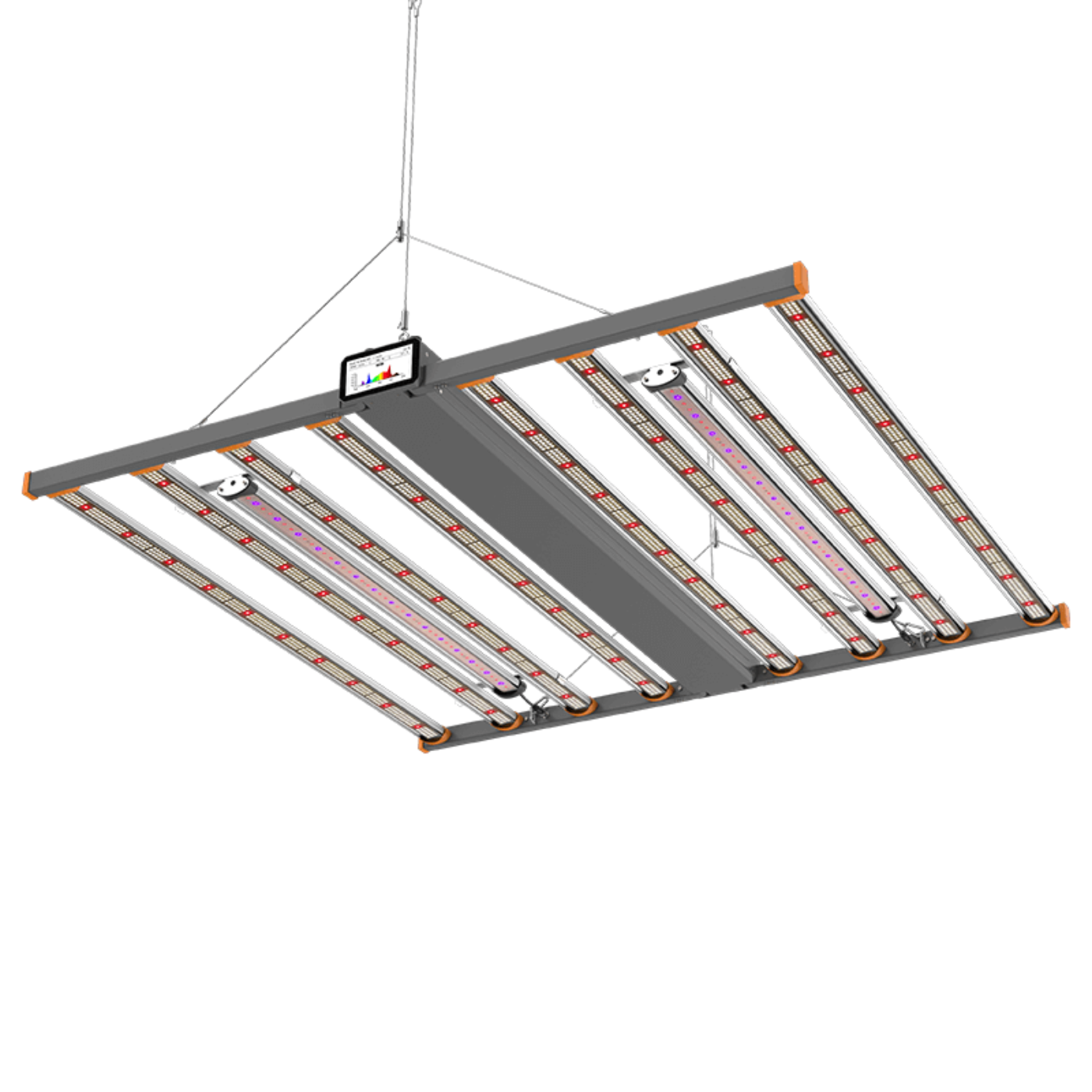

Spectrum X LED Grow Light White and Red Diodes

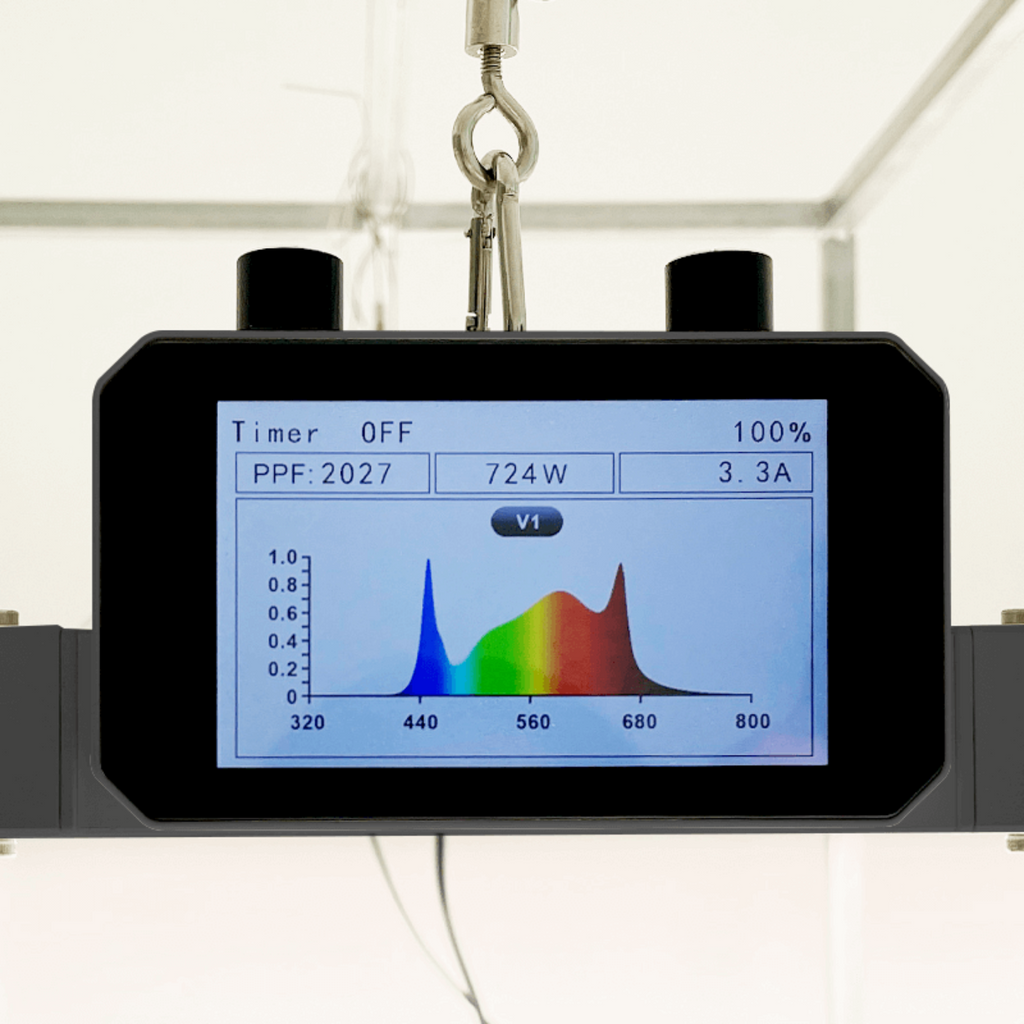

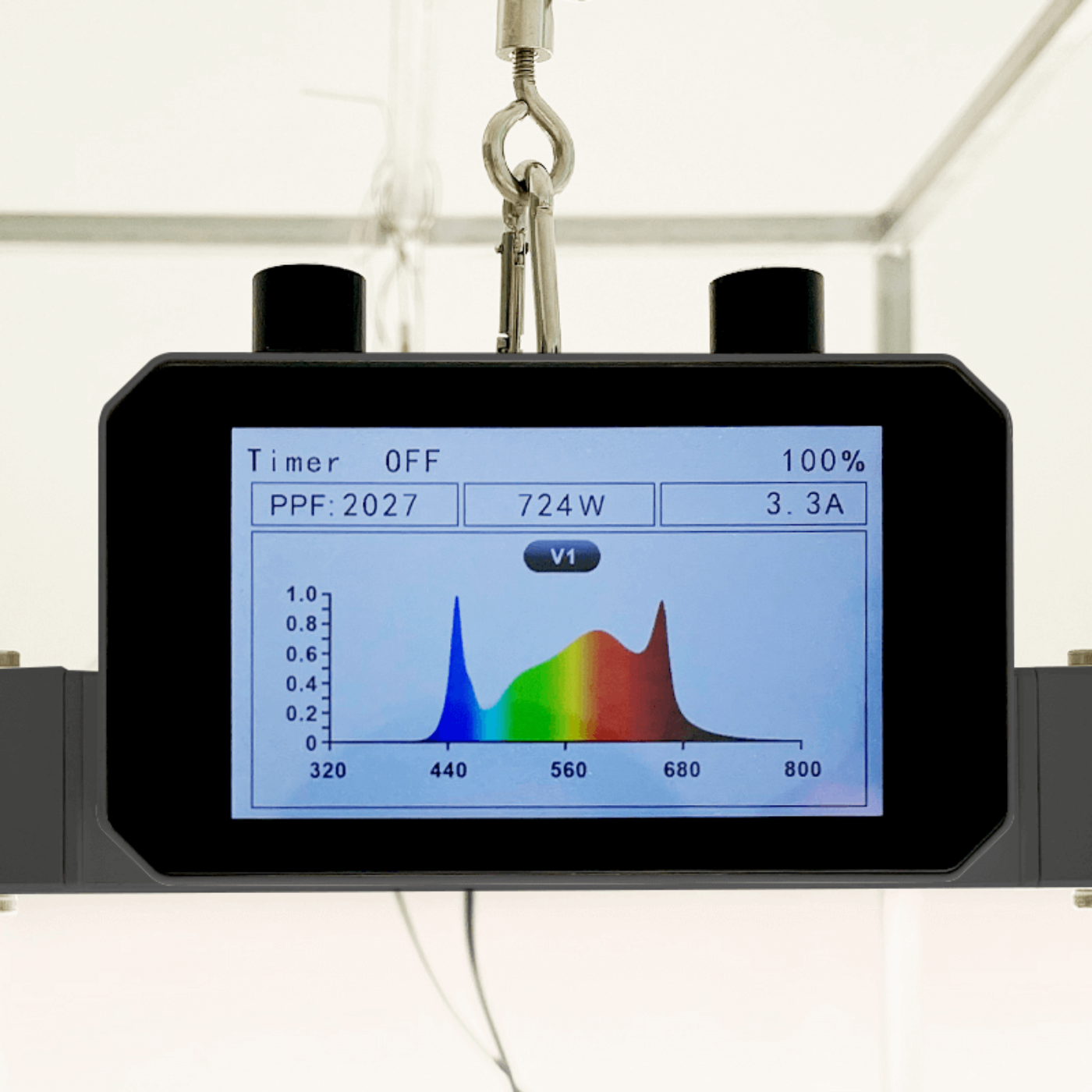

Spectrum X LED Grow Light Display and Two Knobs
Spectrum X LED Grow Light UV + IR Addon
Two UV & IR bars are removable, and they get the power through the sidebars of the light.
Full Spectrum
PPFD Distribution
Dimension
Specifications
| Model |
Spectrum X
|
Spectrum X+ 2x UV&IR Bars (100 Watt)
|
| Spectrum |
V1, F1, VS, FS
|
V1, F1, VS, FS
|
| PPF(light output) |
2184 μmol/s |
2376 μmol/s |
| Wattage |
780 Watt |
880 Watt |
| Efficacy |
2.8 μmol/J @277 AC |
2.7μmol/J @277 AC |
| Coverage |
5x5 Feet; |
5x5 Feet; |
| Fixture & Dimensions |
46.46'' x 44.88' x 2.76' |
46.46'' x 44.88' x 2.76' |
| AC Input Voltage |
Default: 110-277V AC, 50/60Hz |
| Customizable: 347-480V AC,50/60Hz |
| Max Operating Temperature |
95°F / 35°C |
95°F / 35°C |
| Mounting Height |
≥ 12'' (30cm)Above Canopy |
≥ 12'' (30cm)Above Canopy |
| Thermal Management |
Passive |
Passive |
| Dimming |
0-10V |
0-10V |
| Net Weight |
14.5KG/PC 31.96lbs |
15.9KG/PC 35.04lbs |
| Life Span |
>50,000hours |
| Warranty |
5-Year Warranty | 1-Year Warranty for UV-IR Aaddon |
Installation
LED Grow Lights FAQ
1. What Payment do you accept?
We accept Credit Card, PayPal and bank transfers. For lights less than 10 pcs, we accept credit card, PayPal and for bulk orders over 10 lights, we accept bank transfers. Contact us if you are a commercial grower.
2. How Can I Use My Discount Code While Paying via Credit Card?
Add the item(s) to cart first, Input the code then apply. Click 'Debit or Credit Card' Button to start credit card payment.
3. How much is the shipping cost and tax?
We provide Continental US local delivery free of charge and No tax.
4. How long does it take to arrive?
For Continental US local delivery, it takes around 3-7 days, door-to-door service free of charge.
For international shipment, it depends on the shipping company you choose, usually, if it goes by sea, will take around 30 days.
5. Can I return my light if it is faulty?
Yes, you can, we offer 5-year warranty. If your light is faulty under this period, please contact us by sales@medicgrow.com
6. Are your LEDs full-spectrum?
Yes, all of our lights are full spectrum.
7. How to intall/hang the light?
Please check the installation video we made:
https://www.youtube.com/watch?v=jsGkxboI8LM&t=6s
8. Do the light comes with a lighting controller?
No, the controller needs to be purchased separately. You may contact us to order the lighting controller directly.
9. Can your lights be daisy-chained?
Yes, you can connect up to 75 pcs LEDs using a lighting controller for larger growth.
10. Can you send me a detailed specification of your lights?
Yes, we would like to, please email us at sales@medicgrow.com We will reply in 24 hours.
11. Do you have any certifications for your lights?
Yes, our lights are UL certified.
12. Can I have my LOGO printed on the body of the light/package?
Yes, but there is a MOQ request, please contact us at sales@medicgrow.com
13. Can you make the light 1000 watt?
Yes, our product Ez-8 is a 1000W LED grow light.
14. Can you offer me the best price?
The price online is the best price we can offer. You are welcome to join our referral program for a 5% discount if your friend/family buys from Medic Grow.
15. Can you tell me the light distance and light intensity for all: 1) seedling stage, 2) veg stage and 3) flowering stage?
It really depends on which species that you are planning to plant. Each of your plant’s phases of growth would have different spectrum and light intensity needs. Generally speaking, we recommend an 18w fluorescent lamp hang around 6' for the seedling stage, our light at 30' for veg, and at 12' for the flowering stage. You can adjust the height of the light or by using the dimmer so that you can tune the photon intensity to fit in various growth stages.
What Our Experts Think
-
Customizable Spectrum Control: The Medic Grow 3 Channel Control Spectrum X LED Grow Light offers precise control over the light spectrum, allowing you to tune the spectrum for different growth stages (vegetative, flowering, etc.), ensuring optimal plant health and yield.
-
Powerful 880-Watt Output: With an impressive 880-watt power output, this grow light provides intense and uniform light coverage, promoting robust plant growth across a variety of crops, especially for larger indoor gardens.
-
Efficient Energy Use: Designed to deliver high light intensity while maintaining energy efficiency, the Spectrum X ensures your plants receive the ideal amount of light without driving up your electricity bill.
-
UV+IR Light Spectrum: Equipped with both ultraviolet (UV) and infrared (IR) light, the Spectrum X enhances plant growth and resistance, supporting higher yields and improving overall plant health.
-
Daisy Chain Functionality: The daisy chain capability allows multiple lights to be connected together, making it easier to illuminate larger grow areas without needing separate outlets for each light.
-
Built-in Timer & Dimming Options: The included timer and dimming features provide full control over your light schedule and intensity, allowing for customized growth cycles and energy savings during non-peak hours.
-
Versatile Voltage Range (110-277V): This grow light is compatible with a wide range of voltages, ensuring it can be used in various regions or environments, making it a flexible option for both home and commercial growers.
-
Durable & Long-Lasting Design: Constructed with high-quality materials, the Spectrum X is built for longevity and high performance, reducing the need for frequent replacements and ensuring a reliable growing environment.
-
Improved Plant Yield and Health: By providing the optimal spectrum and intensity, the Medic Grow Spectrum X enhances plant yields, reduces plant stress, and encourages stronger root development, leading to healthier and more productive plants.
Q&A
Q: How does the spectrum tunability feature work?
A: The 3 Channel Control Spectrum X allows you to adjust the light spectrum across three channels:
-
Vegetative Spectrum: Focuses on blue light for leaf and stem growth.
-
Flowering Spectrum: Increases red light to promote flowering and fruit production.
-
Full Spectrum: A combination of all colors for overall plant health and balanced growth.
This tunable feature lets you customize the light output to suit the specific needs of your plants at different growth stages.
Q: What is the UV+IR feature, and how does it benefit my plants?
A: The UV+IR feature provides Ultraviolet (UV) and Infrared (IR) light wavelengths, which offer several benefits:
-
UV light can stimulate resin production and enhance flavor and potency in certain plants, especially during flowering.
-
IR light helps improve cellular structure, encouraging robust plant development and increasing the overall yield.
Q: Can I connect multiple Medic Grow lights together?
A: Yes, the Daisy Chain functionality allows you to link multiple Spectrum X LED grow lights using a single power source. This feature is ideal for larger grow spaces, reducing the need for multiple electrical outlets.
Q: What type of plants is the Medic Grow 3 Channel Control Spectrum X suitable for?
A: The Medic Grow Spectrum X LED is versatile and can support a wide range of plants, including:
-
Leafy greens (lettuce, spinach)
-
Herbs (basil, mint, parsley)
-
Flowers (roses, orchids)
-
Fruit-bearing plants (tomatoes, peppers)
-
Cannabis during both the vegetative and flowering stages.
Q: How can I control the light schedule and brightness of the Medic Grow Spectrum X?
A: The built-in timer and dimming features allow for easy customization of both the light schedule and brightness. You can set the light to turn on/off at specific times and adjust the intensity to suit your plant's needs.
Q: How energy-efficient is the Medic Grow 3 Channel Control Spectrum X LED Grow Light?
A: The Medic Grow Spectrum X LED is highly energy-efficient, consuming only 880 watts while providing powerful light output. It uses advanced LED technology to produce more light per watt compared to traditional lighting systems, resulting in lower energy costs over time.
Maintenance Tips
-
Regular Cleaning: Turn off and unplug the light before cleaning. Use a soft, dry microfiber cloth to wipe down the surface of the light to remove dust and debris. For stubborn dirt, use a slightly damp cloth, but be careful not to get moisture on the electrical components.
-
Heat Management: Ensure the light fixture is installed in a well-ventilated area to prevent overheating. Check the cooling fans (if applicable) to make sure they are working properly and not obstructed by dust or debris. Overheating can reduce the lifespan and performance of the LEDs.
-
Lens and Reflector Cleaning: Clean the lenses or reflective panels with a soft cloth or lens cleaning solution to ensure maximum light output. This is important as dust and grime can block light, reducing efficiency.
-
Check Wiring and Connections: Inspect the power cables, plugs, and connectors periodically for any signs of wear or damage. Replace any worn or frayed cables to avoid electrical issues.
-
Dimming and Timer Function: Test the dimming and timer functions regularly to ensure they are operating correctly. These features help optimize your grow environment and ensure the plants receive the appropriate amount of light.
-
UV+IR Maintenance: If your model includes UV or IR channels, check that these lights are functioning properly. These wavelengths can wear out more quickly than visible light, so make sure to replace them as needed.
-
Avoid Overloading Daisy Chain: If using the daisy chain feature, avoid connecting too many units in one series to prevent overloading the electrical circuit. Follow the manufacturer's guidelines for daisy chaining multiple lights together.
-
Inspect Spectrum Control: Regularly check the spectrum control settings to ensure they align with your plants' growth stages. Adjust the spectrum as needed for optimal growth results, as different stages (vegetative, flowering) require different light spectrums.
-
Humidity and Environment Control: Place the light in an area with proper environmental controls. Excessive humidity can affect the electronic components, so maintain appropriate levels of temperature and moisture to avoid damage.
-
Replace Damaged Parts: If any part of the grow light is damaged, such as a broken LED or a faulty fan, replace it immediately to maintain the efficiency and safety of the system.
-
Power Surge Protection: Use a surge protector to prevent any damage to your light caused by power surges or voltage spikes. This can help extend the life of your LED light system.
-
Store Properly When Not in Use: If you need to store the grow light for an extended period, keep it in a dry, cool place away from direct sunlight, moisture, and dust. This will help preserve the LEDs and components when not in use.
