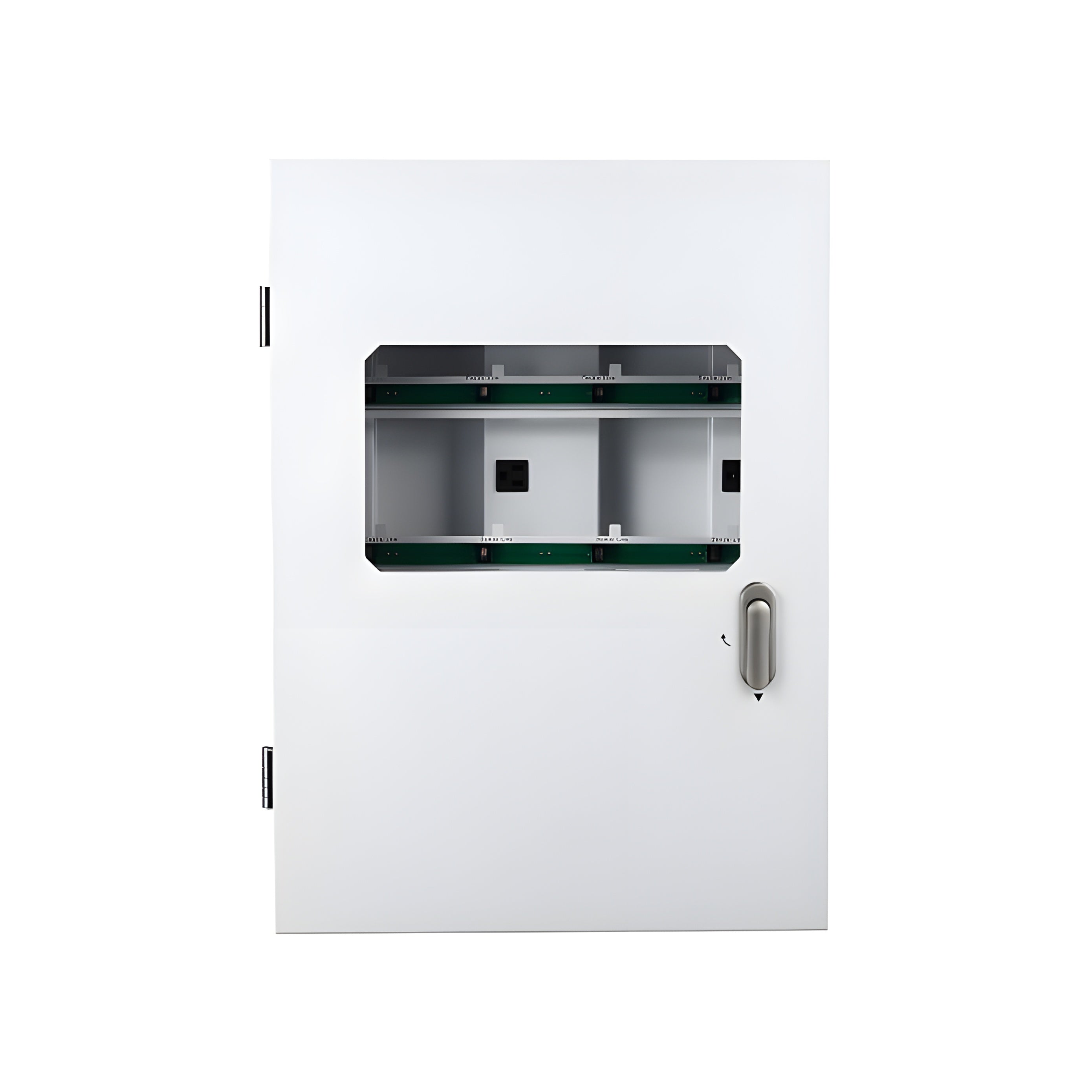

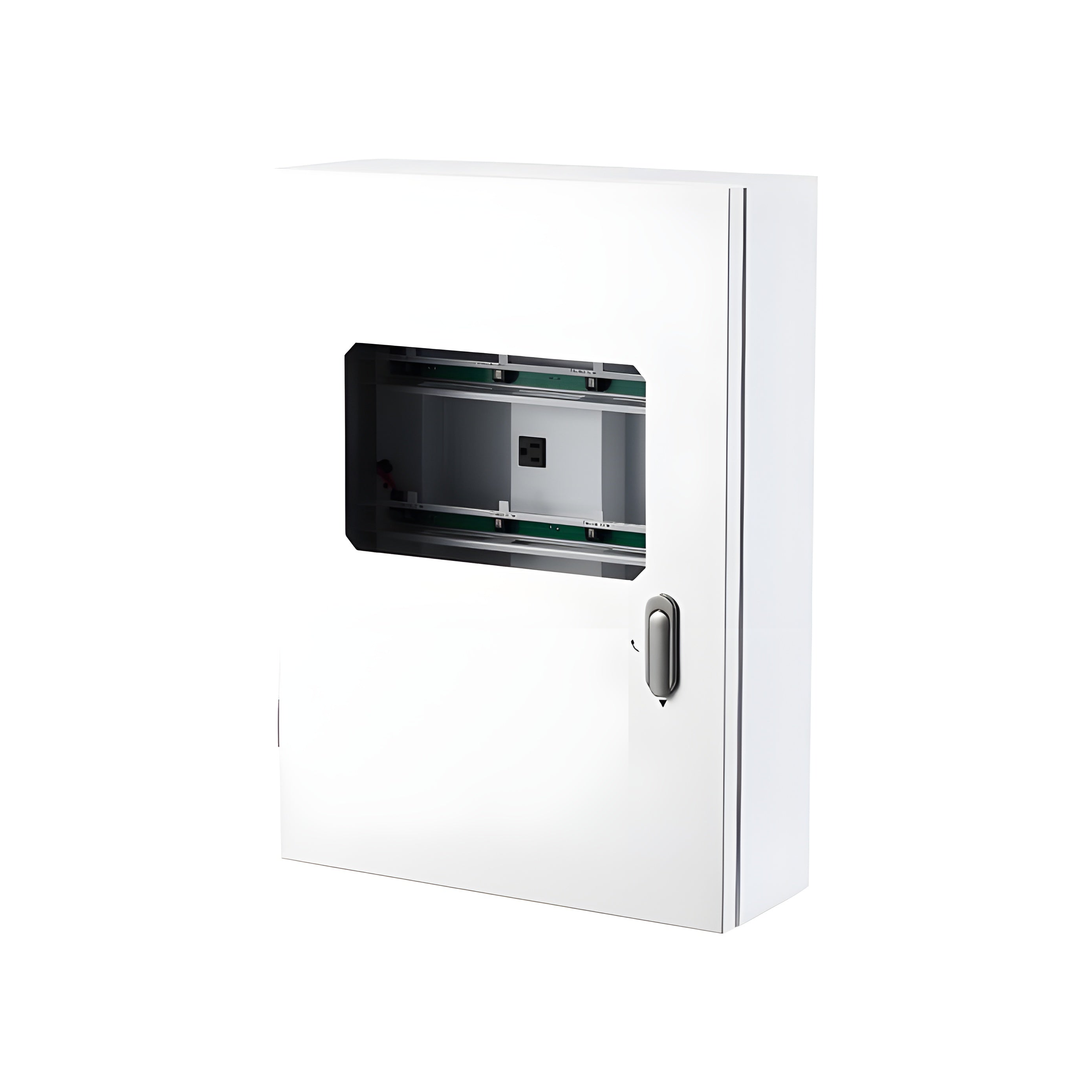

TrolMaster 25” Standard Controller Cabinet for Hydro-X Plus (SCC-3) - 56018
The SCC-3 25"Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.
The enclosures are designed to allow any of TrolMaster’s controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies, modules, and organize your RJ12 cables with ease.
Features
-
Guaranteed Industrial Rated & Waterproof
-
ALL-IN-ONE Controller & Device Module Housing
-
Design Your Own Cabinet by Using Bi-directional RJ12 Cables
-
Detachable Design
-
Superior Safety System
Specifications
| Dimensions |
25" (L) x 18" (W) x 6.26" (H) |

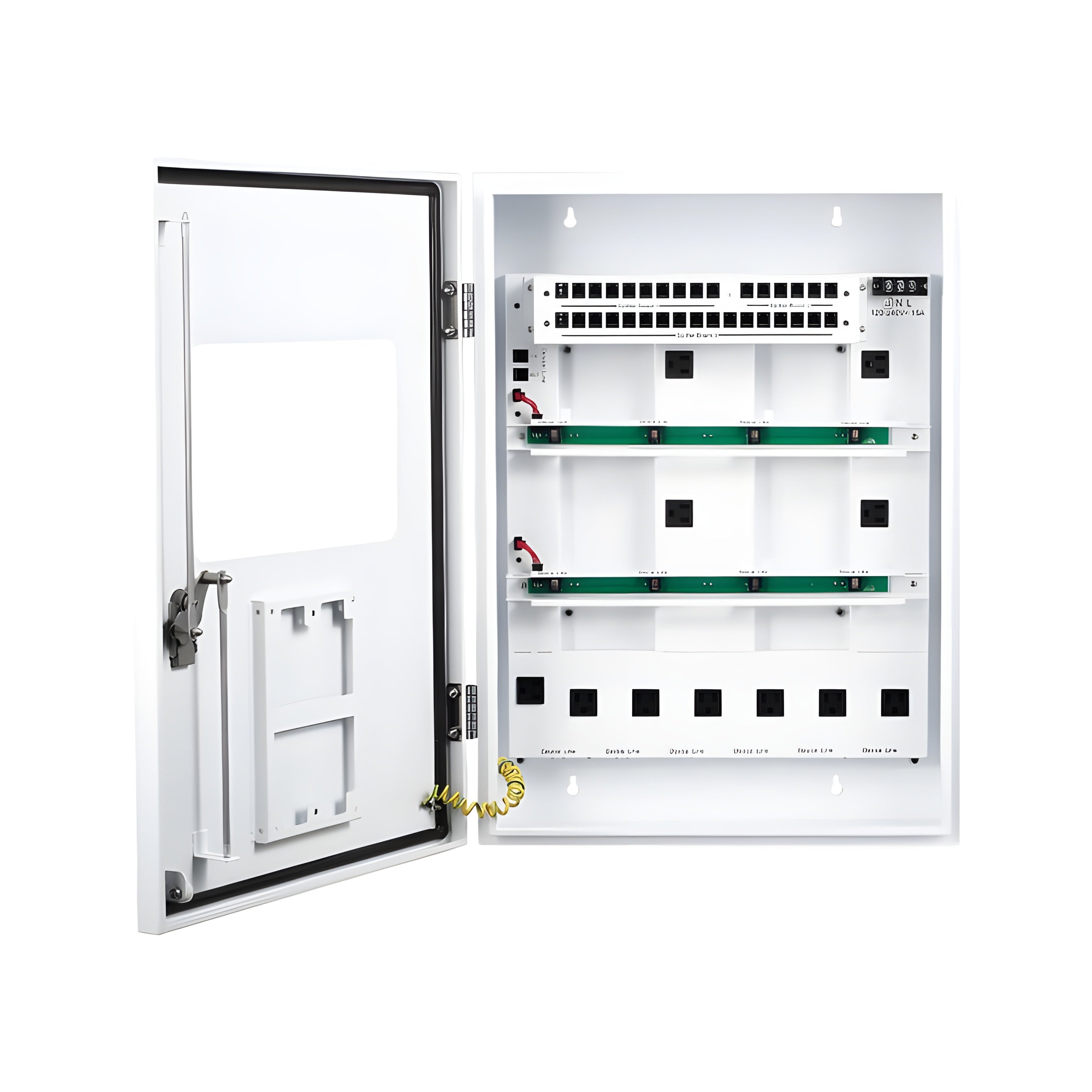

| Cabinet Capacity |
| Splitter Board #1: |
1:10 ports (top) |
| Splitter Board #2 |
2: 6 ports (top) |
| Splitter Board #3 |
3: 17 ports (top) |
| Splitter Board #4 |
4: 4 x 4 ports (middle splitter bars) |
| Splitter Board #5 |
5: 6 ports (bottom) |
| Power Outlet |
4 + 1 + 6 |
| Operating Conditions |
| Enclosure Rating |
IP56 (equivalent to NEMA 4X rating) |
| Temperature Resistance |
32°-104°F |
| Input Voltage |
120V |
| Maximum Amperage |
15A |

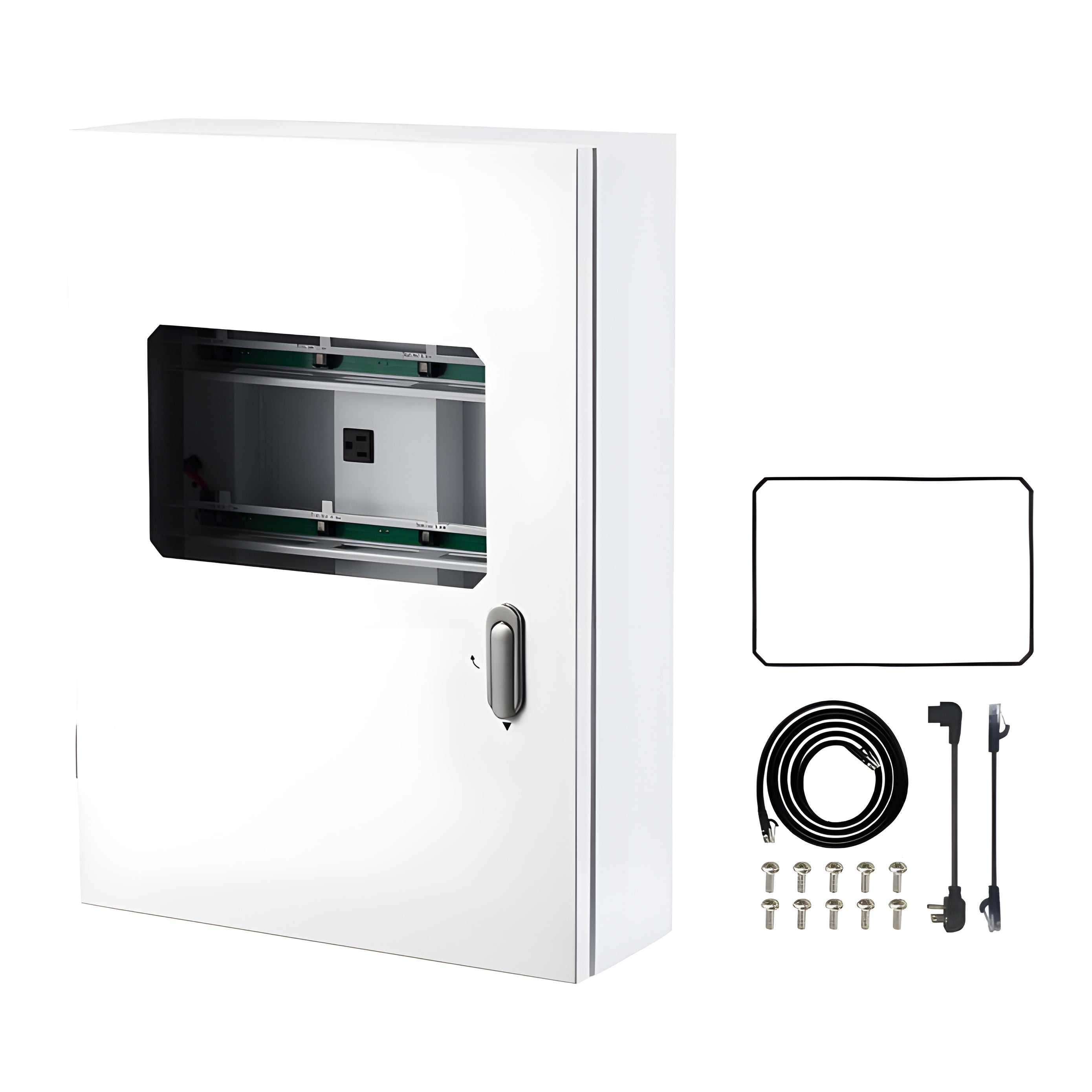

Package Include
-
Controller Cabinet x1
-
Installation Manual x1
-
Long RJ-12 Cables x4
-
Short RJ-12 Cables x16
-
Power Cables (for OA6-24/OA6-110) x4
-
OA6-24/OA6-110 Screw Set x 10
What Our Experts Think
-

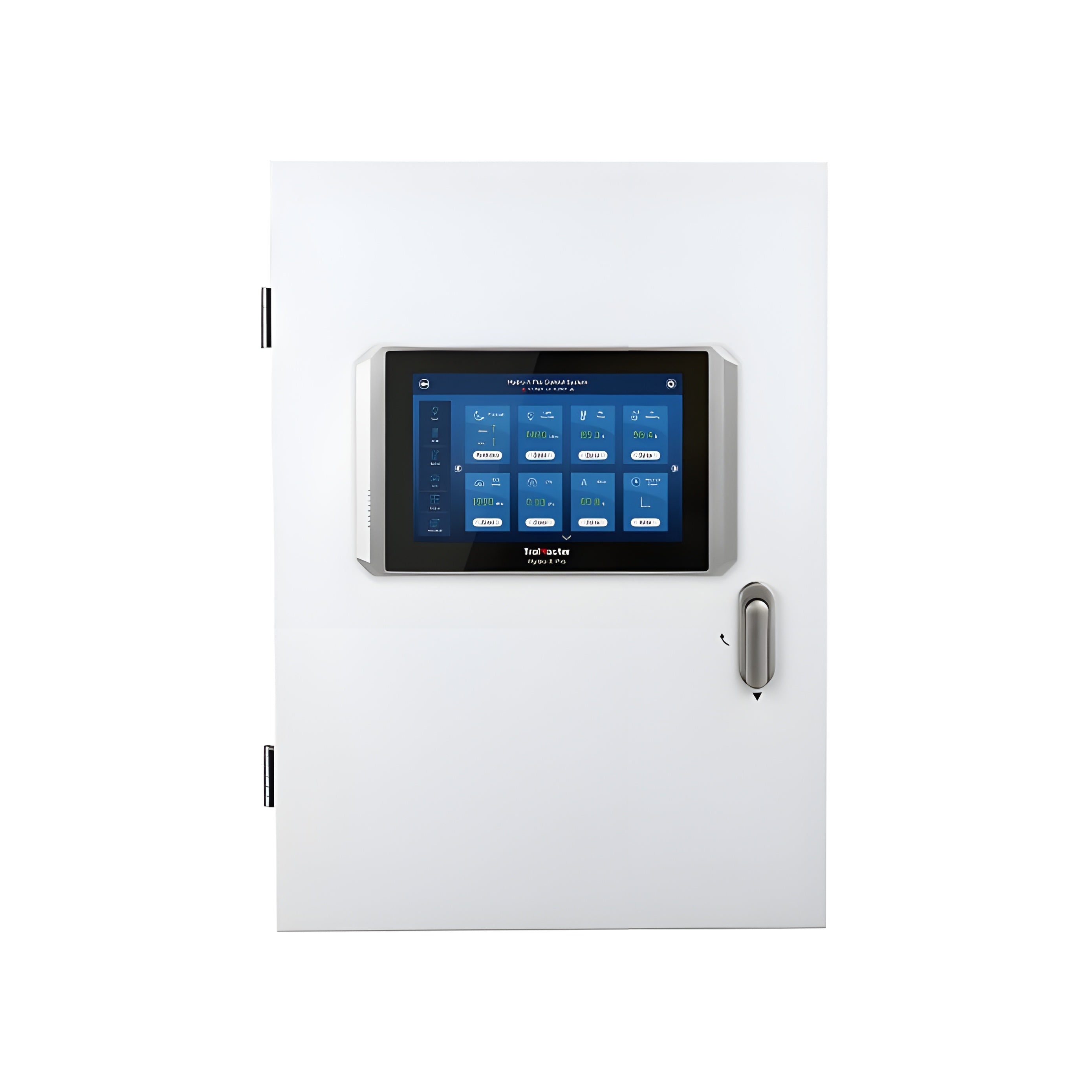

Designed for Hydroponic Systems: The SCC-3 controller cabinet is specifically designed for use with the Hydro-X Plus, offering seamless integration and enhancing the performance of your hydroponic setup.
-
Optimal Organization: This 25” cabinet provides ample space for organizing and storing essential components of your hydroponic system, including controllers, sensors, and relays, helping to keep your system neat and accessible.
-
Sturdy and Durable Construction: Made from high-quality materials, the SCC-3 is built to last, providing reliable protection for your sensitive equipment and ensuring long-term durability.
-
Enhanced System Control: With the TrolMaster cabinet, you can easily mount and manage your controllers and sensors, streamlining your setup and allowing for better monitoring and adjustment of your hydroponic system.
-
User-Friendly Design: The cabinet's user-friendly design simplifies installation and maintenance, providing easy access to components and allowing for efficient system troubleshooting.
-
Compact Size for Convenience: While offering ample storage space, the SCC-3 maintains a compact design, allowing it to fit into smaller spaces without taking up too much room in your grow area.
-
Versatile Compatibility: Compatible with a variety of TrolMaster controllers, this cabinet offers versatility for different hydroponic setups, making it a flexible choice for both hobbyists and professionals.
-
Professional Grade: Whether you’re a seasoned grower or just starting, this professional-grade cabinet ensures that your system is organized, efficient, and fully optimized for maximum yield.
Q&A
Q: What is the TrolMaster 25” Standard Controller Cabinet for Hydro-X Plus (SCC-3)?
A: The TrolMaster SCC-3 is a 25-inch standard controller cabinet designed to house and protect the Hydro-X Plus environmental controller system. It is ideal for use in hydroponic and agricultural setups, providing a secure and organized space for the controller and other connected components.
Q: What are the benefits of using the TrolMaster SCC-3 Controller Cabinet?
A: The SCC-3 offers a durable and organized solution for housing the Hydro-X Plus controller and other associated equipment. It provides protection from dust, moisture, and other environmental factors, ensuring the system operates efficiently and remains secure.
Q: Why choose the TrolMaster 25” Standard Controller Cabinet?
A: The SCC-3 is designed to complement the Hydro-X Plus system, offering a professional and reliable housing solution. Its compact design ensures easy integration into grow rooms or facilities, while providing ample space to organize and protect critical components for your hydroponic or agricultural operations.
Q: Is it easy to install and maintain?
A: Yes, the TrolMaster SCC-3 is designed for easy installation and integration with the Hydro-X Plus system. It requires minimal maintenance, mainly involving routine checks to ensure the controller and components are secure and functioning properly within the cabinet.
Maintenance Tips
-
Keep the Cabinet Clean: Dust and dirt buildup can cause the controller’s components to overheat and malfunction. Wipe down the exterior of the cabinet regularly with a soft, dry cloth. For internal components, use compressed air to remove any dust that may accumulate.
-
Inspect for Damaged Cables: Ensure that all wires and cables are securely connected and free of wear or damage. If you notice any frayed wires or loose connections, replace them immediately to avoid potential safety hazards or system malfunctions.
-
Check the Controller’s Display and Interface: Test the user interface on the controller regularly to ensure all buttons and touchscreens are functioning correctly. If the display is unresponsive or showing errors, it may be a sign of a system glitch or need for calibration.
-
Test the Sensors and Devices: Regularly test the connected sensors and devices (such as temperature, humidity, or CO2 sensors) to ensure they are accurately reading data. Any discrepancies in sensor readings could indicate the need for recalibration or replacement.
-
Verify Software and Firmware Updates: Stay current with the latest software and firmware updates for your Hydro-X Plus system. These updates can enhance system performance, fix bugs, and introduce new features. Check TrolMaster’s website or user manual for instructions on how to download and install updates.
-
Inspect Ventilation and Airflow: Proper airflow is essential for the proper functioning of the controller and the prevention of overheating. Ensure that the cabinet is not obstructed and that air vents are clean and free from blockages.
-
Test Backup Power System (if applicable): If the Hydro-X Plus system is connected to a backup power supply (such as a battery or uninterruptible power supply), test it regularly to ensure it is working properly. A power failure can cause significant damage to connected devices and disrupt operations.
-
Check for Proper Mounting and Positioning: Ensure that the cabinet is securely mounted in a location that is free from vibrations, extreme temperatures, and moisture. A stable environment will prevent unnecessary stress on the controller and extend the life of the unit.
-
Monitor System Alerts and Notifications: Regularly monitor any alerts, error messages, or notifications provided by the system. These can indicate problems that need attention, such as issues with connected devices or the controller itself. Act promptly to resolve any issues that arise.
-
Perform Annual Professional Inspections: While regular at-home maintenance is essential, consider scheduling an annual inspection by a professional to thoroughly check all aspects of the controller and connected system. A technician can help identify any issues that may go unnoticed during routine checks.
