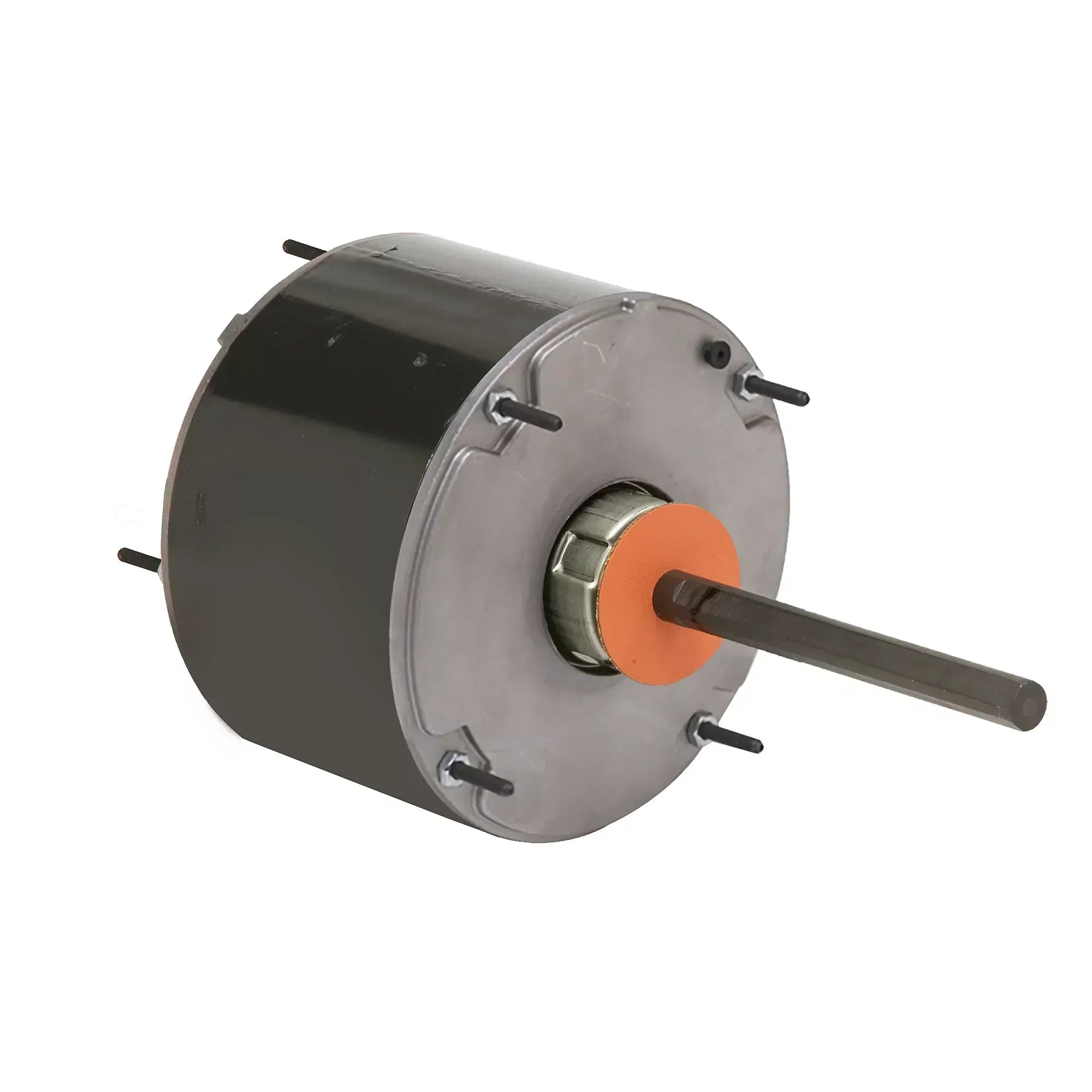

U.S. Motors 8675 1/3 HP 825 RPM 2 Speed 208-230V PSC Condenser Fan Motor TEAO - 8675

U.S. Motors 8675 1/3 HP 825 RPM 2 Speed 208-230V PSC Condenser Fan Motor TEAO -  8675

Explore the robust U.S. Motors 8675 PSC Condenser Fan Motor, expertly engineered to operate with efficiency and reliability. This motor features a durable totally enclosed air-over (TEAO) design, rated at 1/3 horsepower and an 825 RPM at two speeds. It is crafted for continuous duty and suited for a single-phase power supply of 208-230 volts.

Product Highlights

The motor is versatile, with a reversible rotation feature and a self-aligning ball bearing mechanism that ensures prolonged operational life and reduced maintenance costs. Its totally enclosed design prevents dust and moisture ingress, enhancing durability.

Features

• Reversible rotation flexibility
• Built-in self-aligning ball bearing
• UL recognized and CSA not listed

Specifications

What our Experts Think

• 1/3 HP Output:
  Provides reliable power at 825 RPM, suitable for various condenser fan applications.

• Two-Speed Operation:
  Offers flexibility with dual-speed functionality, accommodating different cooling requirements.

• Voltage Compatibility:
  Operates on 208-230V, 60 Hz single-phase power systems, ensuring efficient performance.

• Totally Enclosed Air Over (TEAO) Enclosure:
  Protects the motor from external elements, making it ideal for harsh environments.

• Permanent Split Capacitor (PSC) Design:
  Enhances energy efficiency and reduces noise during operation.

• Reversible Rotation:
  Allows for flexible installation and operation in various systems.

• Ball Bearings:
  Ensures smooth and reliable performance over time.

• Class B Insulation:
  Provides thermal protection, allowing the motor to operate at higher temperatures.

• Automatic Thermal Overload Protection:
  Safeguards the motor against overheating, contributing to its longevity.

• Standard Shaft Dimensions:
  Features a 1/2" diameter shaft, compatible with a wide range of equipment

Q&A

Q: What is the 8675 motor used for?
A: This motor is commonly used in HVAC systems, specifically as a condenser fan motor in air conditioning units and refrigeration equipment.

Q: What are the advantages of the TEAO design?
A: The TEAO enclosure protects the motor from moisture and debris while allowing air to flow over it for cooling, making it ideal for fan-driven applications.

Q: Is this motor reversible?
A: Yes, the 8675 motor supports reversible rotation, providing flexibility for various system requirements.

Q: What is the duty rating of the 8675 motor?
A: It is rated for continuous duty in air-over applications, ensuring long-term performance.

Q: Does the motor include overload protection?
A: Yes, it typically includes built-in thermal protection for safety and durability.

Maintenance Tips

• Routine Dust Removal

• Clean outer surfaces regularly using dry compressed air to keep airflow unobstructed.

• Avoid wet cleaning methods as this is a TEAO motor, not waterproof.

• Check Mounting Stability

• Ensure the motor is firmly secured using the stud mounts. Vibration can reduce lifespan.

• Inspect Electrical Connections

• Periodically check for signs of loose terminals or worn wires.

• Make sure the capacitor is properly connected and functioning (check for bulges or leakage).

• Monitor Overheating

• If the motor becomes excessively hot, inspect for blocked airflow or overloaded conditions.

• The built-in thermal overload should reset automatically, but frequent trips signal deeper issues.

• Lubrication (Sleeve Bearings)

• These motors are typically pre-lubricated for life; avoid over-oiling unless specified otherwise by the manufacturer.

• If serviceable, use only light-grade motor oil and follow recommended intervals.

• Check Rotation Direction

• Confirm the rotation direction before installation—this motor supports reversal for flexibility.
