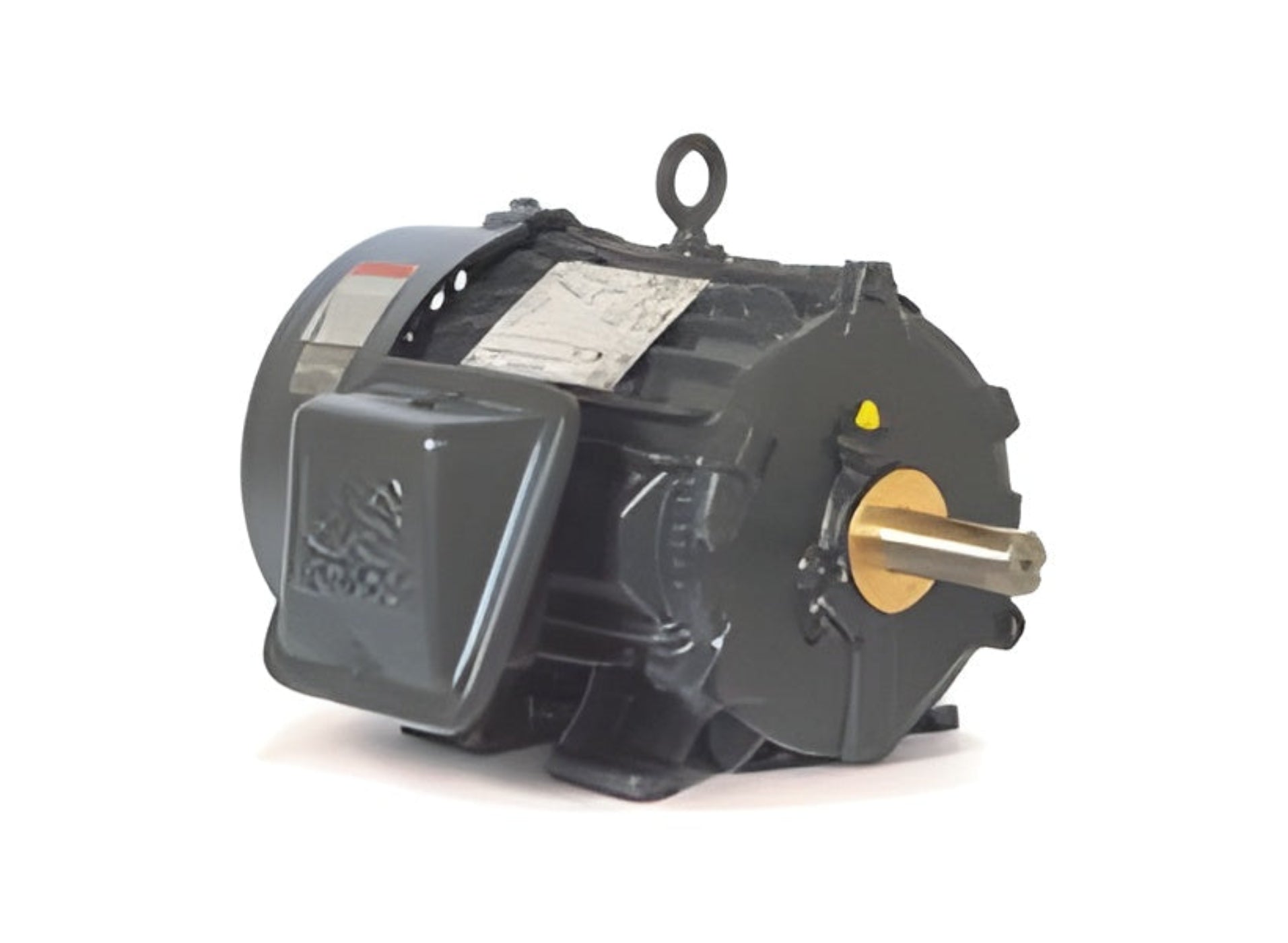

U.S. Motors 8D15P2C Motor 15HP 1775RPM 254T 60Hz 460V Replacement 8D15P2C - 8D20P2C
The U.S. Motors 8D15P2C is a robust 15 horsepower motor designed for general industrial use. Operating at 1775 revolutions per minute, this 254T frame motor is optimized for 60 Hz and 460V operations. A full load ampere of 17 ensures efficient performance under demand.
Product Highlights
This three-phase AC motor is well-suited for applications requiring consistent and reliable power delivery. Its durability and construction make it an ideal choice for both new installations and replacement purposes.
Features
- Optimized for continuous operation in a diverse range of industrial environments.
- Constructed for longevity and robust performance in demanding applications.
- Energy efficient design minimizes electrical usage while maintaining output.
Specifications
| Power |
15 HP |
| Speed |
1775 RPM |
| Frame Size |
254T |
| Frequency |
60 Hz |
| Voltage |
460V |
| Full Load Amperes |
17 |
| Country of Origin |
Mexico |
| Brand |
U.S. Motors |
| Model Number |
8D15P2C |
What our Experts Think
-
Powerful Performance: With 15 HP and 1775 RPM, the 8D15P2C motor is designed for demanding industrial applications, delivering robust power for machinery and equipment that require continuous operation.
-
High Torque for Heavy Loads: The motor’s 1775 RPM speed provides excellent torque at lower speeds, making it ideal for applications such as compressors, pumps, and conveyor systems.
-
Durable 254T Frame: Built with a 254T frame, it ensures compatibility with a wide range of industrial installations and offers strong, long-lasting performance.
-
Efficient 460V Operation: Designed to run on 460V, 60Hz power, this motor maximizes energy efficiency for heavy-duty applications while keeping operational costs under control.
-
Reliable Replacement: As a direct replacement for various motor systems, the 8D15P2C offers ease of installation and minimal downtime during maintenance or upgrades.
Q&A
Q: What is the U.S. Motors 8D15P2C motor used for?
A: The 8D15P2C is a 15 HP industrial motor designed for use in heavy-duty applications such as pumps, compressors, conveyors, and other large machinery that require high torque and consistent operation.
Q: What are the key specifications of the 8D15P2C motor?
A: This motor provides 15 HP, operates at 1775 RPM, is housed in a 254T frame, and runs on 460V three-phase power at 60Hz. It is ideal for replacement in existing systems requiring significant power.
Q: What does "254T" frame size mean for the 8D15P2C?
A: The 254T frame size indicates the motor’s physical dimensions, including mounting options and shaft size, ensuring compatibility with many existing industrial systems.
Q: Is the 8D15P2C suitable for harsh environments?
A: While it is designed for general-purpose industrial use, the motor should be housed in an appropriate environment to protect against moisture or contaminants unless a sealed version is used.
Q: Where is the 8D15P2C motor best suited?
A: The 8D15P2C is best for heavy-duty industrial applications such as large HVAC systems, pumping stations, and material handling equipment, requiring continuous-duty performance and significant horsepower.
Maintenance Tips
-
Keep Motor Clean:
Regularly remove dust and debris from the motor’s housing, vents, and fan to ensure efficient cooling and proper airflow.
-
Inspect Electrical Connections:
Check all wiring for tightness and any signs of wear, corrosion, or overheating. Faulty connections can lead to motor failure or electrical hazards.
-
Monitor Operating Temperature:
Ensure the motor operates within the recommended temperature range. Overheating can result in insulation damage and decreased motor life.
-
Lubricate Bearings Regularly:
Follow the manufacturer's lubrication schedule for the bearings, using the proper grease. Over-greasing or under-greasing can lead to premature bearing failure.
-
Check Shaft Alignment:
Verify proper alignment with connected equipment. Misalignment can cause excessive vibrations and stress on the motor’s bearings.
-
Vibration Monitoring:
Regularly check for unusual vibrations or noise, which could indicate issues like imbalance, misalignment, or wear.
-
Ensure Proper Ventilation:
Install the motor in a well-ventilated area to avoid heat buildup, especially in high-load or continuous operations.
-
Inspect for Moisture and Corrosion:
Avoid exposing the motor to moisture or corrosive environments. If operating in harsh conditions, consider using protective covers.
-
Test Motor Load & Amperage:
Ensure the motor operates within its rated load and amperage to prevent overloading, which can reduce efficiency and motor life.
