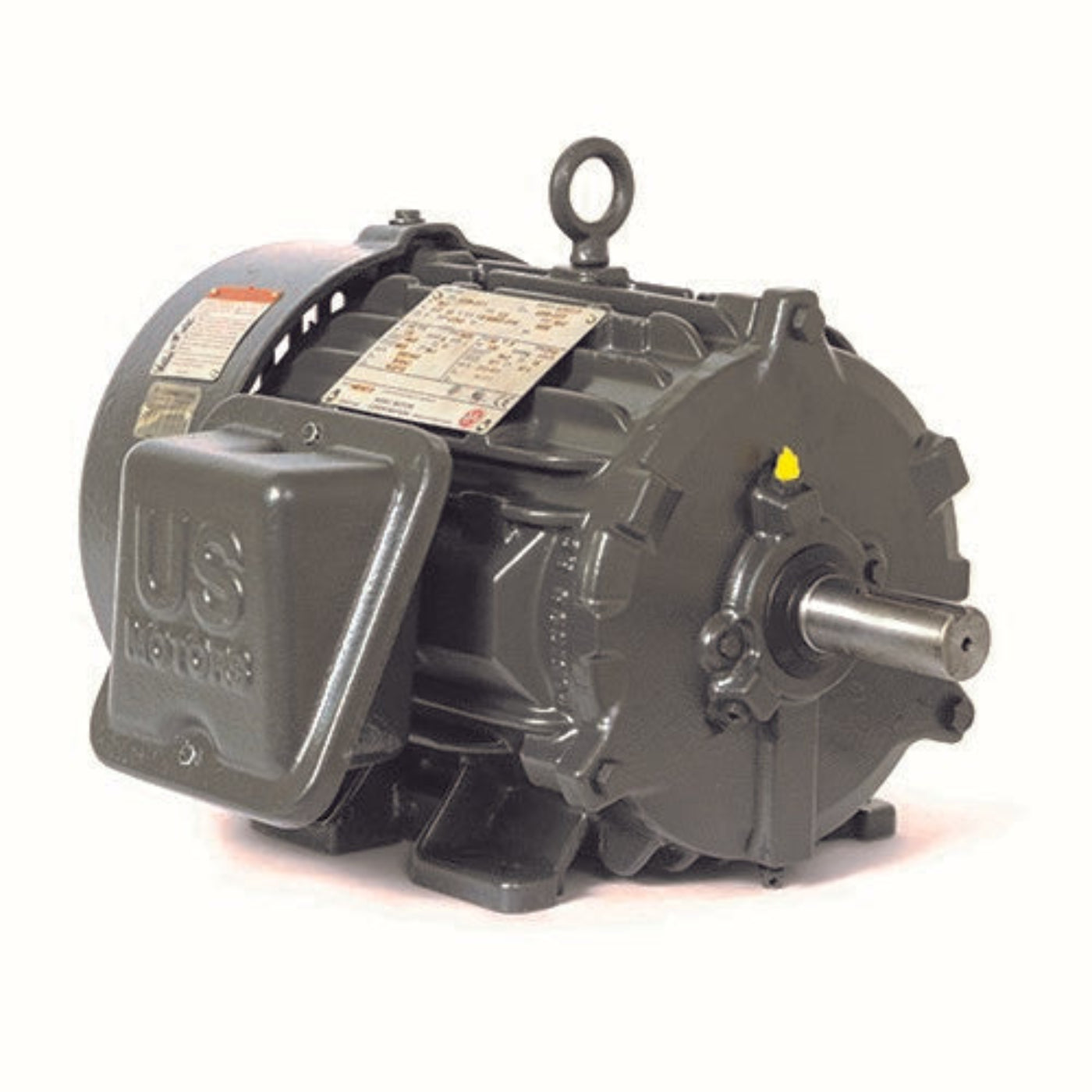

U.S. Motors CD15P2E Corro-Duty Three Phase TEFC Horizontal - Footed Motor - CD15P2E
The U.S. Motors CD15P2E is a Corro-Duty three-phase TEFC horizontal footed motor. It is designed for severe duty applications with a power of fifteen horsepower and operates at one thousand eight hundred RPM. This motor is suitable for various industrial tasks requiring continuous performance.
Product Highlights
This motor excels in environments that demand durability and reliability, ensuring effective operation for HVAC systems, pumps, and other heavy-duty machinery.
Features
- 15 horsepower rated
- Continuous duty performance
- TEFC (Totally Enclosed Fan Cooled) design
Specifications
| Horsepower |
15 HP |
| Poles |
4 |
| Frequency |
50/60 Hz |
| Enclosure |
TEFC – Totally Enclosed Fan Cooled |
| Phase |
Three Phase |
| Speed (RPM) |
1800 RPM nominal (1470 @ 50 Hz, 1775 @ 60 Hz) |
| Voltage Rating |
230/460 & 200/400 V |
| Full Load Amps |
40-36/18 A |
| Service Factor |
1.15 |
| Duty |
Continuous Duty |
| Insulation Class |
F |
| Full Load Efficiency |
92.4% |
| Frame Size |
254T |
| Frame Material |
Cast Iron |
| Mounting Type |
Horizontal - Footed |
| Motor Application |
Severe Duty |
| Weight |
300 LB |
| Brand |
U.S. Motors |
| Part Number |
CD15P2E |
| UPC / EAN |
786382121280 |
What our Experts Think
-
Reliable Power: Provides 15 HP at 1800 RPM—ideal for industrial applications needing steady, high-torque output.
-
Built for Harsh Environments: Corro-Duty construction with cast iron frame and corrosion-resistant coating stands up to chemicals, moisture, and harsh conditions.
-
Premium Efficiency: Totally Enclosed Fan Cooled (TEFC) design supports energy savings and consistent cooling, even in tough environments.
-
Flexible Voltage: Operates on 230/460V, 60 Hz, three-phase power, suitable for a wide range of industrial power systems.
-
Service-Friendly Design: Comes with regreasable bearings, condensation drains, and an oversized conduit box—built for easy installation and long-term upkeep.
Q&A
Q: What applications is the CD15P2E motor suitable for?
A: This motor is ideal for pulp and paper mills, chemical processing plants, wastewater treatment facilities, and other industrial environments where exposure to corrosive substances is common.
Q: What are the benefits of the TEFC enclosure and Corro-Duty design?
A: The TEFC enclosure protects the motor from external contaminants, while the Corro-Duty design includes features like corrosion-resistant paint and sealed bearings, enhancing durability in harsh conditions.
Q: Is the CD15P2E motor inverter-duty rated?
A: While not specifically labeled as inverter-duty, the motor's premium efficiency and robust construction suggest potential compatibility with variable frequency drives (VFDs). It's advisable to consult the manufacturer for specific applications.
Q: Does the CD15P2E motor include thermal protection?
A: The motor does not come with built-in thermal protection. External overload protection is recommended to safeguard against overheating.
Maintenance Tips
-
Routine Inspections: Regularly check for unusual vibrations, noises, or overheating to detect potential issues early.
-
Clean Air Vents: Ensure the Totally Enclosed Fan Cooled (TEFC) enclosure remains free from debris to maintain proper airflow and cooling.
-
Lubrication: Apply manufacturer-recommended lubricants to bearings as per guidelines to reduce friction and wear.
-
Monitor Operating Conditions: Regularly monitor motor temperature, voltage, and current to ensure optimal performance.
-
Check Alignment: Ensure proper alignment with driven equipment to avoid stress and premature wear.
-
Inspect Electrical Components: Tighten electrical connections and inspect cables for signs of damage.
-
Replace Filters: If applicable, replace air or oil filters to prevent contaminants from affecting performance.
-
Test Motor Rotation: Verify the motor rotation direction periodically to ensure proper operation.
