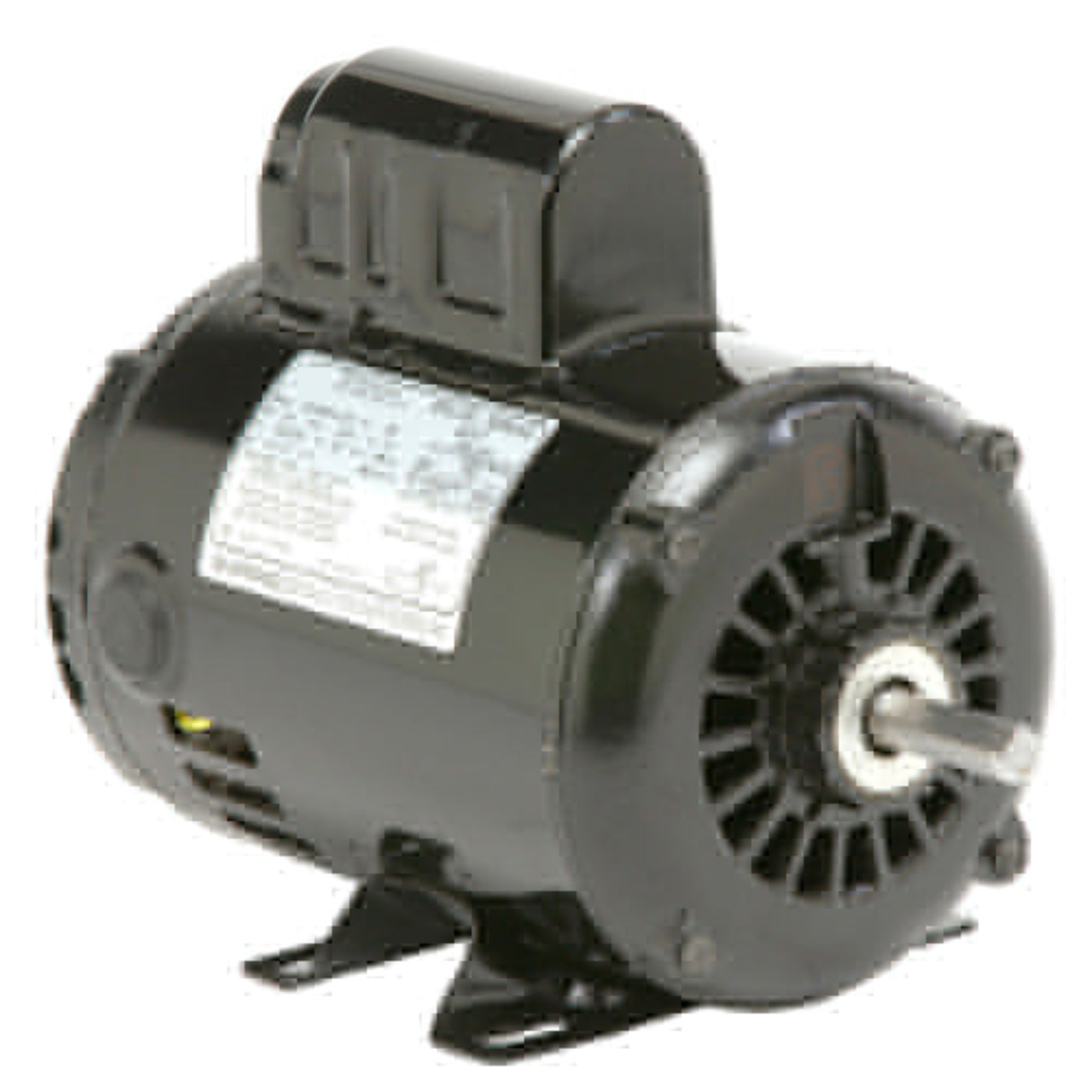

U.S. Motors D1CP1PH General Purpose Single Phase ODP Rigid Base Motor - D1CP1PH
The U.S. Motors D1CP1PH is a general purpose single phase motor with open drip proof (ODP) design. This motor is ideal for various applications that require efficient performance and reliability.
Product Highlights
The D1CP1PH is suitable for general purpose applications and designed for continuous duty operation. It is equipped with a highly efficient motor that operates at 80.4% efficiency.
Features
- 1 horsepower with a full load speed of 3600 rpm
- 115/230 voltage rating for versatility in installations
- Rigid base mounting for stability and ease of installation
Specifications
| Full Load RPM |
3450 rpm |
| Full Load Amps |
9.3 / 4.3 A |
| Frame |
56H |
| Enclosure |
ODP (Open Drip Proof) |
| Phase |
Single Phase |
| Voltage Rating |
115/230 V |
| Poles |
2 |
| Weight |
29.0 lbs |
| Brand |
U.S. Motors |
| MPN |
D1CP1PH |
What our Experts Think
-
1 HP Power Output:
Provides reliable power at 3450 RPM, suitable for various general-purpose applications.
-
Single Phase Operation:
Compatible with 115/230V, 60 Hz single-phase power systems, offering flexibility for different setups.
-
Open Drip Proof (ODP) Enclosure:
Offers protection against dust and moisture, ensuring durability in various environments.
-
Rigid Base Mounting:
Designed for easy and secure installation, ensuring stable operation.
-
NEMA 56H Frame:
Standard frame size for compatibility with a wide range of equipment.
-
Capacitor Start, Capacitor Run Motor:
Provides high starting torque and efficient operation, ideal for applications requiring strong startup force.
-
Service Factor of 1.25:
Handles occasional overloads, enhancing the motor's resilience.
-
Class B Insulation:
Ensures the motor can operate at higher temperatures, contributing to its longevity.
-
Reversible Rotation:
Provides flexibility in installation, allowing for both clockwise and counterclockwise operation.
-
Ball Bearings:
Ensures smooth and reliable performance over time.
Q&A
Q: What applications is the D1CP1PH motor suitable for?
A: This motor is ideal for use in light-duty machinery such as fans, pumps, compressors, and other general-purpose equipment.
Q: Does the D1CP1PH motor have thermal protection?
A: No, the D1CP1PH motor does not come with built-in thermal overload protection. External protection should be used for safe operation.
Q: What is the advantage of an ODP motor?
A: The ODP enclosure allows air to circulate freely, providing efficient cooling for the motor, making it ideal for indoor use in clean, dry environments.
Q: What is the duty cycle of the D1CP1PH motor?
A: The motor is rated for continuous duty, ensuring reliable performance in long-term applications.
Q: What is the temperature range for the D1CP1PH motor?
A: The D1CP1PH motor operates effectively in ambient temperatures up to 40°C.
Maintenance Tips
-
Routine Cleaning:
-
Periodically clean the motor to remove dust, dirt, and debris that may accumulate around the frame and cooling vents. This will help maintain proper airflow and prevent overheating.
-
Use a soft brush or compressed air to clean the motor.
-
Check Electrical Connections:
-
Inspect the motor's electrical connections regularly to ensure they are tight and free from corrosion. Loose or corroded connections can cause overheating and motor failure.
-
Verify that the motor is properly grounded for safety.
-
Lubrication:
-
Inspect the bearings for lubrication and apply the recommended type of grease if necessary. Regular lubrication helps reduce wear and friction, extending the motor's lifespan.
-
Follow the manufacturer’s lubrication schedule and avoid over-lubricating.
-
Motor Alignment:
-
Check the alignment of the motor and connected equipment to prevent excessive vibrations. Misalignment can lead to premature bearing failure and reduce the motor’s efficiency.
-
Ensure that the motor is securely mounted to prevent shifting during operation.
-
Temperature Monitoring:
-
Monitor the motor’s temperature during operation. Ensure that it does not exceed the rated operating temperature. Excessive heat can damage the motor’s internal components.
-
The ODP motor is designed for indoor use in clean, dry environments, so avoid placing it in areas with high humidity or corrosive elements.
