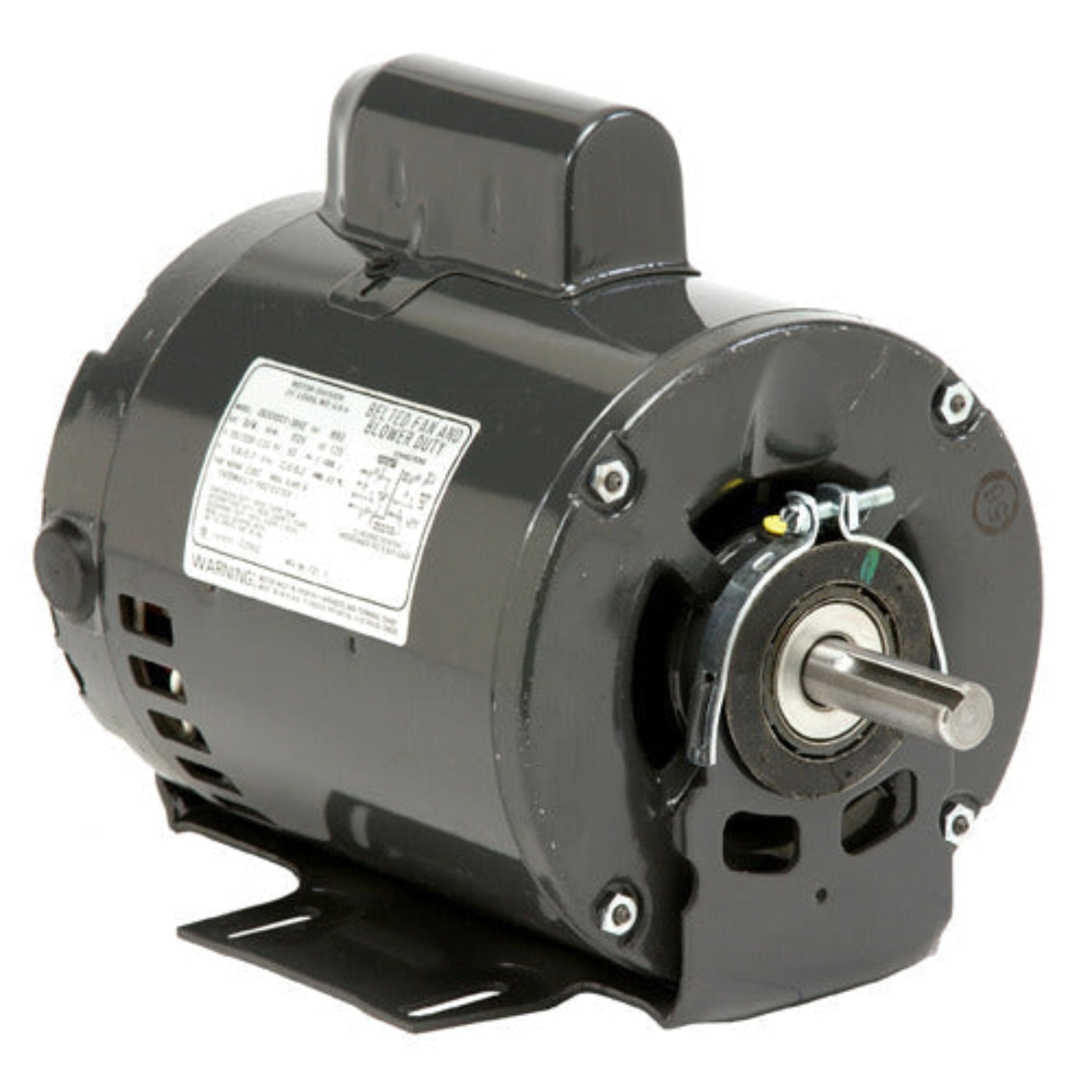

U.S. Motors D2CPA2PH9 General Purpose Single Phase ODP Resilient Motor - D2CPA2PH9
The U.S. Motors D2CPA2PH9 is a general purpose single phase ODP resilient motor. This 2 horsepower motor operates at a speed of 1800 RPM and uses a voltage rating of 115/230V. It is designed for applications that require a reliable and durable motor.
Product Highlights
Durable construction ensures longevity, making it suitable for various applications.
Features
- 2 horsepower for demanding applications
- Resilient mount for reduced vibration
- Open drip proof (ODP) enclosure for protection against moisture
Specifications
| Brand |
U.S. Motors |
| Model (MPN) |
D2CPA2PH9 |
| Voltage Rating |
115/230 V |
| Speed (RPM) |
1725 RPM |
| Frame |
56H |
| Amperage |
17 / 8.5 A |
| Efficiency |
84.5% |
| Poles |
4 |
| Thermal Protection |
Automatic Reset |
| Weight |
46.0 lb |
What our Experts Think
-
General-Purpose Power: The D2CPA2PH9 is a dependable single-phase motor ideal for everyday industrial and commercial use—great for fans, blowers, pumps, and compressors.
-
Resilient Base Design: Built with a resilient base to absorb shock and reduce vibration, which helps extend the life of the motor and connected equipment.
-
Open Drip Proof (ODP): The ODP enclosure allows for effective cooling in clean, dry environments—ideal for indoor installations with adequate airflow.
-
Single Phase Simplicity: Operates on standard single-phase power, making it easy to integrate into a variety of setups without needing complex wiring.
-
Reliable Performance: Delivers steady RPM and dependable torque output, supporting consistent and smooth operation in various applications.
-
U.S. Motors Quality: Manufactured by a trusted name in motors, known for durability, reliability, and industry-standard performance.
Q&A
Q: What is the U.S. Motors D2CPA2PH9 used for?
A: The D2CPA2PH9 is a general-purpose motor designed for light to medium-duty equipment such as fans, blowers, pumps, and compressors in residential and commercial applications.
Q: What are the power and voltage specs of the D2CPA2PH9?
A: This motor features a single-phase, 115/230V configuration with Open Drip Proof (ODP) design, offering reliable performance in environments with minimal exposure to moisture.
Q: What does “ODP Resilient” mean?
A: "ODP" means Open Drip Proof, allowing air circulation for cooling while protecting against vertical dripping water. "Resilient" refers to a flex-mounted frame that absorbs vibrations for quieter operation.
Q: Is this motor suitable for outdoor use?
A: No, the D2CPA2PH9 is not ideal for outdoor use unless it’s properly shielded, as ODP motors are not sealed against rain or debris.
Q: Where is the D2CPA2PH9 motor best suited?
A: It’s best for indoor HVAC systems, light-duty industrial machines, and small equipment requiring dependable, cost-effective motor performance in dry conditions.
Maintenance Tips
-
Keep Motor Clean and Dry:
As an Open Drip Proof (ODP) motor, keep it in a dry, debris-free location. Avoid water exposure to prevent electrical damage.
-
Inspect Vent Openings:
Ensure air vents are free from dust and obstruction for proper cooling. Use compressed air to gently clean if needed.
-
Check Mounting & Alignment:
Verify the resilient mounting is secure and properly aligned. Loose or misaligned mounting increases wear and vibration.
-
Lubricate Bearings (If Applicable):
Some models have permanently lubricated bearings; if not, follow the lubrication schedule in the manual to avoid overheating.
-
Tighten Electrical Connections:
Periodically check terminal connections for tightness and signs of corrosion. Poor connections can cause arcing or failure.
-
Monitor for Overheating or Noise:
Unusual heat, noise, or vibration may signal mechanical or electrical issues. Address promptly to avoid motor damage.
-
Check Voltage Consistency:
Ensure incoming voltage matches motor ratings (115/230V) and that the motor runs under full load within specified limits.
-
Protect from Overload:
Use an appropriate overload protection device to prevent electrical strain or burnout during surges.
