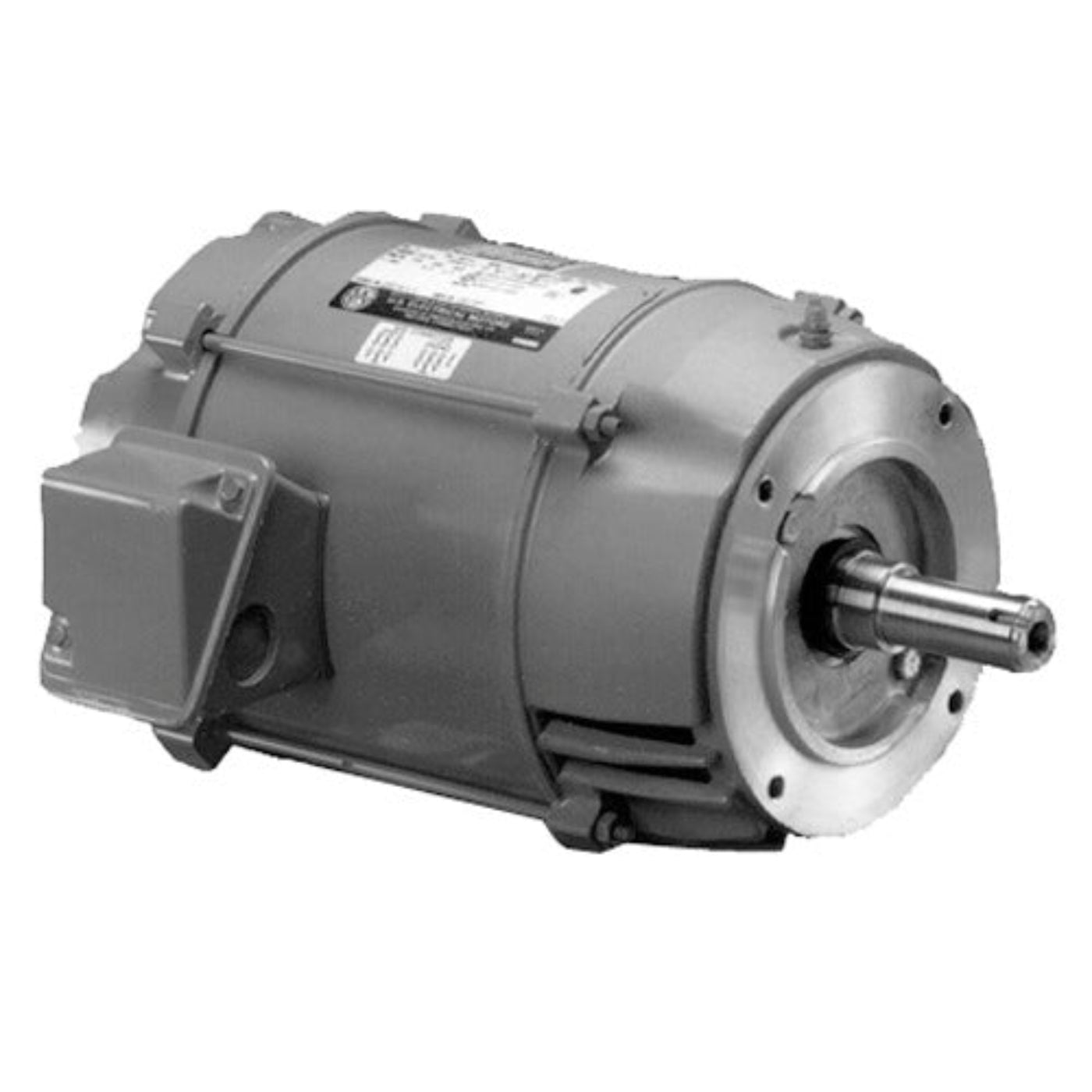

U. S. Motors U.S. Motors D2P1ACR General Purpose Three Phase ODP C-Face Motor - D2P1ACR
The U.S. Motors D2P1ACR is a general purpose three phase ODP C-Face motor designed for efficiency and reliability. This motor operates at two horsepower and delivers a speed of three thousand six hundred RPM, making it suitable for various industrial applications.
Product Highlights
This motor is built for continuous duty and features a sturdy C-face mounting that allows for easy installation. Its ODP enclosure protects internal components from moisture and dust, enhancing durability.
Features
- Type: General Purpose
- Power: 2 hp
- Voltage: 208-230/460
Specifications
| Brand |
U.S. Motors |
| Model Number (MPN) |
D2P1ACR |
| Power Rating |
2 HP |
| Enclosure Type |
ODP (Open Drip Proof) |
| Frame Size |
56C |
| Phase |
Three Phase |
| Frequency |
60 Hz |
| Voltage Rating |
208-230/460 V |
| Speed |
3600 RPM |
| Weight |
32.0 lb |
| Efficiency |
85.5% |
What our Experts Think
-
Versatile and Reliable Performance
-
Delivers 2 horsepower at 3450 RPM, suitable for a wide range of industrial applications.
-
Operates on 208/230/460V, 3-phase power, providing flexibility for various setups.
-
Features a 56C frame with C-face mounting, ensuring compatibility with existing systems.
-
Efficient and Durable Design
-
Open Drip Proof (ODP) enclosure allows for effective cooling while protecting internal components.
-
Equipped with ball bearings for smooth operation and longevity.
-
Class B insulation ensures reliable performance under varying conditions.
-
Enhanced Safety and Flexibility
-
Reversible rotation adds versatility for different operational requirements.
-
Designed for continuous-duty service, providing consistent performance over time.
Q&A
Q: What applications is the U.S. Motors D2P1ACR motor suitable for?
A: This motor is designed for general-purpose applications such as fans, blowers, compressors, and pumps in industrial and commercial settings.
Q: What are the key specifications of the D2P1ACR motor?
A: The motor delivers 2 horsepower at 3450 RPM, operates on 208/230/460V three-phase power, and features a 56C frame size with a C-Face mount. It has an Open Drip Proof (ODP) enclosure, providing adequate ventilation for clean, dry environments.
Q: What is the motor's service factor?
A: The D2P1ACR motor has a service factor of 1.15, allowing it to handle occasional overloads up to 15% above its rated capacity.
Q: What are the motor's construction features?
A: The motor includes a C-Face flange mount, ball bearings, and a keyed shaft (5/8" diameter x 1-7/8" length). It features Class B insulation and is thermally protected for safe operation.
Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the D2P1ACR motor is compatible with VFD applications, offering flexibility in speed control for various industrial processes.
Maintenance Tips
-
Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.
-
Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical faults.
-
Monitor Operating Voltage: Confirm that the motor operates within its rated voltage range (208-230/460V) to avoid damage.
-
Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.
-
Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency and prevent overheating.
-
Test Thermal Overload Protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.
-
Monitor Ambient Temperature: Operate the motor within the recommended ambient temperature range to prevent overheating and ensure efficient operation.
