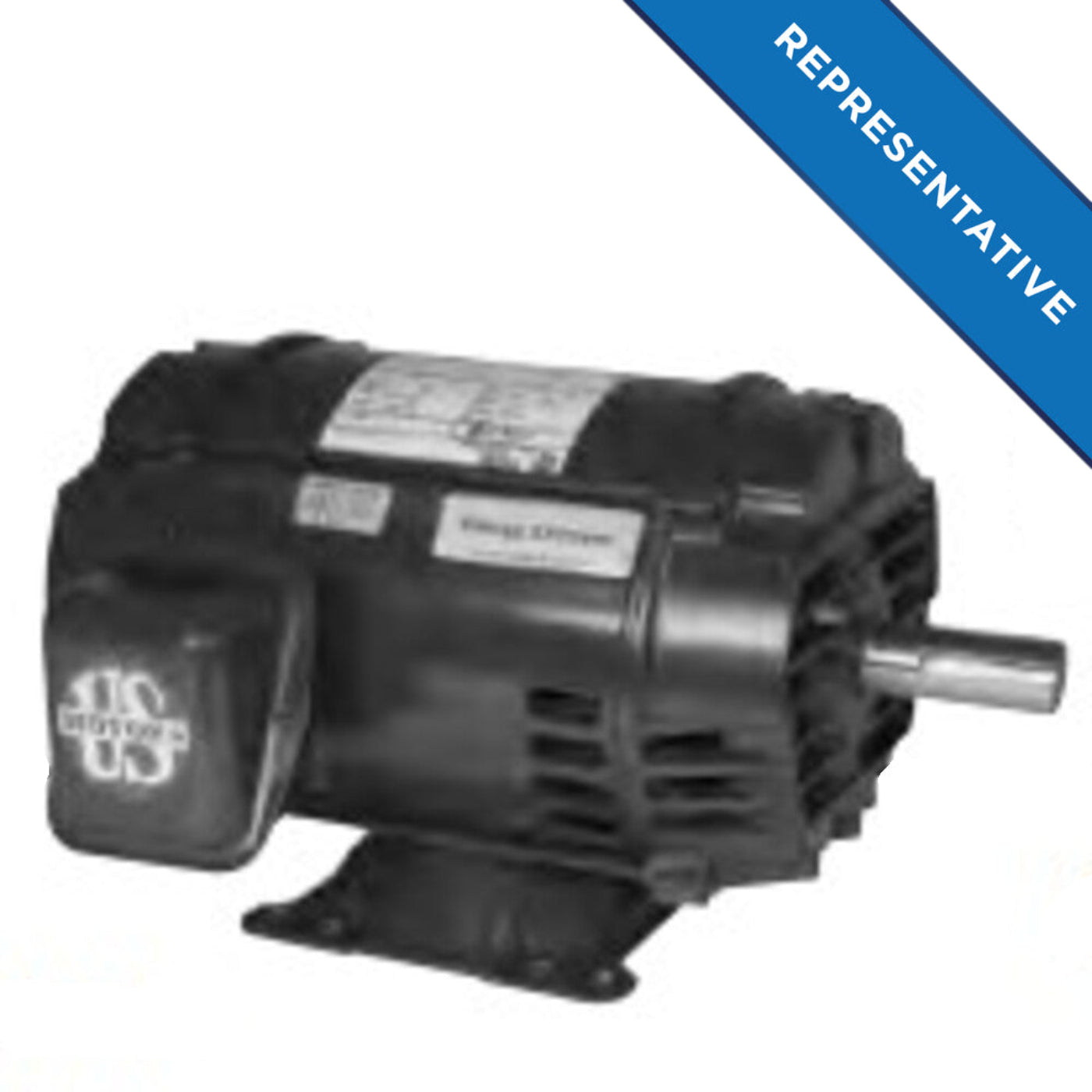

U.S. Motors D32PA1AH9 General Purpose Three Phase ODP Cradle Motor - D32PA1AH9
The U.S. Motors D32PA1AH9 is a general-purpose three-phase ODP cradle motor designed for a variety of applications. It is a reliable motor suitable for continuous duty with a power rating of one and a half horsepower. Rated at three thousand six hundred RPM, this motor operates on a voltage range of two hundred eight to two hundred thirty or four hundred sixty volts.
Product Highlights
This motor is designed for general-purpose applications, offering efficiency and reliability in various settings.
Features
- Continuous duty operation
- Two poles for effective performance
- Open drip proof design for enhanced durability
Specifications
| Voltage Rating |
208-230/460 V |
| Frame Size |
56H |
| RPM |
3600 RPM |
| Full Load Amps |
4.7-4.4/2.2 A |
| Efficiency |
84% |
| Enclosure Type |
ODP (Open Drip Proof) |
| Mounting Type |
Cradle Mount |
| Insulation Class |
B |
| Phase |
Three Phase |
| Brand |
U.S. Motors |
| Part Number (MPN) |
D32PA1AH9 |
| Motor Type |
General Purpose |
What our Experts Think
-
General Purpose Flexibility: Ideal for a wide range of applications like pumps, fans, and conveyors, providing reliable performance.
-
ODP Design: Open Drip Proof (ODP) enclosure offers effective cooling in clean, dry environments while protecting internal components from moisture.
-
Cradle Mounting: Cradle base ensures stable, secure installation with minimal vibration.
-
Three-Phase Power: Delivers smooth, energy-efficient operation for continuous-duty tasks.
-
Durable Construction: Built for longevity, requiring minimal maintenance and ensuring consistent performance.
Q&A
Q: What is the U.S. Motors D32PA1AH9?
A: The D32PA1AH9 is a general-purpose three-phase motor with an Open Drip Proof (ODP) design and cradle mounting, built for reliable performance in a variety of industrial applications.
Q: What are the key features?
A: Three-phase power, ODP (Open Drip Proof) design for ventilation, cradle mounting for easy installation, and built for general-purpose use in moderate-duty applications.
Q: Where is this motor typically used?
A: Commonly used in light to moderate industrial applications such as pumps, conveyors, and fans that require continuous, reliable operation in clean, dry environments.
Q: Why choose the D32PA1AH9 model?
A: The motor offers excellent efficiency, a durable design, and versatile mounting options, making it a great choice for general-purpose machinery in less harsh environments.
Q: Is the D32PA1AH9 motor suitable for outdoor use?
A: No, the ODP design is best suited for indoor applications where moisture and contaminants are minimal.
Maintenance Tips
-
Keep motor clean to ensure proper airflow and prevent dust buildup, which can affect cooling in the ODP (Open Drip-Proof) design.
-
Lubricate bearings according to the manufacturer’s recommendations to ensure smooth and efficient operation.
-
Inspect cradle mounting for secure attachment and alignment to prevent vibration and mechanical stress.
-
Monitor voltage supply to ensure the motor operates within its specified range for optimal performance.
-
Check electrical connections for tightness and signs of wear to prevent overheating or electrical faults.
-
Monitor motor temperature, noise, and vibration regularly to detect any potential issues.
-
Test insulation resistance annually to maintain electrical safety and extend motor life.
