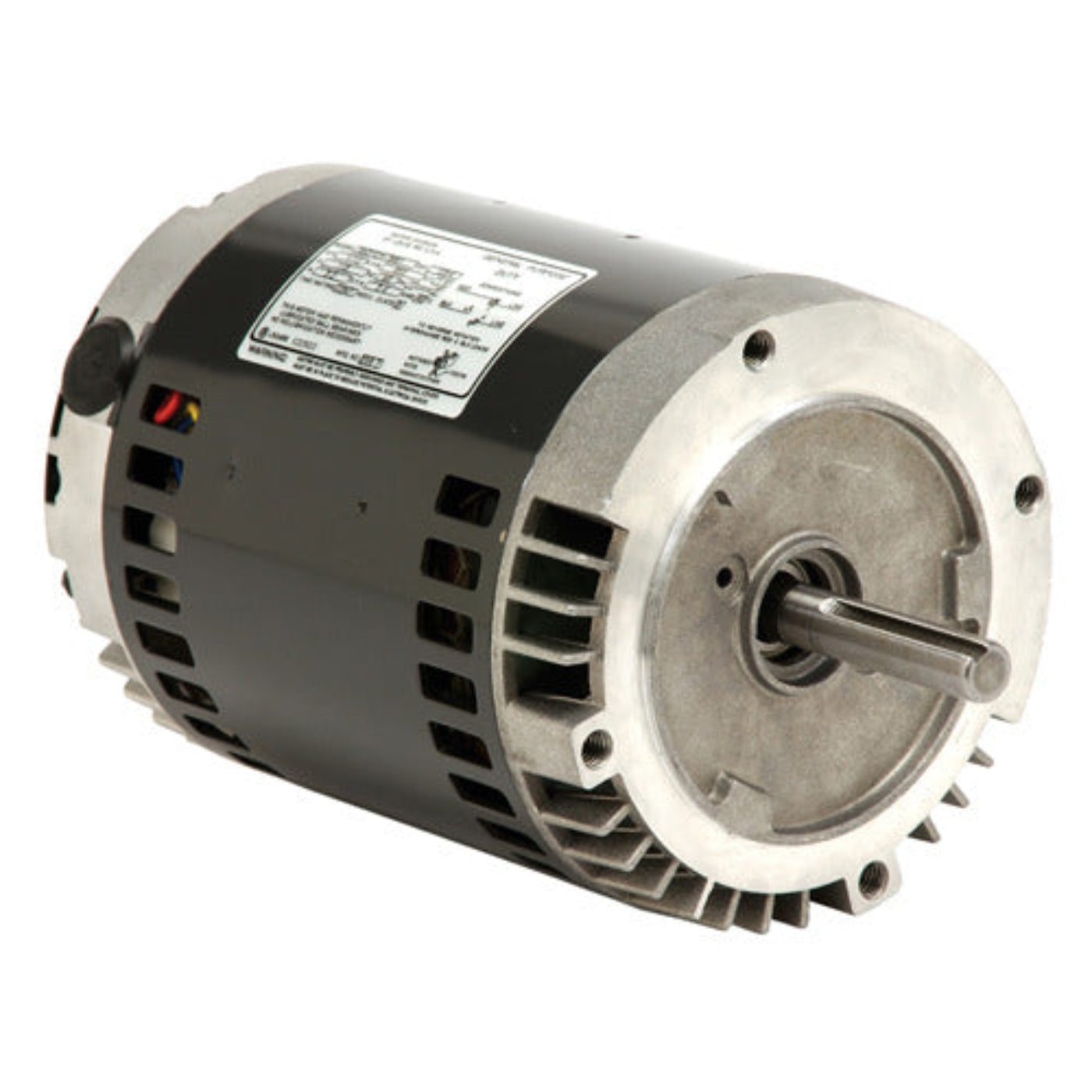

U.S. Motors D34CPA2PCR General Purpose Single Phase ODP C-Face Motor - D34CPA2PCR
The U.S. Motors D34CPA2PCR is a general purpose single-phase ODP C-face motor designed for reliable performance in various applications. With a power output of three-fourths horsepower and an operating speed of 1800 RPM, this motor is suitable for HVAC and industrial applications. Built for continuous duty, it operates efficiently across a range of voltage ratings from one hundred fifteen to two hundred thirty volts.
Product Highlights
This motor features an open drip-proof enclosure and utilizes automatic reset thermal protection for safety and reliability under load.
Features
- 3/4 horsepower capacity
- Suitable for continuous duty operation
- Easy C-face mounting
Specifications
| Voltage Rating |
115/230 V |
| Phase |
Single Phase |
| RPM |
1800 RPM |
| C Dimension |
12.8 in |
| Poles |
4 |
| Full Load Amps |
7/3.5 |
| Efficiency |
81.8% |
| Insulation Class |
B |
| Brand |
U.S. Motors |
| MPN |
D34CPA2PCR |
What our Experts Think
-
Reliable Power: The D34CPA2PCR motor is designed for general-purpose applications, providing consistent single-phase power for a wide range of equipment like fans, pumps, and conveyors.
-
C-Face Design: The C-face mounting allows for easy installation with flexible coupling, making it a go-to choice for a variety of motor-driven applications.
-
ODP Protection: The Open Drip Proof (ODP) enclosure provides adequate ventilation while protecting the motor from moisture and dust in dry environments.
-
Durable & Efficient: Built to last with a focus on efficiency, ensuring reliable performance in light to moderate-duty tasks.
-
Space-Saving Solution: Ideal for installations where space is at a premium, offering compact, powerful performance without sacrificing reliability.
Q&A
Q: What is the U.S. Motors D34CPA2PCR motor designed for?
A: The D34CPA2PCR is a general-purpose, single-phase ODP (Open Drip Proof) motor designed for use in pumps, fans, compressors, and light industrial machinery requiring reliable and consistent performance.
Q: What type of motor is the D34CPA2PCR?
A: The D34CPA2PCR is a single-phase motor with an ODP (Open Drip Proof) design, providing protection against water droplets and dust, making it suitable for environments with moderate exposure to contaminants.
Q: What is the mounting style of the D34CPA2PCR motor?
A: This motor features a C-Face mount, allowing for easy integration into systems with pre-existing coupling or mounting configurations, making it ideal for replacing or upgrading existing motors.
Q: What are the key features of the D34CPA2PCR motor?
A: The motor offers dependable, continuous-duty performance with a compact design for various commercial and industrial applications. Its ODP construction makes it suitable for use in non-harsh environments.
Q: Where is the D34CPA2PCR motor best used?
A: This motor is ideal for applications in HVAC systems, pumps, small machinery, and air handling equipment where single-phase power is needed and space is limited.
Maintenance Tips
-
Keep Exterior Clean:
Regularly clean the motor’s exterior to remove dust and debris, especially around the C-face mounting area, to maintain proper cooling and ventilation.
-
Inspect Electrical Connections:
Periodically check wiring, terminals, and connections for signs of wear, corrosion, or loosening. Tighten any loose connections to avoid voltage drops or overheating.
-
Check for Overheating:
Monitor the motor's temperature during operation. If the motor is overheating, inspect the ventilation and ensure the surrounding area is free of obstructions that may block airflow.
-
Lubricate Bearings as Needed:
Follow the manufacturer's guidelines for lubrication intervals. Proper lubrication reduces friction and wear on the motor's bearings, extending motor life.
-
Inspect for Vibration and Noise:
Listen for unusual sounds or vibrations, which may indicate an issue with misalignment, worn bearings, or an unbalanced load. Address these immediately to prevent further damage.
-
Ensure Proper Ventilation:
As an ODP (Open Drip Proof) motor, it relies on airflow for cooling. Ensure the motor is installed in a well-ventilated area and the vents are not obstructed.
-
Check for Alignment:
Verify that the motor is properly aligned with the equipment it's driving. Misalignment can cause additional wear on both the motor and connected machinery.
-
Monitor Load Conditions:
Make sure the motor is not operating beyond its rated load. Overloading can lead to premature wear and overheating.
