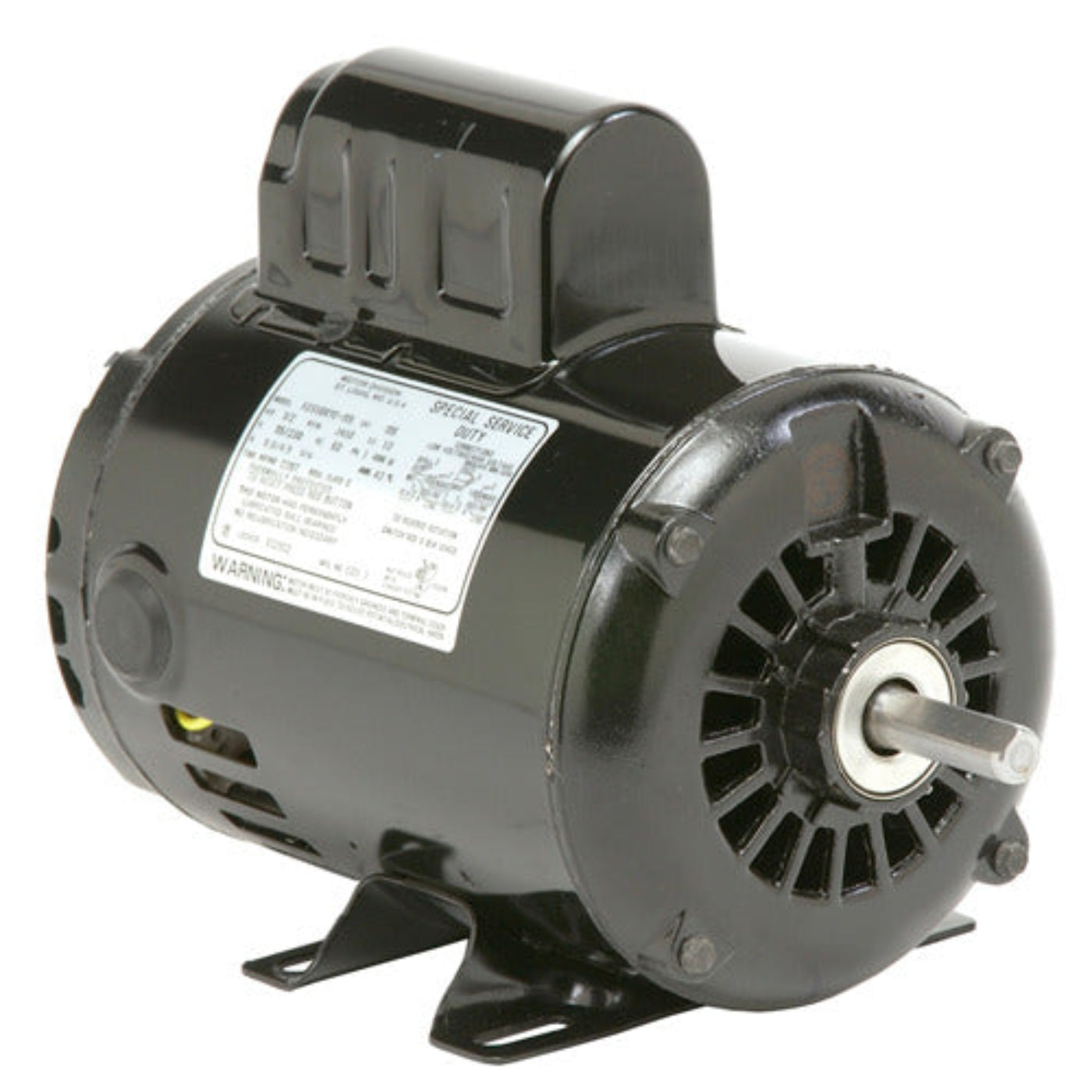

U.S. Motors D34CPM2PH General Purpose Single Phase ODP Rigid Base Motor - D34CPM2PH
The U.S. Motors D34CPM2PH is a general purpose motor designed for single phase applications. It features an open drip proof enclosure and a rigid base for stable mounting. This motor is suitable for a variety of uses in HVAC systems, fans, and pumps.
Product Highlights
This motor is built for continuous duty and has manual reset thermal protection.
Features
- Rated at three-quarters horsepower.
- Operates at an efficient speed of one thousand eight hundred RPM.
- Dual voltage capability with a rating of one hundred fifteen or two hundred thirty volts.
Specifications
| Horsepower (HP) |
1/2 HP |
| Voltage |
115/230V |
| Phase |
Single Phase |
| Frequency |
60 Hz |
| Poles |
4 |
| Full Load RPM |
1725 RPM |
| Enclosure Type |
ODP – Open Drip Proof |
| Mounting Type |
Rigid Base |
| Frame Size |
56H |
| C Dimension |
11.8 inches |
| Amperage (FLA) |
7/3.5 A |
| Insulation Class |
B |
| Service Factor |
1.25 |
| Duty Rating |
Continuous Duty |
| Application |
General Purpose |
| Weight |
29.0 LB |
| Brand |
U.S. Motors |
| MPN |
D34CPM2PH |
What our Experts Think
-
Reliable Power: Delivers 3/4 HP at 1725 RPM, ideal for continuous-duty applications such as fans, blowers, and small pumps.
-
Durable Design: Features a 56H frame with an Open Drip Proof (ODP) enclosure, providing protection against dust and moisture in indoor environments.
-
Flexible Voltage: Operates on 115/230V, 60 Hz single-phase power, offering versatility for various residential and light commercial setups.
-
Efficient Operation: Equipped with a capacitor start and run design, ensuring reliable startup and smooth operation.
-
Maintenance-Friendly: Includes ball bearings and a rigid base mount, simplifying installation and reducing maintenance needs.
Q&A
Q: What applications is the D34CPM2PH motor suitable for?
A: This motor is ideal for air compressors, pumps, fans, conveyors, and other equipment requiring a reliable single-phase power source in environments where protection from dripping water is adequate.
Q: What are the benefits of the ODP enclosure?
A: The Open Drip Proof design allows for effective cooling of the motor while preventing the entry of dripping water, making it suitable for indoor applications where moisture is minimal.
Q: Is the D34CPM2PH motor inverter-duty rated?
A: This motor is not specifically rated for inverter-duty. For applications involving variable frequency drives (VFDs), it's recommended to consult the manufacturer to ensure compatibility.
Q: Does the D34CPM2PH motor include thermal protection?
A: Yes, the motor includes manual reset thermal protection to prevent overheating and ensure safe operation.
Maintenance Tips
-
Routine Inspections: Regularly check for unusual vibrations, noises, or overheating to detect potential issues early.
-
Clean Air Vents: Ensure the Open Drip Proof (ODP) enclosure remains free from debris to maintain proper airflow and cooling.
-
Lubrication: Apply manufacturer-recommended lubricants to bearings as per guidelines to reduce friction and wear.
-
Monitor Operating Conditions: Regularly monitor motor temperature, voltage, and current to ensure optimal performance.
-
Check Alignment: Ensure proper alignment with driven equipment to avoid stress and premature wear.
-
Inspect Electrical Components: Tighten electrical connections and inspect cables for signs of damage.
-
Replace Filters: If applicable, replace air or oil filters to prevent contaminants from affecting performance.
-
Test Motor Rotation: Verify the motor rotation direction periodically to ensure proper operation.
