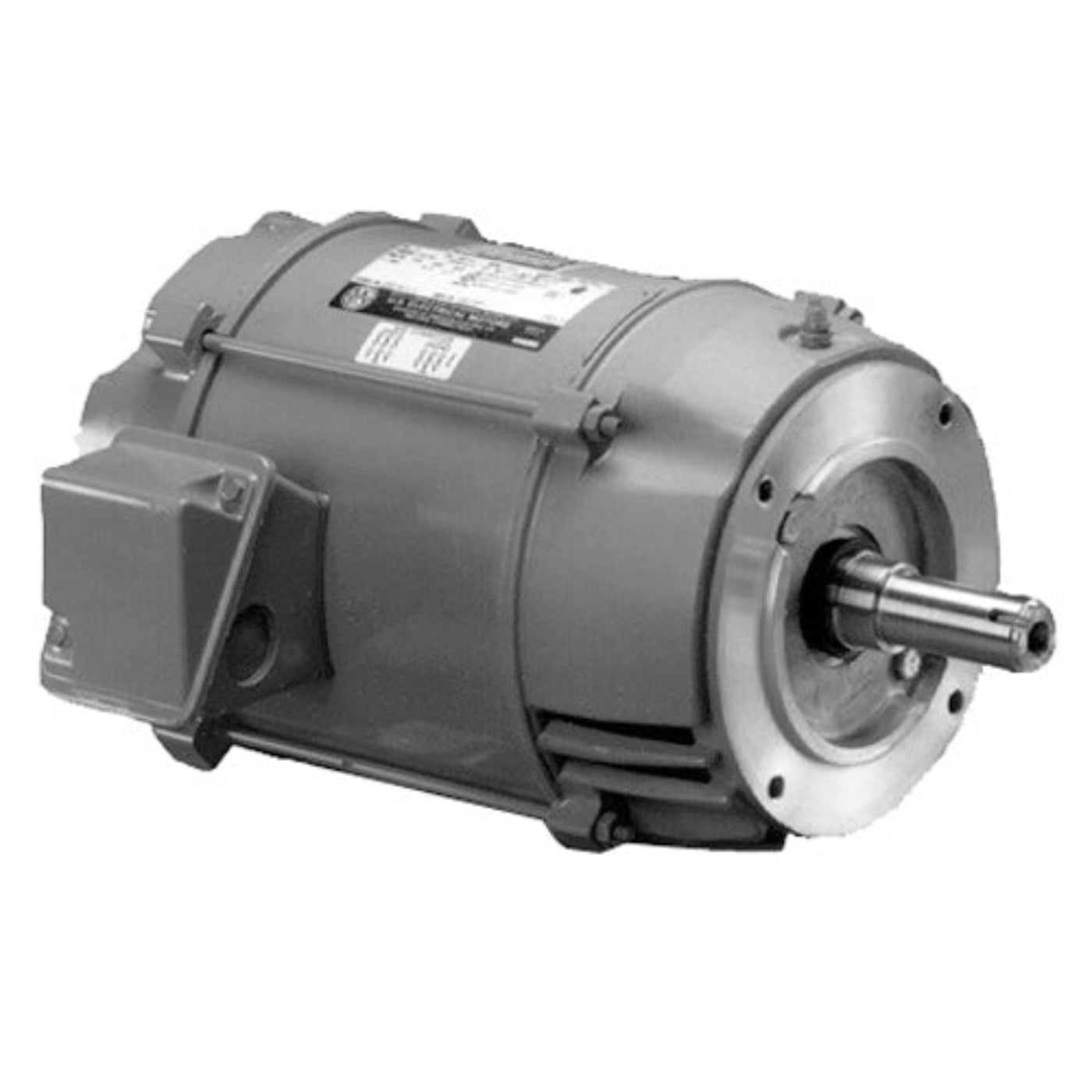

U.S. Motors DJ5P2DU Close Coupled Pump Motor Three Phase ODP Horizontal - Footless Motor - DJ5P2DU
The U.S. Motors DJ5P2DU is a close coupled pump motor designed for efficient operation in various industrial and commercial applications. This three-phase, footless motor features an ODP enclosure, making it suitable for environments where moisture is present but not directly exposed to water. It operates at 1800 RPM, allowing for optimal performance across a range of pumping tasks.
Product Highlights
This motor is ideal for pumping applications where high efficiency and reliable performance are critical. It provides significant versatility with its horizontal mounting design.
Features
- Rated power of five horsepower
- Voltage ratings include 208-230/460 and 190/380
- Continuous duty operation ensures reliability
Specifications
| Full Load RPM |
1800 RPM |
| Enclosure Type |
ODP - Open Drip Proof |
| Phase |
Three Phase |
| Frame Size |
184JM |
| Full Load Amps |
13.7-12.4/6.2 A |
| Voltage Rating |
208-230/460 & 190/380 V |
| Efficiency |
89.5% |
| Duty Type |
Continuous Duty |
| Poles |
4 |
| Weight |
60.0 LB |
| Brand |
U.S. Motors |
| MPN |
DJ5P2DU |
What our Experts Think
-
Pump-Ready Power: Provides 5 HP at 1800 RPM, ideal for direct-drive centrifugal pump applications where alignment and efficiency are key.
-
Built to Last: Features a 184JM rolled steel frame with cast aluminum end shields and a stainless steel shaft—durable, corrosion-resistant, and reliable.
-
Flexible Voltage: Operates on 208-230/460V, 60 Hz three-phase power, offering broad compatibility for industrial systems.
-
Energy Efficient: Delivers a high full-load efficiency of 89.5%, helping reduce energy consumption and operational costs.
-
Smart Design: Footless horizontal mount and reversible rotation make installation and servicing straightforward; ball bearings support smooth, low-friction operation.
Q&A
Q: What are common applications for the DJ5P2DU?
A: This motor is commonly used in close-coupled pump systems across water treatment, commercial HVAC, irrigation, and industrial fluid transfer applications.
Q: What is the benefit of the ODP enclosure?
A: The ODP design provides effective cooling through airflow and is suitable for clean, dry indoor environments where exposure to moisture or dust is limited.
Q: Is the motor inverter-duty rated?
A: While not specifically inverter-duty rated, its Class F insulation and premium efficiency suggest potential compatibility with VFD systems. Confirm with the manufacturer for VFD use.
Q: Does this motor include thermal protection?
A: No, the DJ5P2DU does not include built-in thermal protection. External overload protection is recommended.
Maintenance Tips
-
Inspect Regularly: Monitor for unusual vibrations, noises, or overheating to detect potential issues early.
-
Maintain Cleanliness: Keep the Open Drip Proof (ODP) enclosure free from dust and debris to ensure proper airflow and cooling.
-
Lubricate Bearings: Follow manufacturer guidelines to lubricate bearings, reducing friction and wear.
-
Monitor Operating Conditions: Regularly check motor temperature, voltage, and current to ensure optimal performance.
-
Check Alignment: Ensure the motor is properly aligned with the pump to prevent undue stress and wear.
-
Inspect Electrical Components: Tighten electrical connections and inspect cables for signs of damage.
-
Replace Filters: If applicable, replace air or oil filters to prevent contaminants from affecting performance.
-
Test Motor Rotation: Verify the motor rotation direction periodically to ensure proper operation.
