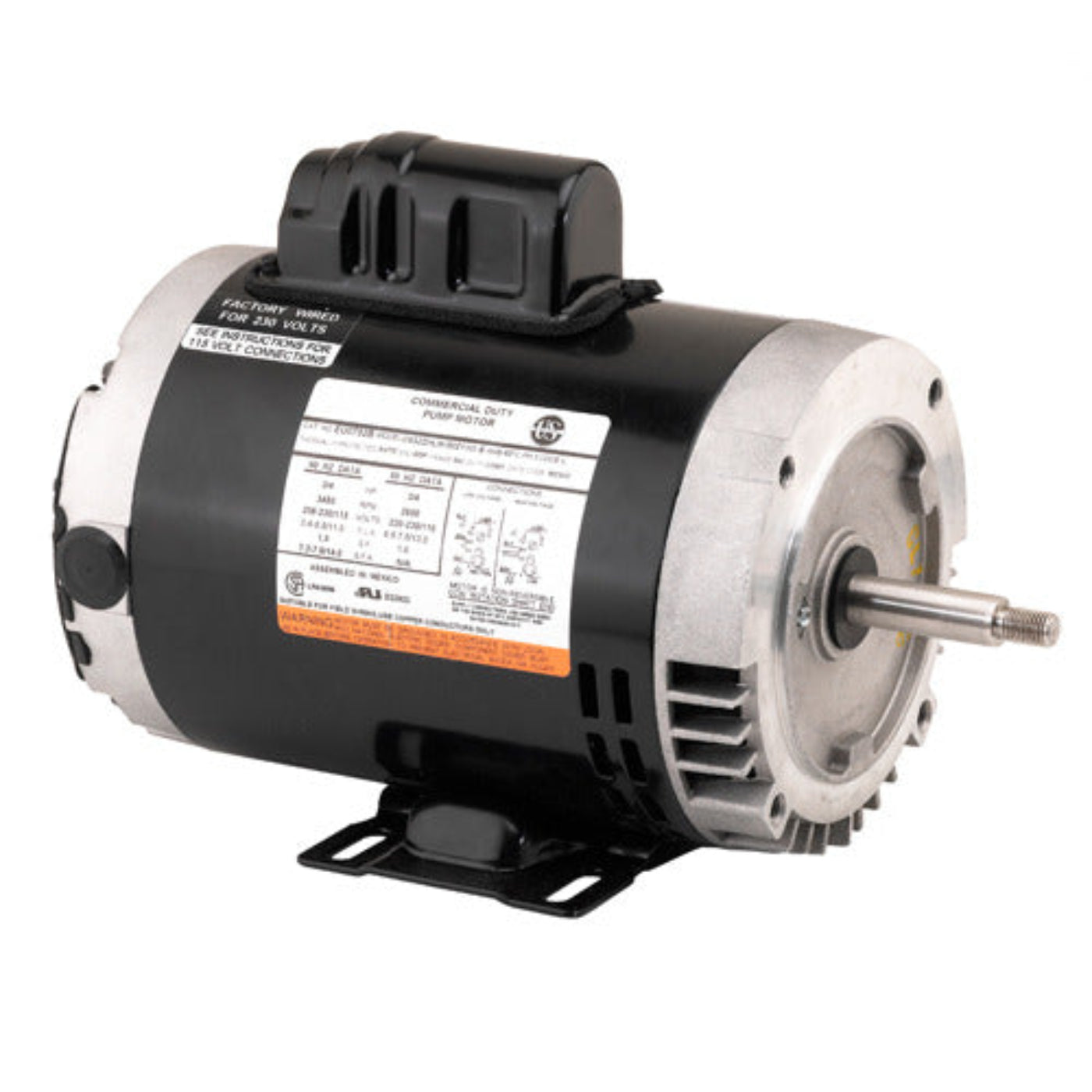

U.S. Motors EU0752B General Purpose Single Phase ODP J-Face/Rem Base Motor - EU0752B
The U.S. Motors EU0752B is a reliable general purpose single phase motor. This motor is designed for various applications, providing consistent and dependable performance in many settings. It features a rating of three fourths horsepower at a speed of three thousand six hundred rotations per minute.
Product Highlights
This motor is intended for general purpose applications, including pumps, and includes features designed for efficiency and durability.
Features
- Continuous duty performance
- Equipped for 115/208-230 voltage ratings
- ODP enclosure for optimal protection
Specifications
| Duty |
Continuous Duty |
| Poles |
2 |
| Phase |
Single Phase |
| Frequency (Hz) |
60 Hz, 50/60 Hz |
| Full Load RPM |
2850 RPM, 3450 RPM |
| Full Load Amps |
11/5.4-5.5 |
| Frame |
56, 56J |
| Thermal Protection |
Automatic Reset |
| Horsepower |
3/4 HP |
| RPM |
3600 RPM |
| Service Factor |
1.51 |
| Motor Application |
General Purpose, Pump Motor |
| Voltage Rating |
230, 115, 110, 220, 208, 115/208-230, 110/220 |
| Enclosure Designation |
ODP - Open Drip Proof |
| Insulation Class |
B |
| C Dimension |
12.1 inches |
| Mounting |
J-Face, J-Face/Rem Base |
| Weight |
19.0 lbs |
| EAN or UPC |
786382053994 |
| Brand |
U.S. Motors |
| Part Number (MPN) |
EU0752B |
What our Experts Think
-
Versatile Power: The EU0752B motor delivers reliable single-phase power, ideal for general-purpose applications like fans, pumps, and light industrial equipment.
-
ODP Enclosure: The Open Drip Proof (ODP) design ensures efficient cooling and protection against dust and debris, making it suitable for clean indoor environments.
-
J-Face/Removable Base Design: Features a J-Face and removable base, offering flexible installation options for various mounting configurations and making it easier to replace or repair.
-
Durable and Long-Lasting: Built with high-quality materials for long-term durability, reducing the need for frequent maintenance and minimizing downtime.
-
Efficient and Reliable: Designed for consistent performance, the EU0752B motor ensures steady operation with minimal vibration, making it perfect for continuous-duty tasks.
-
U.S. Motors Quality: Backed by the trusted reputation of U.S. Motors, known for their engineering excellence and reliable motor solutions.
Q&A
Q: What is the U.S. Motors EU0752B used for?
A: The EU0752B is a general-purpose motor commonly used in applications such as pumps, fans, compressors, and other light industrial or commercial equipment.
Q: What are the key specifications of the EU0752B motor?
A: The EU0752B is a single-phase motor with an Open Drip Proof (ODP) design. It features a J-face mount and a removable base, offering flexibility for various installations.
Q: What does "J-Face/Rem Base" mean for the EU0752B motor?
A: The J-face refers to a specific mounting flange used to attach the motor to equipment. The removable base allows for easy motor positioning and installation, providing versatility in different setups.
Q: What type of protection does the EU0752B motor offer?
A: The motor has an ODP (Open Drip Proof) design, which provides some protection against the ingress of water and dust. It is ideal for clean, dry environments.
Q: Where is the EU0752B motor best suited?
A: The EU0752B is ideal for indoor industrial applications such as HVAC systems, small machinery, and commercial equipment where reliable motor performance is needed in non-harsh, dry environments.
Maintenance Tips
-
Regular Cleaning:
Keep the motor clean and free of dust, dirt, and debris, which can impede airflow and cause overheating. Use a dry cloth or compressed air to clean the motor regularly.
-
Inspect Electrical Connections:
Periodically check the wiring and terminal connections for tightness and corrosion. Loose or corroded connections can lead to electrical faults and motor failure.
-
Lubricate Bearings (If Applicable):
If the motor has external lubrication points, follow the manufacturer’s guidelines for lubrication intervals. Proper lubrication ensures smooth bearing operation and extends motor life.
-
Monitor for Overheating:
Ensure the motor does not overheat during operation. Excessive heat can indicate an overload condition, poor ventilation, or mechanical issues. Check for adequate airflow and ensure the motor is not being operated beyond its capacity.
-
Check for Unusual Vibration or Noise:
Excessive vibration or noise can indicate an imbalance, misalignment, or bearing wear. Address these issues promptly to prevent damage to the motor and connected equipment.
-
Verify Voltage and Power Supply:
Ensure that the motor is connected to the correct voltage (115/230V) and that the electrical supply is stable. Voltage imbalances or fluctuations can lead to motor inefficiency or failure.
-
Inspect Mounting and Alignment:
Ensure the motor is securely mounted and properly aligned with the equipment it drives. Misalignment can lead to additional stress, vibration, and premature wear.
-
Protect from Moisture:
As an Open Drip Proof (ODP) motor, ensure it is kept in a dry environment to prevent moisture from entering and causing electrical or rusting damage.
-
Check for Overload Protection:
Ensure that the motor is equipped with appropriate overload protection to prevent damage from excessive loads or electrical surges.
