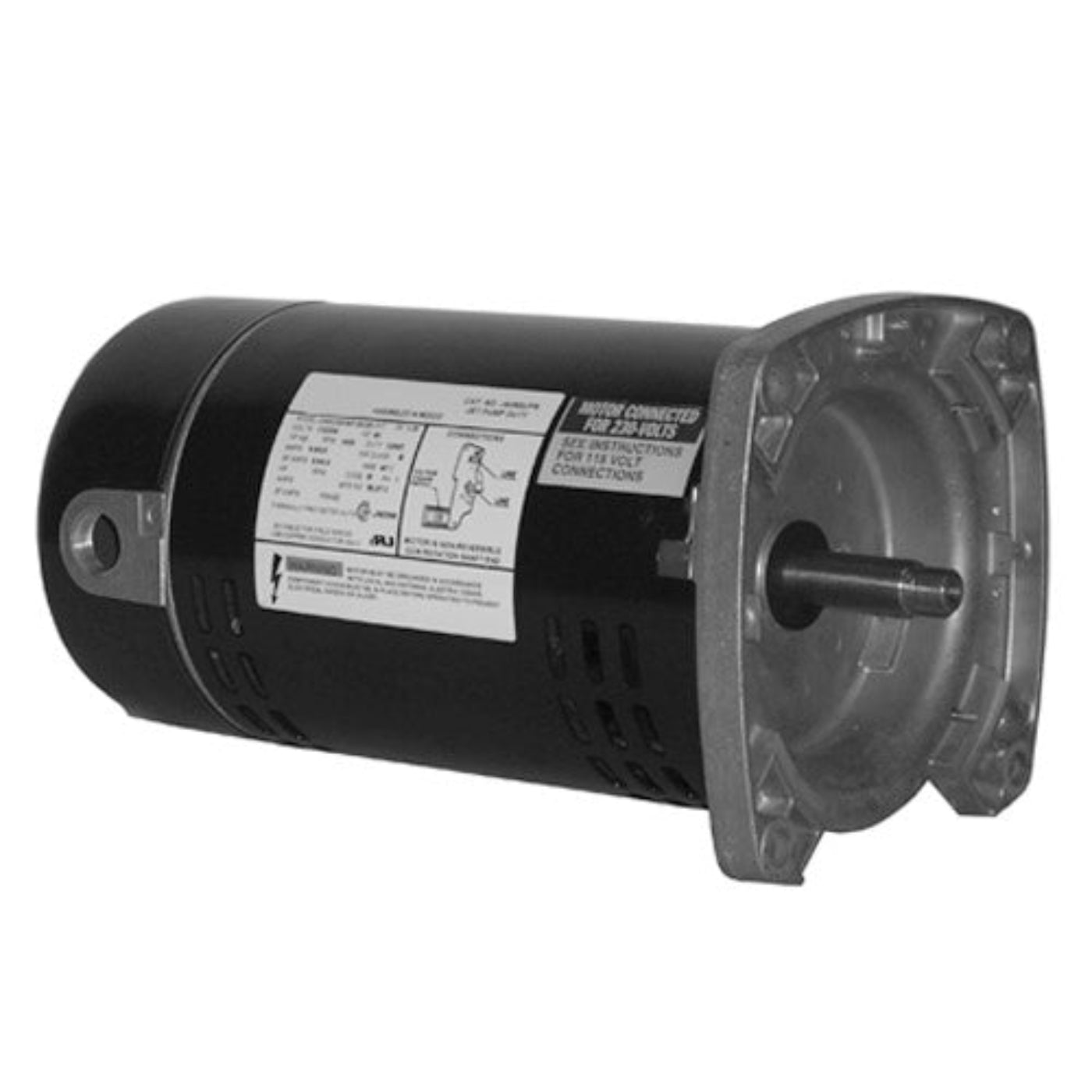

U.S. Motors JS1502-2V Jet Pump Single Phase ODP Square Flange Motor - JS1502-2V
The U.S. Motors JS1502-2V is a jet pump motor designed for efficiency in various pumping applications. This motor operates on a single phase and is rated at one and a half horsepower, making it suitable for residential and small commercial installations.
Product Highlights
This motor is ideal for pump applications, particularly in jet pump setups, where reliability and performance are crucial.
Features
- 1.5 horsepower for effective pumping
- Single-phase operation with a speed of 3600 rpm
- ODP (Open Drip Proof) enclosure for ventilation
Specifications
| Enclosure |
ODP (Open Drip Proof) |
| Full Load Amps |
14.8 / 7.4 |
| Horsepower |
1 1/2 HP |
| Frequency |
60 Hz |
| Insulation Class |
B |
| Phase |
Single |
| Full Load RPM |
3450 |
| Thermal Protection |
Automatic Reset |
| Voltage Rating |
230, 115/230, 115 V |
| Drive End Bearing |
6205 |
| Open End Bearing |
6203 |
| Frame |
56 |
| Poles |
2 |
| Application |
Pump Motor, Jet Pump |
| Service Factor |
1.5 |
| Weight |
24.0 lbs |
| C Dimension |
13.4 inches |
| Brand |
U.S. Motors |
| MPN |
JS1502-2V |
What our Experts Think
-
Optimized for Jet Pumps: The JS1502-2V motor is specifically designed for jet pumps, making it perfect for use in water systems, agricultural applications, and well pumps.
-
Single-Phase Power: Operating on single-phase power, this motor is ideal for residential and light commercial installations where three-phase power isn't available.
-
ODP Enclosure: The Open Drip Proof (ODP) design ensures that the motor stays cool and protected from debris in dry environments, making it suitable for indoor installations with adequate ventilation.
-
Square Flange Design: Featuring a square flange, this motor is easy to install and compatible with most jet pump systems that require a flange mount.
-
Reliable and Durable: Built to handle continuous-duty operation, the JS1502-2V motor offers long-lasting performance and minimal maintenance needs.
-
U.S. Motors Quality: Known for their durability and high efficiency, U.S. Motors brings its trusted engineering expertise to this motor, ensuring reliability and top-tier performance.
Q&A
Q: What is the U.S. Motors JS1502-2V used for?
A: The JS1502-2V is a single-phase motor designed for jet pump applications in residential and light commercial water pumping systems, such as well pumps and irrigation pumps.
Q: What are the power and speed specifications for the JS1502-2V motor?
A: The motor provides 1.5 HP and operates at a standard 3450 RPM, which is ideal for high-speed pumping systems.
Q: What does "ODP" mean for the JS1502-2V motor?
A: "ODP" stands for Open Drip Proof, meaning the motor is designed to be open to the air, with protection against vertically falling water or moisture but not against dust or dirt. It’s best for clean, dry environments.
Q: What is a Square Flange motor?
A: The Square Flange design refers to a motor mount that has a square-shaped flange for easy installation onto compatible pump equipment, offering a secure and stable fit.
Q: Where is the JS1502-2V motor best suited?
A: The JS1502-2V motor is best suited for jet pump systems, such as well water pumps, irrigation systems, and residential water supply pumps, where reliable and efficient motor performance is needed in non-hazardous, clean conditions.
Maintenance Tips
-
Regular Cleaning:
Keep the motor and surrounding area free of dirt, dust, and debris. Use a dry cloth or compressed air to clean the motor periodically to maintain proper airflow and prevent overheating.
-
Inspect Electrical Connections:
Check all electrical connections and terminals for tightness, corrosion, and wear. Ensure that connections are secure to avoid electrical faults that could lead to motor failure.
-
Lubricate Bearings (If Applicable):
If the motor has external lubrication points, follow the manufacturer's recommendations for lubrication intervals. Proper lubrication reduces friction and extends bearing life.
-
Monitor for Overheating:
Periodically check the motor temperature during operation. If the motor becomes too hot, verify that the motor is not overloaded and that the ventilation is adequate. Overheating can damage the motor and reduce its lifespan.
-
Check for Unusual Noise or Vibration:
Pay attention to any unusual noise or vibrations. These can be signs of misalignment, worn bearings, or other mechanical issues. Addressing these concerns early can prevent further damage.
-
Verify Voltage and Power Supply:
Ensure the motor is operating at the correct voltage (typically 115/230V). An unstable or incorrect power supply can cause inefficiency or motor failure.
-
Inspect Mounting and Alignment:
Ensure the motor is securely mounted and properly aligned with the pump. Misalignment or loose mounting can lead to excessive vibrations and premature wear.
-
Prevent Moisture Exposure:
As an Open Drip Proof (ODP) motor, keep it in a dry, clean environment. Avoid exposing the motor to moisture or water to prevent rusting or electrical issues.
-
Check Overload Protection:
Verify that the motor is equipped with appropriate overload protection to prevent damage in case of excessive load conditions.
