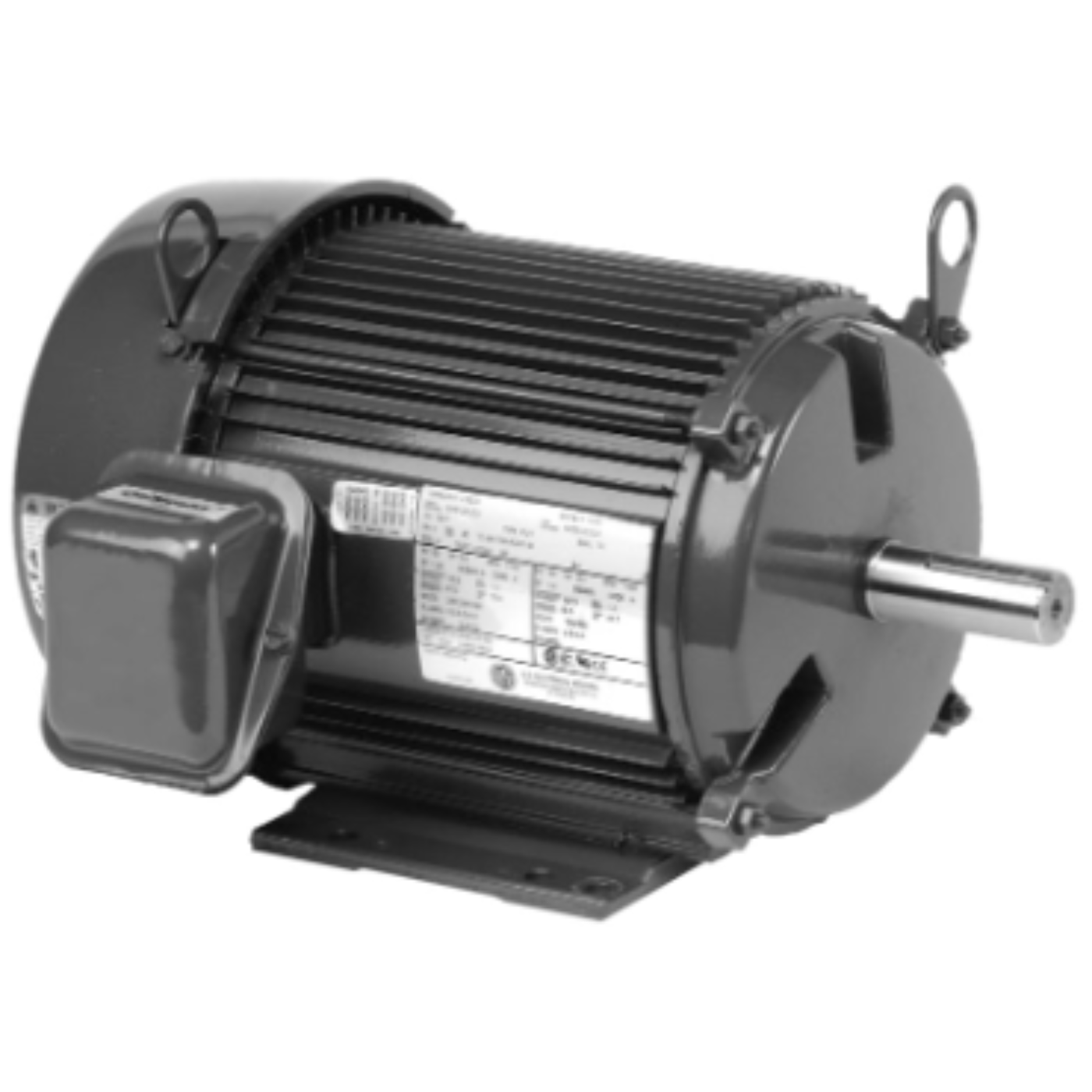

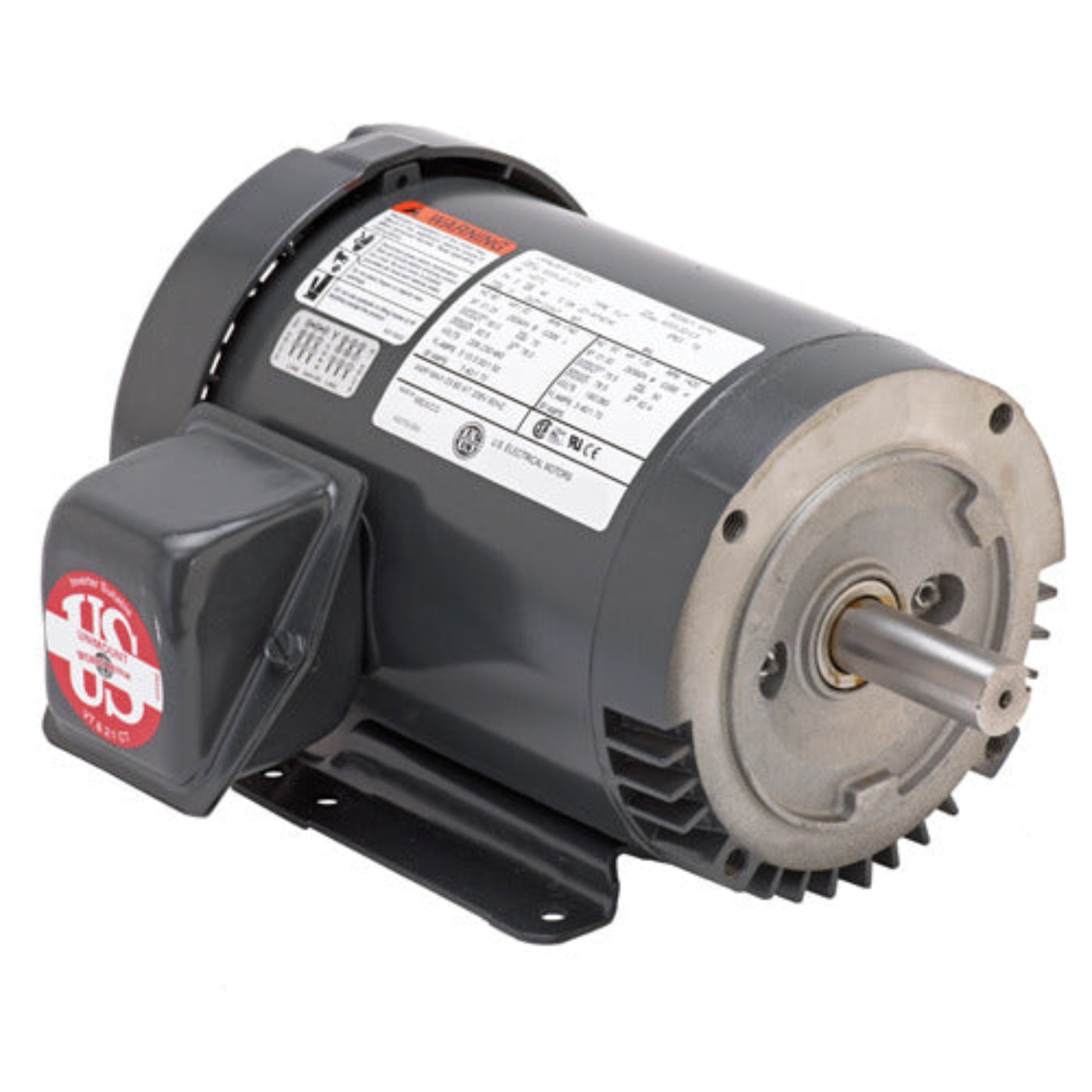

U.S. Motors S10P1AC General Purpose Three Phase , TEFC Steel Edge C-Face Footed Motor - S10P1AC
The U.S. Motors S10P1AC is a general-purpose three-phase motor. It operates at ten horsepower and has a speed of 3,600 RPM. This durable motor features a C-face mounting and is designed for industrial applications including pumps and fans.
Product Highlights
The U.S. Motors S10P1AC is ideal for various applications in industrial settings. It excels in challenging environments like damp and dusty locations.
Features
- Full load efficiency of ninety percent
- TEFC enclosure protects against dust and moisture
- Class F insulation rated for reliable performance
Specifications
| Horsepower |
10 HP |
| Voltage |
208-230/460 V |
| Frame Size |
215TC |
| Full Load Amps |
11.7 / 23.5 / 26.5 A |
| Phase |
Three Phase |
| Efficiency Group |
Premium Efficient |
| Enclosure |
TEFC - Totally Enclosed Fan Cooled |
| Service Factor |
1.15 |
| Brand |
U.S. Motors |
| MPN |
S10P1AC |
What our Experts Think
-
Industrial Strength: With 10 HP and three-phase power, the S10P1AC is designed to handle demanding applications in manufacturing, HVAC, and processing environments.
-
TEFC Protection: The Totally Enclosed Fan Cooled (TEFC) enclosure guards against dust, dirt, and moisture—perfect for tough, dirty conditions.
-
C-Face with Foot Mounting: Offers flexible installation options with both C-face and footed design, making it an easy drop-in replacement or first-time fit.
-
Durable Steel Edge Build: Rugged construction ensures long operational life and dependability, even in harsh industrial settings.
-
Smooth & Efficient: Engineered for steady performance and high efficiency, reducing downtime and energy costs.
Q&A
Q: What is the U.S. Motors S10P1AC motor used for?
A: The S10P1AC is a 10 HP general purpose motor ideal for use in pumps, compressors, conveyors, and other industrial or commercial equipment requiring robust, continuous-duty power.
Q: What type of enclosure does the S10P1AC have?
A: It features a TEFC (Totally Enclosed Fan Cooled) enclosure, which protects the motor from dust, dirt, and moisture—making it great for demanding environments.
Q: What are the key specs of the S10P1AC motor?
A: This is a three-phase motor with 10 HP, C-face mounting with foot, and a steel frame for extra durability. It's built for reliable, high-performance operation.
Q: Why choose a C-Face, footed motor like the S10P1AC?
A: The C-face with foot design allows for flexible mounting options, making installation easy in both new and replacement applications.
Q: Where is the S10P1AC best used?
A: It's ideal for industrial facilities, HVAC systems, and automated machinery, especially where rugged construction and versatile mounting are needed.
Maintenance Tips
-
Keep the Motor Clean:
Wipe down the motor exterior and cooling fins regularly to prevent overheating and ensure proper airflow through the TEFC (Totally Enclosed Fan Cooled) enclosure.
-
Inspect Electrical Connections:
Periodically check terminals and cables for secure, corrosion-free connections. Faulty wiring can lead to power loss or motor failure.
-
Monitor Motor Temperature:
Use infrared or contact thermometers to ensure the motor operates within its rated temperature range. Overheating may signal overload or restricted airflow.
-
Check for Vibration and Noise:
Unusual vibration or sounds often indicate imbalance, misalignment, or bearing issues. Promptly investigate and address any abnormalities.
-
Lubricate Bearings as Needed:
Follow manufacturer guidelines for bearing lubrication intervals and use the specified lubricant to extend bearing life and reduce friction.
-
Verify Voltage and Load Conditions:
Ensure the motor operates within its rated voltage and under normal load. Overload can cause excess wear and premature failure.
-
Inspect Mounting and Alignment:
Ensure the motor is securely mounted and properly aligned with the driven equipment to avoid unnecessary stress on shafts and bearings.
-
Prevent Moisture Ingress:
Though TEFC motors offer protection, avoid excessive exposure to water or humidity to prevent internal condensation and corrosion.
