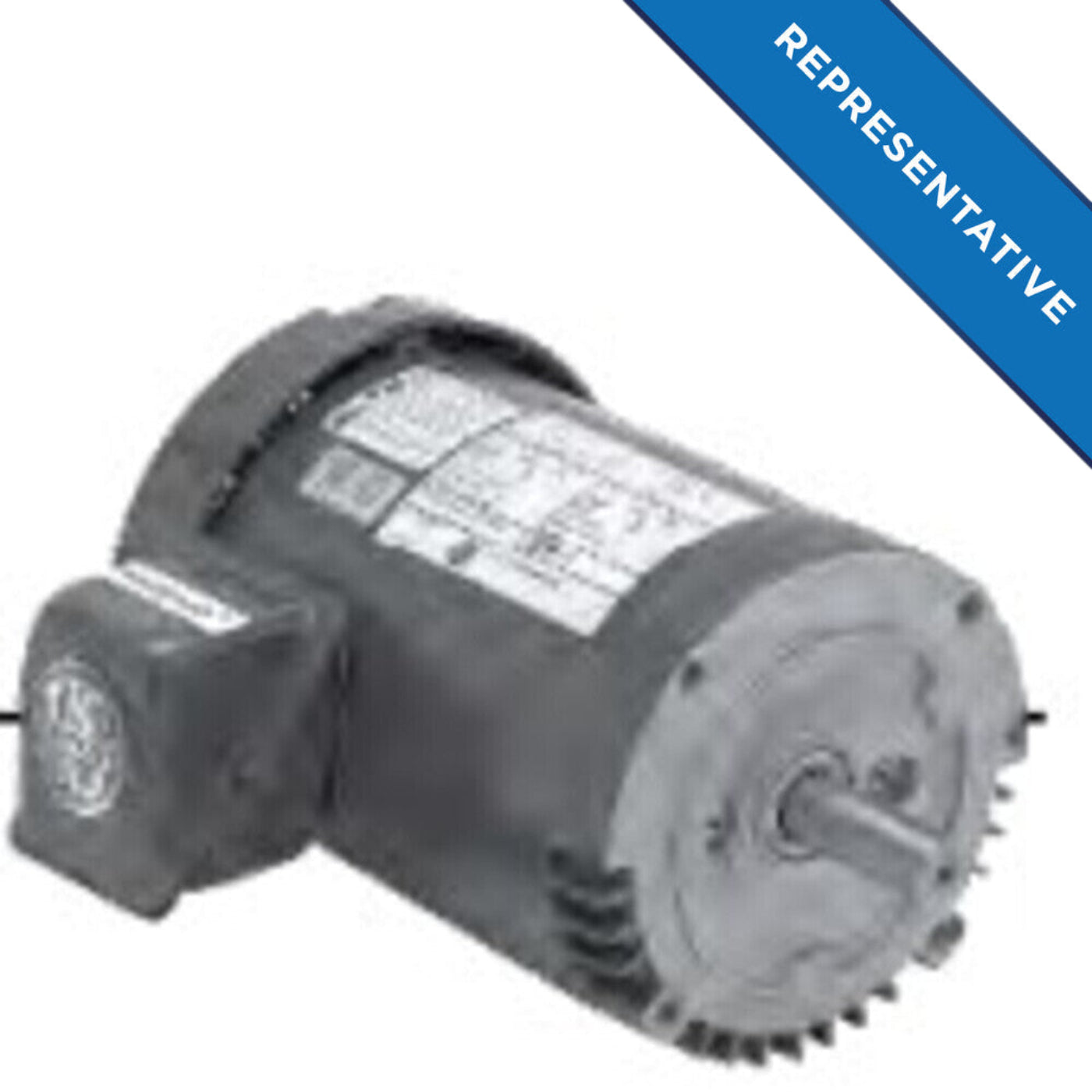

U.S. Motors T2P1AH General Purpose Three Phase TEFC Rigid Motor - T2P1AH

U.S. Motors T2P1AH General Purpose Three Phase TEFC Rigid Motor - T2P1AH

The U.S. Motors T2P1AH is a general-purpose three-phase motor with a TEFC design. It operates at a variable speed of 3600 RPM and has a power output of 2 horsepower. This motor is suitable for various industrial applications including pumps, compressors, and fans.

Product Highlights

Key features include a rigid mount, 60 Hz operating frequency, and a voltage rating of 208-230/460. The motor is designed for continuous duty and provides reliable performance over long periods.

Features

• Powerful three-phase operation
• TEFC enclosure for better durability
• Efficient full load efficiency rating of 85.5%

Specifications

What our Experts Think

• 2 HP Output:
  Provides reliable power at 3450 RPM, suitable for a wide range of general-purpose applications.

• Three-Phase Operation:
  Compatible with 208-230/460V, 60 Hz three-phase power systems for efficient, consistent performance.

• Totally Enclosed Fan Cooled (TEFC) Enclosure:
  Offers excellent protection against dust, moisture, and other contaminants, ensuring long-lasting durability.

• Rigid Base Mounting:
  Designed for easy and secure installation, providing a stable platform for the motor.

• NEMA 56H Frame:
  Standard frame size for compatibility with a variety of industrial and commercial applications.

• Service Factor of 1.15:
  Allows for handling occasional overloads, adding a margin of safety for demanding tasks.

• Premium Efficiency:
  Engineered to minimize energy consumption and reduce operational costs, while providing consistent performance.

• Corrosion-Resistant Coating:
  Mill and chemical-duty paint enhances motor durability, especially in harsh environments.

• Flexible Mounting Options:
  Can be converted to F2 mounting, offering greater flexibility in installation configurations.

Q&A

Q: What applications is the T2P1AH motor suitable for?
A: This motor is perfect for pumps, fans, compressors, conveyors, and other industrial machinery that require reliable, high-performance operation.

Q: Is the T2P1AH motor reversible?
A: Yes, the motor is designed to be reversible, allowing for flexible installation.

Q: Does the T2P1AH motor include thermal protection?
A: No, the motor does not come with built-in thermal overload protection. External protection should be used for safe operation.

Q: What are the advantages of a TEFC motor?
A: The TEFC design offers enhanced protection against dust, dirt, and moisture, ensuring longer motor life and reducing maintenance.

Q: What is the duty cycle and temperature range of the T2P1AH motor?
A: The T2P1AH is rated for continuous duty and operates effectively in ambient temperatures up to 40°C.

Maintenance Tips

• Routine Cleaning:

• Ensure the motor is clean and free from dust and debris to promote proper ventilation and cooling.

• Clean the motor housing periodically with a dry cloth or air blower to prevent dust accumulation.

• Electrical Inspections:

• Inspect all electrical connections for signs of wear, corrosion, or loosening. Tighten any loose connections.

• Check for proper grounding to prevent electrical hazards.

• Lubrication:

• Ensure that the bearings are lubricated as per the manufacturer's guidelines. This will minimize friction and prolong motor life.

• Use the recommended lubricant type and apply it at intervals specified in the user manual.

• Thermal Protection:

• Monitor the motor’s temperature during operation to ensure it is not overheating. The motor is equipped with thermal protection, but it is crucial to check periodically.

• Check the motor’s thermal protection system to ensure it is working effectively.

• Physical Inspections:

• Regularly inspect the motor frame and shaft for damage, such as cracks or rust. Address any issues immediately.

• Ensure the motor is securely mounted and aligned properly to prevent unnecessary wear or vibration.
