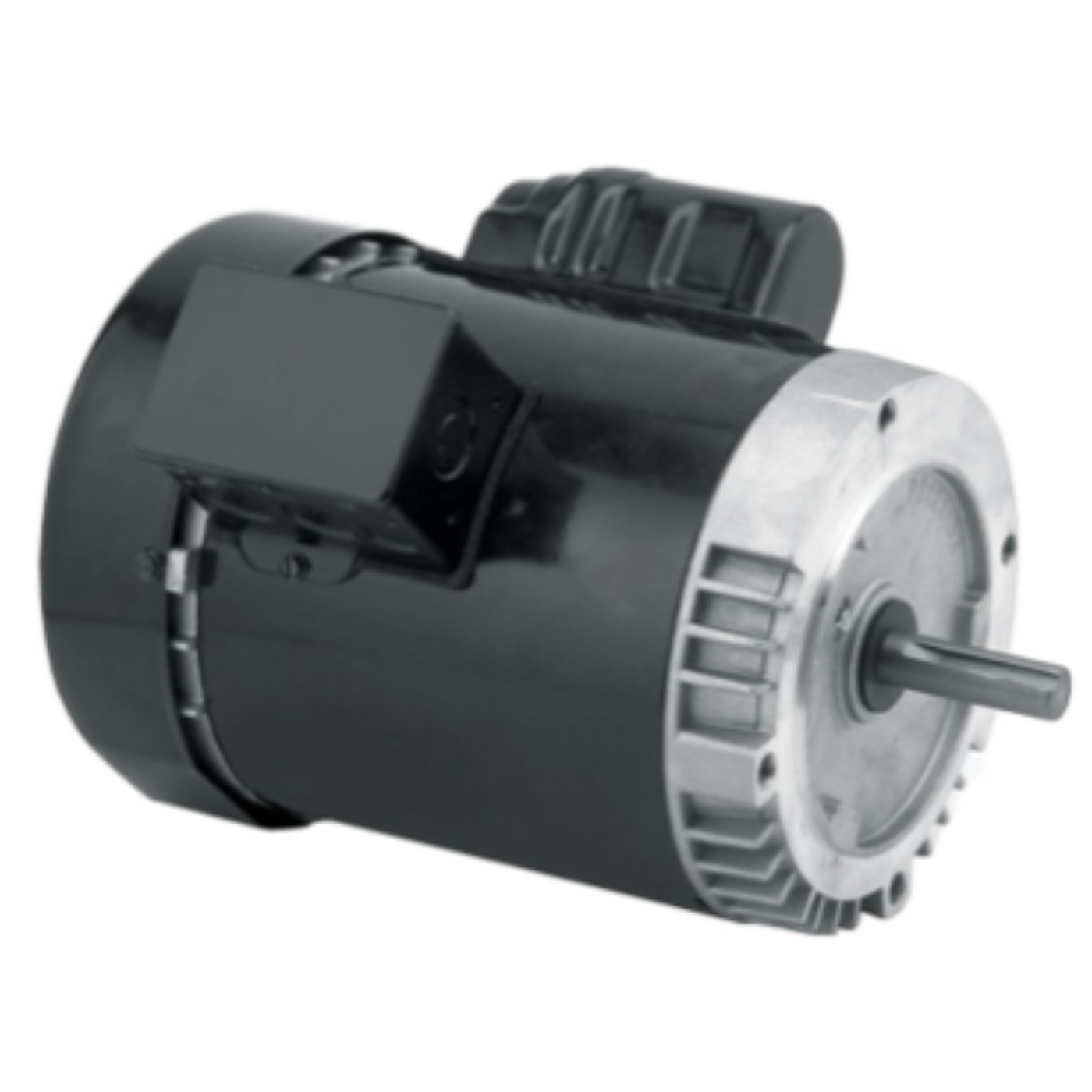

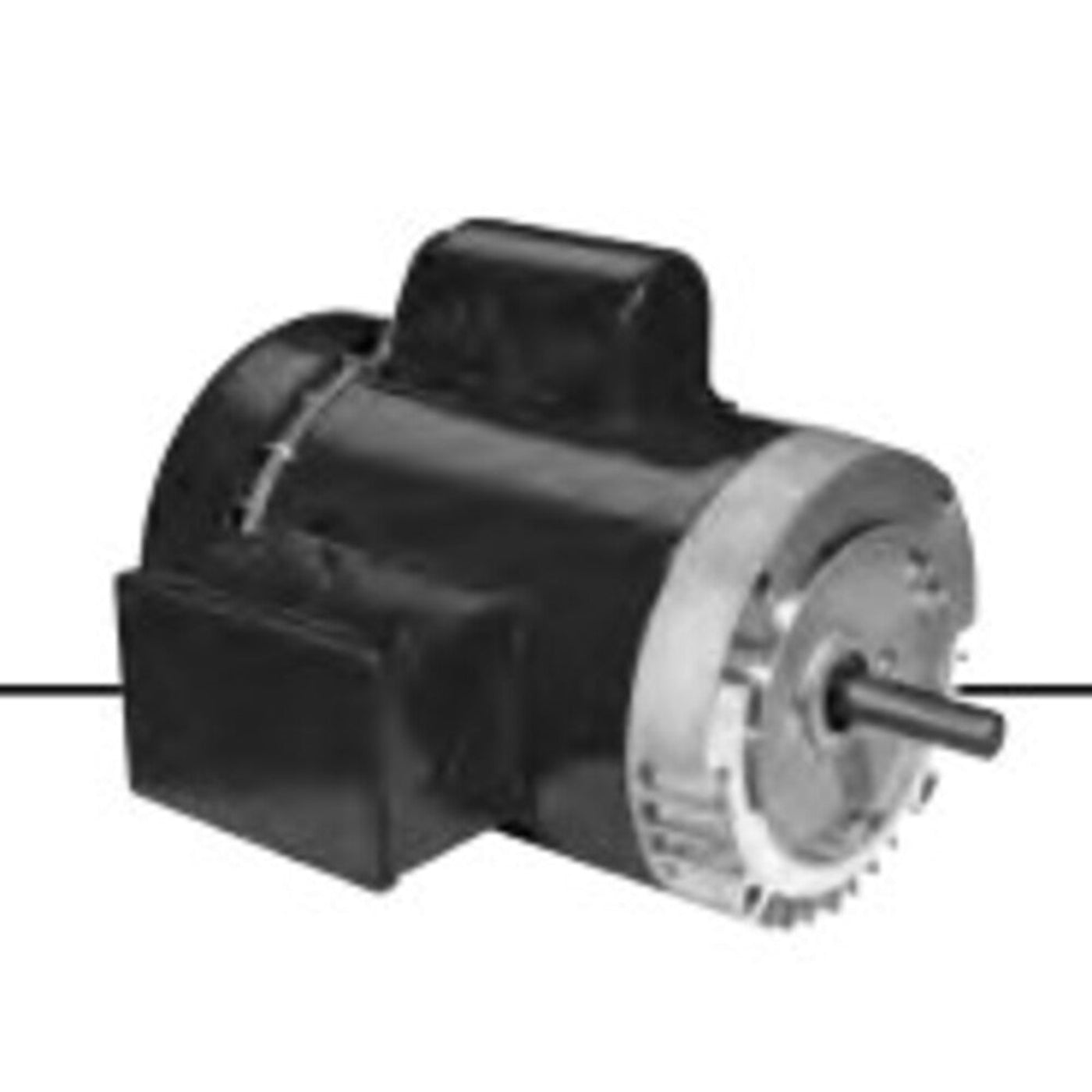

U.S. Motors T32CA1JCR General Purpose Single Phase TEFC C-Face Motor - T32CA1JCR
The U.S. Motors T32CA1JCR is a general-purpose single-phase motor designed for various applications. This motor features a TEFC design and operates at a voltage rating of 115/208-230. With a power output of one and a half horsepower and a full load speed of 3600 RPM, this motor is suitable for tasks requiring reliability and efficiency.
Product Highlights
This motor is ideal for HVAC applications and other industrial uses.
Features
- Power Output: 1.5 HP
- Full Load Speed: 3600 RPM
- Frame Size: 56C
Specifications
| Voltage Rating |
115/208-230 V |
| Duty |
Continuous Duty |
| Design |
L |
| Frame |
56C |
| Service Factor |
1.15 |
| Full Load RPM |
3450 RPM |
| Poles |
2 |
| C Dimension |
12.8 in |
| Frequency |
60 Hz |
| Full Load Amps |
14.6 / 8.1–7.4 A |
| Mounting |
C-Face - Less Base, C-Face |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Insulation Class |
B |
| Full Load Efficiency |
78.5% |
| Thermal Protection |
Automatic Reset |
| Weight |
32.0 lb |
| UPC |
786382069544 |
| Brand |
U.S. Motors |
| MPN |
T32CA1JCR |
What our Experts Think
-
Compact Power: The U.S. Motors T32CA1JCR delivers 1.5 HP at up to 3600 RPM, making it a solid choice for light to medium-duty machinery like pumps, compressors, and conveyors.
-
Single Phase Versatility: Operates on 115/208–230V power, ideal for general-purpose use in facilities with standard single-phase supply.
-
Durable Design: Built with a Totally Enclosed Fan Cooled (TEFC) enclosure and rolled steel frame, offering excellent protection against dust, moisture, and contaminants.
-
Easy Mounting: The 56C frame and footless C-Face mount allow for quick and secure installation in tight or specific motor setups.
-
Safe & Reliable: Features include ball bearings, Class B insulation, and automatic thermal protection for dependable operation and extended motor life.
-
Energy-Conscious: Offers a full-load efficiency of 78.5%, supporting energy savings without compromising performance.
Q&A
Q: What is the U.S. Motors T32CA1JCR used for?
A: This motor is ideal for general-purpose applications such as pumps, air compressors, fans, and conveyors where reliable single-phase power is needed.
Q: What are the key specifications of this motor?
A: It provides 1.5 horsepower at 3450 RPM, runs on 115/208-230V single-phase power, and comes in a 56C frame with a Totally Enclosed Fan Cooled (TEFC) enclosure.
Q: What is the mounting and shaft configuration?
A: The motor features a C-face mount without a base and includes a keyed shaft measuring 5/8" in diameter by 1 7/8" in length.
Q: What are the electrical and performance characteristics?
A: It operates at 14.6/8.1-7.4 amps, has a 1.15 service factor, and is built with Class B insulation for thermal protection.
Q: What are the construction and durability features?
A: The motor has a durable rolled steel frame, ball bearings, and is rated for continuous duty in ambient temperatures up to 40°C.
Q: Why choose the T32CA1JCR model?
A: This model offers dependable, efficient performance in rugged conditions, making it a solid choice for both new and replacement installations.
Maintenance Tips
-
Routine Inspection: Regularly check for unusual vibrations, overheating, or noise. Ensure the motor operates smoothly without any irregularities.
-
Cleanliness: Keep the motor free from dust and debris. Since it's a Totally Enclosed Fan Cooled (TEFC) design, ensure the ventilation openings are unobstructed to maintain proper airflow.
-
Lubrication: Periodically lubricate the ball bearings as per the manufacturer's recommendations to ensure smooth operation and reduce wear.
-
Electrical Connections: Inspect all electrical terminals and connections for signs of corrosion or looseness. Tighten and clean as necessary to maintain optimal electrical performance.
-
Load Monitoring: Ensure the motor is not subjected to loads exceeding its 1.5 HP capacity. Overloading can lead to overheating and reduced lifespan.
-
Environmental Conditions: Operate the motor within its specified ambient temperature range (up to 40°C). Protect it from exposure to excessive moisture or corrosive environments.
-
Storage: If the motor is not in use, store it in a dry, dust-free environment. Rotate the shaft periodically to prevent bearing damage.
