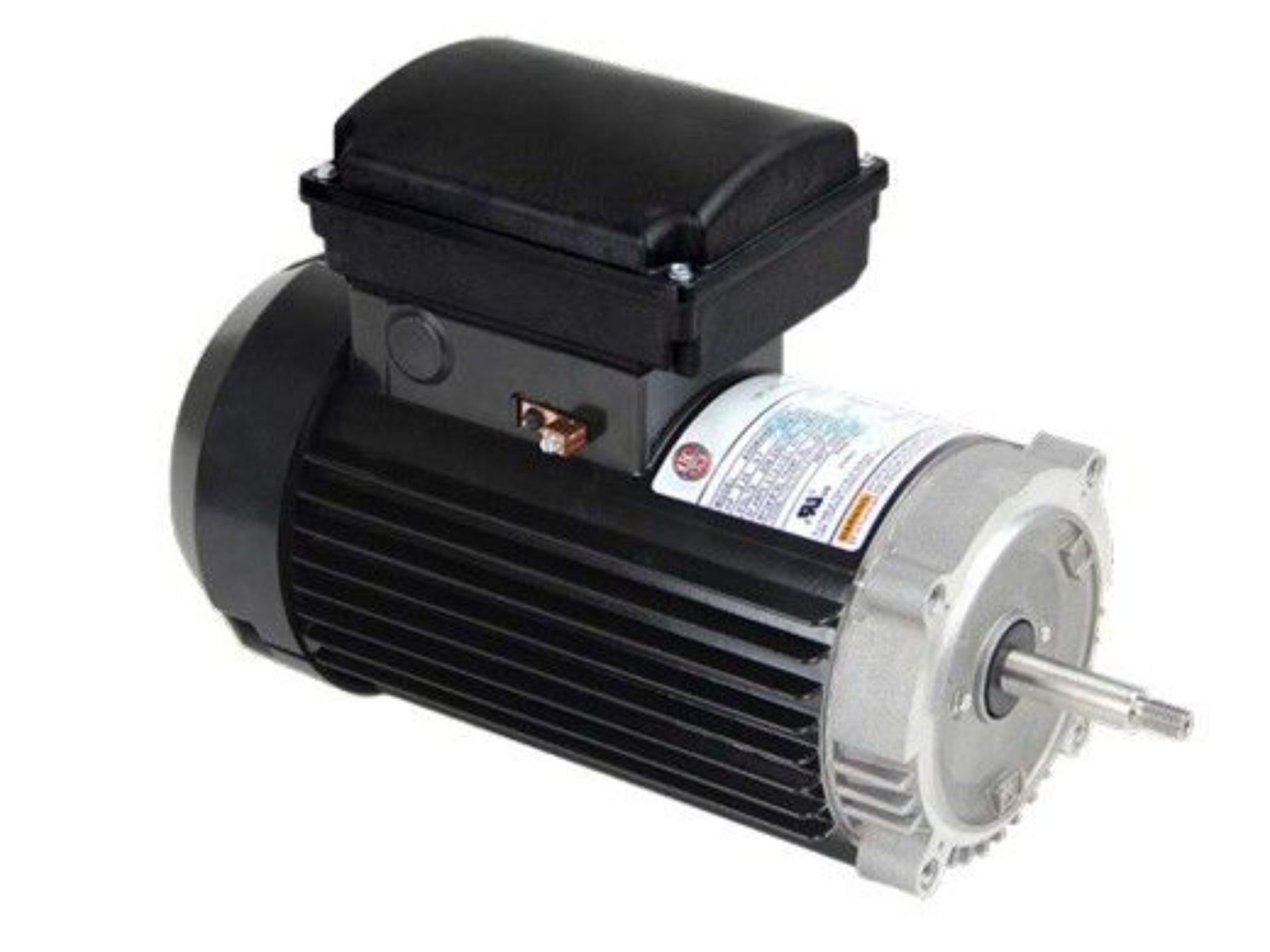

U.S. Motors TET225 Aqua Shield Pro TEFC C-Flange Pool & Spa Motor | 2.25 HP 115/208-230 V 56J Frame - TET225
The U.S. Motors TET225 motor is designed for pool and spa applications. Rated at 2.25 horsepower, it operates at 115/208-230 volts with a 56J frame. This motor features advanced construction to resist moisture and withstand harsh environments.
Product Highlights
The Aqua Shield Pro motor is ideal for wet and humid conditions, ensuring reliable performance. Its corrosion-resistant aluminum construction promotes durability.
Features
- IPX5 rated for protection against water jets
- Finned aluminum frame enhances cooling
- Totally enclosed design minimizes debris intrusion
Specifications
| Horsepower |
2.25 HP |
| Frame Size |
56J |
| Voltage Rating |
115/208-230V |
| Speed |
1 Speed |
| Full Load RPM |
3450 RPM |
| Enclosure |
ODP – Open Drip Proof |
| Thermal Protection |
Yes (Automatic Reset) |
| Conduit Box |
Top Mounted |
| Flange Type |
C Frame |
| Weight |
31 lbs |
| Brand |
U.S. Motors |
| Model Number |
TET225 |
What our Experts Think
-
2.25 HP Power: Provides ample performance for pool and spa applications, ensuring efficient operation of pumps and water systems.
-
TEFC Design: Totally Enclosed Fan Cooled (TEFC) construction offers excellent protection against moisture, dust, and debris, perfect for wet environments.
-
C-Flange Mounting: C-Flange design makes it ideal for quick installation and secure coupling in pool and spa equipment.
-
Dual Voltage Flexibility: Operates on 115/208-230V systems, providing flexibility for different electrical configurations.
-
56J Frame: Standardized frame ensures easy replacement and compatibility with existing equipment.
Q&A
Q: What is the U.S. Motors TET225?
A: The TET225 is a 2.25 HP TEFC (Totally Enclosed Fan Cooled) motor with a C-flange mounting, specifically designed for pool and spa applications, offering reliable, high-performance operation.
Q: What are the key features?
A: 2.25 horsepower, TEFC design for protection against dust and moisture, 115/208-230V dual voltage, and a 56J frame with C-flange mounting for easy installation in pool and spa systems.
Q: Where is this motor typically used?
A: Ideal for pool pumps, spa equipment, and water circulation systems, ensuring efficient, durable operation in residential and commercial aquatic environments.
Q: Why choose the TET225 model?
A: The TEFC enclosure provides superior protection against the elements, while the C-flange mount ensures easy and secure installation, making it a great choice for demanding pool and spa applications.
Q: Is the TET225 suitable for outdoor use?
A: Yes, the TEFC design protects internal components, making it suitable for outdoor environments where exposure to moisture and dust is common.
Maintenance Tips
-
Keep the motor clean to prevent debris buildup, which can block airflow and impact cooling, especially for TEFC (Totally Enclosed Fan Cooled) motors.
-
Lubricate bearings as per manufacturer guidelines to ensure smooth operation and reduce wear.
-
Inspect the C-flange mounting for secure attachment and alignment to reduce vibration and mechanical stress.
-
Verify voltage supply (115/208-230V) to ensure the motor is running efficiently and within the correct operating range.
-
Monitor the motor for unusual noise, heat, or vibration to detect early signs of mechanical issues or wear.
-
Inspect electrical connections regularly for tightness and signs of wear to prevent overheating or faults.
-
Test insulation resistance annually to ensure electrical safety and extend the motor's service life, especially in humid environments like pools and spas.
