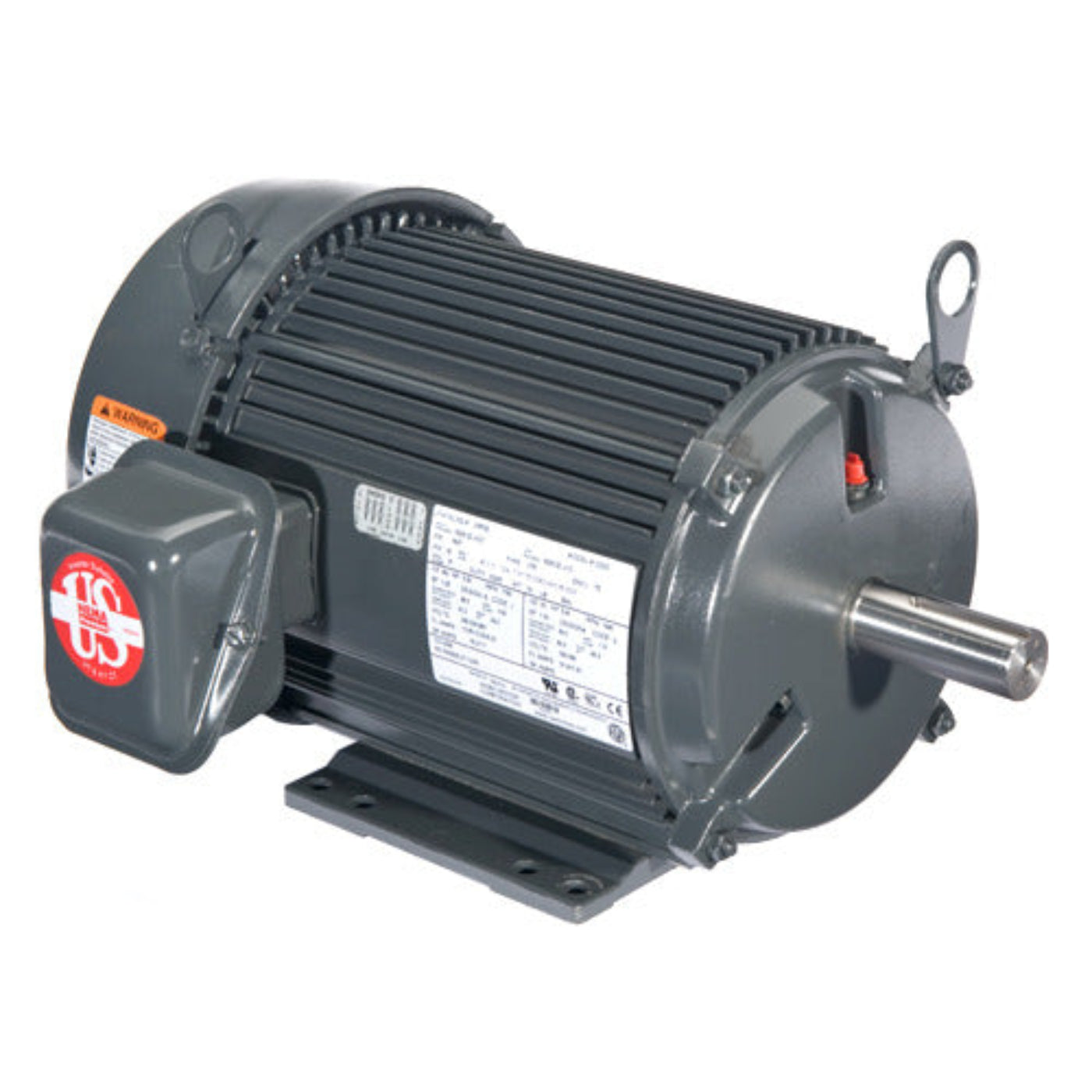

U.S. Motors U10P3D General Purpose Three Phase TEFC Horizontal - Footed Motor - U10P3D
The U.S. Motors U10P3D is a general-purpose motor designed for various industrial applications. This three-phase motor offers a reliable performance with a power output of ten horsepower. The motor operates at a speed of one thousand two hundred revolutions per minute (RPM) and can handle both fifty and sixty hertz frequency. The motor is ideal for powering equipment such as fans, blowers, compressors, and pumps.
Product Highlights
This motor provides continuous duty operation and features an aluminum frame material. It supports horizontal footed mounting, allowing easy installation in various setups.
Features
- Full load efficiency: 91.7%
- Voltage rating: 208-230/460 & 190/380
- TEFC enclosure for reliable operation
Specifications
| Brand |
U.S. Motors |
| Model (MPN) |
U10P3D |
| Application |
General Purpose |
| Power Rating |
10 HP |
| RPM |
1200 |
| Full Load RPM |
975 / 1180 RPM |
| Poles |
6 |
| Voltage Rating |
208-230/460 & 190/380 V |
| Phase |
Three Phase |
| Frequency |
50/60 Hz |
| Full Load Amps |
27.1-24.6 / 12.3 |
| Efficiency |
91.7% (Full Load) |
| Duty |
Continuous |
| Enclosure Type |
TEFC – Totally Enclosed Fan Cooled |
| Frame Size |
256T |
| Frame Material |
Aluminum |
| Insulation Class |
F |
| Mounting Type |
Horizontal – Footed |
| Weight |
250 lbs |
| UPC / EAN |
786382088316 |
What our Experts Think
-
Powerful Performance: Delivers 10 HP at 1180 RPM, suitable for demanding industrial applications requiring high torque and consistent speed.
-
Versatile Voltage Compatibility: Operates on 208-230/460V 3-phase systems, accommodating various industrial setups.
-
Durable Construction: Features a 256T frame and Totally Enclosed Fan Cooled (TEFC) design, ensuring protection against harsh environments
-
Continuous Duty: Built for continuous operation, providing reliable performance over extended periods.
-
Energy Efficient: Engineered for high efficiency, helping to reduce energy consumption and operational costs.
-
Flexible Mounting: Designed for horizontal footed mounting, offering easy integration into existing systems.
-
Trusted Brand: Manufactured by U.S. Motors (Nidec), known for producing high-quality, reliable motors.
-
Clearance Opportunity: Available at a reduced price, providing excellent value without compromising on quality.
Q&A
Q: What is the U.S. Motors U10P3D General Purpose Three Phase TEFC Horizontal Motor?
A: The U.S. Motors U10P3D is a high-efficiency, three-phase electric motor designed for general-purpose applications. It features a Totally Enclosed Fan Cooled (TEFC) design, offering durable protection against dust, dirt, and moisture.
Q: What are the key features of the U.S. Motors U10P3D motor?
A: This motor includes a footed horizontal mounting, TEFC construction, and is built for reliable, long-term operation in a variety of industrial environments. It’s engineered for consistent performance, reduced maintenance, and energy savings.
Q: Where can the U.S. Motors U10P3D be used?
A: Ideal for industrial machines, pumps, fans, compressors, and other equipment requiring a dependable, high-performance motor.
Q: What benefits does the U.S. Motors U10P3D offer?
A: The TEFC design ensures protection from contaminants, while the three-phase system delivers efficient, powerful performance. It’s built for longevity and reduced operational costs.
Maintenance Tips
-
Regular Cleaning: Keep the motor clean and free of debris to prevent overheating.
-
Lubrication: Ensure bearings are properly lubricated to minimize wear.
-
Electrical Checks: Monitor voltage and current to ensure they remain within specified limits.
-
Visual Inspections: Regularly inspect for signs of wear or damage.
-
Proper Storage: If not in use, store the motor in a dry, clean environment to prevent deterioration.
