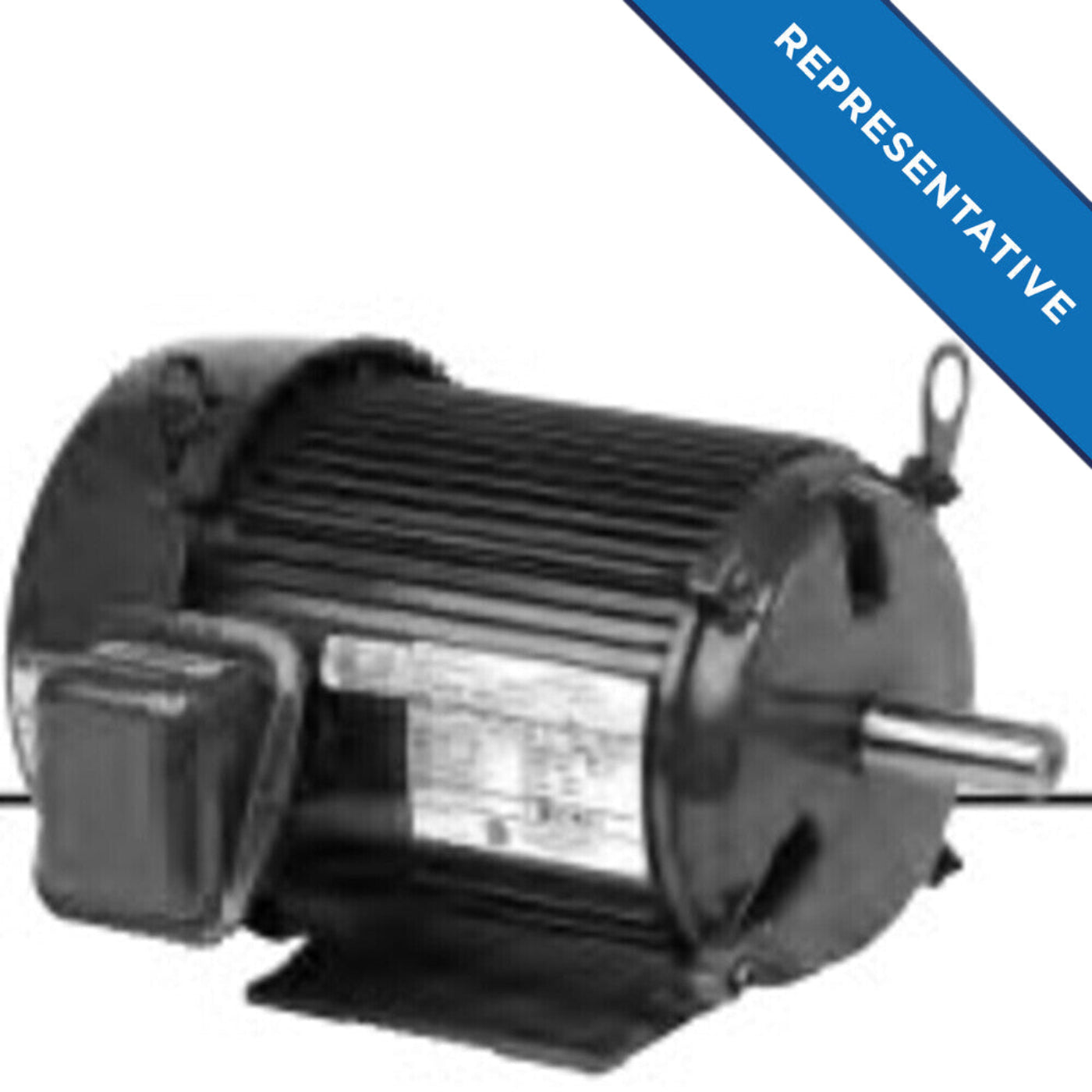

U.S. Motors U32P4D General Purpose Three Phase TEFC Horizontal - Footed Motor - U32P4D
The U.S. Motors U32P4D is a general purpose motor designed for various industrial applications. This three-phase motor operates at 1.5 horsepower and provides a speed of 900 rpm. It is suitable for use with equipment such as fans, blowers, and pumps. The motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability in challenging conditions.
Product Highlights
This motor is effective for continuous-duty applications across a wide range of tasks. Its aluminum frame offers a lightweight yet sturdy solution, while the TEFC enclosure protects internal components from dust and moisture.
Features
- Power: 1.5 hp
- Voltage: 208-230/460
- Frame: 184T
Specifications
| Service Factor |
1.25 |
| Full Load Efficiency |
80% |
| Weight |
70 lb |
| Full Load Amps |
6.4-6.4/3.2 |
| Mounting Type |
Horizontal - Footed |
| Insulation Class |
F |
| C Dimension |
16.8 in |
| Voltage Rating |
208-230/460 & 190/380 V |
| Enclosure Type |
TEFC (Totally Enclosed Fan Cooled) |
| Application |
General Purpose |
| Poles |
8 |
| Duty Cycle |
Continuous Duty |
What our Experts Think
-
Powerful & Efficient: With a solid three-phase design, the U32P4D is ideal for high-power applications such as pumps, compressors, and industrial machinery.
-
TEFC Protection: The Totally Enclosed Fan Cooled (TEFC) construction ensures the motor stays protected from external contaminants like dust, dirt, and moisture, making it perfect for harsh environments.
-
Horizontal Foot Mounting: The footed design provides easy installation and stable support in various industrial settings.
-
Versatile & Durable: Engineered for continuous-duty performance, it guarantees long-lasting reliability across a range of commercial and industrial applications.
-
Efficient Operation: Optimized for both power and energy efficiency, helping to reduce operational costs over time.
Q&A
Q: What is the U.S. Motors U32P4D motor designed for?
A: The U32P4D is a general-purpose, three-phase motor ideal for powering industrial machinery such as pumps, conveyors, fans, and compressors in various commercial and industrial settings.
Q: What type of enclosure does the U32P4D motor have?
A: It features a TEFC (Totally Enclosed Fan Cooled) enclosure, which provides protection from dust, dirt, moisture, and other contaminants, ensuring the motor operates efficiently and lasts longer in challenging environments.
Q: What are the key specifications of the U32P4D motor?
A: The U32P4D is a three-phase motor with a horizontal footed mount for easy installation. It is designed for continuous-duty operation in various industrial applications.
Q: Why choose a TEFC motor like the U32P4D?
A: The TEFC design helps the motor maintain optimal performance in harsh environments by preventing debris and moisture from entering the motor housing, making it suitable for use in industrial settings with potential exposure to contaminants.
Q: Where is the U32P4D motor best used?
A: The U32P4D motor is best for use in heavy-duty applications in industries such as HVAC, pumping, and manufacturing, where reliable, continuous power is essential.
Maintenance Tips
-
Keep Exterior Clean:
Regularly wipe down the motor housing to prevent dust and dirt buildup, which can block air vents and reduce cooling efficiency.
-
Inspect Electrical Connections:
Periodically check all wiring and terminal connections for tightness and corrosion. Loose or corroded connections can lead to overheating or failure.
-
Ensure Proper Ventilation:
TEFC (Totally Enclosed Fan Cooled) motors rely on airflow for cooling. Ensure that the motor has adequate space around it for proper ventilation and that cooling fans are functioning properly.
-
Monitor Motor Temperature:
Overheating is a sign of overload, poor ventilation, or faulty wiring. Use a thermometer to monitor the motor’s temperature and ensure it stays within safe operating limits.
-
Check for Vibration and Noise:
Unusual vibrations or noises can indicate misalignment, imbalance, or bearing issues. Regularly inspect the motor for these signs and address them quickly to avoid more serious damage.
-
Lubricate Bearings as Needed:
Follow the manufacturer's recommendations for lubrication intervals. Use the correct lubricant to reduce friction and wear on the bearings.
-
Avoid Moisture and Contaminants:
Although TEFC motors are resistant to moisture, prolonged exposure to humidity, water, or other contaminants can still cause internal damage. Ensure that the motor remains dry and clean.
-
Perform Regular Inspections:
Regularly inspect the motor for any signs of wear, including shaft misalignment or unusual heating. Addressing these early can extend the motor’s life.
