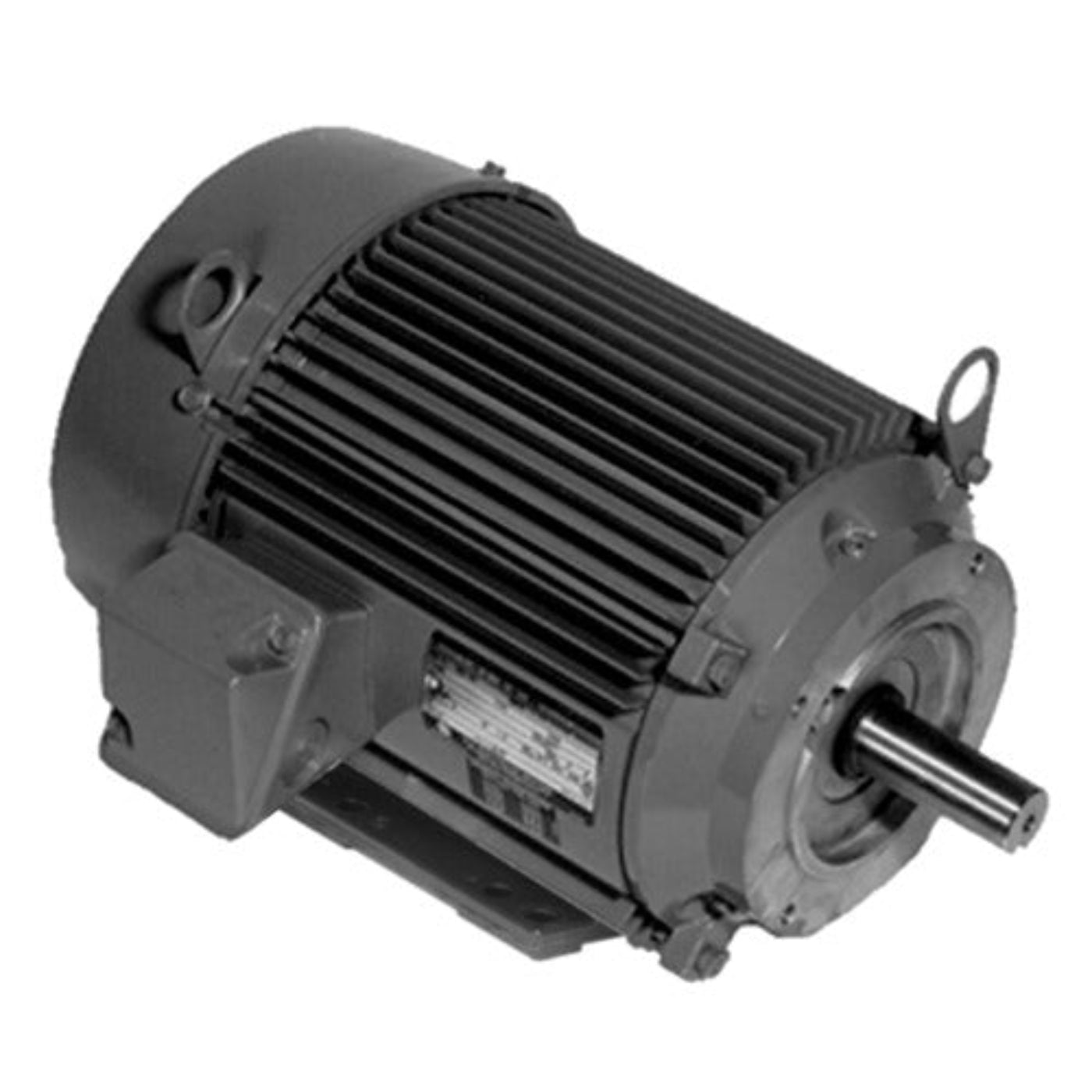

U.S. Motors U5P2DK General Purpose Three Phase, TEFC Unimount NEMA Premium Efficient - IE3, C-Face Footed Motor -U5P2DK
The U.S. Motors U5P2DK is a General Purpose Three Phase motor designed to provide reliable performance in various applications. This motor has a 5 horsepower rating and operates at 1800 rpm. It features a TEFC enclosure and is suitable for both 50 and 60 Hz operations.
Product Highlights
This motor is ideal for use in pumps, fans, compressors, and other general-purpose applications, especially in environments that may be damp or dusty.
Features
- 5 HP, 1800 RPM, Three Phase
- TEFC Enclosure Design for Protection
- Voltage Rating: 208-230/460 & 190/380
Specifications
| Phase |
Three Phase |
| Voltage Rating |
208-230/460 & 190/380 |
| Motor Application |
General Purpose |
| Poles |
4 |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Insulation Class |
F |
| Full Load Amps |
13.6-12.3/6.2 |
| Frequency |
50/60 Hz |
| Service Factor |
1.25 |
| Mounting |
Horizontal - Footed |
| RPM |
1800 RPM |
| Frame Material |
Aluminum |
| Weight |
80.0 LB |
| Frame |
184TCH |
| Brand |
U.S. Motors |
| MPN |
U5P2DK |
What our Experts Think
-
Powerful Performance: The U.S. Motors U5P2DK provides 5 HP at 1800 RPM, making it an excellent choice for industrial applications that demand consistent and reliable power.
-
Energy Efficient: With NEMA Premium Efficiency (IE3), it reduces energy consumption, offering significant savings while maintaining top-notch performance.
-
Durable Design: Featuring a Totally Enclosed Fan Cooled (TEFC) construction, this motor is built to last, with protection against dust, moisture, and contaminants.
-
Versatile Usage: Ideal for general-purpose applications like HVAC systems, pumps, and conveyors, where reliability and efficiency are essential.
-
Easy Installation: Designed with a C-Face footed mount for simple integration into existing systems, ensuring minimal downtime during installation.
Q&A
Q: What is the U.S. Motors U5P2DK motor used for?
A: The U.S. Motors U5P2DK is a general-purpose three-phase motor designed for industrial applications, providing reliable performance in various machinery and equipment.
Q: What makes the U5P2DK motor efficient?
A: The U5P2DK motor is IE3-rated, meaning it meets NEMA Premium Efficiency standards for energy savings and reduced operational costs.
Q: What type of construction does the U5P2DK motor feature?
A: This motor features a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and protection against harsh environments.
Q: Is the U5P2DK motor easy to install?
A: Yes, the U5P2DK motor has a C-face footed mount for easy integration into existing systems.
Q: How reliable is the U5P2DK motor?
A: With robust construction and premium efficiency, the U5P2DK offers long-lasting, trouble-free operation in demanding applications.
Maintenance Tips
-
Regular Inspection: Check the motor for signs of wear, unusual vibrations, or overheating.
-
Keep Clean: Ensure the motor is free from dust and debris to maintain proper ventilation.
-
Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions.
-
Check Electrical Connections: Inspect all wiring and connections for signs of wear or corrosion.
-
Monitor Load & Voltage: Ensure the motor is not overloaded and that the voltage is within the specified range.
-
Proper Storage: If not in use, store the motor in a dry, clean, and well-ventilated area.
